E N G L I S H
1
S P E C I F I C A T I O N S
GENERAL
Power Supply DC 11 -14V
Polarity Negative Ground
Speaker impedance 4 ohms
Power Output 4 x 70W
DVD/ CD PLAYER
System Compact disc audio system
Usable disc Compact disc, DVD video
Sampling frequency 44.1KHz
No of quantization bits 1bit
Frequency 20-20,000Hz
Number of channels 2 stereo
S/N Ratio 90dB
RADIO SECTION
FM
Frequency Range 87.5-108 Mhz
Usable Sensitivity Better than 15dB at S/N 30 dB
Stereo Separation 25 dB at 1KHz
S/N Ratio 50 dB
MW
Frequency Range 522-1620 Khz
Intermediate Frequency 450KHz
Usable Sensitivity Better than 45dB
S/N Ratio 40 dB
REMARK :
Specifications subject to change without notice.

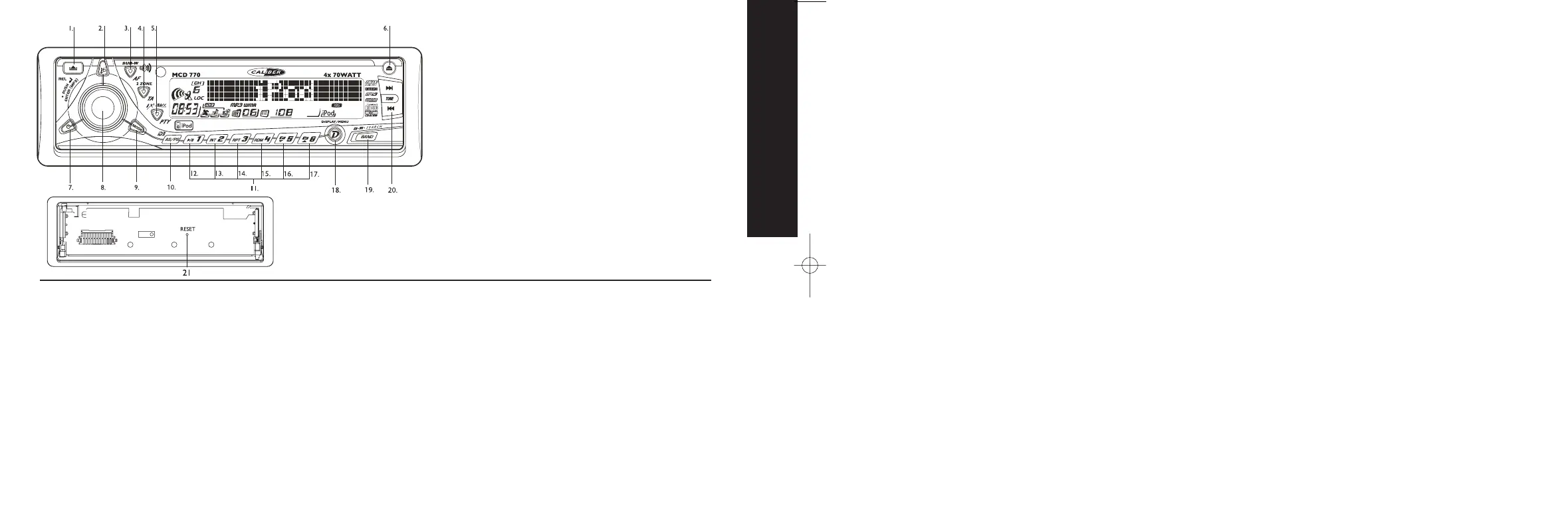

1. PANEL RELEASE BUTTON
2. MUTE BUTTON
3.AF/SUB-W BUTTON
4.TA BUTTON
5. PTY/IX BASS BUTTON
6. DISC EJECT
7. POWER BUTTON
8. ROTARY VOLUME KNOB
AUDIO SELECT BUTTON/ MP3 ENTER BUTTON
9. MODE BUTTON
10.AUTOMATICALLY STORE/PRESET SCAN (AS/PS)/MP3 ID3/
IPOD INFORMATION BUTTON
11. PRESET STATIONS BUTTONS (1~6)
12.PAUSE BUTTON
13. STOP BUTTON
14. REPEAT BUTTON
15. RANDOM BUTTON/DVD MENU
16. PREVIOUS FOLDER BUTTON
17. NEXT FOLDER BUTTON/ DVD AUDIO
18. DISPLAY BUTTON/ MENU BUTTON
19. BAND/MP3 SEARCH BUTTON
20.TUNING UP/DOWN,TRACK UP/DOWN BUTTONS
21. RESET BUTTON
E N G L I S H
3
E N G L I S H
2
D I S C P L A Y
P R E C A U TI O N S
• Use only in a 12-volt DC negative-ground electrical system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the
unit.
• When replacing the fuse, be sure to use one with an identical amperage rating.
• Using a fuse with a higher amperage rating may cause serious damage to the unit.
• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are
dangerous to the eyes.
• Make sure that pins or other objects do not get inside the unit; they may cause
malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the
temperature in the car become normal before operating the unit.
• Keep the volume at a level at which you can hear outside warning sounds (horns
sirens, etc.).
CD N OTE S
• Playing a defective or dusty CD can cause dropouts in sound.
• Hold CDs as illustrated.
• DO NOT touch the unlabeled side.
• DO NOT attach any seal, label or data protection sheet to either side of a disc.
• DO NOT expose a CD to direct sunlight or excessive heat.
• Wipe a dirty CD from the center outward with a cleaning cloth.
• Never use solvents such as benzine or alcohol.
• This unit cannot play 3-inch ( 8cm ) CDs.
• NEVER insert a 3-inch CD contained in the adapter
or an irregularly shaped CD.
• The unit may not be able to eject it, resulting in a
malfunction.
B E F OR E O P E R ATION
• DO NOT raise the volume level too much, as this
will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operation.
C A U T I O N
DO NOT open covers and do not repair by yourself.
Consult the dealer or an experienced technician for help.
Installation procedures
First complete the electrical connections, and then
check them for correctness.
Anti-Theft System
This unit is equipped with a detachable panel.
Removing this panel makes the radio totally inoperable.
Removing the panel
1. Switch off the power of the unit.
2. Remove the detachable panel (REL button).
3. Gently press the button of the case and open the
cover. Place the panel into the case and take it with you
when you leave the car.
Install detachable panel
1.Fix right part of face plate in the right part of panel slot
of the unit.
2.Press down the left side of the face plate until it clicks
into the panel slot of the unit.
Remove the unit
Switch of the power of the unit.
1. Remove the panel and the trim plate.
2. Insert both T-Keys into hole in front of the set until
they lock.
3. Pull out the unit.
BASIC OPERATIONS
ON/OFF
Switch on the unit by pressing POWER button(7) or any other button on the radio
(except eject) when system is on, press POWER button(7) to turn off the unit.
FACEPANEL RELEASE
Press REL button (1) to remove the facepanel.
OPEN / CLOSE THE PANEL
Press the Open button (6) to slide down (open) a closed panel or to slide up (close)
an opened panel.
LOADING A CD
When the panel is in the slide down position, the disc slot becomes accessible.
Insert a CD through the disc slot, the CD will be automatically loaded and the panel
will also close automatically & playback will begin. If no CD is inserted, press Open
button again to slide up(close) the panel.
EJECTING A CD
Press Open button (6) to slide down the panel, if a CD is loaded, it will be ejected
automatically. No further key press is needed.
If the ejected CD is not being removed, after 10 seconds it will be reloaded
automatically.And the panel will automatically slide up after disc has been reloaded.
Warning : If the ejected disc remains in the slot, the Open button will not function, so
closing the panel by using Open button is prevented unless the disc is removed or
reloaded.
CAUTION: A) Please always use the “OPEN” button to slide up/ down the front
panel. Please never try to slide up or down the front panel manually, this will cause
serious & permanent damage to the slide down mechanism, and this will void the
warranty.
B) Please do not try to detach / remove the front panel ( by pressing the detach
button ) or attach the front panel when the panel is in the slide down position.This
may cause serious & permanent damage to the unit & panel. Only attach or detach
the front panel when the panel is in the slide up position.
SOUND ADJUSTMENT
Press the button (2) “MUTE” momentarily to mute the audio volume, and "Mute" will
flash in the display. Press the mute button again to restore volume to the previous setting.
SOURCE
Press button (9) “MODE“ to switch between Tuner, CD, iPod and Aux Line-In.
DISPLAY
Press the button (18) “DISPLAY/MENU” repeatedly to select the following different
Display options:
Spectrum mode 1 -> Spectrum mode 2 -> Spectrum mode 3 -> Default Display
MENU OPERATIONS
Press the button (18) “DISPLAY/MENU” longer then 3 seconds to access the menu.
Press button (8) “AUDIO” momentarily to move forward to the next option.The
menu can also be navigated by using the buttons (20) Tuning Up or Tuning Down to
move to the next or previous option. Once the desired option appears on the display,
adjust that option by rotating the volume control within 5 seconds. The following
options can be adjusted:
CONTRAST
The contrast level of the display is set at “contrast 05” by default. Rotate the volume
control to adjust the contrast level from 00 to 10.
CLOCK FORMAT
This option allows selection of a 12 hour or 24 hour clock format.“CLK FORMAT 12”
is the default setting. Rotate the volume button to change the 24 hour clock format.
TIME SET
The time on the clock is set to 12:00 by default. User can adjust the time by using the
volume up button to adjust the minutes and volume down button to adjust the hours.
NOTE: If the unit is equipped with the optional RDS function, the clock will be
automatically updated by the RDS broadcasting, provided if the RDS broadcast does
include the clock information (RDS CT FUNCTION).
LOCAL/ DISTANCE SELECTOR
User can use the volume up or down button to select between local or distance
mode.This feature is used to designate the strength of the signals at which the radio
will stop during automatic tuning.“Distance” is the default setting, allowing the radio
to stop at a broader range of signals.To set the unit to select only strong local
stations during automatic tuning, use the volume control button until “local” appears
in the display.
REGIONAL ON/OFF
Regional “off” will be displayed by default.The user now has 5 seconds to adjust by
using volume up/down button from “off” to “on”. If “on” is selected when the AF
search or PI seek, it will implement to station which have all the PI codes which are
the same as current station. If “off” is selected, when AF search or PI seek the regional
code in the formatt PI code will be ignored.A regional station is possible to be
received.
NOTE: The regional function on/off setting is valid when “AF” function is “on”.
1. Insert mounting bracket into the
dashboard, and bend the mounting
tabs out with a screwdriver. (Make
sure that lock lever is flush with
the mounting bracket. Not
projecting outward)
2. Secure the rear of the unit After
fixing mounting bolt and power
connector, fix the rear of the unit
to the car body by rubber cushion.
3. Insert trimplate
