SPECIFICATIONS:
Short circuit protection
Automatic thermal switch-off
Automatic overload switch-off
1 Ampere fuse
Input voltage: 11 to 14V DC (negative ground)
Exit voltage:Adjustable to 3V, 4.5V, 6V, 7.5V, 9V, 12V
Output current: Max. 1000mA
800mA for constant use at all output voltages.
Dimensions: length x width 120 x 40mm
Length cable: 1.5 meter
PREPARATION:
Remove the batteries from the portable device that you wish to connect.
Settings:
Determine the correct voltage, one can often find this on the device
or the original adapter.
Set the correct voltage on the Car Power Adapter with a screwdriver.
Make sure that the point of the arrow points towards the correct vol-
tage.

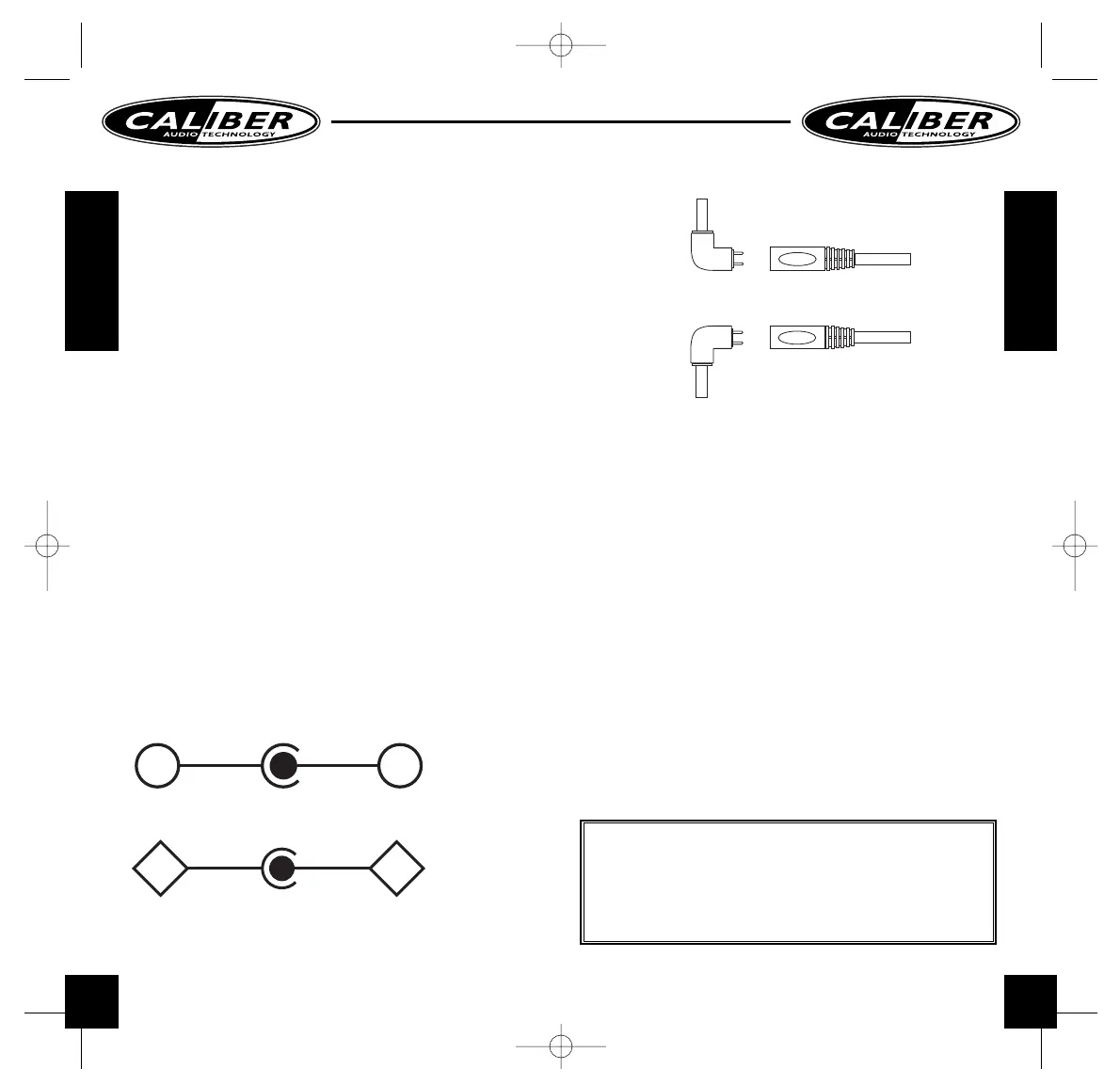

Now determine the polarity of the device to be connected; this could
be centre positive (+) or centre negative (-). This is often displayed
using the following symbols:
For centre positive:
For centre negative:
When your device is centre positive (+), then install the connector as
follows:
When your device is centre negative (-), then install the connector as
follows:
Place the adapter in the cigarette lighter plug, and check whether the
“power-on” LED illuminates green.
Check the correct polarity and the correct voltage of your device
once more as an incorrect setting can seriously damage the device.
Connect your device and turn it on as usual.
TROUBLESHOOTING
-“Power-on” LED does not light up
Possible causes:
• The cigarette lighter plug does not receive any DC voltage.
• Check if the cigarette lighter works by igniting it.
• Check if the cigarette lighter plus is connected properly.
• The metal parts of the plug do not make contact.
• Check the spring action of the metal parts.
• Carefully turn the plug until the LED lights up.
• The fuse has to be replaced.
• Open the plug by turning it counter clockwise in order to get to
the fuse.
-“Power-on” LED does light up, but the device does not work
Possible causes:
• Check whether the device is switched on.
• Check the polarity and the voltage.
• Check whether the adapter and your device are properly connected.
WARNING!
Improper use of this adapter can seriously damage your equipment.
Do not use if you are uncertain as to the correct voltage and correct
polarity. Do not use if your device needs a constant input higher than
1000mA. Do not cover the device during use. Make sure that the
adapter is not connected when starting the car. Prolonged use without
the motor running can cause an empty battery.
