Remove the Old Unit from the Dashboard

DIN Front Mount

DO NOT DISCONNECT WIRES

AT THIS TIME!

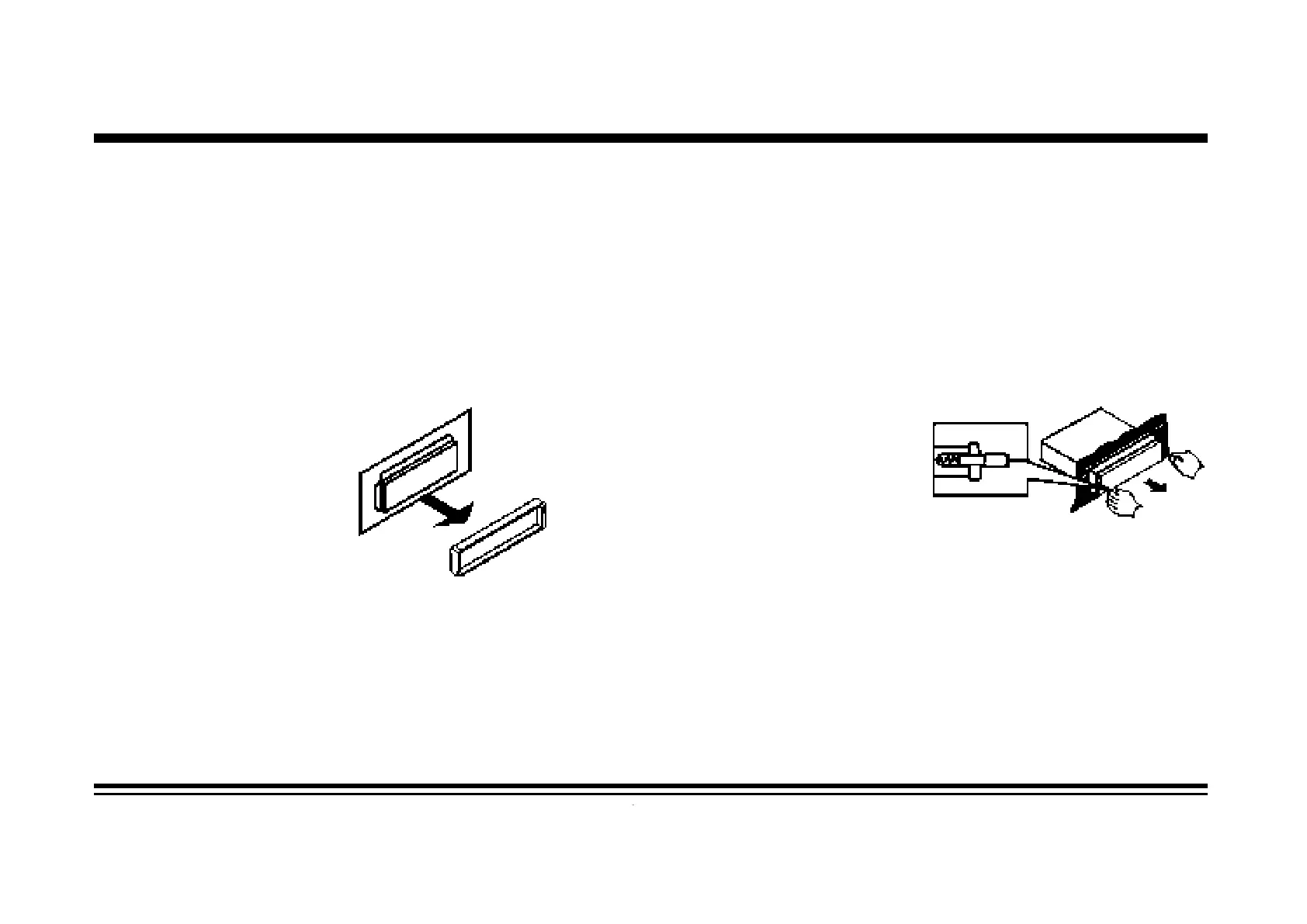

2. Insert the keys supplied with the

old unit into both sides of the unit

as shown in figure below until

they click. Pull to remove the old

unit from the dashboard.

1. Remove the outer trim frame.

INSTALLATION

Tools for Installation

Use the 2 removal wrenches of the old unit to take out the old unit and place with this brand new car radio. The following tools and sup-

plies may also be needed for the installation:

Tools for Installation: Philips Screw-drivers /Machine Screws /Wire Stripper /Wire Cutter /Hammer /Pencil /Electrical Tape /Electric Drill

Supplies for Installation: Machine Screws /Crimp Connectors /14 Gauge Wire for Power Connections /14-16 Gauge Speaker Wires

The above are not supplied.

Before you install

Automotive audio equipment installations can be challenging even to the most experienced of installation technicians. We strongly rec-

ommend that this unit should be professionally installed by a VAT registered installer (this is a requirement to validate the warranty).

IMPORTANT: Remove the two transport screws from the top fo the unit before installing.

Mark Polarity of the Speaker Wires

Marking the polarity of the speaker wires will make it easier to connect the existing speakers to your car radio. Consult wiring diagram

of existing head unit before disconnecting any wires. If you are not positive of the polarity of the existing wires from the speakers to the

head unit, install new wires.

1. While the old unit is playing, disconnect the wires from one speaker.

2. Take a length of masking tape and fold it around the wire so it forms a flag.

3. On the masking tape mark the polarity of the speaker wires (+&-), as well as left or right, and front or rear.

4. Double check that you marked the first speaker correctly by checking that the speaker wires are the same at the head unit.

5. Repeat this procedure for all of the speakers.

6. Mark the power, ground, and any other wires also.

Produkt Specifikationer

Mærke:	Caliber
Kategori:	Navigator
Model:	RMN801BT
Bredde:	- mm
Dybde:	- mm
Højde:	- mm
Vægt:	- g
Produktfarve:	Sort
Skærm diagonal:	6.2 "
Skærmopløsning:	800 x 480 pixel
Berøringsskærm:	Ja
Kompatible hukommelseskort:	MicroSD (TransFlash)
Bluetooth:	Ja
Indbyggede højttaler(e):	Ja
Understøttede videoformater:	DIVX, MPEG4
Understøttede lydformater:	MP3, WMA
Skærm:	LCD
Understøttede billedformater:	JPEG
Fjernbetjening inkluderet:	Ja
USB-tilslutning:	Ja
DIN størrelse:	2 DIN
AUX-indgang:	Ja
Understøttede radiobånd:	AM, FM
Håndfrit opkald:	Ja
Antenne:	Ja
Maksimal størrelse på hukommelseskort:	32 GB
Traffic Message Channel (TMC):	Ja
3D-landemærker:	Ja
Opbevaringsmedietype:	Hukommelseskort
Højttalereffekt:	300 W
Antal forudindstillede stationer:	30
CD-afspiller:	Ingen
DVD-afspiller:	Ingen
