Side 1/5

1. Safety instructions

1.1 Symbols

The symbols in these instructions point out risks and have the following meaning:

Warning in case of risks.

Non-observance can result in malfunctioning.

Non-observance can result in malfunctioning and

personal injury.

Information on proper product handling.

1.2 Intended use

• The KINAX 3W2 is a precision instrument. It is used to determine angular po-

sitions, processing and providing measured values of electrical output signals

for the downstream device. Encoders use for this purpose only.

• The angular position transmitter is not intended to measure rotation speed.

• The device is intended for installation in industrial plants and meets the requi-

rements of EN 61010-1.

• Device versions with explosion protection may only be used in the planned

purposes and have to be installed in a housing with an ingress protection of at

least IP20 according to EN 60529. The operation in other explosive atmospheres

is not permissible.

• Manufacturer is not liable for any damage caused by inappropriate handling,

modiﬁcation or any application not according to the intended purpose.

1.3 Commissioning

• Installation, assembly, setup and commissioning of the

device has to be carried out exclusively by skilled workers.

• Observe manufacturer’s operating instructions.

• Check all electric connections prior to commissioning the

plant.

• If assembly, electric connection or other work on the device

and the plant are not carried out properly, this may result

in malfunctioning or breakdown of the device.

• Safety measures should be taken to avoid any danger to

persons, any damage of the plant and of the equipment

due to breakdown or malfunctioning of the device.

• Do not operate the device outside of the limit values stated

in the operating instructions.

• Operation of device versions with explosion protection is

only permissible when...

- the details on the type label of the device match the on-

site conditions for the permissible Ex area in use (group

of equipment, equipment category, zone, temperature

class or maximum surface temperature)

- the details on the type label of the device match the

electrical supply network

- the device is undamaged and

- it has been checked that there is no explosive atmos-

phere, oils, acids, gases, vapors, radiation etc. present

during installation.

1.4 Repair work and modiﬁcations

Repair work and modiﬁcations shall exclusively be carried

out by the manufacturer. In case of any tampering with the

device, the guaranty claim shall lapse. We reserve the right

of changing the product to improve it.

1.5 Disposal

The disposal of devices and components may only be realised

in accordance with good professional practice observing the

country-speciﬁc regulations.

1.6 Transport and storage

Transport and store the devices exclusively in their original

packaging. Do not drop devices or expose them to sub-

stantial shocks.

Transmitter

for angular position

KINAX 3W2

57-3W2 Be 997 223-11 08.22

PM1000606 000 03

Camille Bauer Metrawatt AG

Aargauerstrasse 7

CH-5610 Wohlen/Switzerland

Telefon +41 56 618 21 11

Telefax +41 56 618 21 21

info@cbmag.com

www.camillebauer.com

Operating Instructions

2. Scope of delivery

- Transmitter for angular position KINAX 3W2, acc. made to order

- 3 clamps

- 1 Operating instructions in German, French and English

- 1 Type examination certiﬁcate, only with ATEX-approval

3. Application

The KINAX 3W2 transmitter converts the angular position of a shaft into a load

independent direct current signal, proportional to the angular position.

Due to the compact design, the angular position transmitters are particularly suitable

for installation in or mounting / on devices and apparatuses.

Explosion-proof “Intrinsically safe Ex ia IIC T6 Gb” versions with I.S. meas uring

output rounds off this series of transmitters.

4. Main features

• Compact angular position transmitters for installation or mounting

• Capacitive scanning system

• 0/4...20mA analog output signal with 2-, 3- or 4-wire

connection

• Drive shaft without stops, rotating

• Low starting troque

• Non-wearing and low-maintenance

• With explosion prevention „Ex ia IIC T6 Gb“ according to ATEX and IECEx

available

• With maritime execution (formerly GL, Germanischer Lloyd) available

5. Technical data

5.1 Measuring input

Measuring ranges: 0…≥ 5 to 0… ≤ 270°

Preferred range

0…10°, 0…30°, 0…60°, 0…90°,

0…180° or 0…270°

Shaft-diameter ∅ 2 mm, ∅ 6 mm ans 1/4”

Starting torque:

max 0.001 Ncm [0.0014 oz-in] at 2 mm shaft

max 0.03 Ncm [0.0425 oz-in] at 6 mm resp. 1/4” shaft

Direction of rotation: selectable when ordering

5.2 Measuring output

Output variable I

: Load-independent DC current, proportional to the

input angle

Standard ranges: 0…1 mA, 3- or 4-wire connection

0…5 mA, 3- or 4-wire connection

0…10 mA, 3- or 4-wire connection

4…20 mA, 2-wire connection or 0…20 mA, 3- or

4-wire connection adjustable with potentiometer

4…20 mA, 3- or 4-wire connection

Non-standard ranges: 0…> 1.00 to 0…< 20 mA

3- or 4-wire connection

DC voltage: Standard (Non-Ex):

Input voltage U

: 12...33 V

Explosion protection intrinsic ia:

Input voltage U

: 12...30 V

max. input current I

: 160 mA

max. input power P

: 1 W

max. internal capacitance C

: 10 nF

max. internal inductance L

: is negligible

Max. residual ripple: < 0.3 % p.p.

Setting time: < 3.5 ms

External resistance: R

ext

max. [kΩ] =

H [V] – 12 V

[mA]

H = Power supply

= Output signal end value

5.3 Accuracy

Reference value: Measuring range

Basic accuracy: Limit of error ≤ 0.5 % for ranges 0…≤ 150°

Limit of error ≤ 1.5 % for ranges from 0…> 150 to

0…270°

Reproducibility: < 0.2 %

Inﬂuence of temperature

(-40...+70 °C)

[-40...+158 °F]: ± 0.2 % / 10 K

5.4 Installation Data

Material: Housing: Metal (aluminium), Surface chromated

Alodine 400

Mounting position: Any

Admissible static

loading of shaft:

5.5 Regulations

Spurious radiation: En 61000-6-3

Immunity: EN 61000-6-2

Test voltage: 500 Veff, 50 Hz, 1 min.

all electrical connections against housing

Common-mode voltage: 100 V, 50 Hz

Housing protection: IP 50 acc. to EN 60529

5.6 Environmental conditions

Climatic rating: Standard version

Temperature – 25 to + 70 °C

[-13...158 °F]

Annual mean relative humidity ≤ 90 %

Version with improved climatic rating

Temperature – 40 to + 70 °C

[-40...158 °F]

Annual mean relative humidity ≤ 95 %

Ex version

Temperature – 40 to + 55 °C

[-40...131° F] at T6

resp. – 40 to + 70 °C

[-40...158 °F] at T5

resp. – 40 to + 75 °C

[-40...167 °F] at T4

Altitude: 2000 m max.

Transportation and

storage temperature: – 40 to 80 °C

[-40...176 °F]

Vibration resistance: 5 g per 2h in 3 directions

Shock resistance: 3x50 g per 10 splicing in all directions

5.7 Operation in potentially explosive environments:

Gas explosion

prevention: Labeling: Ex ia IIC T6 Gb

Conform to standard: ATEX:

EN 60079-0:2012

EN 60079-11:2012

IECEx:

IEC 60079-0:2011

IEC 60079-11:2011-06

Type of protection: ia

Temperature class: T6

Group according to

EN 60079-0:2012: II

• The operation in other explosive atmospheres is not permissible.

• It is not permissible to make any alteration to equipment that is used in poten-

tially explosive environments.

Devices with explosion prevention must be operated in accor-

dance with the stipulations of the operating instructions. The rele-

vant laws, regulations and standards for the planned application

must be observed.

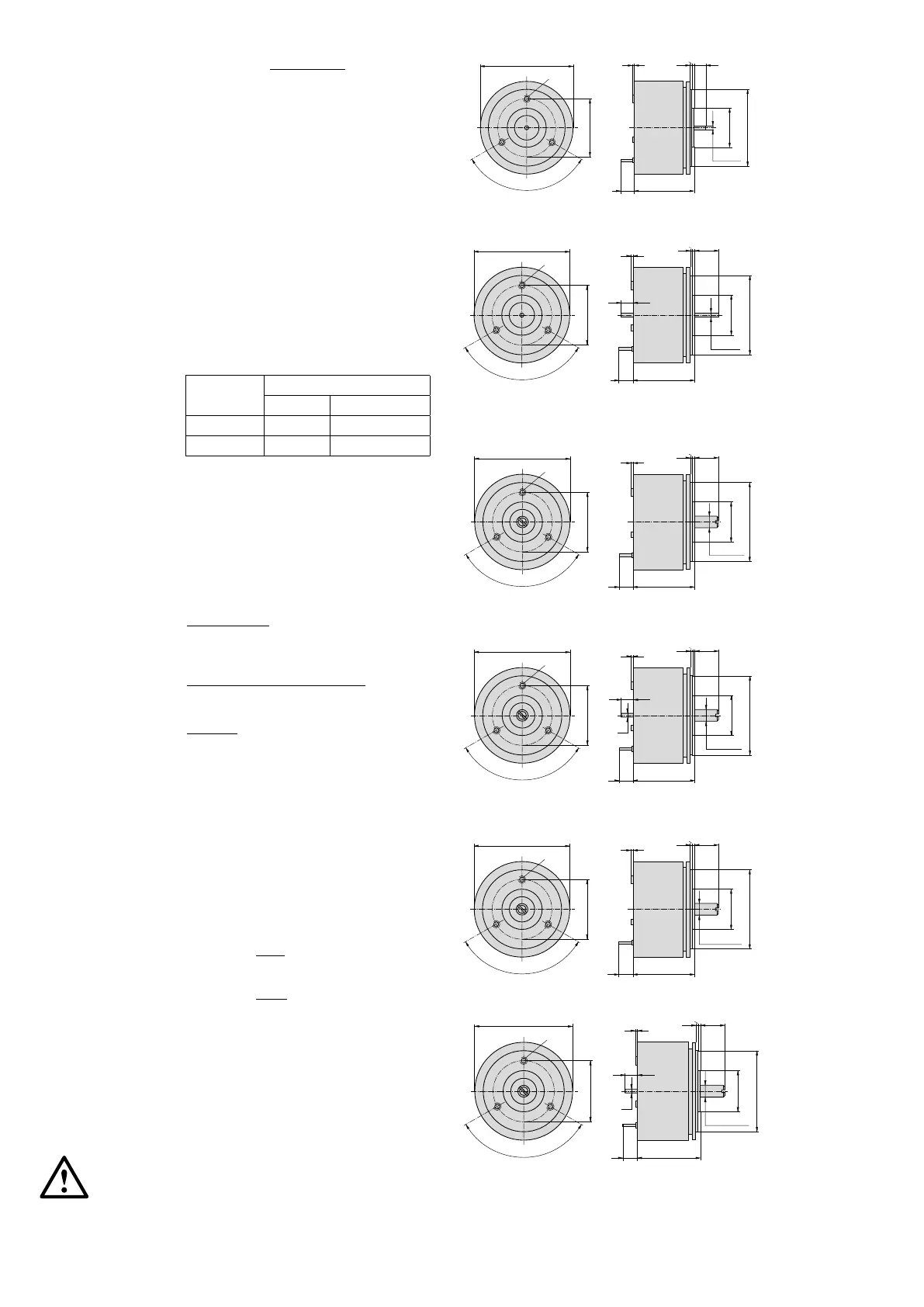

5.8 Dimensional drawing

4.5 low

±0.1

120°

26.1

Ø2

Ø 20 f7

Ø 40 f7

–0.008

–0.014

116

[1.889]

[0.177]

[1.181]

[1.027]

[0.275]

[0.078]

[0.787]

[1.574]

[0.039]

[0.236]

Fig. 1. KINAX 3W2 with standard drive shaft at front only,

Ø 2 mm

[0.078”], length 6 mm [0.236”].

4.5 low

±0.1

120°

26.1

Ø2

Ø 20 f7

Ø 40 f7

–0.008

–0.014

1112

[1.889]

[0.177]

[1.181]

[0.275]

[1.027]

[0.078]

[0.787]

[1.574]

[0.236]

[0.039]

[0.472]

Fig. 2. KINAX 3W2 with special drive shaft at front and at rear.

At front: Ø 2 mm

[0.078”], length 12 mm [0.472”]. At rear: Ø 2 mm [0.078”],

length 6 mm

[0.236”].

4.5 low

±0.1

120°

26.1

Ø6 g6

Ø 20 f7

Ø 40 f7

1112

–0.004

–0.012

[0.039]

[0.472]

[1.889]

[0.177]

[1.181]

[0.275]

[1.027]

[0.787]

[1.574]

[0.236]

Fig. 3. KINAX 3W2 with special drive shaft at front only,

∅ 6 mm

[0.236”], length 12 mm [0.472”].

4.5 low

±0.1

120°

26.1

Ø 20 f7

Ø 40 f7

1112

Ø2

Ø6 g6

–0.004

–0.012

[1.889]

[0.177]

[1.181]

[0.039]

[0.472]

[0.275]

[1.027]

[0.787]

[1.574]

[0.236]

[0.078]

Fig. 4. KINAX 3W2 with special drive shaft at front and at rear.

At front: ∅ 6 mm

[0.236”], length 12 mm [0.472”]. At rear: ∅ 2 mm [0.078”],

length 6 mm

[0.236”].

4.5 low

±0.1

120°

26.1

Ø1/4˝

(6.35 g6)

Ø 20 f7

Ø 40 f7

1112

–0.005

–0.014

[1.889]

[0.177]

[1.181]

[0.039]

[0.472]

[0.275]

[1.027]

[0.787]

[1.574]

[0.25]

Fig. 5. KINAX 3W2 with special drive shaft at front only,

∅ 1/4”, length 12 mm

[0.472”].

4.5 low

±0.1

120°

26.1

Ø1/4˝

(6.35 g6)

Ø 20 f7

Ø 40 f7

1112

–0.005

–0.014

Ø2

[0.25]

[1.889]

[0.177]

[1.181]

[0.039]

[0.472]

[0.275]

[1.027]

[0.787]

[1.574]

[0.236]

[0.078]

Fig. 6. KINAX 3W2 with special drive shaft at front and at rear.

At front: ∅ 1/4”, length 12 mm

[0.472”]. At rear: ∅ 2 mm [0.078”],

length 6 mm

[0.236”].

Sense

Drive shafts dia.

2 mm 6 mm resp. 1/4”

radial max. 16 N 83 N

axial max. 25 N 130 N

Produkt Specifikationer

Mærke:	Camille Bauer
Kategori:	Ikke kategoriseret
Model:	KINAX 3W2

Har du brug for hjælp?

Hvis du har brug for hjælp til Camille Bauer KINAX 3W2 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Camille Bauer Manualer

Camille Bauer KINAX 3W2 Manual

10 September 2025

Camille Bauer SINEAX VC604s Manual

9 September 2025

Camille Bauer SIRAX BT7100 Manual

9 September 2025

Camille Bauer SIRAX BT7000 Manual

9 September 2025

Camille Bauer SINEAX G536 Manual

9 September 2025

Camille Bauer KINAX WT720 Manual

9 September 2025

Camille Bauer KINAX N702-CANopen Manual

9 September 2025

Camille Bauer KINAX WT717 Manual

9 September 2025

Camille Bauer KINAX WT707 Manual

9 September 2025

Camille Bauer SIRAX BT7050 Manual

9 September 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

LG SA-G5SN55 Manual

10 September 2025

MSI Vigor GK50 Elite TKL Manual

10 September 2025

HP Elite SFF 600 G9 Manual

10 September 2025

JobSite V-12/AW Manual

10 September 2025

Grunkel LIGHT FRYER Manual

10 September 2025

GEEKOM MiniAir 12 Manual

10 September 2025

Qoltec 50685 Manual

10 September 2025

Samsung MIM-E02DN Manual

10 September 2025

GW Instek GPE-1205 Manual

10 September 2025

DS18 LC-RGB Manual

10 September 2025
