Side 1/22

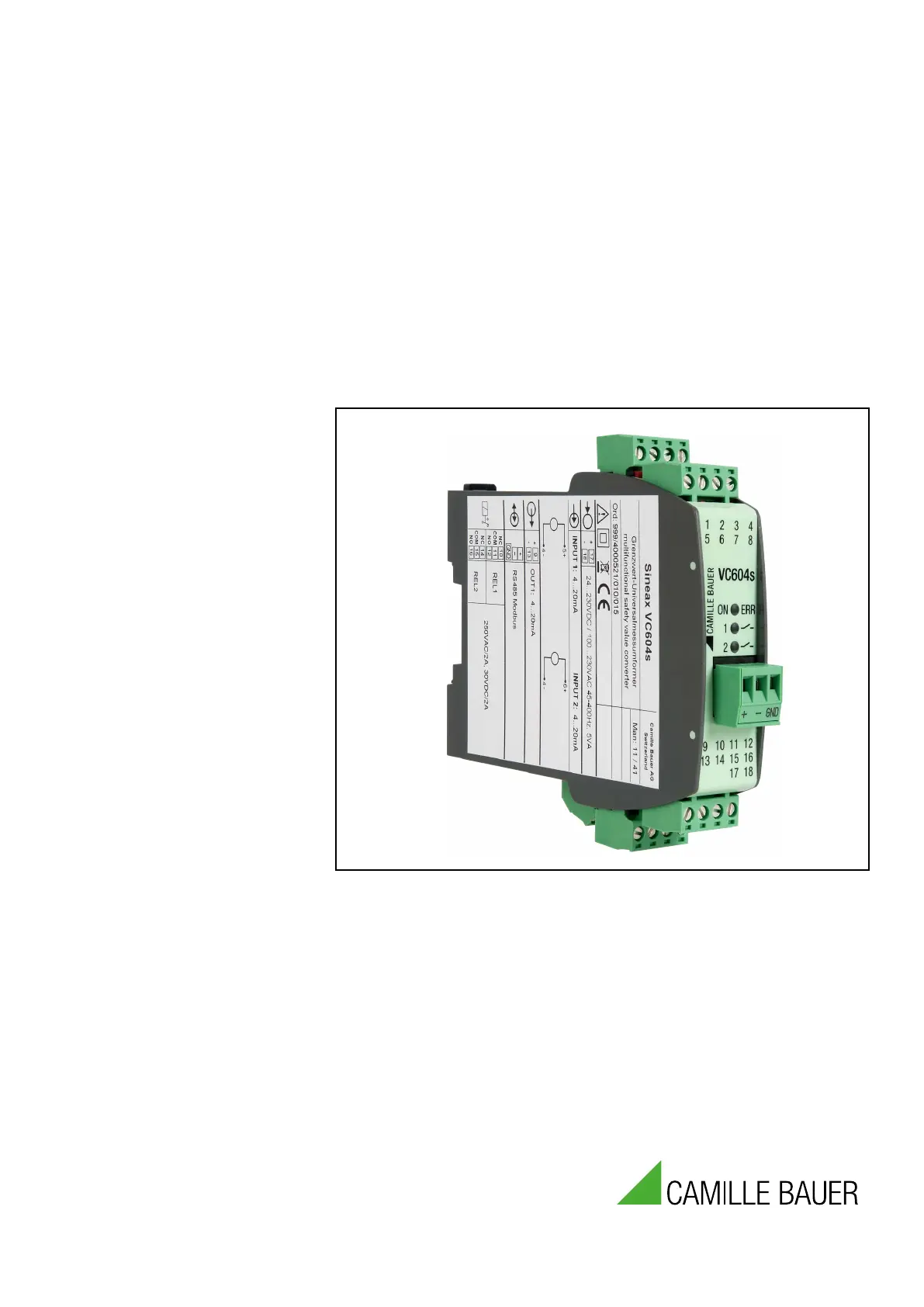

VC604s Be Version 03 06.21

1000773 000 01

Operating instructions

SINEAX VC604s

Programmable

Safety Value Converter

Camille Bauer Metrawatt AG

Aargauerstrasse 7

CH-5610 Wohlen/Switzerland

Phone +41 56 618 21 11

Fax +41 56 618 21 21

info@camillebauer.com

www.camillebauer.com

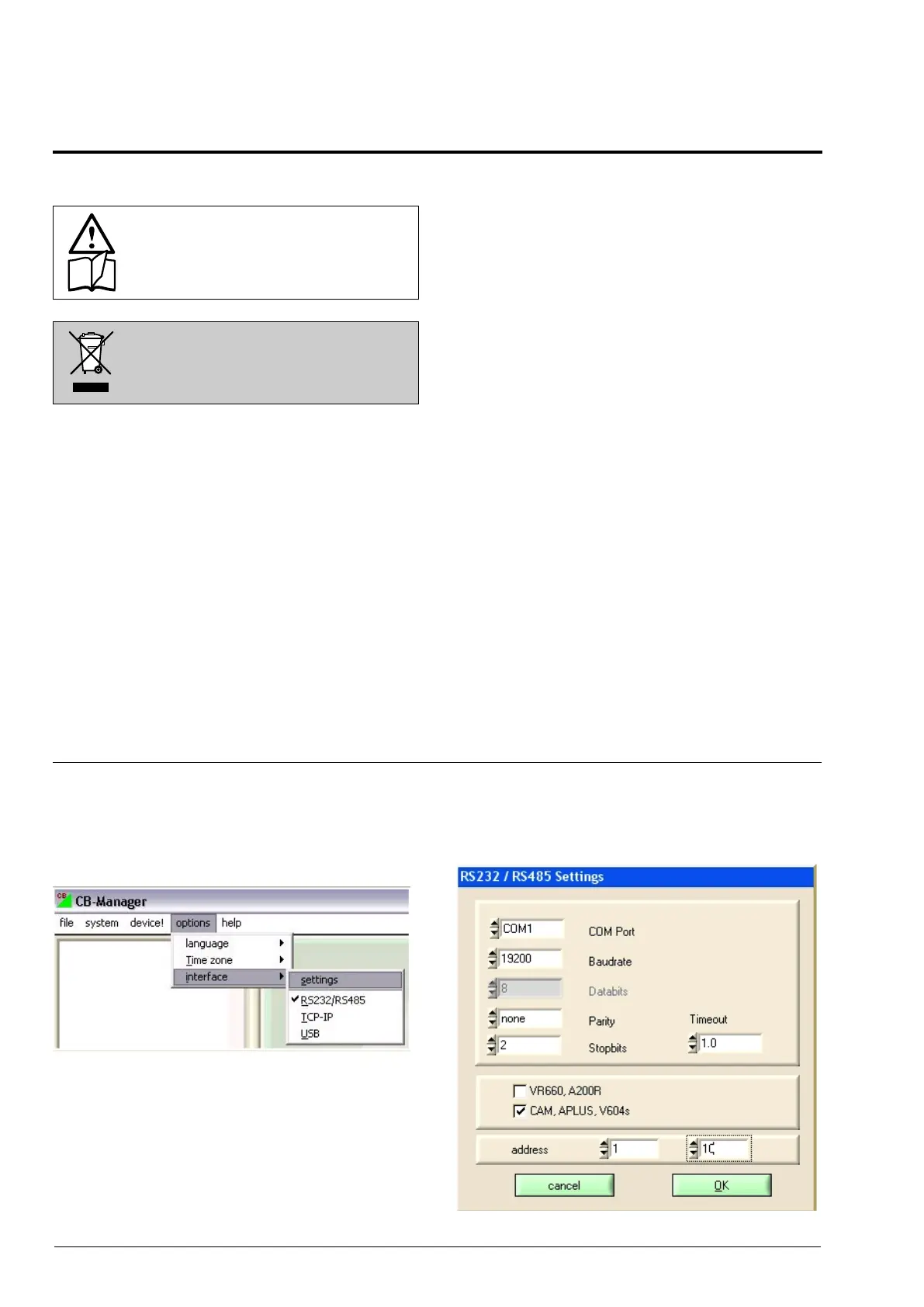

2 Operating instructions VC604s Be Camille Bauer Metrawatt AG

Operating instructions

Programmable multifunctional transmitter SINEAX VC604s

First read, then …

The unobjectionable and safe operation pre-

supposes that these operating instructions

have been read and understood!

Devices may only be disposed of in a pro-

fessional manner!

Contents

1. Functional description ................................................. 2

2. Connection to a PC and communication via

CB-Manager ................................................................ 2

3. Block diagram .............................................................. 3

4. Technical data .............................................................. 4

5. Signal ﬂow ................................................................... 7

6. Modbus interface ....................................................... 10

6.1 EIA-RS-485 Standard .......................................... 10

6.2 Coding and addressing ....................................... 10

6.3 Mapping .............................................................. 11

6.4 Device identiﬁcation ............................................ 11

6.5 Measured values ................................................. 12

6.6 Conﬁguration parameters .................................... 13

7. Electric connections .................................................. 20

8. Dimensional drawing ................................................. 21

9. Accessories ............................................................... 21

10. Conformity declaration .............................................. 22

1. Functional description

VC604s is a multifunctional transmitter for top-hat rail as-

sembly with the following main characteristics:

● Measurement of DC voltage, DC current, temperature

(RTD, TC) and resistance

● Sensor connection without any external jumpers

● 2 inputs (e.g. for sensor redundancy or difference

formation)

● 1 output (U or I)

● 2 inputs can be linked with each other and allocated

to the 2 outputs which enables calculations and

sensor monitoring (e.g. prognostic maintenance of

sensors)

● System capability: Communication via Modbus

interface

● 2 freely programmable relays with changeover con-

tacts, e.g. for limit or alarm signalling

● AC/DC wide-range power supply unit

● Pluggable high-quality screw or spring cage terminals

All settings of the instrument can be adapted to the measur-

ing task by PC software. The software also serves visualising,

commissioning and service.

2. Connection of SINEAX VC604s to a PC and communication via CB-Manager.

VC 604s communicates with a PC (CB-Manager) via an

RS 232/RS485 interface and a MODBUS protocol.

Select the following settings in this respect:

Select the RS 232/ RS485 interface under Options / Inter-

face.

This is also applicable if an RS485/USB converter is used

and the converter is connected to the computer via the

USB connection.

Subsequently, enter the following settings under Options /

Interface / Settings:
