VQ604s Be Version 02 12.22

Operating instructions

SINEAX VQ604s

Programmable multifunctional transmitter

with very fast setting times

Camille Bauer Metrawatt AG

Aargauerstrasse 7

CH-5610 Wohlen/Switzerland

Phone +41 56 618 21 11

Fax +41 56 618 21 21

info@camillebauer.com

www.camillebauer.com

1000780 000 01

2 Operating instructions VQ604s Be Camille Bauer Metrawatt AG

Operating instructions

Programmable multifunctional transmitter SINEAX VQ604s

First read, then …

The unobjectionable and safe operation pre-

supposes that these operating instructions

have been read and understood!

Devices may only be disposed of in a pro-

fessional manner!

Contents

1. Functional description ................................................. 2

2. Connection to a PC and communication via

CB-Manager ................................................................ 2

3. Block diagram .............................................................. 3

4. Technical data .............................................................. 4

5. Signal ﬂow ................................................................... 8

6. Modbus interface ......................................................... 9

6.1 EIA-RS-485 Standard ............................................ 9

6.2 Coding and addressing ......................................... 9

6.3 Mapping .............................................................. 10

6.4 Device identiﬁcation ............................................ 10

6.5 Measured values ................................................. 11

6.6 Conﬁguration parameters .................................... 12

7. Electric connections .................................................. 18

8. Dimensional drawing ................................................. 20

9. Accessories ............................................................... 20

10. Conformity declaration .............................................. 20

1. Functional description

VQ604s is a multifunctional transmitter for top-hat rail as-

sembly with the following main characteristics:

● Fast measurement of DC voltage, DC current, tempera-

ture (RTD, TC) and resistance

● Setting time up to 10 ms

● Sensor connection without any external jumpers

● 2 inputs (e.g. for sensor redundancy or difference

formation)

● 2 outputs (I)

● 2 inputs can be linked with each other and allocated

to the 2 outputs which enables calculations and

sensor monitoring (e.g. prognostic maintenance of

sensors)

● System capability: Communication via Modbus

interface

● Freely programmable relay, e.g. for limit or alarm sig-

nalling

● AC/DC wide-range power supply unit

● Pluggable high-quality screw or spring cage terminals

All settings of the instrument can be adapted to the measur-

ing task by PC software. The software also serves visualising,

commissioning and service.

2. Connection of SINEAX VQ604s to a PC and communication via CB-Manager.

VQ604s communicates with a PC (CB-Manager) via an RS

232/RS485 interface and a MODBUS protocol.

Select the following settings in this respect:

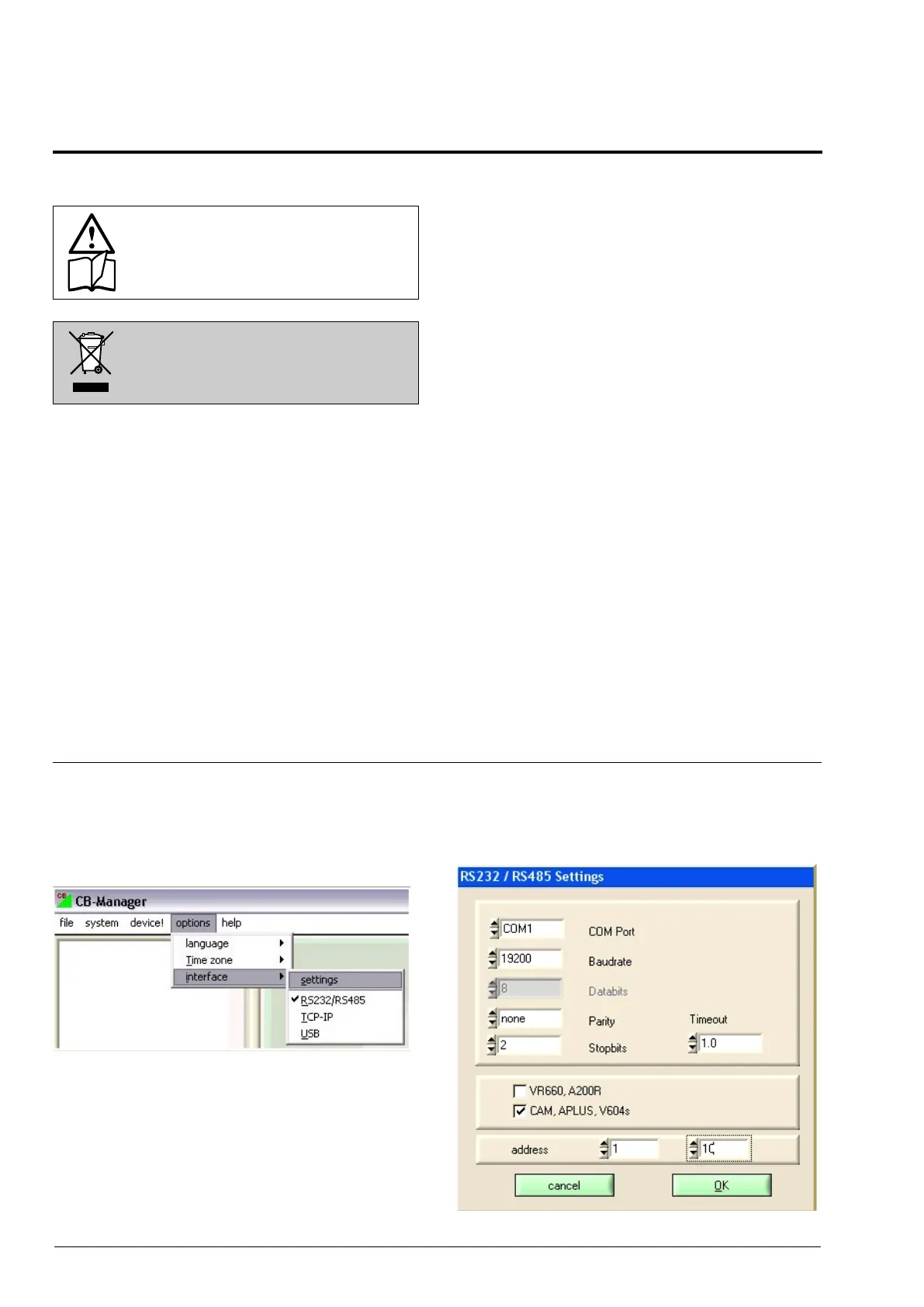

Select the RS 232/ RS485 interface under Options / Inter-

face.

This is also applicable if an RS485/USB converter is used

and the converter is connected to the computer via the

USB connection.

Subsequently, enter the following settings under Options /

Interface / Settings:
