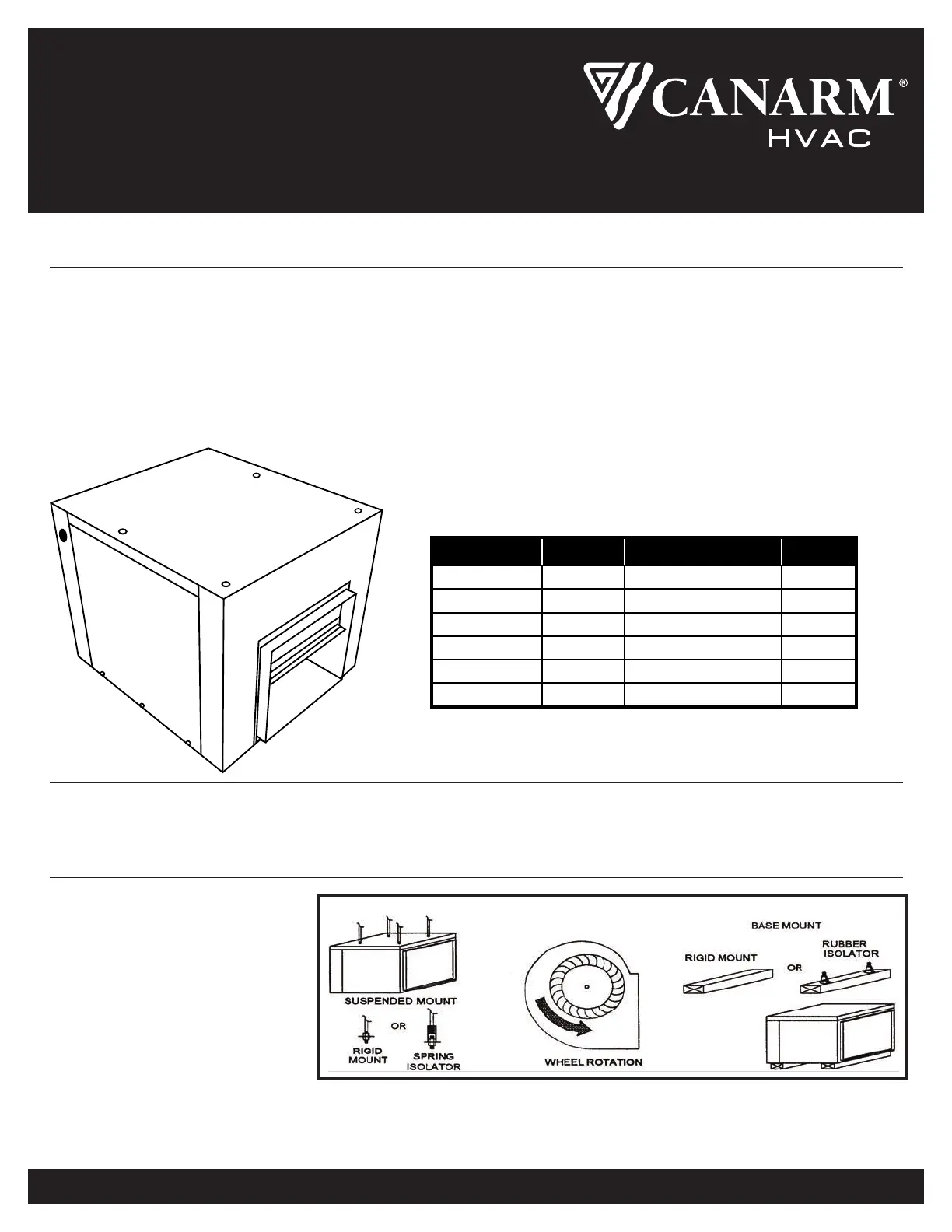

Side 1/8

200 & IDB SERIES

INLINE DUCT BLOWERS

OPERATION INSTRUCTIONS AND PARTS MANUAL

PLEASE READ AND SAVE THESE INSTRUCTIONS

200 SERIES MODELS: 207, 209, 210, 212, 215, 218

IDB SERIES MODELS: IDB07, IDB09, IDB10, IDB12, IDB15, IDB18

GENERAL SAFETY

Rotating parts, (pulleys, shafts and belts) on fans should not be exposed. Where these components are not protected by ductwork, cabinets

or covers, appropriate guards should be employed to restrict exposure to rotating parts. Access doors should not be opened with the fan

operating to avoid foreign objects being drawn into the system. On initial start-up, a careful inspection should be carried out to ensure no

foreign material is present which could become airborne in the system.

Read installation and operation instructions carefully before attempting to install, operate or service Canarm/Delhi 200 Series or

Canarm/Delhi IDB Series Blowers. Failure to comply with instructions could result in personal injury and/or property damage. Retain

instructions for future reference.

BEFORE YOU BEGIN

Inspect unit for damage, report any shipping damage to carrier. Check all fasteners, re-tighten as required. Rotate the blower wheel by

hand to ensure free rotation. If rubbing occurs, loosen the set screw(s), re-position the wheel to the shaft center, re-tighten set screws.

INSTALLATION

SUSPENSION MOUNTING

Suspend the unit using 4 threaded rods

through the (4) 7/8" clearance holes

located at the top of the unit

(see Figure 1) or by an angle iron cradle

(supplied by others) under the unit.

MODEL MAX. HP SHAFT DIAMETER WEIGHT

207, IDB07 3/4 3/4" 43 lbs

209, IDB09 3/4 3/4" 55 lbs

210, IDB10 1 1/2 3/4" 65 lbs

212, IDB12 1 1/2 3/4" 82 lbs

215, IDB15 3 1" 140 lbs

218, IDB18 5 1" 158 lbs

FIGURE 1

BASE MOUNTING

Secure unit through the 4 internal 7/8" clearance holes to a solid base. Ensure unit is level. Complete installation of inlet & outlet ducts.

NOTE: Flexible inlet & outlet duct collars are recommended to minimize vibration transmission.
