INSTALLATION:

IOL308

IOL309

09/16

SAFETY PRECAUTIONS:

EASY CONNECT®

INSTALLATION INSTRUCTIONS

INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS

READ ALL INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS

SAVE THESE INSTRUCTIONS

NOTE: Product may not look exactly as shown in figures.

Fixture

Option 1

Option 2

Black (Live)

White

(Neutral)

Green (Ground)

Easy Connect

mounting

bracket

(L)

Black

(Live)

(L)

Black (Live)

(L)

Black (Live)

(N)

White

(Neutral)

(N)

White

(Neutral)

(N)

White

(Neutral)

Green

(Ground)

Green

(Ground)

Green

(Ground)

Jumper Wire

Electrical

box screws

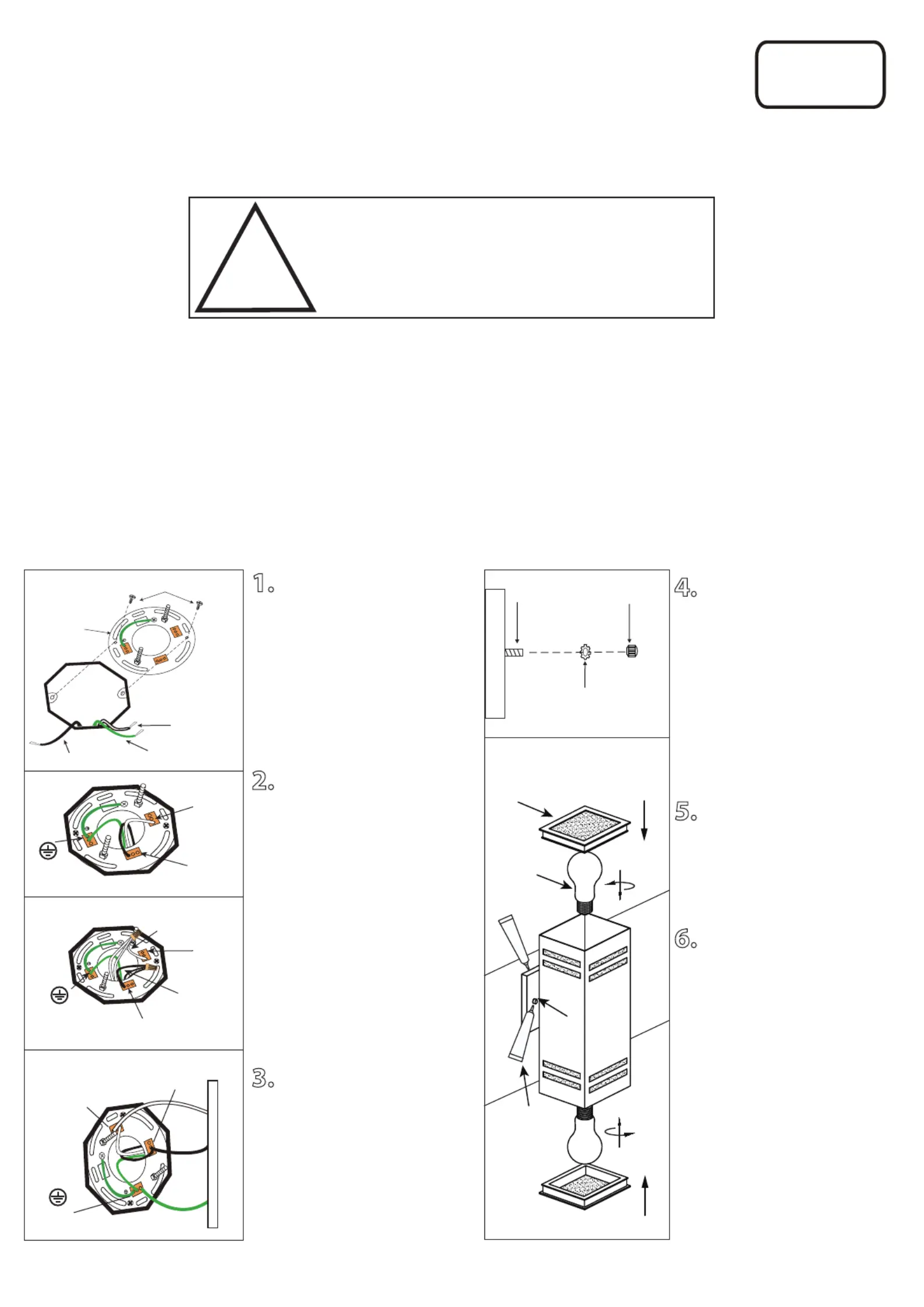

1. Attach easy connect

mounting bracket to electrical

box with electrical box screws

(not included).

2. Option 1: Connect (push)

electrical wires from electric box

(house wiring) into correct

inserts.

Option 2: For multiple black

(live) & white (neutral) wires

joined in the electrical box

(house wiring), attach a single

“black” and “white” Jumper Wire

before connecting. Strip 7mm

from a 6” Jumper Wires (AWG

12-24) supplied. Then connect

(push) wires into correct inserts.

3. Connect (push) electrical

wires from fixture into correct

inserts.

Star

Washer

Stud

Cap

Nut

Cap

Nut

Fixture

4. Tuck electrical wires into

electrical box and position

fixture over studs on mounting

bracket assembly. Secure

fixture in place with star

washers and cap nuts.

5. Install proper bulb type

and wattage (not included).

Push covers onto the fixture.

6. After Installation, seal

around the top and side

perimeter between the fixture

and the wall surface with

weather resistant caulking. The

bottom should be left

un-caulked to prevent moisture

build-up. Apply a small amount

of weather resistant caulking

around the side perimeter

between the cap nut and

mounting plate.

1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.

2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.

3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY

A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE

HAZARDS INVOLVED.

4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH

A CLEAN, SOFT CLOTH.

QUESTIONS OR CONCERNS CONTACT AT:

1-800-265-1833 (English) / 1-800-567-2513 (French)

Monday through Friday 8:00 AM to 5:00 PM E.S.T.

ITel: (613) 342-5424, Fax: (800) 263-4598

Cover

Bulb

Wheather

Resistant

Caulking

(not included)
