Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Catalog No. 04-53330031-01 Printed in U.S.A. Form 33CS-26SO Pg 1 6-13 Replaces: 33CS-21SO

Owner’s Manual

Part Numbers 33CS2PPRH-03 and 33CS2PP2S-03

SAFETY CONSIDERATIONS

Read and follow manufacturer instructions carefully. Fol-

low all local electrical codes during installation. All wiring

must conform to local and national electrical codes. Improper

wiring or installation may damage thermostat.

Recognize safety information. This is the safety alert sym-

bol . When the safety alert symbol is present on equipment

or in the instruction manual, be alert to the potential for person-

al injury.

Understand the signal words DANGER, WARNING, and

CAUTION. These words are used with the safety alert symbol.

DANGER identifies the most serious hazards which will result

in severe personal injury or death. WARNING signifies a haz-

ard which could result in personal injury or death. CAUTION

is used to identify unsafe practices which would result in minor

personal injury or property damage.

GENERAL

The Edge Pro thermostat by Carrier is a wall-mounted, low-

voltage control which combines temperature and humidity

control in either a single or two-piece unit. The Edge Pro ther-

mostat can be set for 7-day, 5/2-day, or 1-day programmable

operation. Different heating and cooling set points and times

are programmable for 2 or 4 periods per day. The thermostat

can also be configured for non-programmable operation. When

operating as a non-programmable thermostat, the user will still

have both temperature and humidity control.

The Edge Pro thermostat has no need for batteries to store

user-configured settings in memory. During power loss its in-

ternal memory saves settings for unlimited time, and the clock

continues to run for at least 24 hours. An extension of Carrier’s

proven line of thermostats, the Edge Pro thermostat provides

separate set points for heating and cooling in addition to hu-

midification and dehumidification.

OPERATION

Thermostat Display —

The thermostat display is locat-

ed in the center of the thermostat. See Fig. 1. The following

information can be displayed on the screen:

• day of the week

• filter and UV lamp service reminders

• current temperature

• current program routine (follow scheduled program-

ming, hold current settings, or run holiday program)

• fan mode (on, auto)

• current system mode (heating, cooling, emergency heat,

heat/cool (auto), off)

• humidify or dehumidify settings

• Fahrenheit or Celsius display

• advanced programming indicators

• keypad locked or unlocked

• programming option (indicates which settings are being

adjusted)

• system is in auxiliary (supplemental) mode

• cooling set point

• heating set point

• year

• holiday schedule return date

• day

• length of time for temporary temperature hold (override)

• month

• outdoor temperature

• leaving air temperature

• time period start

• period of the day

Thermostat Front Panel Buttons — The thermo-

stat has buttons under the front cover which are used for vari-

ous functions such as raising or lowering the desired set point

and changing the current mode. See Fig. 2.

SET BUTTON — This button enters the thermostat program-

ming schedule and allows the user to adjust the clock and

change the calendar.

SCHEDULE BUTTON — This button allows the user to

choose to follow a schedule, hold the current set points, or go

into holiday mode.

OCCUPIED BUTTON — This button temporarily changes

the thermostat from Unoccupied to Occupied settings.

holiday

occ

unocc

occ3

occ2

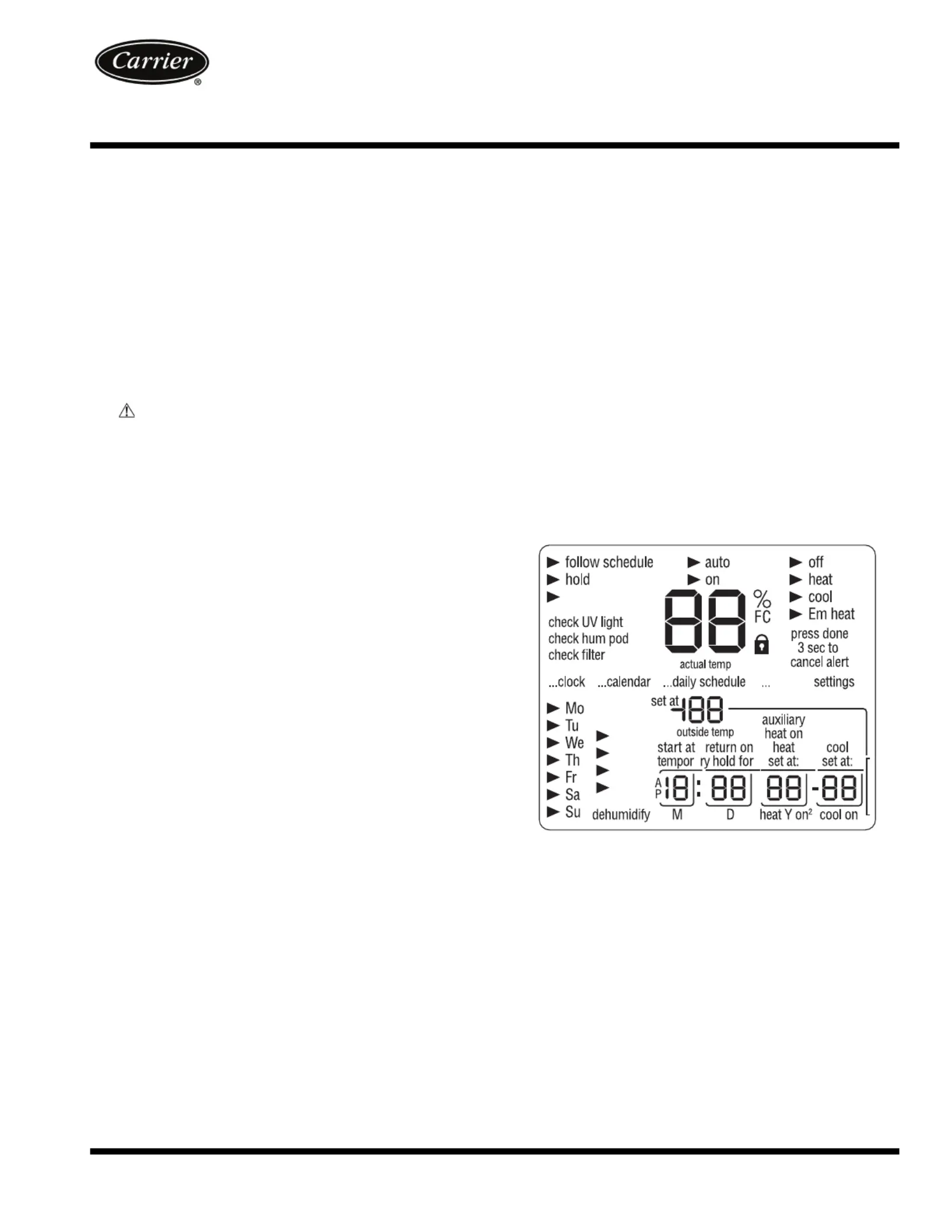

Fig. 1 — Thermostat Display

a33-9188

EDGE

Pro

33CS

Commercial Thermostat

MODE BUTTON — This button selects whether the thermo-

stat is set for heating, cooling, emergency heat, auto (heat and

cool as needed), or off modes.

DONE BUTTON — This button saves the settings when

completing a setup or programming step.

UP BUTTON — This button is used to increment the current-

ly chosen value (temperature, clock, calendar, etc.).

DOWN BUTTON — This button is used to decrement the

currently chosen value (temperature, clock, calendar, etc.).

“SOFT KEYS” BUTTONS — There are 6 soft key buttons.

The soft keys are used to select the onscreen indicator directly

above that specific button. These indicators can change based

on the actions of the user.

Set Time and Date — The user must set the time and

date before the thermostat’s programming features can be used.

Perform the following procedure:

1. Open the thermostat front panel door.

2. Press the SET button. The screen will show the word

“clock” on the left of the display and the time will be

shown on the bottom. Press the SET button again.

3. To set the correct hour, press the soft key underneath the

hour indicator, and then press the UP or DOWN button to

adjust the value.

4. To set the correct minutes, press the soft key underneath

the minutes indicator, and then press the UP or DOWN

button to adjust the value.

5. To set the correct date, press the SET button until the

screen displays the word “calendar” and the date is shown

on the bottom of the screen.

6. To set the correct month, press the soft key underneath

the letter M (month), and then press the UP or DOWN

button to adjust the value.

7. To set the correct day of the month, press the soft key un-

derneath the letter D (day), and then press the UP or

DOWN button to adjust the value.

8. To set the correct year, press the soft key underneath the

letter Y (year), and then press the UP or DOWN button to

adjust the value.

9. Press the DONE button to finish.

10. Close the thermostat door.

Setting or Changing Heating and Cooling Set

Points —

The Edge

Pro thermostat is installed with preset

heating and cooling temperature settings. The user can use

these settings or program new settings. The user can also tem-

porarily change the temperature from the programmed set

points.

The thermostat will hold these changes for two hours or un-

til the next programmed cycle begins. The words “temporary

hold” will be displayed while this is in effect. To change the

amount of time that the temperature is on hold, press the soft

key under the hold hours or minutes indicators. Then press the

UP or DOWN button to adjust the hold time. Close the door

when done.

To change the temperature for the specified “temporary

hold” period, perform the following. Open the front thermostat

door. An arrow will be displayed next to the words “off,”

“heat,” or “cool” in the upper right corner on the screen, de-

pending on the mode the system is in. If it is the first time the

thermostat is being used, the “heat” indicator will be displayed.

The preprogrammed heating or cooling temperatures are dis-

played in a box at the bottom of the screen. Change the dis-

played temperature set point by pressing the UP or DOWN

button until the desired setting is reached.

To change other temperature set points, press the MODE

button. The arrow will move to the next mode and the screen

will show the related temperature set point in a box. Then press

the UP or DOWN button to change the displayed set point.

When there are arrow indicators next to both of the heat and

cool indicators, the heating and cooling set points are both dis-

played at the bottom of the screen. The user can change either

one by pressing the soft key underneath the set point to be

changed. Press the UP or DOWN button to adjust the tempera-

ture. Repeat the process for the other set points if necessary.

Press the DONE button when finished.

Holding Temperature Set Points — The user can

override the programmed temperature settings and hold the

temperature at a specific setting without the temperature

changing during the next programmed period. To override the

temperatures, perform the following:

1. Open the door.

2. Press the SCHEDULE button. The arrow will move to

the hold indicator.

3. The screen will display the set point temperature. To

change the set point temperature, press the UP or DOWN

button. The temperature will stay at the new setting until

it is released from the hold.

4. To change the heating set point when the cooling set

points are displayed (and vice versa), press the MODE

button until the arrow moves to the desired mode. Press

the UP or DOWN button to change the set point.

5. To return the temperature to the preset level for that time

period, press the SCHEDULE button until the arrow

moves to the “follow schedule” indicator.

6. Close the door.

Unoccupied Override — The OCCUPIED button is

only active:

• during the unoccupied periods

• when Hold is active

• when Holiday is active

The OCCUPIED button is inactive during occupied periods

(OCC, OCC2, and OCC3). When the user presses the OCCU-

PIED button, the set points change to the occupied settings and

the temporary hold timer is set for two hours. The user can ad-

just the temporary hold timer to any value in 15-minute incre-

ments from 15 minutes to the maximum number of hours spec-

ified by the installer in configuration option 38.

soft keys

occupied

holid ya

occ

unocc

occ3

occ2

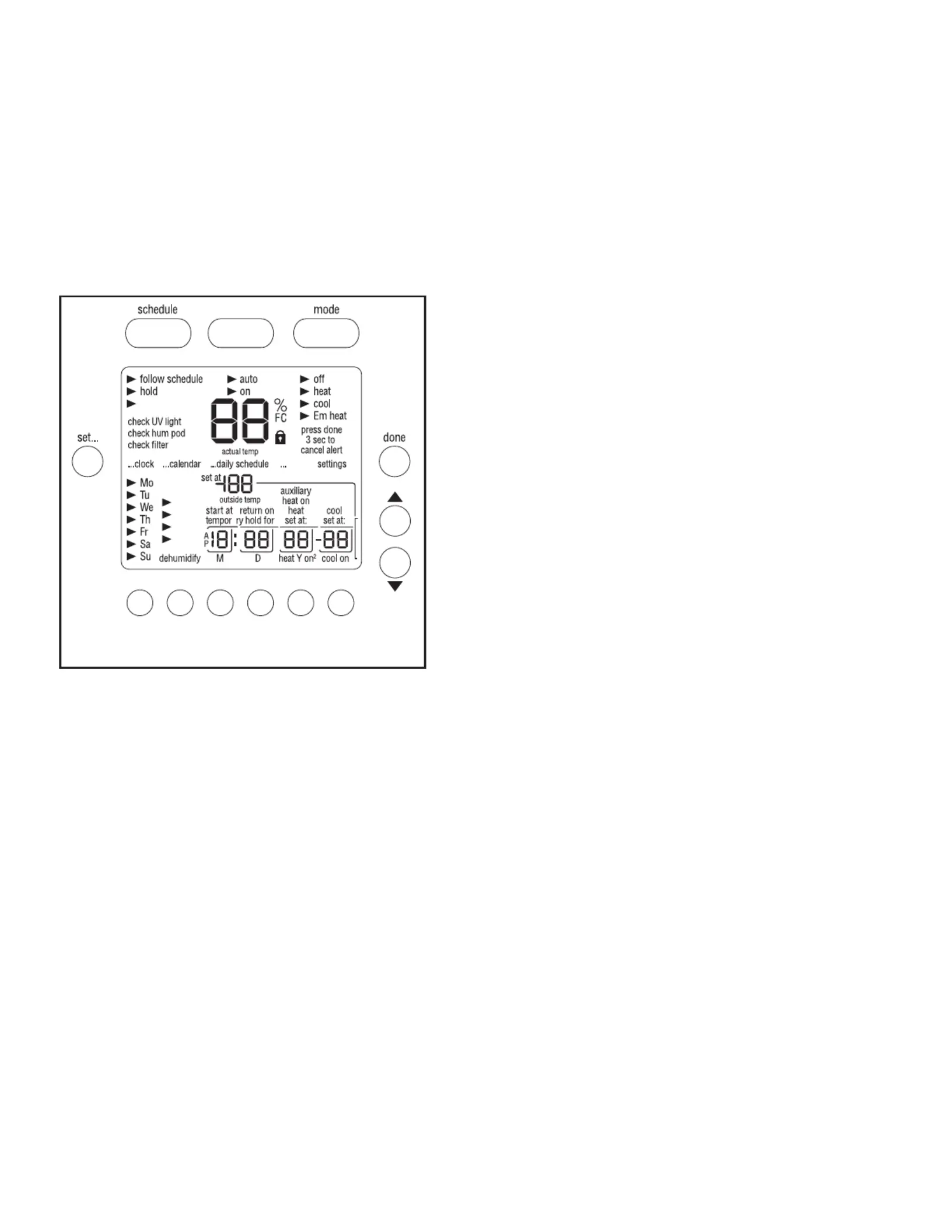

Fig. 2 — Thermostat Front Panel Buttons

a33-9189
