Fig.2

CARSON

HookUpz

Smartphone Binocular Adapter

Congratulations on selecting your new HookUpz Smartphone Binocular

Adapter! In order to achieve optimum performance, please follow

instructions for proper use and care.

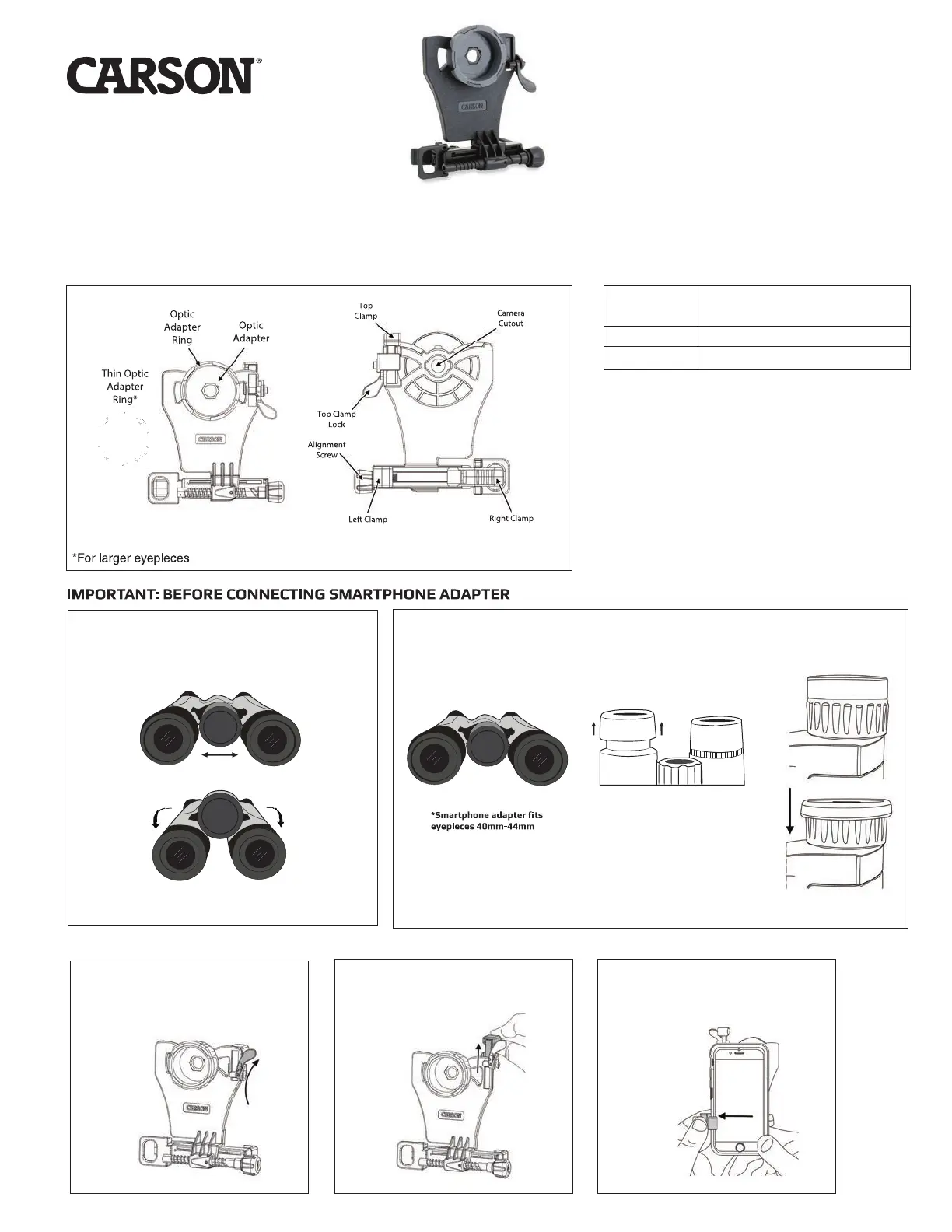

OPTIC AND PHONE SIDE DIAGRAM:

Thin Optic

Adapter

Ring*

Optic

Adapter

Ring

*For larger eyepieces

Optic

Adapter

Left

Clamp

Right

Clamp

OPTIC SIDE PHONE SIDE

IMPORTANT:

BEFORE

CONNECTING

SMARTPHONE ADAPTER

PRODUCT SPECIFICATION:

Fits:

Most full-size binoculars with

40-44mm eyepieces

Weight:

0.18 lbs

Dimensions:

4.0 x 1.9 x 4.4”

1. Make sure binocular is focused and is in

fully extended or fully closed position only.

2. Smartphone adapter can only be used with left eyecup.* Make sure left

eyecup is fully extended before connecting. If your binocular has fold down

eyecups, fold down and attach adapter.

*Smartphone

adapter

fits

eyepieces 40mm-44mm

IB-700

INSERTING PHONE:

1. Rotate to unlock top clamp.

2. Slide top clamp into

uppermost position.

3. Insert phone into

left clamp.

UNLOCK

Fig. 1

Fig. 2

Fig. 3

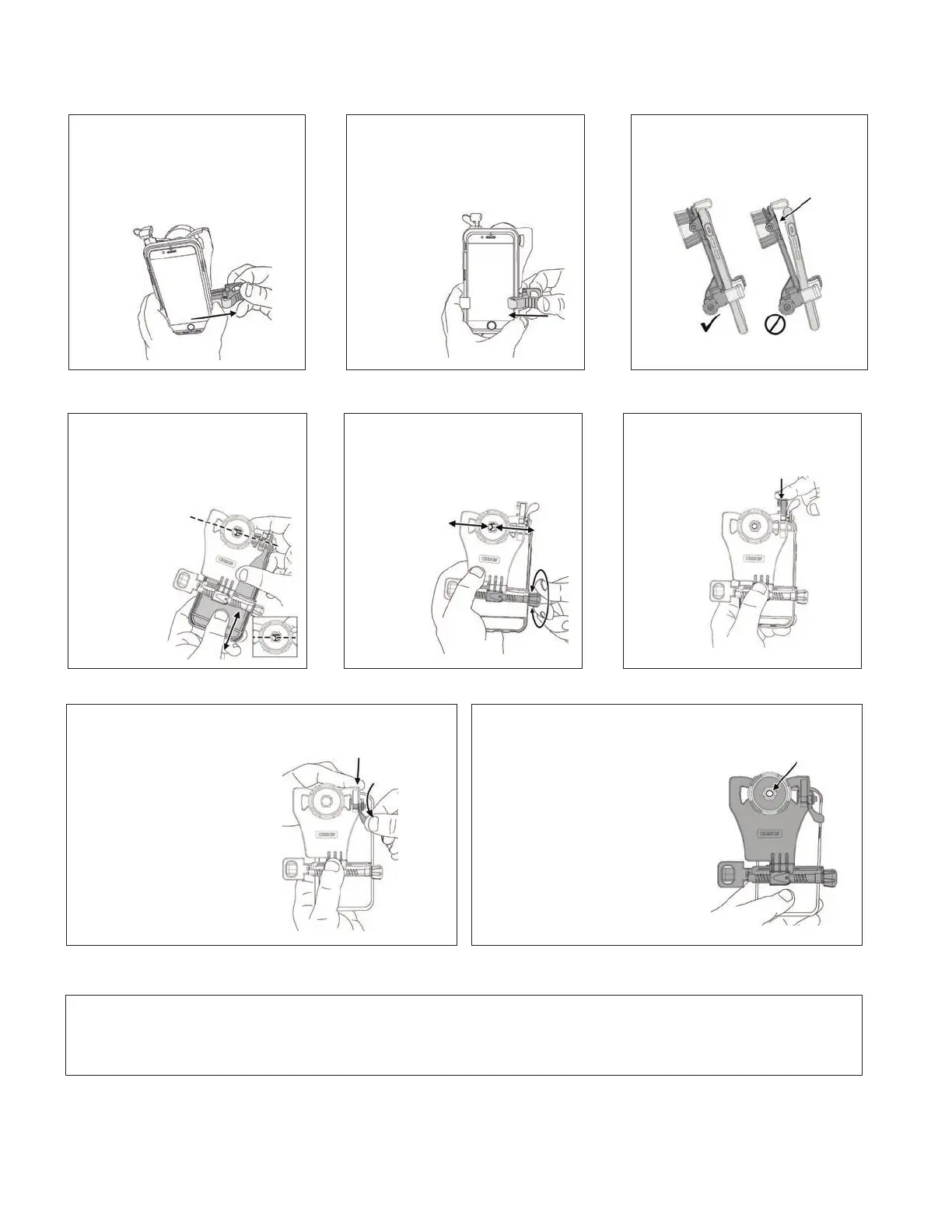

INSERTING PHONE CONTINUED:

4. Squeeze and pull right

clamp past edge of phone.

Fig. 4

5. Release right clamp

to secure phone.

Fig. 5

6. Ensure phone is flat as

possible to adapter.

ALIGN & LOCK:

1. Slide phone vertically until

camera is roughly aligned with

camera cutout.

Fig. 7

Fig.7

Turn alignment screw until

camera is centered in camera

cutout.

Fig. 8

3. Slide top clamp down against

phone edge.

Fig.9

ig. 9

Fig. 6

4. While holding top clamp tight

to phone, rotate to lock.

Fig. 10

LOCK

5. Figure 11 shows a properly aligned camera. If

needed, use alignment screw and top clamp to make

further adjustments.

Fig. 11

MULTIPLE-LENS CAMERA PHONES:

If there is more than one rear facing camera, use the primary one. Typically, the primary is a 1x wide-angle color camera

and the other camera(s) are secondary.

For the latest instructions on multiple camera phones, please visit www.carson.com/multicam
