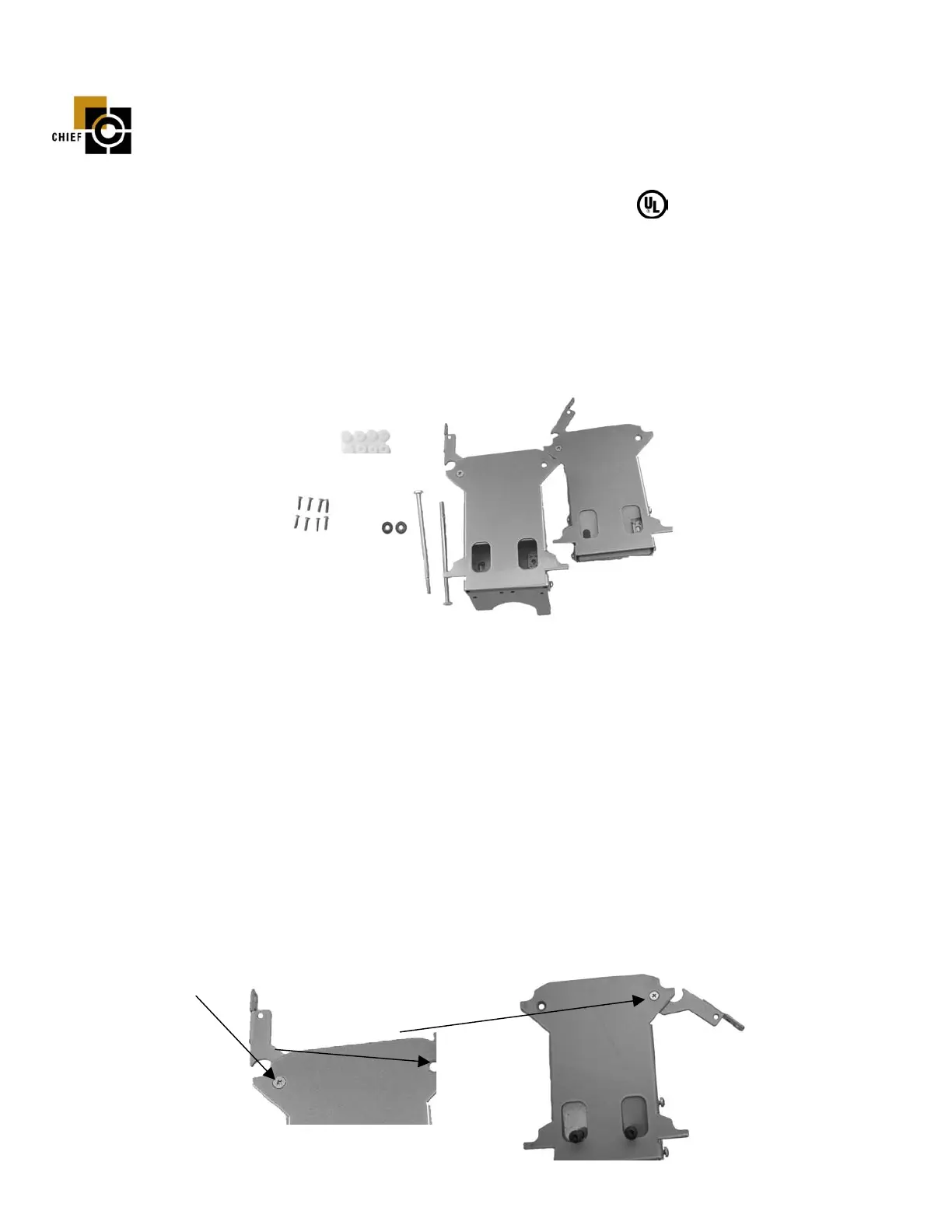

Side 1/2

8803-000033 01/26/04

CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com

INSTALLATION INSTRUCTIONS

FDP SERIES

SMALL FLAT PANEL DISPLAY

DUAL SCREEN POLE MOUNT

Exclusive Q2™ Mounting System

Prior to assembly, unpack carton completely and verify contents.

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480.

(2) FDP Pole-Mounting Bracket Half (2) ¼” Flat Washer

(2) ¼-20 X 4.25” Hex Bolt (8) 10-24 X 1.00 Thread Forming Screw

(8) ½” X ½” Nylon Spacer

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

The FSP will fit on any 1/1/2” to 2” O.D. pipe including 1 ½”NPT.

Flat Panel Displays are Extremely Fragile.

If Monitor Uses a Screw Size Other Than M4 X 10mm (M4 X 20mm),

DO NOT USE M4 Screws Provided. Monitor Damage Could Occur.

Interface Bracket Installation:

1. See installation procedures accompanying your mounting bracket.

Optional Latching Flag Placement:

1. Remove Phillips head screw, Nylock nut and latching flag (see Figure 2).

2. Reposition latching flag and secure using Phillips head screw, Nylock nut.

Figure 1

Figure 2

CAUTION!

Remove screw

and nu

ove

atc

Produkt Specifikationer

Mærke:	Chief
Kategori:	Flad panel støtte
Model:	FDP4100B
Bredde:	143 mm
Dybde:	95 mm
Højde:	175 mm
Produktfarve:	Sort
Husmateriale:	Metal
Monteringstype:	Væg
Akse:	Ja
Drejevinkel område:	360 °
Hældningsvinkelområde:	-25 - 10 °
Skærmstørrelse kompatibilitet:	10 - 26 "
Maksimal vægtkapacitet:	20.5 kg
Montering interface kompatibilitet (min.):	75 x 75 mm
Montering interface kompatibilitet (maks.):	100 x 100 mm
