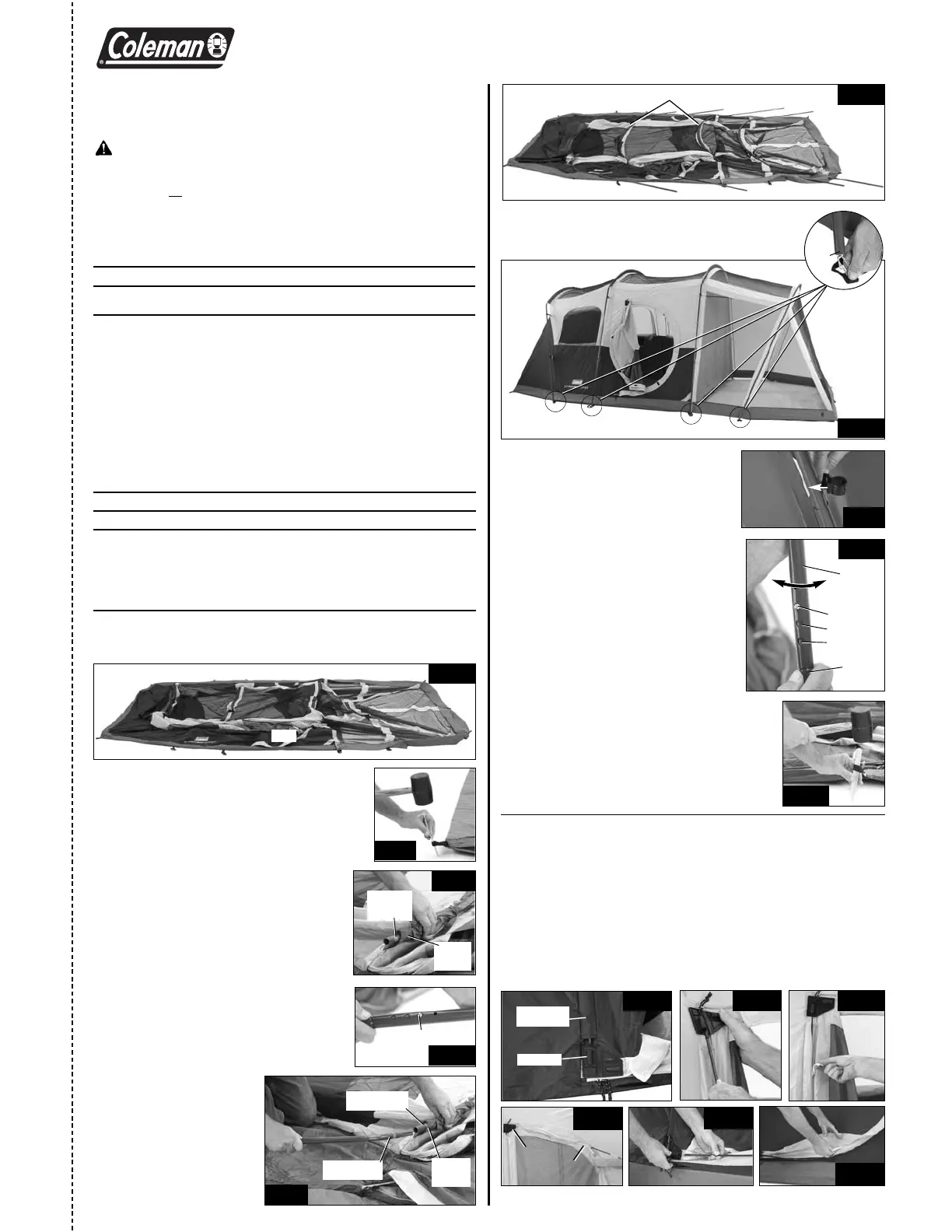

Side 1/2

STITCH LINE

6. Rotate all eight Leg Poles upright and insert pin on

each web loop at the side locations as shown.

(Fig. 7 & 7A)

Fig. 6

Fig. 7

7. Locate the plastic hooks at sides and

corners of tent, then snap onto Leg

Poles to attach. (Fig. 8)

9. Insert plastic stakes through web straps located

on both sides of tent, then drive in to secure.

(Fig. 10)

NOTE: It may be necessary to remove metal

stakes through web straps at side of tent and

screen room, pull tent taut, and drive in stakes

to secure. Fig. 10

8. To stretch tent to finished size:

• Push in button on Leg Pole while

twisting lower Leg Pole section

counterclockwise (Fig.9);

• Pull up on top Leg Pole section until

tent is taut;

• Twist the lower Leg Pole clockwise

until the button locks into the center

or lowest hole;

• Repeat on remaining Leg Poles.

Fig. 8

Fig. 9

Button

Center Hole

Lower Hole

Lower

Leg Pole

Section

Upper

Leg Pole

Section

ELITE WEATHERMASTER®6 SCREENED TENT

MODEL 2000001588

Curved Ridge Poles with Red Markings in center sleeves

Hinged, Rigid Door

1. Assemble Vertical Door Pole (shorter black pole with plastic tips);

then insert through zippered vertical pole sleeve on hinged side of

door. (Fig. 11)

2. Insert end of Vertical Door Pole into bottom hinge plate, apply

pressure to form a slight bow, then insert other tip of pole into top

hinge. Zip up vertical pole sleeve. (Fig. 12 & 13)

3. Assemble Door Pole (longer black pole with plastic cap tips); then

insert into zippered pole sleeve at top of door. (Fig. 14)

4. Insert end of Door Pole into top hinge plate, apply pressure to form

a bow, then insert other tip of pole into the bottom hinge. (Fig. 15)

5. Zip up pole sleeve to enclose Door Pole. (Fig. 16)

Fig. 11 Fig. 12 Fig. 13

Fig. 14 Fig. 15

Fig. 16

Fig. 1

To Set Up Tent

1. Unfold tent and spread out on a clean, level surface with the door

facing the desired direction. Unzip doors. (Fig. 1)

4. Assemble eight, steel, shock-corded, Leg

Poles. Push down on steel button on tapered

end and insert into end with four holes.

NOTE: Make sure steel button locks into

third hole on pole as shown. (Fig.4)

5. Insert curved end of Leg Poles

(with red marking) into the

ends of the Ridge Pole

(with red marking). Insert

curved end of remaining

short Leg Poles into the

ends of the remaining

Ridge Poles. (Fig. 5 & 6)

Door

Ridge Pole with

Red Marking

Button in third hole

Fig. 4

Fig. 5

Fig. 2

Sleeve

with Red

Trim

Curved End of

Long Leg Pole

2. Pull four corners of tent taut, then secure by

driving stakes through web loops at an angle for

better anchoring. (Fig. 2)

Ridge Pole

with Red

Marking

Fig. 3

Sleeve

with Red

Trim

3. Assemble four, steel, shock-corded, curved

Ridge Poles. Insert Ridge Poles (with red

marking) into center sleeves on top of tent

with the red trim (Fig. 3). Insert the remain-

ing curved Ridge Poles into the other two

sleeves on top of tent.

Vertical Pole

Sleeve

Door Hinge

Pole

Sleeve

Top

Door

Hinge Pole

Sleeve

Top

Door

Hinge

(continued on other side)

Pole Descriptions

Pole Pole Pole

Description Qty. Dia. Repair Kit Replacement Kit

Long Leg Pole, steel

(w/ red marking) 4 19mm N/A 5010000608

Short Leg Pole, steel 4 19mm N/A 5010000610

Curved Ridge Pole, steel

(w/ red marking) 2 19mm N/A 5010000607

Curved Ridge Pole, steel 2 19mm N/A 5010000609

Awning Pole, black,

fiberglass, metal tips 1 6.3mm 5010000543 5010000545

Door Pole, long, thin, black,

fiberglass, rubber tips 1 6.3mm 5010000543 5010000545

Vert. Door Pole, short, black,

fiberglass, rubber tips 1 6.3mm 5010000543 5010000545

Before you begin

Read all instructions before set up.

• Select a level site clear of rocks, branches, and other hard or sharp

objects, to install your tent.

WARNING: Keep clear of overhead power lines.

• Do not set up your tent under trees because of potential lightning strikes

or falling tree limbs in inclement weather.

• Secure with all stakes and guylines provided to prevent property damage

or personal injury.

• For best results in windy conditions, position narrow end of tent into

the wind.

• Enlist the help of at least one other person to assist you when it is time

to assemble the tent.

Self-Rolling Window Spring Descriptions

Color Code Description Qty. Length Replacement Part No.

Red 1 360mm 5010000624

Green 3 610mm 5010000627

Orange 2 670mm 5010000628

CAUTION: “Springs” may have sharp edges. Handle with care to avoid

injury. Keep out of reach of children.

Self-rolling Windows

CAUTION: “Springs” may have sharp edges. Handle with care to avoid

injury. Keep out of reach of children.

NOTE: Carefully unroll metal “springs” stored in bag with stakes. The color

marking on each “spring” should match the color of the fabric “flag” sewn

to the window or door sleeve opening. (Fig. 24)

1. Locate sleeve(s) in window panel, open hook &

loop fastener; then insert “spring(s)” with match-

ing color marking. (Fig.24 & 25)

NOTE: When inserting into the sleeve(s), the

color marking on the “spring(s)” should always

face the operator.

2. Close hook & loop fastener to secure.

3. Before unzipping and opening the window,

push in at top to engage “spring(s)” to activate

the self-rolling feature. (Fig. 26)

4. Unzip to allow the window panel to roll down

automatically; zip back to close window panel.

(Fig. 27 & 28)

NOTE: Repeat steps above for inserting the color

matching “spring(s)” into sleeve(s) for the rest of

the windows.

3. Insert tapered metal tip on Awning

Pole into grommet located on web

strap clipped to center Leg Pole.

(Fig. 19)

4. Go to opposite center Leg Pole on

other side of door and gradually

apply pressure to the pole forming

an arch. Insert metal tip into the

grommet.

5. Locate all hook & loop fasteners on underside

of Rainfly and wrap around Leg Poles and

Awning Pole locations. (Fig. 20)

Cooler Access

The smaller zippered opening at the side of tent is

designed for added ventilation and easy access to

your beverage cooler.

1. To use as a vent, unzip flap to expose screen.

2. To use as a cooler access, unzip other flap to

make an avenue to bring beverages into tent.

(Fig. 32)

STITCH LINE

Attaching Room Divider

1. Divider Panel can be installed through

center of the tent by inserting the

toggles through

top and bottom

fabric loops as

shown.

(Fig. 29 & 30)

To Store

1. All “springs” must be rolled up and placed in bag with stakes.

2. All poles and stakes must be placed in the storage bag to prevent

damage to the fabric items placed in the carry case.

3. Make sure tent is clean and dry before placing in carry case.

4. Remove rainfly, spread out on floor of tent, then unzip door & vents

before taking tent down for storage.

5. Neatly fold tent to width of pole storage bag, place on tent, roll

tightly, and place in carry case.

5. Store in a clean, dry area.

Electrical Cord Access

1. Unzip the access panel in the lower

left corner of tent and bring in an

electrical cord.

NOTE: Use only UL approved cords

rated for outdoor usage. (Fig. 31)

Fig. 29

Fig. 32

Fig. 31

Fig. 22

Fig. 20

Fig. 23

Fig. 19

Grommet

End Leg

Pole

Location

7. Loop ends of guylines over stakes, stretch tight, then hammer into

ground at an angle as shown. (Fig. 23 & 23A)

Awning Pole

To Attach Rainfly

1. Drape Rainfly over tent. Make sure seams on Rainfly are facing down

and centered over poles of the tent. (Fig. 17)

NOTE: Hook and loop fasteners, located on seams of underside of

Rainfly, should be centered over Ridge Poles.

Fig. 17

Rainfly

Door

Sleeve

Fig. 18

2. Assemble thin, black, shock-corded

Awning Pole with metal tips; then

insert through sleeve in Rainfly above

door. (Fig. 18)

Awning

Pole

Sleeve

Fig. 30

Divider

Panel

Top

Fabric

Loops

Fig. 21

Center

Leg Pole

Location

23A

Guyline

Door

Window

Panel

Window Panel

Push in at top to

engage “spring(s)”

Color

Dot

Fig. 28

Fig. 24

Fig. 25

Sleeves

Sleeve

Fig. 27

Fig. 26

6. Insert metal hook on

elastic straps on

Rainfly into the hole

on each Leg Pole.

(Fig. 21 & 22)

Self-rolling Windows

(continued)

CAUTION: All “springs” must be removed from sleeves before tearing

down tent to avoid damage to the tent fabric or part. To avoid injury,

carefully roll up “springs”. Store rolledKeep out of reach of children.

“springs in bag with stakes.

Color

“Flag”

Tent Lighting System

Your tent comes pre-wired with the Coleman

®Tent Lighting

System. See manual that came with the light and carefully read

all instructions before use then save for future reference.

Things You Should Know:

• Under certain conditions (cold weather, high humidity, etc.) condensa-

tion will form on the inside of your tent. Condensation is caused by water

vapor from your breath, perspiration, or any wet clothing inside the tent.

It is NOT LEAKAGE through the tent fabric. It can be minimized by

removing wet clothing from your tent and by providing good ventila-

tion through the tent.

• Tree limbs, tree sap, bird droppings, or moisture steadily dripping off

tree limbs can cause damage to the tent fabric and its coating resulting

in leaks or loss of flame-resistant properties.

• Never store tent, even for a short period of time, without drying it

thoroughly and brushing off caked dirt. Do not pack stakes or poles

inside your tent. Use a separate storage bag.

• Stakes should be removed by pulling on the stake itself. NEVER PULL ON

THE TENT TO REMOVE STAKES AS THIS COULD RESULT IN PROPERTY

DAMAGE OR PERSONAL INJURY.

• Tent poles should not be left telescoped together during storage.

• Do not leave your tent set-up for weeks at a time. Be aware that exposure

to ultraviolet rays from the sun can seriously damage material and/or

cause it to become discolored.

WARNING: Keep all flame and heat sources away

from this tent fabric.

This tent meets the flammability requirements of CPAI-84. The

fabric may burn if left in continuous contact with any flame source.

The application of any foreign substance to the tent fabric may

render the flame-resistant properties ineffective.

Color “Flag”

The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN CHINA • PRINTED IN CHINA

Coleman®, , , and Weathermaster®are registered trademarks of

The Coleman Company, Inc.

4010003995 (20081030)

Produkt Specifikationer

Mærke:	Coleman
Kategori:	Telt
Model:	Elite Weathermaster 6

Har du brug for hjælp?

Hvis du har brug for hjælp til Coleman Elite Weathermaster 6 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Telt Coleman Manualer

Coleman Instant Up 3P Manual

16 August 2024

Coleman Sundome Manual

16 August 2024

Coleman Kohna Manual

15 August 2024

Coleman Sundome 4 Manual

15 August 2024

Coleman Instant Up 4P Manual

14 August 2024

Coleman Instant Up 6P Manual

14 August 2024

Coleman Evanston Manual

14 August 2024

Coleman Sundome 12x10 Manual

14 August 2024

Coleman Ciqala Manual

14 August 2024

Coleman Instant Up Single Ensuite Manual

14 August 2024

Telt Manualer

Nyeste Telt Manualer

De Waard Zeester Manual

7 Oktober 2024

Eureka El Capitan 2 Manual

6 Oktober 2024

Eureka KeeGo 2 Manual

4 Oktober 2024

SereneLife SLTET30 Manual

1 Oktober 2024

Calima 46074 Manual

1 Oktober 2024

SereneLife SLPTLB106 Manual

1 Oktober 2024

SereneLife SLPTSR107 Manual

30 September 2024

Eureka KeeGo Solo Manual

30 September 2024

Vaude Badawi Long 6 Manual

29 September 2024

De Waard Stormmeeuw Manual

25 September 2024
