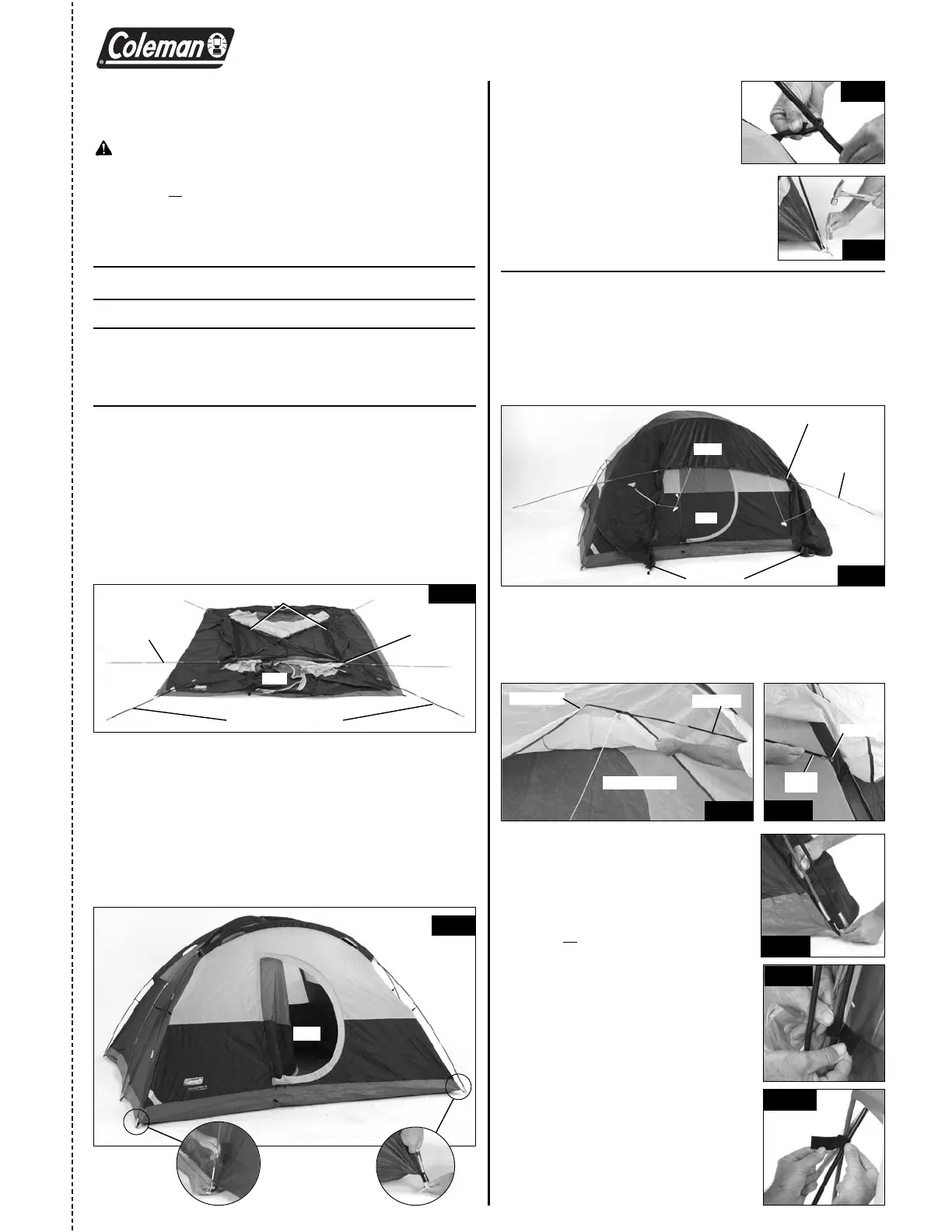

Side 1/2

STITCH LINE

EVANSTONTM 6TENT MODEL 2000001589

Pole Descriptions

Pole Pole Pole

Description Qty. Dia. Repair Kit Replacement Kit

Main Pole, black 2 11mm 501000539 501000549

Main Pole, grey 1 11mm 501000539 501000549

Rainfly Pole, black, long 1 11mm 501000539 501000549

Awning Pole, black, short 1 6.9mm 501000542 501000552

Before you begin

Read all instructions before set up.

• Select a level site clear of rocks, branches, and other hard or sharp

objects, to install your tent.

WARNING: Keep clear of overhead power lines.

• Do not set up your tent under trees because of potential lightning strikes

or falling tree limbs in inclement weather.

• Secure with all stakes and guylines provided to prevent property damage

or personal injury.

• For best results in windy conditions, position narrow end of tent into

the wind.

• Enlist the help of at least one other person to assist you when it is time

to assemble the tent.

To Set Up Tent

1. Unfold tent and spread out on a clean, level surface with the door

facing the desired direction. (Fig. 1)

2. Assemble all poles by interlocking the shock-corded, sections

together.

3. Insert black Main Poles through the black trimmed sleeves on top

of tent forming an X”.

4. Insert grey Main Pole through grey trimmed sleeve, in front of tent.

Make sure grey Main Poles overlap the black Main Poles. (Fig. 1)

Fig. 1

Door

Grey, Shock-corded

Main Pole

Black, Shock-corded Main Poles

Sleeves with Black Trim

Sleeve with

Grey Trim

5. Insert end of each black Main Pole into pins located in the corners

of the tent. (Fig. 2 & 2A)

6. Go to opposite end of each black Main Pole and gradually apply

pressure to each forming arches. Insert the pin into each pole end

at the corners of tent. (Fig. 2 & 2A)

7. Insert end of the grey Main Pole into pin located on the sides of the

tent. (Fig. 2 & 2B)

8. Go to opposite end of the grey Main Pole and gradually apply pres-

sure to form an arch. Insert the pin into pole end at the side of tent.

(Fig. 2 & 2B)

Fig. 2

Door

Front of Tent

9. Attach frame clips along edges of tent

to the black & grey Main Poles.

(Fig. 3)

Fig. 3

10. Stretch tent until taut, then secure metal loops

located on both sides and four corners of tent

with stakes. (Fig. 4)

Fig. 4

To Attach Rainfly

1. Drape Rainfly over tent with dark blue vestibule flaps located at the

front of the tent. (Fig 5).

NOTE: Hook and loop fasteners, located on seams of underside of

Rainfly, should be centered over black & grey Main Poles.

2. Insert the long, black, Rainfly Pole with through sleeve in underside

of Rainfly above front door of tent. (Fig. 5)

Fig. 5

Sleeve with Grey Trim

Black, Shock-corded

Rainfly Pole

Rainfly

Front of Tent

Door

Fig. 6

Awning Pole

Rainfly Sleeve

Back of Tent

3. Insert short, black, thin Awning Pole through sleeve in underside of

Rainfly above window at back of tent. (Fig. 6)

4. Insert metal tip into grommet on tent seam at back of tent (Fig. 7).

Go to opposite end of Awning Pole and gradually apply pressure to

pole forming an arch; then insert metal tip into grommet.

Vestibule Flaps

Awning

Pole

Grommet

Front of Tent

Fig. 7

(continued on other side)

5. Insert end of each black Rainfly Pole into

pin on either side of front door. (Fig. 8)

6. Go to opposite end of Rainfly Pole and

gradually apply pressure to form an arch.

Insert the pin into pole end at other side of

the door. (Fig. 8)

7. Locate all hook & loop fasteners on under

side of Rainfly and wrap around all Main

Poles, Awning & Rainfly Pole to secure.

(Fig. 9)

NOTE: Make sure longer hook & loop

fastener on Rainfly is secured around grey

and black Main Poles where they cross.

(Fig. 10)

Fig. 8

Fig. 9

Fig. 10

STITCH LINE

4010003997 (20081114)

Things You Should Know:

• Under certain conditions (cold weather, high humidity, etc.) condensa-

tion will form on the inside of your tent. Condensation is caused by water

vapor from your breath, perspiration, or any wet clothing inside the tent.

It is NOT LEAKAGE through the tent fabric. It can be minimized by

removing wet clothing from your tent and by providing good ventila-

tion through the tent.

• Tree limbs, tree sap, bird droppings, or moisture steadily dripping off

tree limbs can cause damage to the tent fabric and its coating resulting

in leaks or loss of flame-resistant properties.

• Never store tent, even for a short period of time, without drying it

thoroughly and brushing off caked dirt. Do not pack stakes or poles

inside your tent. Use a separate storage bag.

• Stakes should be removed by pulling on the stake itself. NEVER PULL ON

THE TENT TO REMOVE STAKES AS THIS COULD RESULT IN PROPERTY

DAMAGE OR PERSONAL INJURY.

• Tent poles should not be left telescoped together during storage.

• Do not leave your tent set-up for weeks at a time. Be aware that exposure

to ultraviolet rays from the sun can seriously damage material and/or

cause it to become discolored.

WARNING: Keep all flame and heat sources away

from this tent fabric.

This tent meets the flammability requirements of CPAI-84. The

fabric may burn if left in continuous contact with any flame source.

The application of any foreign substance to the tent fabric may

render the flame-resistant properties ineffective.

The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN CHINA • PRINTED IN CHINA

Coleman®, , and are registered trademarks and Evanston TM

is a trademark of

The Coleman Company, Inc.

11B

Fig. 11

11C

Cooler Access

The smaller zippered opening at the side of tent is

designed for added ventilation and easy access to

your beverage cooler.

1. To use as a vent, unzip flap to expose screen.

2. To use as a cooler access, unzip other flap to

make an avenue to bring beverages into tent. (Fig. 13)

To Store

1. All poles and stakes must be placed in the storage bag to

prevent damage to the fabric items placed in the carry case.

2. Make sure tent is clean and dry before placing in carry case.

3. Remove rainfly, spread out on floor of tent, then unzip door & vents

before taking tent down for storage.

4. Neatly fold tent to width of pole storage bag, place on tent, roll

tightly, and place in carry case.

5. Store in a clean, dry area.

Electrical Cord Access

1. Unzip the access panel in the lower

left corner of tent and bring in an

electrical cord.

NOTE: Use only UL approved cords

rated for outdoor usage. (Fig. 12)

Fig. 13

Fig. 12

To Attach Rainfly

(continued)

8. Stretch elastic straps and hook clip on each to the metal loops at the front and back corners of the tent. (Fig. 11 & 11A)

9. Extend out vestibule flaps and secure with metal stakes through the loops in the web straps. (Fig. 11 & 11B)

10. Stretch guylines until taut, then secure with stakes. (Fig. 11 & 11C)

11A
