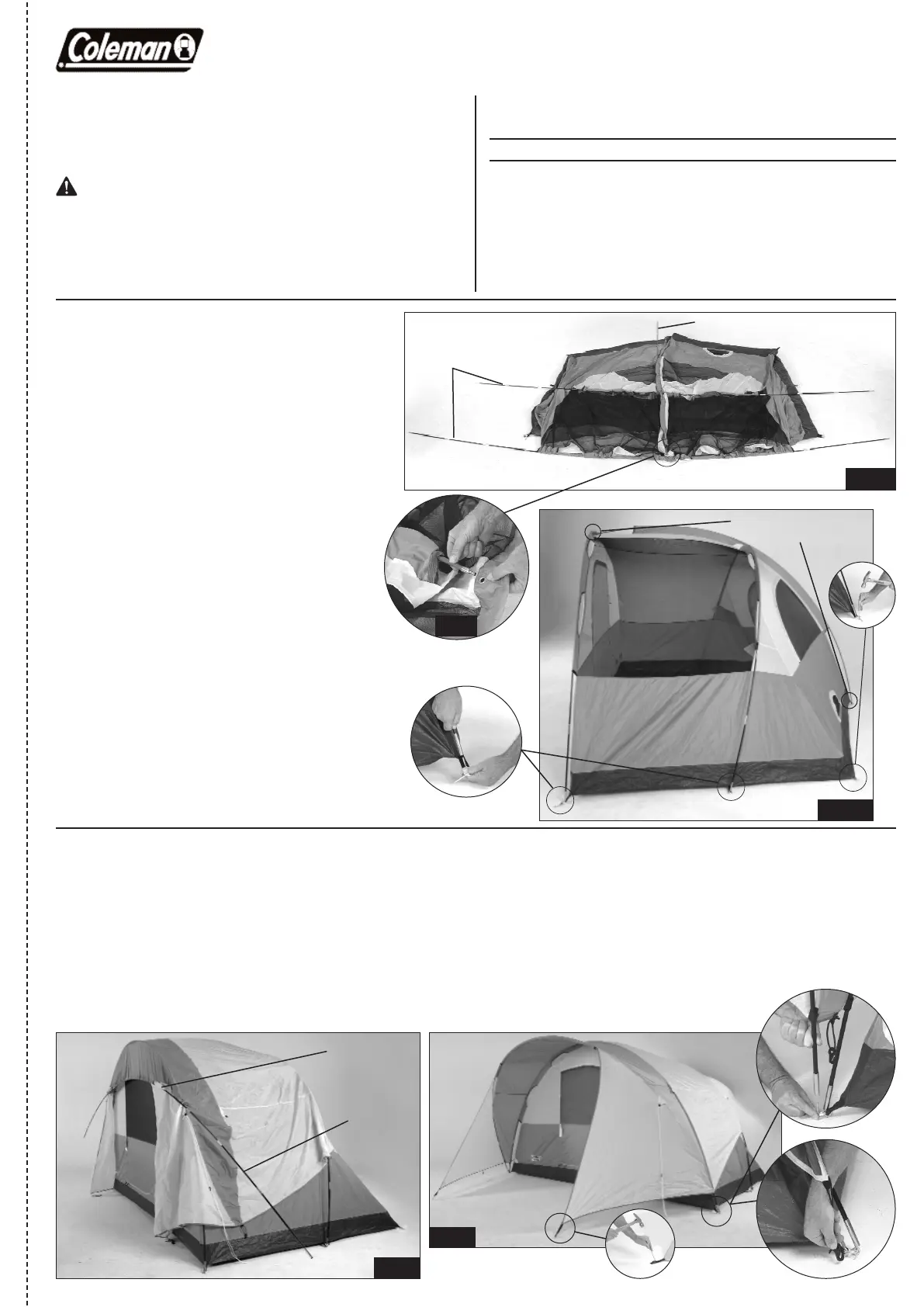

Side 1/2

5. Insert metal tip on gray ridge pole into metal

grommet located at front of tent. (Fig. 2)

6. Insert one end of front and center black poles

into pins in front corner and side of tent.

(Fig. 3 & 3A)

7. Go to opposite end of each pole and gradually

apply pressure to the poles forming arches.

Insert the pin into the pole end at the front

corner and side of tent. (Fig. 3)

8. Go to back of tent and gradually apply pressure on

the gray ridge pole forming an arch; then insert metal

tip of pole into metal grommet om web strap at

back of tent. (Fig. 3)

9. Stretch corners and sides of tent until floor is

taut then hammer stakes through loops to secure.

(Fig. 3B)

STITCH LINE

CIQALATM TENT 12’ X 10’

MODEL 2000001109

Before you begin

Read all instructions before set up.

• Select a level campsite clear of rocks, branches, and other hard

or sharp objects, to install your tent.

WARNING: Keep clear of overhead power lines.

• Do not set up your tent under trees.

• For best results in windy conditions, position end of tent into

the wind.

• Enlist the help of at least one other person to assist you when

it is time to assemble the tent.

To Set Up Tent

1. Unfold tent and spread out on a clean, level surface

with the door facing the desired direction.

2. Assemble the interlocking shock-corded poles (two

black main tent poles and the gray ridge pole).

3. Insert both, long, black poles through sleeves in

top front and center locations on tent as shown.

(Fig. 1)

4. Insert the gray ridge pole through sleeve on top

of tent that runs from front to back. (Fig. 1)

Fig. 3

Parts and Components

Description Part Number

Main Poles, Long, Black (2) 5010000386

Ridge Pole, Gray (1) 5010000387

Back Awning Pole w/Metal Tips, Black (1) 5010000388

Front Awning Pole, Long, Black (1) 5010000389

Rainfly 5010000400

To Attach Rainfly

1. Assemble long, thin, black interlocking shock-corded front awning pole.

2. Unfold rainfly. Locate the sleeve, along front edge, and the hook & loop fasteners on the underside of rainfly.

3. Drape rainfly over tent. Make sure the sleeve is centered over the door and the hook & loop fasteners, on the underside of the rain-

fly, are positioned over the black main poles and gray pole. (Fig. 4)

4. Slide front awning pole through sleeve at front of the rainfly. (Fig. 4)

5. Insert one end of front awning pole into pin in front corner of tent. (Fig. 5A)

6. Go to opposite end of front awning pole and gradually apply pressure until pole forms an arch. Insert the pin into

the pole end at the front corner of tent (Fig. 5 & 5B). Drive stakes through straps on vestibule flap. (Fig. 5C)

(continued on other side)

Fig. 1

Door (Front of Tent)

Fig. 4

Front Awning

Pole

Sleeve on Front

of Rainfly

Long, Black,

Shock-corded

Main Poles

Gray, Shock-corded Ridge Pole

Gray Ridge Pole in Front &

Back Metal Grommets

Door

Fig. 5

Vestibule Flap

Fig. 2

STITCH LINE

To Attach Rainfly continued

To Store

1. All metal poles and stakes must to be placed in the storage

bag to prevent damage to the fabric items placed in the

carry case.

2. Make sure tent is clean and dry before placing in carry case.

3. Remove rainfly, spread out on floor of tent, then unzip

door & vents before taking tent down for storage.

4. Neatly fold tent to width of pole storage bag, place on tent,

roll tightly, and place in carry case.

5. Store in a clean, dry area.

12/07

7. Assemble the interlocking, shock-cord-

ed back awning pole, with metal

tips on the angled end pieces.

8. Insert back awning pole through

sleeve in rainfly awning at back of tent

as shown. (Fig. 6)

9. Insert metal tip, on back awning pole,

into metal grommet in upper corner.

(Fig. 6 & 6A)

10. Go to opposite end of back awning

pole and gradually apply pressure to the

pole to form an arch. Insert the metal

tip on the awning pole into the metal

grommet. (Fig. 6)

11. Locate all hook & loop fasteners on

seams on underside of rainflay and

wrap around black main poles to

secure. (Fig. 7A)

12. Tie guylines through loops on web

straps on the rainfly. (Fig. 7 & 7B)

13. Stretch guylines until taut, then

secure with stakes. (Fig. 7C)

Things You Should Know:

•Under certain conditions (cold weather, high humidity, etc.) condensa-

tion will form on the inside of your tent. Condensation is caused by

water vapor from your breath, perspiration, or any wet clothing inside

the tent. It is NOT LEAKAGE through the tent fabric. It can be minimized

by removing wet clothing from your tent and by providing good ventila-

tion through the tent.

•Never store tent, even for a short period of time, without drying it

thoroughly and brushing off caked dirt. Do not pack stakes or poles

inside your tent. Use a separate storage bag.

•STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.

NEVER PULL ON THE TENT TO REMOVE STAKE.

•TENT POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER

DURING STORAGE.

•Do not leave your tent set-up for weeks at a time. Be aware that exposure

to ultraviolet rays from the sun can seriously damage material and/or

cause it to become discolored.

WARNING: Keep all flame and heat sources away

from this tent fabric.

This tent meets the flammability requirements of CPAI-84. The

fabric may burn if left in continuous contact with any flame source.

The application of any foreign substance to the tent fabric may

render the flame-resistant properties ineffective.

Electrical Cord Access

1. Unzip access panel in the lower

left corner of tent and bring in

electrical cord. Use only UL approved

cords that are rated for outdoor

usage. (Fig. 10)

Fig. 10

Fig. 7

Cooler Access

The smaller zippered opening at the

rear of the tent is designed for added

ventilation and easy access to your

beverage cooler.

1. To use as a vent, unzip flap to

expose screen. (Fig.8)

2. To use as a cooler access, unzip

other flap to make an avenue to

bring beverages into the tent.

(Fig.9)

Fig. 8

Fig. 9

Black

Main

Pole

Back Window

Vent of Tent

Front Door &

Vestibule of Tent

Back Awning &

Window Vent

of Tent

Side View of Tent

Grommet

Back

Awning Pole

Sleeve in Rainfly

Awning

Back Awning

Pole

Fig. 6

Underside

of Rainfly 7C

The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

Sunbeam Corporation (Canada) Limited

DBA Jarden Consumer Solutions

20B Hereford Street • Brampton, ON L6Y 0M1

1 800 387-6161 • www.colemancanada.ca

FABRIQUÉE EN CHINE • IMPRIMÉ EN CHINE

Coleman®et sont des marques déposées de The Coleman Company, Inc.
