Cougar Forza 135 Manual

Cougar Computer køling komponent Forza 135

Læs gratis den danske manual til Cougar Forza 135 (2 sider) i kategorien Computer køling komponent. Denne vejledning er vurderet som hjælpsom af 2 personer og har en gennemsnitlig bedømmelse på 4.5 stjerner ud af 1.5 anmeldelser. Har du et spørgsmål om Cougar Forza 135, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/2

! ! !

LGA1700 / 1200 / 115X / 1366

LGA1700 / 1200 / 115X / 1366Intel Intel

LGA2011Intel

Please remove the protect tape

before installing

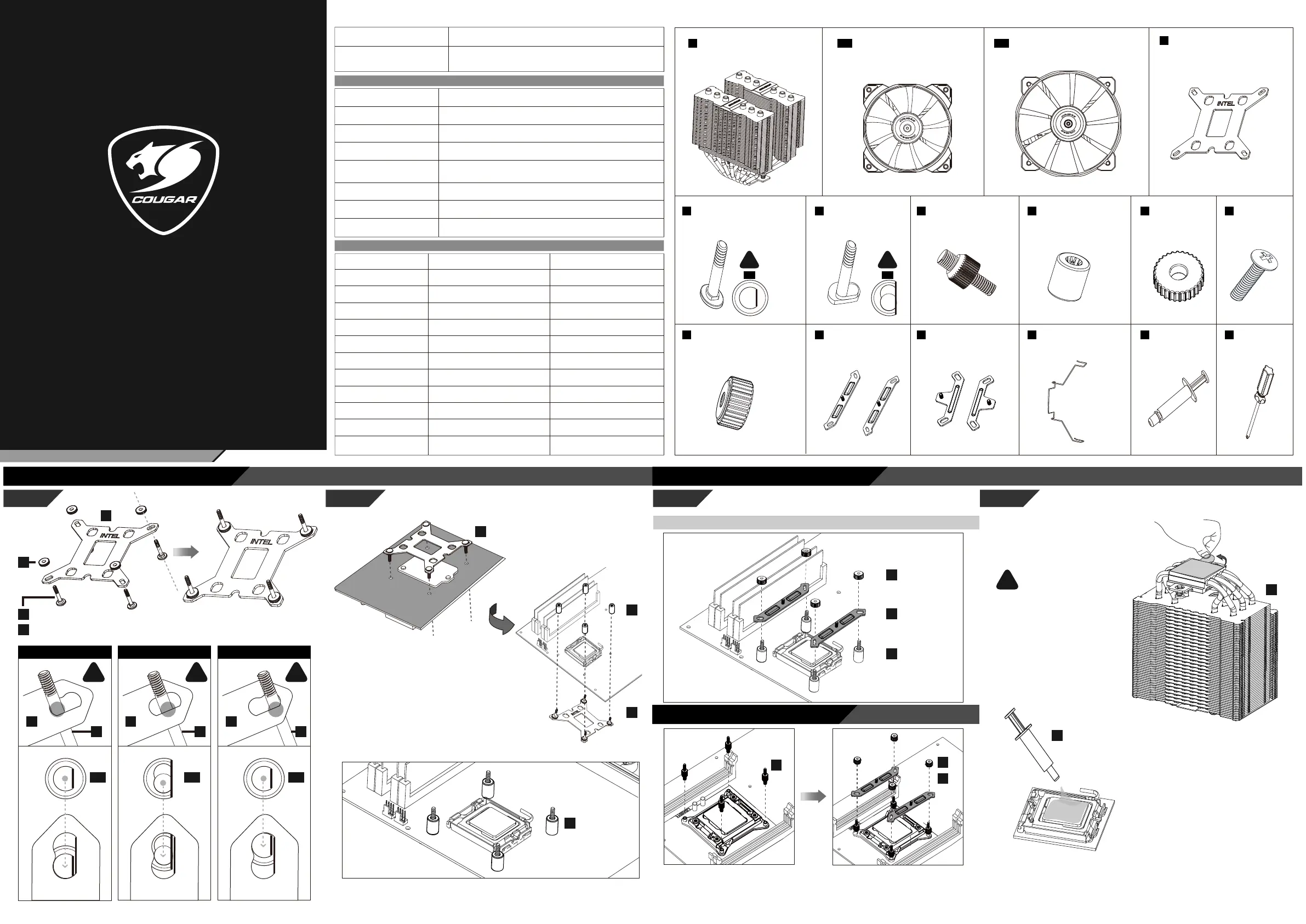

ACCESSORY KIT

CPU Cooler

MHP 120 FAN x 1

B-1

Intel Bracket

Plastic Stand-off x 4

(For Both INTEL / AMD)

Plastic Spacer x 4

Screw x 4

Thumb Screw x 4

Backplate (for INTEL)

Backplate Screw x 4

(LGA1700)

Screw for INTEL LGA2011 x 4

Backplate Screw x 4

(LGA115X / 1200 / 1366)

AMD Bracket

Fan Clips x 6 ( 3 set )

M O

Screwdriver

Thermal Paste

Step 1 Step 2 Step 3 Step 4

Caution:

Applying too much thermal paste will lower

heat conductivity and cooling performance!

Caution: The supplied backplate will install

over the motherboard’s stock backplate,

so the motherboard’s stock backplate

must not be taken off.

For LGA2011, screw the “Screw F” on the motherboard directly

without the “Backplate C”

LGA1700

LGA115X / 1200 / 1366

LGA 115X / 1200

LGA 1700 LGA 1366

D-2

C C C

D E D

E-2

D-2 E-2 D-2

SPECIFICATIONS

MHP120

120 x 120 x 25 mm

600-2000 RPM ± 200 RPM

82.48 CFM / 143.53 m3/h (± 10%)

4.24 mm H2O±10%

31.68 dB(A) (Max.)

12 VDC

0.23 A

2.76 W ± 10%

200 mm

4 Pin PWM

Fan Model

Dimensions (WxDxH)

Fan Speed

Air Flow

Air Pressure

Acoustic Noise

Rated Voltage

Rated Current

Power Consumption

Bearing Type

Cable Length

Connector & Control

Fans

FORZA 135

Product Name

CPU Socket

Copper base with nickel plated

6 mm

7 units

Copper with nickel plated

Reﬂow

128 x 140 x 160mm

1041 g

1391 g

CPU touched base

Heat pipe diameter

Heat pipe number

Heat pipe ﬁnish

Craftsmanship

Dimension (WxDxH)

Weight

Weight Incl. Fan

Heatsink

Intel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066

(Core i3 / i5 / i7 / i9 CPU)

AMD AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU

FORZA 135

SUPERIOR DUAL TOWER AIR COOLER

产品规格 , 產品規格零件包 , 零件包

产品名称 , 產品名稱

支援 CPU 插座类型 , 支援 CPU 插座類型

CPU 散热底座 , CPU 散熱底座

镀镍铜底板导热技术 , 鍍鎳銅底板導熱技術

7 根 , 7 根

铜镀镍 , 銅鍍鎳

回流焊 , 回流焊

热导管尺寸 , 熱導管尺寸

热导管数量 , 熱導管數量

热导管表面 , 熱導管表面

尺寸(宽x深x高) , 尺寸(寬x深x高)

重量(不含风扇）, 重量(不含風扇)

重量(含风扇) , 重量(含風扇)

风扇型号 , 風扇型號

尺寸 (宽x深x高) , 尺寸 (寬x深x高)

风扇转速 , 風扇轉速

风量 , 風量

风压 , 風壓

风扇噪音 , 風扇噪音

额定电压 , 額定電壓

额定电流 , 額定電流

功耗 , 功耗

轴承型式 , 軸承型式

电源线长度 , 電源線長度

控制连接类型 , 控制連接類型

制作工艺 (热导管与散热鳍片)

製作工藝 (熱導管與散熱鰭片)

CPU散热器

CPU散熱器

背板螺丝 x 4 (LGA115X / 1200 / 1366)

背板螺絲 x 4 (LGA115X / 1200 / 1366)

背板螺丝 x 4 (LGA1700)

背板螺絲 x 4 (LGA1700)

INTEL LGA2011专用螺丝 x 4

INTEL LGA2011專用螺絲 x 4

塑胶柱 x 4 (INTEL / AMD共用)

塑膠柱 x 4 (INTEL / AMD共用)

塑胶垫片 x 4

塑膠墊片 x 4

螺丝 x 4

螺絲 x 4

手动螺丝 x 4

手動螺絲 x 4

INTEL 支架

AMD 支架

风扇扣具 x 6 ( 3组 )

風扇扣具 x 6 ( 3組 )

散热膏

散熱膏

螺丝起子

螺絲起子

MHP 120

风扇 x 1

MHP 120

風扇 x 1

MHP 140-A FAN x 1

B-2

MHP 140-A

风扇 x 1

MHP 140-A

風扇 x 1

背板 (INTEL专用)

背板 (INTEL專用)

注意: 零件包内附的背板需安装在主板背板的后面，因此请勿拆下主板原有部件。

注意: 零件包內附的背板需安裝在主板背板的後面，因此請勿拆下主板原有部件。

安装LGA2011时，请使用「F - 螺丝」直接锁固在主板上，不需要搭配「 C - 背板」安装。

安裝LGA2011時，請使用「F - 螺絲」直接鎖固在主板上，不需要搭配「 C - 背板」安裝。

注意：散热膏涂抹过多会降低热传导性能与散热效能。

注意：散熱膏塗抹過多會降低熱傳導性能與散熱效能。

安装前请先撕下保护膜。

安裝前請先撕下保護膜。

HDB Hydro Dynamic Bearing

HDB 动态液压轴承 , HDB 動態液壓軸承

MHP140-A

140 x 140 x 25 mm

500-1500 RPM ± 150 RPM

72.93 CFM / 123.9 m3/h (± 10%)

2.11 mm H2O±10%

38.5 dB(A) (Max.)

12 VDC

0.18 A

2.16 W ± 10%

200 mm

4 Pin PWM

HDB Hydro Dynamic Bearing

HDB 动态液压轴承 , HDB 動態液壓軸承

散热器 , 散熱器

风扇 , 風扇

请使用零件包内附的风扇扣具来安装风扇，以达到最佳散热效能。

請使用零件包內附的風扇扣具來安裝風扇，以達到最佳散熱效能。

请使用零件包内附的风扇扣具来安装风扇，以达到最佳散热效能。

請使用零件包內附的風扇扣具來安裝風扇，以達到最佳散熱效能。

Forza 135零件包多附一组风扇扣具可支援所有品牌的120mm风扇，建

议您可安装第三个风扇以提升Forza 135的散热效能。

我们推荐您另外购买COUGAR MHP 120风扇以达到最佳散热表现。

Forza 135零件包多附一組風扇扣具可支援所有品牌的120mm風扇，建

議您可安裝第三個風扇以提升Forza 135的散熱效能。

我們推薦您另外購買COUGAR MHP 120風扇以達到最佳散熱表現。

注意：散热膏涂抹过多会降低热传导性能与散热效能。

注意：散熱膏塗抹過多會降低熱傳導性能與散熱效能。

安装前请先撕下保护膜。

安裝前請先撕下保護膜。

Forza 135零件包多附一组风扇扣具可支援所有品牌的120mm风扇，建

议您可安装第三个风扇以提升Forza 135的散热效能。

我们推荐您另外购买COUGAR MHP 120风扇以达到最佳散热表现。

Forza 135零件包多附一組風扇扣具可支援所有品牌的120mm風扇，建

議您可安裝第三個風扇以提升Forza 135的散熱效能。

我們推薦您另外購買COUGAR MHP 120風扇以達到最佳散熱表現。

Made in China

LEGAL NOTICES

This manual was created by Compucase Enterprise and may not be completely or partially copied, passed

on, distributed or stored without written consent by Compucase Enterprise.

COUGAR® is a registered brand of Compucase Enterprise Other product and company names mentioned

in this documentation may be brands or trademarks of their respective owners.

Compucase Enterprise reserves the right to make changes concerning the contents of the manual and the

technical data of the product without previous announcement.

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR Forza 135 single tower air cooler

Warranty : 2 Years

This warranty gives you speciﬁc legal rights. You may also have other rights granted under local law. These

rights may vary.

MANUFACTURER CONTACT

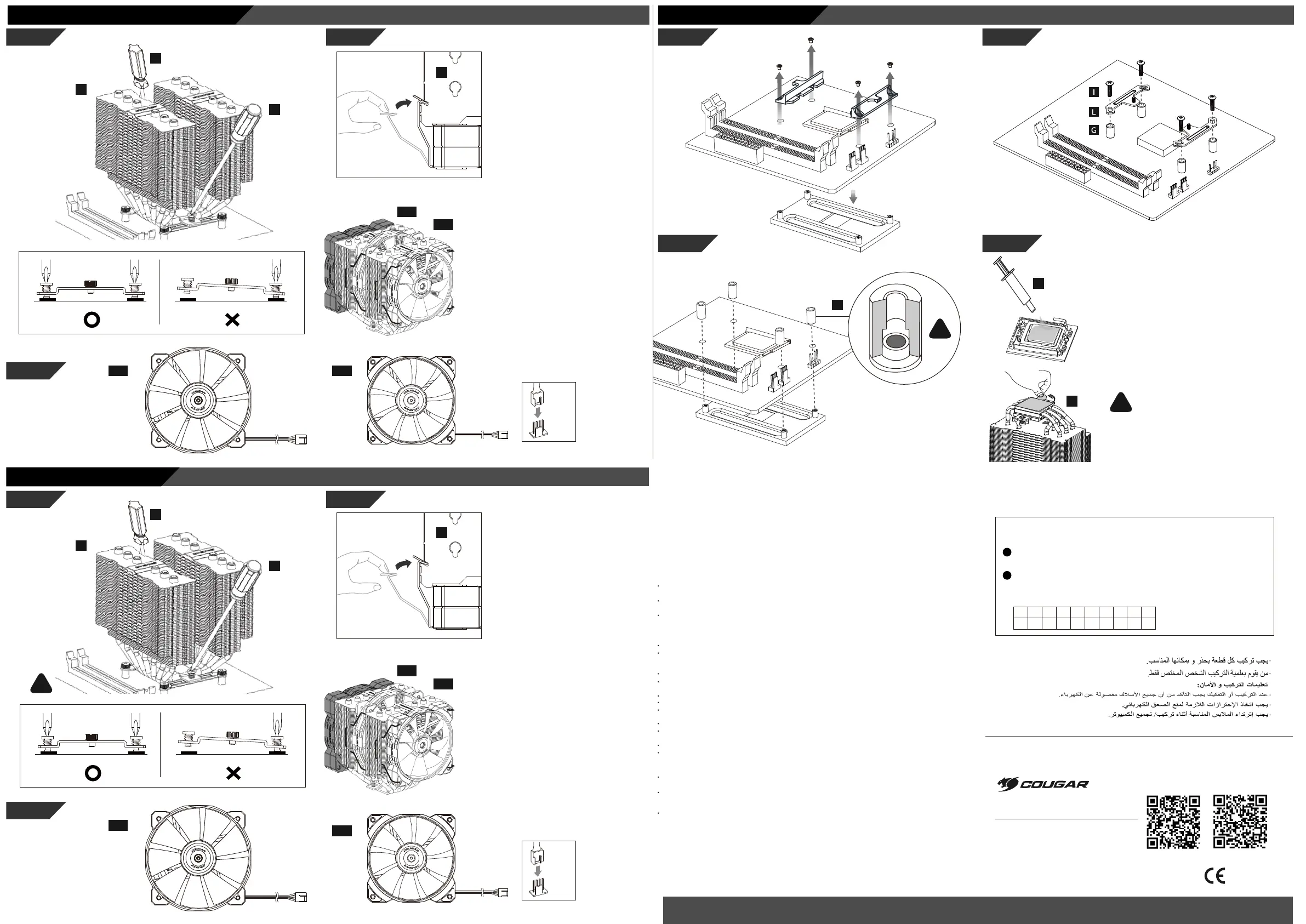

LGA1700 / 1200 / 115X / 1366 / 2011Intel

AMD

Step 5

Step 1 Step 3

Step 2

Step 6

Step 7

Please remove the protect tape

before installing

Step 4

AMD AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU

Attach the fan using the supplied steel

clips for maximum cooling performance.

Caution: Applying too much thermal paste will

lower heat conductivity and cooling performance!

Attach the fan using the supplied steel

clips for maximum cooling performance.

Step 6

Step 7

CPU FAN

Compucase Enterprise Co.,Ltd.

COUGAR USA Technical Service

Tel: (833) 256-3778

Mail:rma@compucaseusa.com

www.cougargaming.com

Official website

Forza 135 comes with an additional set of fan clips that

allows for a third 120 mm fan of any brand to increase

the heat dissipation efﬁciency of the Forza 135.

To maximize the performance,we recommend a third

COUGAR MHP 120 fan (sold separately).

Forza 135 comes with an additional set of fan clips that

allows for a third 120 mm fan of any brand to increase the

heat dissipation efﬁciency of the Forza 135.

To maximize the performance,we recommend a third

COUGAR MHP 120 fan (sold separately).

WARRANTY AGREEMENT

If the product has defects in material or manufacture, COUGAR will provide product repair and

replacement service within the warranty period.

Our warranty service is based on the date of the invoice or warranty card (must be afﬁxed with the store

stamp).

If you lose the aforementioned evidence, we will apply the original shipping date of the product as the

beginning date of warranty period. The shipping date will be identiﬁed by the product serial number(S/N).

CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED

Any fault or damage caused by natural disasters (including storm, ﬁre, ﬂood, thunder, earthquake, etc).

Any fault or damage caused by accidental factors and man-made reasons (including hit, scrape, crash,

moving, compression, stain, corrosion, use of incurred on unsuitable voltage, computer virus, riot, misuse,

malicious damage, etc).

Use in an improper operating environment (including high temperature, high humidity, water inﬂow, etc).

Inability to provide the product warranty card, purchase receipt or invoice to prove the product is still

within the warranty period and the shipping date of the product is out of warranty.

The warranty card or product serial number has been altered or its number is hard to identify.

The warranty period has expired.

Any fault or damage caused by non-compliance with regulations stated on the user manual or improper,

rough and careless treatment.

Any fault or damage caused by use of parts not certiﬁed by COUGAR original manufacturer.

The problem is caused by improper repair or adjustment by the buyer or any manufacturer without

authorization from COUGAR.

The product is not acquired from an authorized distributor of the company or is acquired from illicit sources.

Paper carton, instruction and other accessories are not warranted.

DISCLAIMERS

COUGAR product is not authorized for use as critical components in life support device or for incorrect

application software or malfunction of the product.

COUGAR is not liable for the death or damage of person or loss of property when product is using as,

including but not limited to, medical equipment, military equipment, trafﬁc equipment and disaster

prevention system.

COUGAR is not liable for any damages, expenses, lost data, lost revenues, lost savings, lost proﬁts, or any

incidental or consequential damages due to using defect product of COUGAR.

全球保固条款 , 全球保固條款

COUGAR电竞产品保固期 , COUGAR電競產品保固期

产品名称 , 產品名稱 : COUGAR Forza 135单塔散热器 , COUGAR Forza 135單塔散熱器

保固期 , 保固期 : 2年 , 2年

本保固条款赋予您特定的合法权利，而您所在的地区可能也会赋予您其他权利。

本保固條款賦予您特定的合法權利，而您所在的地區可能也會賦予您其他權利。

详细保固条件

请扫描二维码

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

После S/N:

первые две цифры означают год, вторые две – месяц изготовления.

Например,

S/N: H2202000001 означает, что товар был произведен в феврале 2022 года.

После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже, и

означают год, последующие две цифры – месяц изготовления.

Например, S/N: DBB02REVI000001 означает, что товар был произведен в феврале

2022 года.

●

Например,

BB = 22 = 2022 год

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

A B C D E F G H I J

1 2 3 4 5 6 7 8 9 0

制造商联系方式 , 製造商聯繫方式

B-1

B-2

B-1

B-2

B-1
