CAUTION: Some parts of this product can

become very hot and cause burns. Particular

attention has to be given where children and

vulnerable people are present.

Precautions should be taken to ensure that

prolonged contact with the towel rail cannot

occur. Particular care should be taken in

conned areas where accidental prolonged

contact with the rail could be more likely to

occur.

This appliance should only be used to dry

fabrics washed in water using commonly

available detergents.

A means for disconnection must be

incorporated in the xed wiring in accordance

with the wiring rules. The supply circuit to

the heater must incorporate a double pole

isolating switch having a contact separation

of at least 3mm.

If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent or similarly qualied persons in order

to avoid a hazard.

IMPORTANT - If the towel rail is to be installed

in a place used by the public, a warning notice

should be placed adjacent to the rail advising

that the surface can be hot.

WARNING - the towel rail is a sealed unit

and is filled and sealed under controlled

conditions. Under no circumstances should

the seal of the unit be compromised

WARNING - In order to avoid a hazard for

very young children, this appliance should

be installed so that the lowest heated rail is

at least 600mm above the oor.

Important Safety Advice

WARNING - THE SURFACE OF THIS

RADIATOR CAN BE HOT.

In order to be effective the towel rail will get

hot, however momentary contact with any

part of it should not cause injury.

The heater is to be installed so that switches

and other controls cannot be touched by a

person in the bath or shower

CAUTION - This appliance can be used by

children aged from 8 years and above and

persons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning use of

the appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

Children of less than 3 years should be

kept away unless continuously supervised.

Children aged from 3 years and less than 8

years shall only switch on/off the appliance

provided that it has been placed or installed

in its intended normal operating position

and they have been given supervision

or instruction concerning the use of the

appliance in a safe way and understand

the hazards involved. Children aged from 3

years and less than 8 years shall not plug in,

regulate and clean the appliance or perform

user maintenance.

IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

Installation and Operating Instructions

Ladder Towel Rail

Model : CLR5C, CLR5W, CLR7C, CLR7W, CLR10C, CLR10W, CLR12C & CLR12W

08/53052/0 (UK) Issue 1

Model Rails Height (X)

(mm) g.1

Power

(W)

Weight

(kg) Finish

CLR5C 5 492 60 4.0 Chrome

CLR5W 5 492 100 4.0 White

CLR7C 7 692 80 5.4 Chrome

CLR7W 7 692 120 5.4 White

CLR10C 10 992 120 7.6 Chrome

CLR10W 10 992 175 7.6 White

CLR12C 12 1192 175 9.2 Chrome

CLR12W 12 1192 250 9.2 White

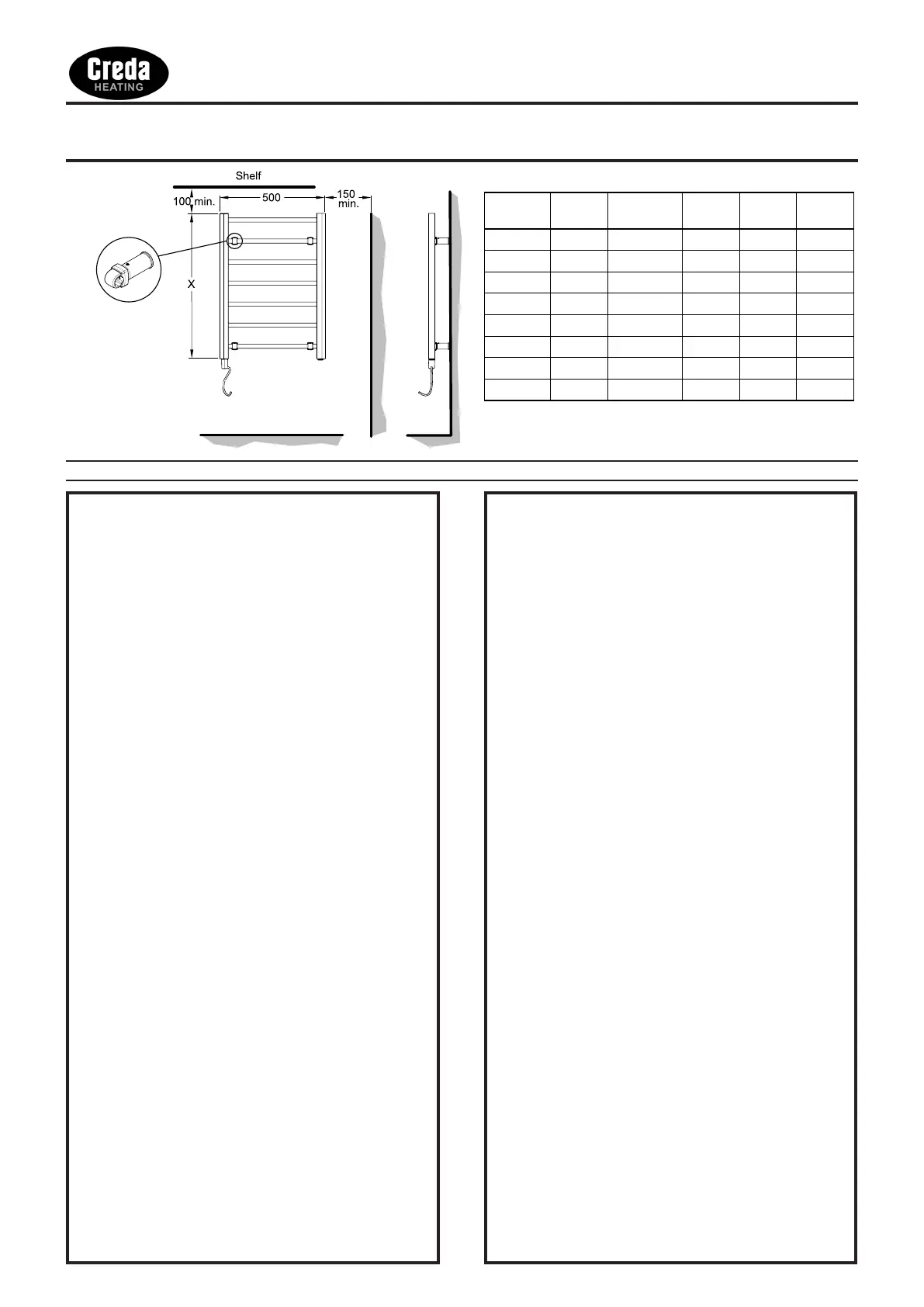

Dimensions

(millimetres)

Fig. 1

(A) 4 Mounting collars,

(B) 4 Rail seats,

(D) 4 Outer wall bracket sleeve,

(E) 4 Position locking screws,

(F) 4 Wall plugs,

(G) 4 Wall mounting screws,

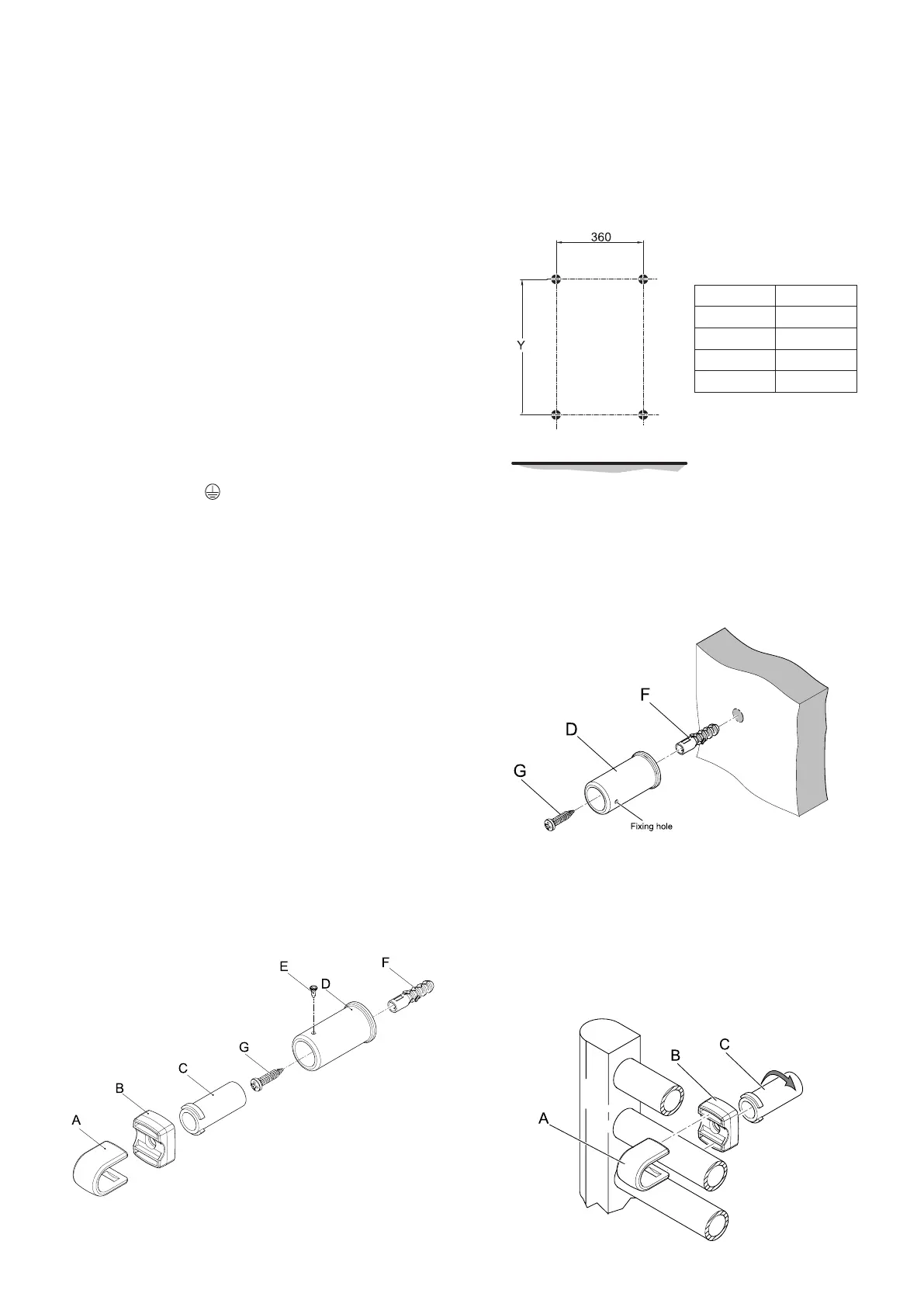

Procedure for wall mounting

Wall mounting dimensions:

Step 1

Mark suitable mounting hole positions for the xing brackets (ensuring

they are horizontal) - see , ensure to allow enough room above Fig. 3

and below to maintain the minimum clearance stated in . Fig. 1

Step 2

Drill and plug (F) the wall to suit. Fix the outer wall bracket sleeve (D) to

the wall using the screws provided (G). Ensure to align the bracket so

that the xing hole is accessable once the towel rail is tted - see Fig. 4.

Note: we recommend that the xing hole is positioned horizontally,

towards the side of the towel rail. This will allow easy access with a

screw driver when xing the rail in its nal position.

Step 3

Carefully assemble the four mounting collars (A) and rail seats (B) to

the towel rail and secure in the positions by inserting and turning the

inner bracket sleeve (C) through 90 degrees as shown in Fig. 5. The

brackets should be placed on the bottom and second from top rails and

separated by a distance of 360mm. Ensure the inner bracket sleeves

are facing directly backwards.

Fig. 3

Model Y (mm)

CLR5 300

CLR7 500

CLR10 800

CLR12 1000

Fig. 4

General

The towel rail is designed to provide an all year round service for

airing towels and articles of clothing. It is not intended to provide a

sole heating service, but will take the chill off a small size bathroom,

lavatory or en suite.

No routine maintenance is necessary apart from occasional cleaning.

The unit is splashproof to IPX5 standard.

Electrical

WARNING - This appliance must be earthed

The electrical installation of this towel rail must be carried out by a

competent electrician in accordance with the current I.E.E Regulations.

The towel rail is suitable for use on an A.C.~ electrical supply. Before

installation check that the supply voltage corresponds with that marked

on the rail.

IMPORTANT - The wires in the mains lead are coloured in

accordance with the following code:

BLUE - NEUTRAL

BROWN - LIVE

GREEN/ YELLOW - EARTH

As the colo urs of t h e wi r es i n t h e ma i ns lead of t his

appliance may not correspond with the coloured markings identifying

the terminals in your plug, proceed as follows:

The wire which is coloured GREEN and YELLOW must be

connected to the terminal in the plug which is marked with the letter

E or by the earth symbol or coloured green or green and yellow.

The wire which is coloured BLUE must be connected to the terminal

which is marked with the letter or coloured black.N

The wire which is coloured BROWN must be connected to the terminal

which is marked with the letter or coloured red.L

This appliance must only be used on A.C. mains supply of 230/240

Volts~.

Installation

If tted in a room containing a bath or shower, to comply with the current

I.E.E. Regulations, a cable outlet will be necessary with the supply

to the heater controlled by a double-pole pull-cord switch having a

contact separation of 3mm in each pole. The body of the switch should

be situated as to be normally inaccessible to a person using a bath or

shower. Alternatively the switch can be located outside of the bathroom.

IMPORTANT - Protect the electrical connection whilst

handling the towel rail.

The towel rail must be permanently xed to the wall using the wall

brackets supplied.

WARNING - to ensure safe, correct operation the rail must only

be mounted vertically as shown in Fig. 1, observing the minimum

clearances stated.

WARNING - The towel rail is heavy. Care must be taken when

lifting and tting the towel rail.

Wall mounting

The wall mounting accessory pack contains the following:

Fig. 2

Fig. 5
