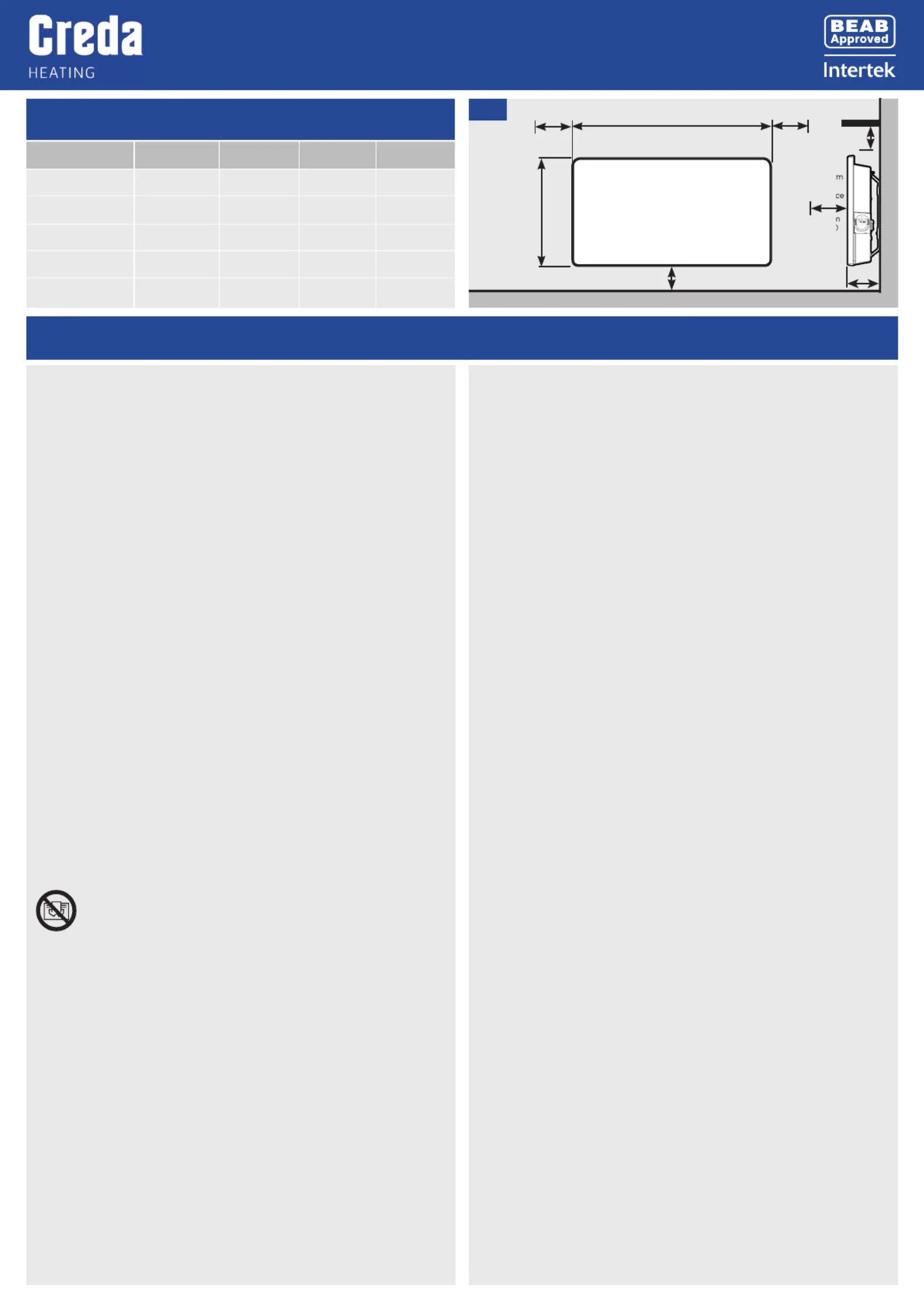

Installation and Operating Instructions

Creda Compact Heater

300003040 Issue 4

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

Model(s) A B CWatt

CPH05T 500 425mm 400mm 115mm

CPH10T 1000 525mm 400mm 115mm

CPH15T 1500 625mm 400mm 115mm

CPH20T 2000 925mm 400mm 115mm

CPH24T 2400 925mm 400mm 115mm

Dimensions

IMPORTANT SAFETY ADVICE

When using electrical appliances, basic

precautions should always be followed to

reduce the risk of ﬁ re, electrical shock, and

injury to persons, including the following:

IMPORTANT - The wall bracket supplied with

the appliance must be used.

DO NOT use this heater in the immediate

surroundings of a bath, a shower or a swimming

pool.

IMPORTANT - If the heater is installed in a

room containing a bath or shower, it must be

so installed that switches and other controls

cannot be touched by a person using a bath

or shower.

WARNING - In order to avoid overheating, do

not cover the heater. Do not place material

or garments on the heater, or obstruct the

air circulation around the heater, for instance

by curtains or furniture, as this could cause

overheating and a ﬁ re risk.

This heater carries the warning symbol

indicating that it must not be covered.

NEVER cover or obstruct in any way the heat

outlet slots at the top of the heater or the air

inlet slots in the base of the heater.

CAUTION - Some parts of this product can

become very hot and cause burns. Particular

attention has to be given where children and

vulnerable people are present.

This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental capabilities

or lack of experience or knowledge if they

have been given supervision or instruction

concerning the use of the appliance in a safe

way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be

carried out by children without supervision.

Children aged from 3 years and less than 8

years shall only switch on/off the appliance

provided that it has been placed or installed

in its intended normal operating position and

they have been given supervision or instruction

concerning the use of the appliance in a safe

way and understand the hazards involved.

Children aged from 3 years and less than 8

years shall not plug in, regulate and clean the

appliance or perform user maintenance.

If the supply cord is damaged it must be

replaced by the manufacturer or service agent

or a similarly qualiﬁ ed person in order to avoid

a hazard.

WARNING:

Servicing and product

repairs should only be undertaken by the

manufacturer’s approved service agent or

a similarly qualiﬁ ed person, using only exact

manufacturer approved spare parts.

IMPORTANT: The supply circuit to the heater

must incorporate a double pole isolating

switch having a contact separation of at least

3mm.

WARNING: Packaging should be disposed

of responsibly as the EPS used could be a

potential choking hazard for children.

WARNING: Do not locate the heater

immediately below a ﬁ xed socket outlet or

connection box.

CAUTION: In order to avoid a hazard due to

inadvertent resetting of the thermal cut-out,

this appliance must not be supplied through

an external switching device, such as a timer,

or connected to a circuit that is regularly

switched on and off by the utility.

50mm (min)

‘A’

‘B’

30mm

(min)

30mm

(min)

300mm

(min)

Shelf

Minimu

front

clearanc

Fig. 1

50mm

(min)

‘C’

Energy Related Product Directive

Type of heat output/ room temperature control

With electronic room temperature control Yes

Electronic room temperature control plus week

timer

Yes

With open window detection No

Model Identiﬁ er(s):

CPH05T CPH10T CPH15T CPH20T CPH24T

Nominal heat

output

Pnom 0.5 kW 1 kW 1.5 kW 2 kW 2.4 kW

Height (mm)

400

Depth (mm)

115

Width (mm)

425 625525 925 925

Minimum heat

output (indica-

tive)

Pmin 0.5 kW 1 kW 1.5 kW 2 kW 2.4 kW

Maximum continu-

ous heat output

Pmax,c 0.5 kW 1 kW 1.5 kW 2 kW 2.4 kW

Auxiliary electricity Consumption

At nominal heat

output

elmax 0.00 0.00 0.00 0.00 0.00

At minimum heat

output

elmin 0.00 0.00 0.00 0.00 0.00

In standby mode elSB

<0.0005 <0.0005 <0.0005 <0.0005 <0.0005

This product complies with Lot20 of the Energy Efﬁ ciency Directive (2015/1188)

General Information

This heater must be used wall-mounted. The necessary wall mounting brackets

are provided with the product as a standard. It should only be operated when

in the upright position as shown - see Fig.1. Before connecting the heater check

that the supply voltage is the same as that stated on the heater.

WARNING: THIS APPLIANCE MUST BE EARTHED

WARNING:- The electrical installation of this heater must be carried out by

a suitably qualiﬁ ed or trained electrician, and be in strict accordance with

the current wiring Regulations BS 7671. The supply must be connected via a

switched fused spur with a fuse rated suitably for the appliances ﬂ ex. Failure

to follow these instructions will mean that the manufacturer’s instructions have

not been adhered to. THERE ARE NO EXCEPTIONS.

Mains lead are coloured in accordance with the following code:

GREEN AND YELLOW: EARTH

BLUE: NEUTRAL

BROWN: LIVE

The heater is ﬁ tted with a length of ﬂ exible cable type H05VV-F size 3 x 1.5mm2

models for connection to the ﬁ xed wiring of the premises through a suitable

connection box positioned adjacent to the heater. A means for disconnection

must be incorporated in the ﬁ xed wiring of the premises in accordance with

the current wiring regulations. Products that are supplied without a plug are

for installation into the ﬁ xed wiring of the property, via a suitable double pole

switched fused spur with a fuse rated suitably for the appliances ﬂ ex.

WARNING: This heater must not be connected to the electricity supply via an

external switching device.

Electrical Connection

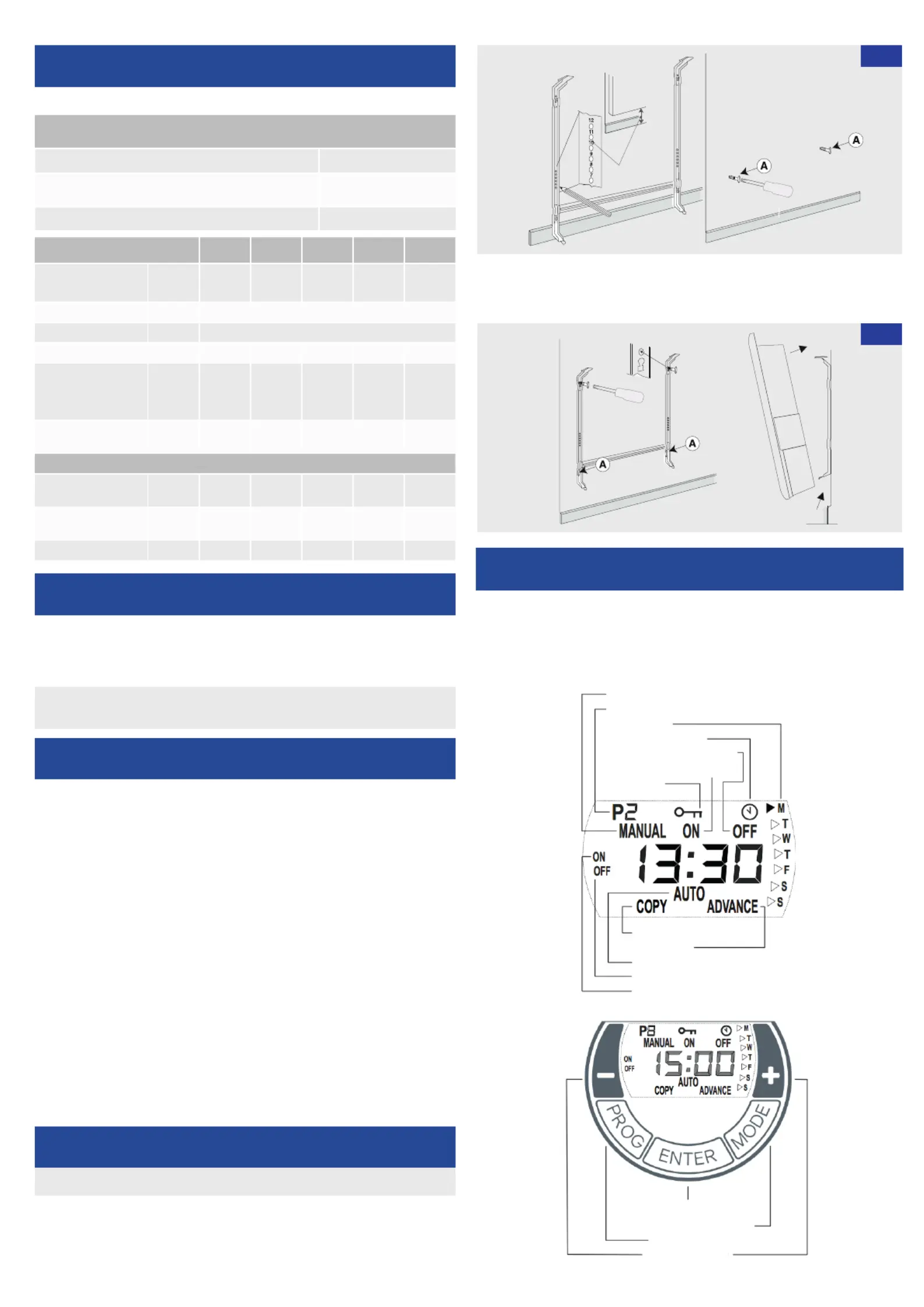

STEP 1: The wall bracket can be used as a measuring device for placing the

heater on the wall. Mark the location for the two bottom screws (A-A)

and fasten the two screws in the wall - .see Fig. 2

STEP 2: screws (A-A). Then fasten the wall bracket with the top screws. Place

the heater on the wall bracket (1) and click the heater onto the top

catches (2).

10 cm

Fig. 2

Control Unit

Copy

Advance

Automatic Operation

Time block off

Time block on

Manual Operation

Program no. (1-4)

Weekday

Setting the time

Heating operation off

Heating operation on

Key lock

The heater is supplied with a conﬁ gurable electronic control, consisting of a display,

a LED screen and ﬁ ve membrane buttons. The control unit is located on the right

hand side of the panel.

The set functions and values are shown on the display.

The LED lights up red when heating ON

Wall Mounting

IMPORTANT - The radiator must only be mounted using the kit supplied

Value down/up

Set program

Select Operating Mode

Save Entry

IMPORTANT - Pull out the battery isolator strap before connecting the

product. Please dispose of careful as this may be a choking hazard.

Fig. 3
