Side 1/4
SAFETY FIRST
1. I n nst atall io of this WTV all Mount will be easier with two pe ople.
2. Some images in this guide may vary slightly from the actual
components supplied.
3. Ensure this instruction manual is completely read and
understood before attempting installation.
4. This TV Wall Mount MUST NOT be installed solely in
plasterboard, fibre cement and similar surfaces.
structures such as those made of timber, steel or masonry
using appropriate fasteners.
6. The supporting structure must be capable of sustaining
the combined weight of the TV Wall Mount and the display
otherwise the structure must be reinforced.
7. The fasteners supplied in this hardware pack allow for fixing
into timber and masonry only. If installing into a supporting
structure made of steel, appropriate fasteners must be used
and sourced from an appropriate supplier.
8. Use appropriate tools and safety equipment and ensure
adequate ventilation during installation.
9. If uncertain about any aspect of installation, contact
The Crest Company or an installation professional.
Please ret e iain thes nstruct onsi for futu re reference.

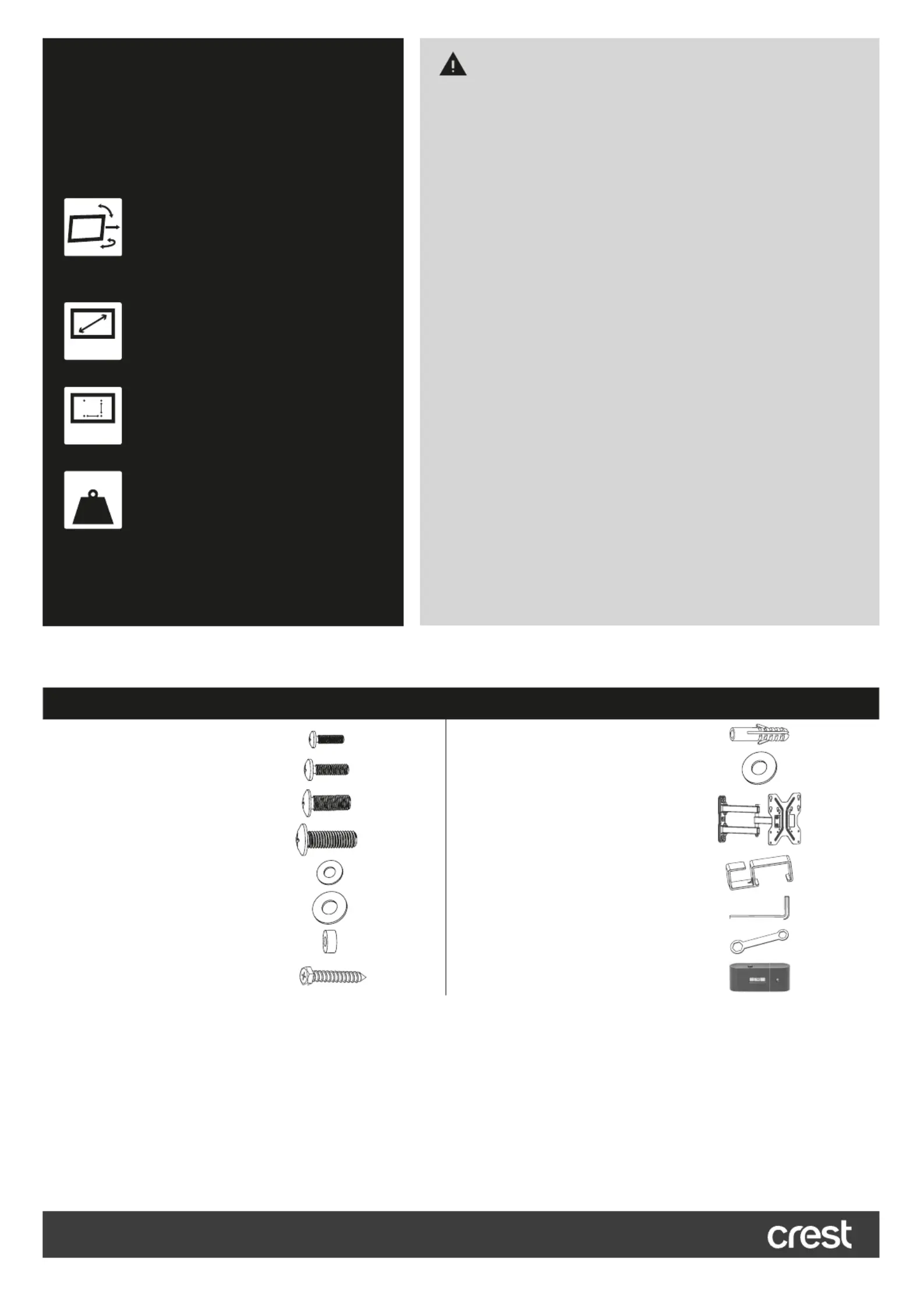

Hardware Kit Contents
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
M-A M4 x 14mm Bolt 4
W-B Concrete Anchor 3
M-B M5 x 14mm Bolt 4
W-C Wa r 3D6 she
M-C M6 x 14mm Bolt 4
A Wall Mount 1
M-D M8 x 20mm Bolt 4 1
M-E D5 Washer 2 B Cable Clip 1
M-F D8 Washer 2 C Allen Key 6mm 1
M-G Spacer 8
D
1
W-A Lag B 3 olt ST6. x 55mm 3
E
1
Tools Required
DRYWALL INSTALLATION (TIMBER SUPPORTS):
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill
• High speed 4.5mm drill bit
• Pencil
MASONRY INSTALLATION:
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill with hammer function
• 10mm masonry drill bit
• Pencil
• Hammer
MFP7FM
TV Wall Mount
Compatible TV Size
This TV Wall Mount fits 20-42”
(51x106cm) TV Screens
20-42”
Maximum TV Weight
This TV Wall Mount supports TVs
weighing up to 30kg
HOLDS
30
kg
Maximum Mounting Pattern
This TV Wall Mount has a mounting
hole pattern up to 200x200mm (HxW)
200x200mm
Full Motion
This TV Wall Mo lount al ws you to move
y our TV a ll t a an les nd g a e t xtends ou
up to 39cm from yo wallur
Stud Finder with Spirit Level
M6/M8 Wrench
10.
Step 1: Fix Wall Plate to Wall
A. INSTALLING IN DRYWALL (TIMBER SUPPORTS)
WARNING: If attaching this TV Wall Mount us s ing thi me hot d, you MUST pos n itio the wall plate over a wall stud.
The Crest Company will not accept any damages that may occur and holds no responsibility for incorrectly installed
TV Wall Mounts.
1. Locate centre of a timber stud using the supplied stud finder with spirit level.
2. Mark 3 fixing holes over stud centre using the wall plate as a guide. Ensure Wall Plate is straight and level.
3. Pre-drill holes to a depth of 40mm using a high speed 4.5mm drill bit. If installing in hardwood, larger diameter and deeper
holes may be required.
4. Attach the Wall Plate using the lag bolts (W-A) and washers (W-C) (see Figure 1). Do not over tighten.
B. INSTALLING IN MASONRY
WARNING: Ensure you have a minimum of 35mm of actual concrete/brick thickness in the hole for the anchors.
Do not drill into mortar joints. In aller erifyst must v that the supporting surface will safely support the combined weight
of the TV Wall Mount and TV. The Crest Company holds no responsibility for incorrectly installed TV Wall Mounts.
1. Mark 3 fixing holes using the Wall Plate as a guide. Ensure Wall Plate is level.
2. Pre-drill holes to a minimum depth of 50mm using 10mm masonry drill bit. Clean out holes.
3. Fully insert the concrete anchors (W-B). Tap in with hammer if required.
4. Attach the Wall Plate using lag bolts (W-A) and washers (W-C) (see Figure 2). Do not over tighten.
Using the Stud Finder with Spirit Level
HOW IT WORKS:
• Use this stud finder on drywall (timber supports) only
• The stud finder accurately locates metal pipes, AC wires,
studs and wooden frames
• The stud finder LED indicator flashes GREEN when an
object is detected
• The stud finder can detect the depth of:
WOOD: up to 20mm, wood should be detected based
on the thickness of the drywall less than 20mm
METAL: up to 50mm, metal should be detected based
on the thickness of the drywall less than 50mm
VOLTAGE: up to 70mm, AC wires should be detected
based on the thickness of drywall less than 70mm
INSTRUCTIONS:
1. Keep the stud finder in touch with the drywall.
2. Pr rns ess the ON/OFF button until the LED indicator tu
RED. Do not move the stud finder.
3. Wait 3 to 10 seconds until the LED indicator turns GREEN,
then start moving the stud finder on the drywall.
4. The GREEN LED indicator will start flashing when an
object is detected.
5. Mark a point on the wall using your pencil, then continue
moving the stud finder until the GREEN LED indicator
stops flashing, mark another point on your wall.
6. The midpoint between the two marks on your wall
is the centre of the stud.
Use the supplied stud finder
with spirit level to level
your TV Wall Mount
before installation
Find the wood stud, metal or
voltage before TV Wall Mount
installation
STUD
Figure 1 Figure 2
W-C
W-A
W-B
W-C
W-A
