Side 1/2

DO GUIDE

1. Remove the faceplate by snapping it off the button assembly.

NOTE: Use care when removing the faceplate, as it holds the button support grid and

button caps in place.

2. Ensure the button unit is oriented with the arrow at the top, and then insert the unit into the

electrical box and attach it using the supplied #6-32 x 1" screws.

3. Return the button caps to their original positions on the button assembly with LED windows

oriented upward to match each LED indicator.

4. Install the button support grid with stabilizing tabs to the rear, put the faceplate in position

(optical cable access port on the lower right), and snap it into place.

Mount the BPC-8-IMC

Mount the BPC-8-IMC onto an appropriate surface at the display location using the supplied

hook and loop tape.

DO Connect the Device

Make connections to the BPC-8 using Crestron® power supplies for Crestron equipment. Apply

power after all connections have been made.

Connect the BPC-8

BPC(I)-8

onCue® Basic Presentation Controller

DO Install the Device

NOTE: The BPC-8 and BPCI-8 are functionally similar. For simplicity within this guide, the term

“BPC-8” is used except where noted.

The hardware supplied with the BPC-8 is listed in the DO Check the Box table.

The following tools are required for installation of a BPC-8:

1. Phillips screwdriver (not included)

2. Two #6-32 x 1" pan head Phillips screws (included)

3. Two 4-pin detachable terminal block connectors (included)

Install a Conductor Cable

Install a 4-conductor cable (minimum 24 AWG) with 50ft (~15m) maximum length (not included)

between a 1-gang electrical box for the BPC-8 and the location of the BMP-8-IMC interface

module.

Refer to the pin connections shown in the installation diagram below and connect the supplied

4-pin detachable connectors to each end of the cable.

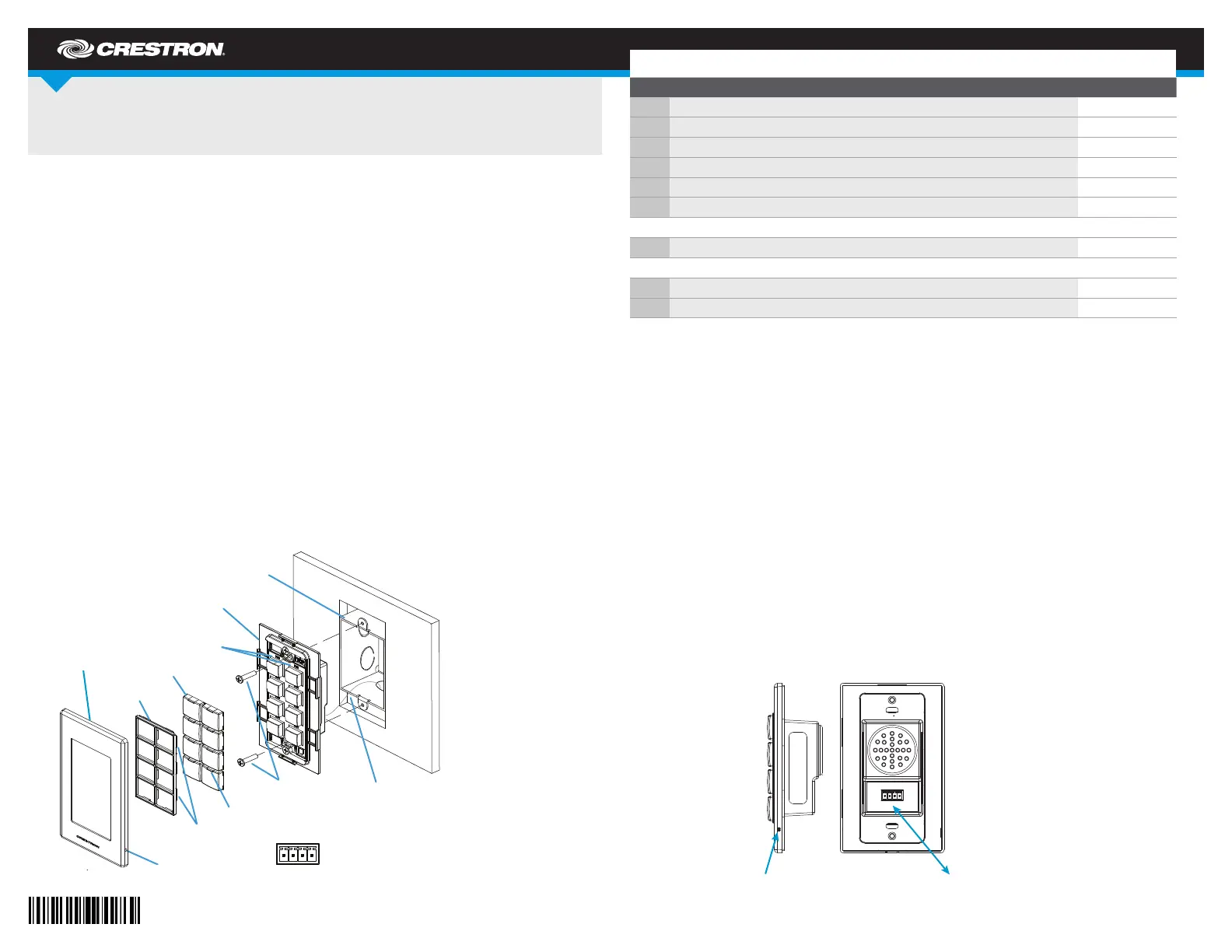

Mount the BPC-8 into an Electrical Box

Connect the preinstalled cable to the 4-pin terminal block on the rear of the button assembly,

and then mount the BPC-8 to a 1-gang electrical box as shown in the following diagram.

DO Check the Box

QTY PRODUCT COLOR PART NUM.

1 Button Assembly 4512112

1 Module, Interface 4511874

1 Emitter Probe, IR, Crestron STRIP Black 2001137

1 Fastener, Dual Lock, 2.5" x 1" 2005414

2 Connector, 4-Pin 2003576

2 Screw, 6-32 x 1", Pan Head, Phillips 2007251

BPC-8 Only

1 Power Pack, 12 Vdc 0.5 A, 100-240 Vac 2045853

BPCI-8 Only

1 Power Pack, 12 Vdc 0.5 A, 120-240 Vac 2045884

1 Bracket, Mounting, Single Gang 2030802

LED window

Button assembly

1-gang electrical box

(2.5 in (~63 mm) depth

recommended)

Interchangeable

button caps

Button support

grid

6-32x1”

pan head screws

Optical cable access port

CBL-PWR-CTRL-P-TL-50

cable or equivalent

Grid stabilizing tabs

LED

indicators

BPC- 8-IMC

12 T R G

12: Power (12 Vdc)

T: Data

R : Data

G: Ground

Faceplate

B PC-8-IMC

12 T R G

Access port: For optical cable from BPC-HLPIR

IR learner and programmer (optional)

BPC-8-IMC:Power and control signals to/from

BPC-8-IMC interface module (included)

DO GUIDE DOC. 7194A (2031223) 09.16

Specications subject t o change without not ice.

Connect the BPC-8-IMC

1. Connect the preinstalled cable to the 4-pin terminal block connector, and then connect the

IR emitter probe(s) or the RS-232 cable (not included), as needed, to the BPC-8-IMC.

2. Connect the power pack to AC power and to the BPC-8-IMC.

WARNING: Incorrect wiring may damage the BPC-8. The 4-pin detachable connectors should

not be connected to a Cresnet® network or any Cresnet devices.

DO Congure the Device

The BPC-8 supports custom software conguration les and interchangeable button caps for

various presentation control applications. For more information on conguring and operating the

BPC-8, refer to the BPC(I)-8 Supplemental Guide (Doc. 7100) at www.crestron.com/manuals.

DO Learn More

Visit the website for additional information and the latest rmware updates. To learn

more about this product, use a QR reader application on your mobile device to scan

the QR image.

Crestron Electronics

15 Volvo Drive, Rockleigh, NJ 07647

888.CRESTRON | www.crestron.com

As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the

user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B)

The specic patents t hat cover Crestron products are listed at . The product warrant y can be found at .http://www.crestron.com/legal/patents www.crestron.com/warranty

Cert ain Crestron products contain open source sof t ware. For specic information, please visit . www.crestron.com/opensource

Crest ron, t he Crestron logo, Cresnet, and onCue are either trademarks or regist ered trademarks of Crestron Elect ronics, Inc. in the Unit ed States and/or other countries. Other trademarks,

registered t rademarks, and trade names may be used in this document to refer to either the entities claiming th e marks and names or their products. Crestron disclaims any propriet ary interest
