quickstart guide

CHV-TSTATEX

www.crestron.com

888.273.7876 201.767.3400

Specifications subject to

change without notice.

CHV-TSTATEX

For details, refer to the latest version of the

CHV-TSTATEX Operations & Installation Guide, Doc. 6989.

QUICKSTART DOC. 6990B (2027559) 01.12

infiNET EX® Thermostat

DIP Switch Settings

# DESCRIPTION

4 System Type Heat/Cool Heat Pump

3 Heat Pump Mode Aux Heat Dual Fuel

2 Cool/HP Stages 1 2

1 Heat Stages 1 2

ON OFF

# DESCRIPTION

4 Fan In Heat Disabled Enabled

3 Change Over Outputs Disabled Enabled

2 Cool SP Range Normal Extended

1 N/A N/A N/A

ON OFF

LEFT SWITCH

RIGHT SWITCH

STEAL

(LEFT)

24VAC

(RIGHT)

Power Steal Switch

1 2 3 4

Single Stage Heat-Only Application Single Stage Cool-Only Application

Mount the thermostat directly to

drywall or to a single-gang box in

accordance with accepted building

codes and practices. If using the

single-gang box, be sure to fill it with

thermal insulation material.

For additional details and installation

options, refer to the latest version of

the CHV-TSTATEX Operations &

Installation Guide (Doc. 6989). It is

available from the Crestron® Web site

(www.crestron.com/manuals).

Mounting

Connections

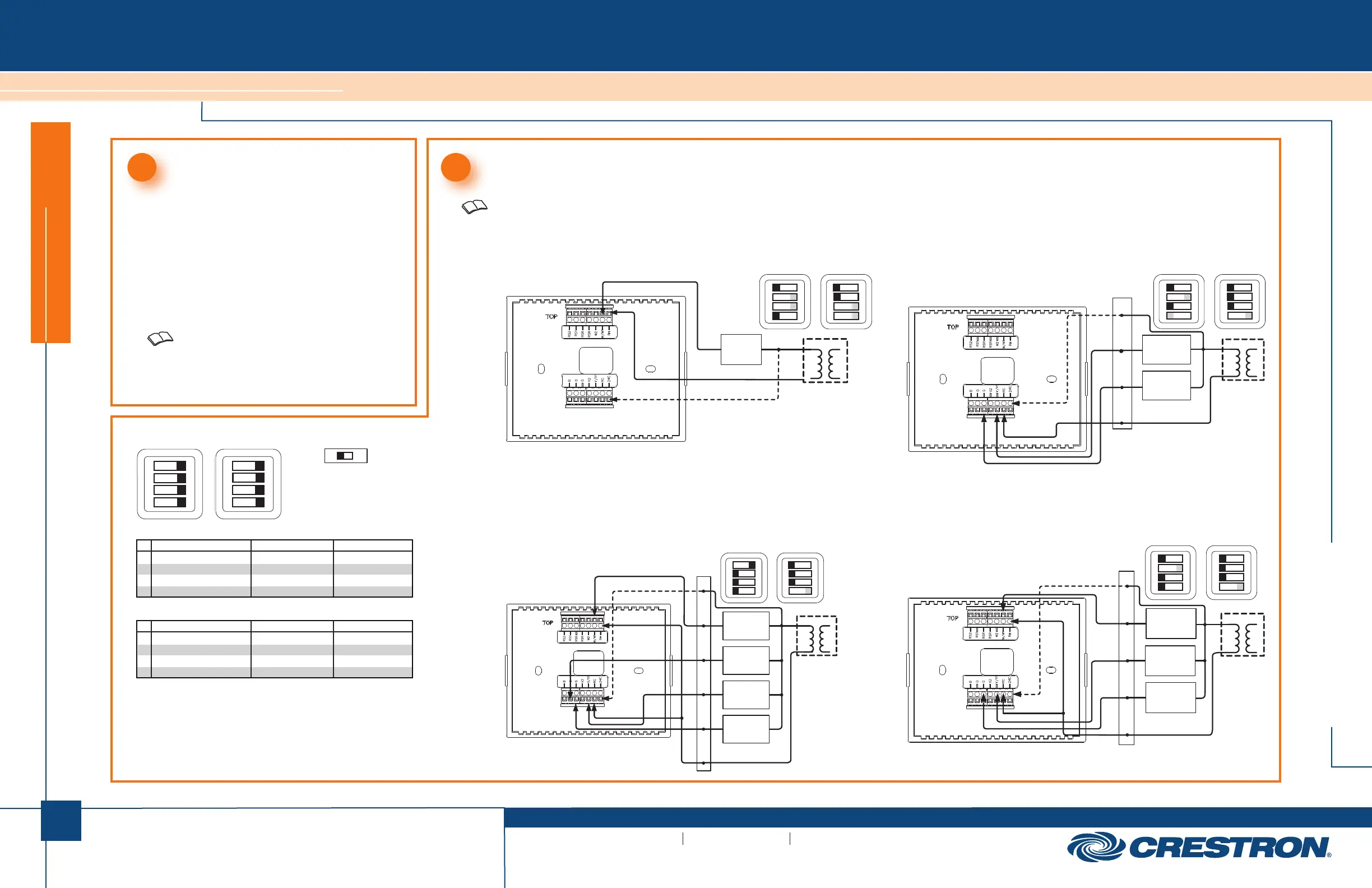

Connect the thermostat using the four most typical wiring configurations shown below as a guide. Refer to “DIP Switch Settings” on the left to

configure each application. For more information, refer to the latest version of the CHV-TSTATEX Operations & Installation Guide (Doc. 6989).

Heat Pump Application With

Integrated Controller Heat - Cool Application With

Integrated Control Unit

Transformer

Heat

Relay

Optional, for power

System

DIP Switch Settings

1 2 3 4

Compressor

Relay

Fan

Relay

DIP Switch Settings

1 2 3 4

Optional, for power

RH and RC must be

jumpered together.

Heat

Relay

Fan

Relay

Cool

Relay

DIP Switch Settings

1 2 3 4

E - U - W

Compressor

Relay

Fan

Relay

Changeover

Valve

Aux Heat

Relay

RH and RC must be

jumpered together.

DIP Switch Settings

1 2 3 4

Optional, for power

Optional,

for power

System

Transformer

System

Transformer

System

Transformer

quickstart guide

CHV-TSTATEX

www.crestron.com

888.273.7876 201.767.3400

Specifications subject to

change without notice.

CHV-TSTATEX

For details, refer to the latest version of the

CHV-TSTATEX Operations & Installation Guide, Doc. 6989.

QUICKSTART DOC. 6990B (2027559) 01.12

infiNET EX® Thermostat

3Basic Thermostat Setup 5System Modes and Fan Operation

4Basic infiNET EX® Setup

Use or to choose the temperature units: F (Fahrenheit), k j

C1 (Celcius, whole degree set points), or C2 (Celcius, half

degree set points).

AUTO

HOLDAUTO

OFF

FAN IN AUTO MODE

SYSTEM OFF

HOLD MODE

AMBIENT

TEMPERATURE

SET

POINT

HEAT MODE

COOL MODE ALWAYS

DISPLAYED

AUX HEAT CALL

FAN CALL

COOL CALL

HEAT CALL

FAHRENHEIT

CELSIUS

Press the button to cycle the unit MODE

through available modes: Off, Heat,

Emergency Heat (for heat pump and dual-fuel

systems), , and Cool Auto.1

• Mode changes take place upon release of

the button.MODE

• The selected mode becomes operational

three seconds after the mode has been

entered.

Press the button to toggle between FAN Fan

Auto and Fan Always On modes.

• The fan icon is always displayed.

• When set to Fan Auto, the fan operates only

when there is a cool or heat call.1, 2

• In system mode, the fan still runs if Off

set to Fan Always On mode.

Press and simultaneously to enter MODE FAN

Hold mode. mode ignores scheduled set Hold

point values from the control system.

Use the and buttons to choose the k j

desired temperature set point.

Thermostat Display Key

Typical Heat

Mode Display

AUTO

OFF

AUTO

Typical Cool

Mode Display

Typical Off

Mode Display

Install two AA batteries in the battery compartment. 1

CAUTION: Replace all batteries in the CHV-TSTATEX at the same time. Mixing old

and new batteries in the CHV-TSTATEX may result in battery leakage and

equipment damage.

To enter modeSetup 2, press and hold FAN, then simultaneously press and hold k

and for about five seconds. The display shows the Temperature Scale function j

(FC).

AUTO

Typical

Emergency Heat

Mode Display

1. Refer to the latest version of the CHV-TSTATEX Operations & Installation Guide

(Doc. 6989) for detailed information on setup and operating modes.

2. Fan only runs during heat calls if the thermostat has been configured to do so.

1. Expected battery life is 1 year using quality alkaline batteries.

2. Refer to the latest version of the CHV-TSTATEX Operations & Installation Guide (Doc. 6989) for detailed

information on setup and operating modes.

Flashing

AUTO

Typical

Auto Heat/Cool

Mode Display

In mode press until the infiNET EX ID (RF ID) Setup , MODE

function is displayed (id). Use and to choose the infiNET k j

EX ID. Press until the Start infiNET EX Acquire function is MODE

displayed (AC).

Put an infiNET EX gateway (e.g., CEN-RFGW-EX or MC3) into

Acquire mode, from the unit itself or from Crestron Toolbox™, as

described in the latest revision of the CEN-RFGW-EX Operations

& Installation Guide (Doc. 6706) or MC3 Operations &

Installation Guide (Doc. 7095).

Press or to start the acquire process: display shows flashing k j - - (in progress).

When finished, display shows (finished, found gateway) or (finished, could not 00 E#

find gateway), where # represents an error code.

Once all devices have been acquired, take the CEN-RFGW-EX or MC3 out of Acquire

mode. Press on the thermostat to exit mode.FAN Setup The specific patents that cover Crestron products are listed at www.crestronpatents.com.
