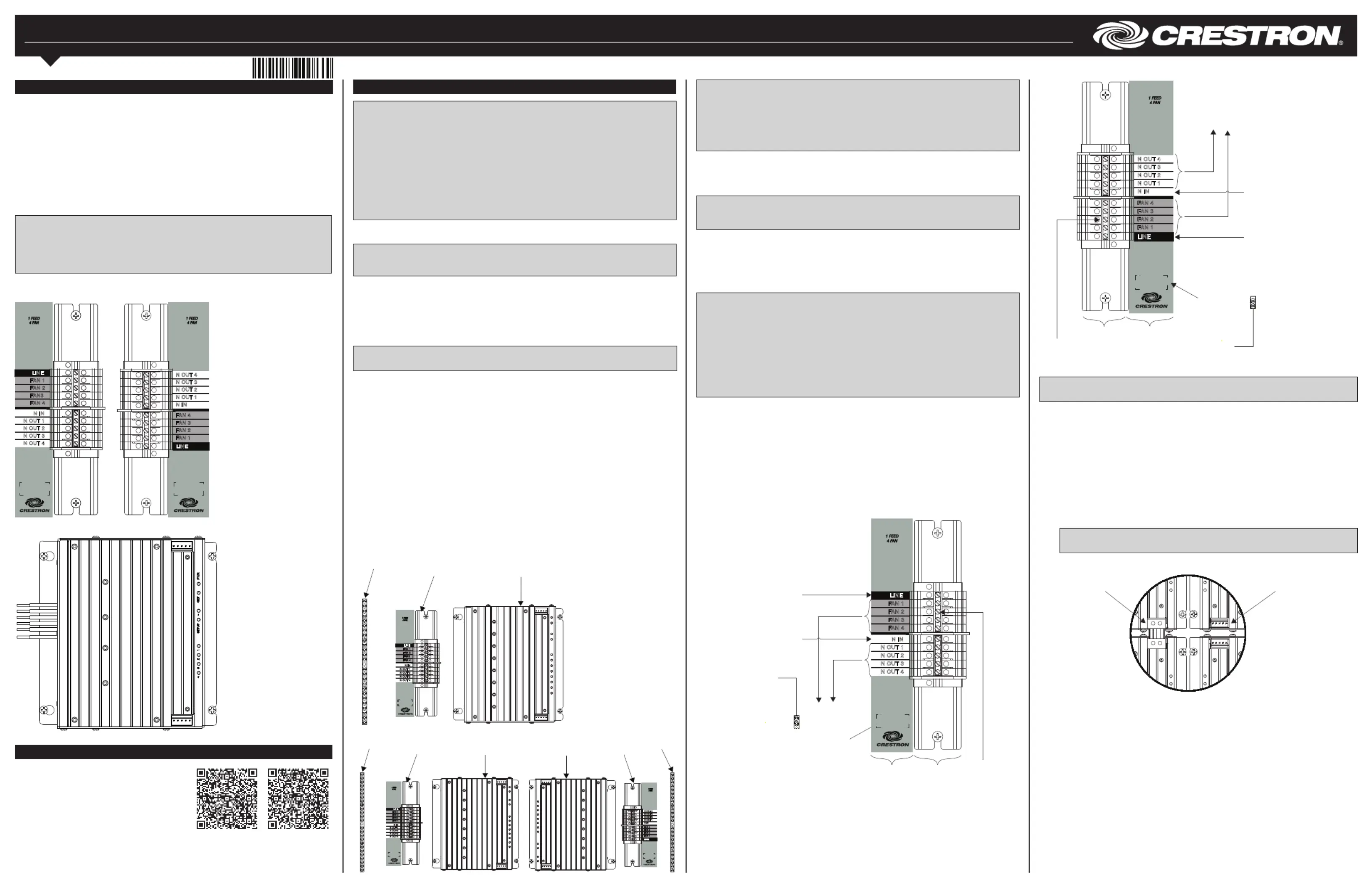

CLT-1FAN4/CLX-1FAN4
Terminal Block and Module
Installation Guide
Description
The Crestron
®
1-Feed, 4-Fan Terminal Block and Module (CLT-1FAN4 and CLX-1FAN4,
respectively), are considered a single entity and must be used together. They ship
separately to permit termination of the eld wiring to the CLT-1FAN4 prior to installation of
control that connects to the terminal block and controls four ceiling fan motors. The
maximum load is 2 amps for any controlled circuit. The module requires 120 Vac 60 Hz,
1 phase input voltage. The terminal block and module can be mounted in any Crestron
Automation Enclosure (CAEN-Series Enclosures). The terminal block is designed to
terminate the circuit feed ( and ) and distribute the controlled circuit to the LINE NEUTRAL
fan(s) ( ). An oversize heat sink dissipates heat efciently. There are LEDs on the LOAD
module to indicate communication to a Cresnet
®
network, input power to the module, and
output power to the ceiling fan motors.
NOTE: This module is for speed control of a ceiling fan (paddle fan) only. The
CLX-1FAN4 cannot change the fan direction. The module provides four speed settings
as well as turning the fan off.
NOTE: This module cannot control fans with remote-controlled integrated speed
controls.
The CLT-1FAN4 terminal and CLX-1FAN4 module are shown in the following illustrations.
CLT-1FAN4 Terminal Block with Left- and Right-Side CLX-1FAN4 Labels
Installation
WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker or
fuse, and test that the power is off before wiring!
NOTES: Observe the following points:
• This product must be installed and used in accordance with appropriate electrical
codes and regulations.
• This product must be installed by a electrician.licensed
• Sensors must be mounted on a vibration-free surface.
NOTE: Before using the CLX-1FAN4, ensure the device is using the latest rmware.
Check for the latest rmware for the CLX-1FAN4 at www.crestron.com/rmware.
Firmware is loaded onto the device using Crestron Toolbox™.
The terminal block and module must be mounted into a Crestron Automation Enclosure by
a licensed electrician, in accordance with all national and local codes.
CAUTION: This equipment is for indoor use only and needs to be air-cooled. Mount in a
well-ventilated area. The ambient temperature must be 32°F to 104°F (0°C to 40°C). The
relative humidity must be 0% to 90% (non-condensing).
Terminal blocks are installed along the left side of single-wide enclosures and along the
outside edges (left and right sides) of double-wide enclosures. Modules are installed along
the right side of single-wide enclosures and side-by-side in the center of double-wide
enclosures. When installing modules and terminal blocks in a double-wide enclosure, be
sure to invert units on the right side so that they can be properly wired. Refer to the
illustrations below when considering the location of terminal blocks and modules within an
enclosure.
NOTE: Modules and terminal blocks must be installed into the lowest available spaces
and continue toward the top of the enclosure.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
• Do not use outdoors.
• Do not mount near gas or electric heaters.
• Equipment should be mounted in locations and at heights where it will not be
subjected to tampering by unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause
an unsafe condition.
• Do not use this equipment for other than its intended use.
• All servicing should be performed by qualied service personnel.
• If any Emergency Circuits are fed or controlled from this panel, it must be located
electrically where fed from a UPS, generator, or other guaranteed source of power
during emergency and power outage situations.
SAVE THESE INSTRUCTIONS.
Terminal Block and Module Locations (Single-Wide Enclosure)
Terminal Block and Module Locations (Double-Wide Enclosure)
NOTE: Unless otherwise indicated, the lighting system specied in this guide is modular,
requiring assembly in the eld by a licensed electrician in accordance with all national and
local codes.
If an assembled UL Listed panel is required, it can be obtained through Crestron’s UL
Listed panel shop. This includes complete in-factory system conguration and assembly
by Crestron for an additional fee.
Terminal Block Installation and Field Wiring
Apply the supplied adhesive label before installing the terminal block. The adhesive label
provides the labeling for each terminal in the terminal block and is designed to accomodate
installation into the left or right side of a cabinet.
NOTE: Both left-side and right-side adhesive wiring labels are provided. The left-side
labels are used in both single- and double-wide enclosures. The right-side labels are used
only in double-wide enclosures.
1. Remove the backing from the left- or right-side adhesive wiring label.
2. Apply the adhesive label by aligning the holes in the label with the holes on the
Crestron Automation Enclosure where the terminal block is to be mounted. The wiring
label lies beneath the terminal block as shown in the following diagrams.
3. Use the two supplied self-tapping Phillips pan head screws (8B x 1/4 inch length) to
secure the terminal block to the Crestron Automation Enclosure.
CAUTION: Bypass jumpers are provided to test circuits and to protect the module during
installation. When properly secured by the ve screws, the jumper on the black and red
section of the terminal block shorts the LINE to FAN so that the circuit is energized. Do
not remove any bypass jumpers until all feed and load wiring has been completed, the
circuit has been tested for electrical faults, and the module has been installed. Refer to
“Module Installation.”
Furthermore, the jumper on the white section of the terminal block ties the neutral in to
the neutral out. These jumpers should never be removed.
NOTE: Use copper conductors only—rated 75° C or greater.
4. Turn off the circuit breakers.
5. Connect the circuit feed (line and neutral) and controlled circuit (load) wires to the
terminal block per the markings provided on the wiring label (as shown in the following
diagrams). Terminal blocks accept one 14–10 AWG wire. Strip the wires to 1/2 inch
(13 millimeters). Tighten terminal blocks to 9 in-lbs.
6. Terminate the ground wires at the grounding terminal blocks that are available in the
cabinet. Tighten the grounding terminal blocks to 35 in-lbs (14–10 AWG), 40 in-lbs
(8 AWG), or 45 in-lbs (6–4 AWG).
7. Test each circuit for electrical faults by turning on the circuit breaker and checking
that the breaker does not trip and that power is delivered to the proper loads.
Wiring the Terminal Block to the Feed and Load(s)
Module Installation
CAUTION: The module contains electrostatic sensitive devices (ESDs); the unit must be
handled from the metal chassis. Do not touch the PC board or components.
Install the modules after the terminal blocks are installed and the enclosure has been
completely wired.
1. Use the four supplied self-tapping Phillips pan head screws (8B x 1/4-inch length) to
secure the module to the enclosure.
2. As shown in the previous wiring diagram, connect the wires from the module to the
terminal block. Each wire exits the module directly in line with, and is the same color
as, the terminal to which it should be connected. Wires are prestripped to 1/2 inch
(13 millimeters). Tighten to 9 in-lbs.
3. If the module is being installed above another module within the enclosure, attach
the supplied module interconnect cable to the two modules. The illustration that
follows shows the area within a double-wide enclosure where the corners of four
modules meet.
NOTE: One wire on the module interconnect cable may be a different color from
the rest. The color has no bearing on its orientation during installation.
Use Module Interconnect Cable to Wire Module to Module
Ground Bus CLT-1FAN4
Terminal Block
CLX-1FAN4
Module
CLX-1FAN4
FAN 1
F
F
F 4
LINE
1 F EED
4 F AN
120VAC 60 Hz
8A MAX
2A MAX/CKT
N IN
N OU T 1
N OU T 2
N OU T 3
N OU T 4
Line
Connection from a 15
or 20 Amp Circuit
Breaker
Bypass
Jumpers
Terminal
Block
To
Loads(s)
Left-Side
Wiring Label
Ground
Bus
Module
Location
Label
Neutral
Ground
CLX-1FAN4
FAN 1
FAN 2
FAN 3
FAN 4
LINE
1 FEED
4 FAN
120VAC 60 Hz
8A MAX
2A MAX/CKT
N IN
N OUT 1
N OUT 2
N OUT 3
N OUT 4
CLX-1FAN4
FAN 4
FAN 3
FAN 2
FAN 1
LINE
1 FE ED
4 FA N
120VAC 60 Hz
8A MAX
2A MAX/CKT
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN
CLX-1FAN4
FAN 1
FAN 2
FAN3
FAN 4
LINE
1 FE ED
4 FA N
120VAC 60 Hz
8A MAX
2A MAX/CKT
N IN
N OUT 1
N OUT 2
N OUT 3
N OUT 4
CLX-1FAN4 Module (Connects to a CLT-FAN4)
Module Interconnect
Cable Attached
Connection Not
Made
Ground Bus CLT-1FAN4
Terminal Block
CLX-1FAN4
Module
CLX-1FAN4
FAN 1
F
F
F 4
LINE
1 FE ED
4 FA N
120VAC 60 Hz
8A MAX
2A MAX/CKT
N IN
N OUT 1
N OUT 2
N OUT 3
N OUT 4
CLX-1FAN4
FAN 4
F
F
F 1
LINE
1 FE ED
4 FA N
120VAC 60 Hz
8A MAX
2A MAX/CKT
N OUT 4
OUT
N OUT 2
N OUT 1
N IN
Ground BusCLT-1FAN4
Terminal Block
CLX-1FAN4
Module
Line
Connection from a 15
or 20 Amp Circuit
Breaker
Bypass
Jumpers
Terminal
Block
To
Loads(s)
Right-Side
Wiring Label
Ground
Bus
Module
Location
Label
Neutral
Ground
CLX-1FAN4
FAN 4
FAN 3
FAN 2
FAN 1
LINE
1 FEED
4 FAN
120VAC 60 Hz
8A MAX
2A MAX/CKT
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN
Additional Resources
Visit the product page on the Crestron website
(www.crestron.com) for additional information
and the latest rmware updates. Use a QR
reader application on your mobile device to scan
the QR image.
CLT-1FAN4 CLX-1FAN4
NOTE: Each controlled fan must be set to full speed. Refer to the fan’s instruction
manual for instructions on setting the fan to full speed.
NOTE: If a light is included with the fan, it must be wired to a separate lighting
control module (e.g., CLX-1DIM4). The CLX-1FAN4 canot be used to control lights.
If the light and fan share a single neutral wire, the wire should be connected to the
dimmer module.
4. Turn on the circuit breakers and verify that the green PWR LED on the module lights,
the breakers do not trip, and that power is delivered to the loads.
5. Turn off the circuit breakers.

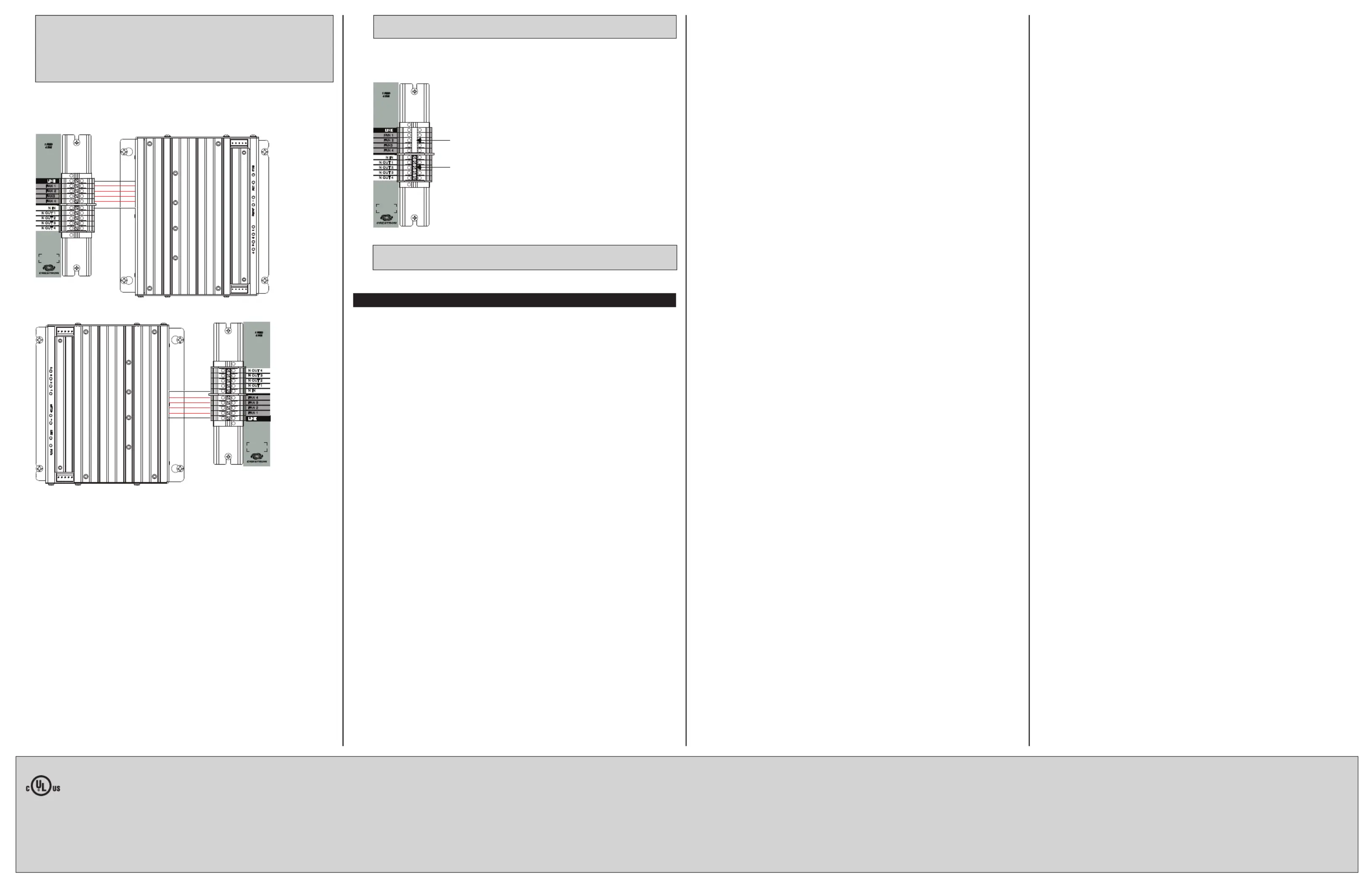

Wiring the Terminal Block to the Module
Wiring Diagram of the Terminal Block to the Module (Right Side Double-Wide Enclosures)
CLX-1FAN4
FAN 1
FAN 2
FAN3
FAN 4
LINE
1 F EE D
4 F AN
120VAC 60 Hz
8A MAX
2A MAX/CKT
N IN
N OUT 1
N OUT 2
N OUT 3
N OUT 4
CLX-1FAN4
FAN 4
FAN 3
FAN 2
FAN 1
LINE
1 F EE D
4 F AN
120VAC 60 Hz
8A MAX
2A MAX/CKT
N OUT 4
OUT 3
N OUT 2
N OUT 1
N IN
Jumper Removed
Jumper Installed
CLX-1FAN4
FAN 1
FAN 2
FAN3
FAN 4
LINE
1 FEE D
4 FAN
120VAC 60 Hz
8A MAX
2A MAX/CKT
N IN
N OUT 1
N OUT 2
N OUT 3
N OUT 4
7. Turn on the circuit breakers.
NOTE: Power must be supplied to LINE for the module to communicate with the
control system or for any of the circuits to operate.
8. If the program is not running yet, loads can be tested by using Local mode.
Test the Loads
If the control system program is not running yet, use Local mode to test that each load is
operating and connected to the proper output on the module.
1. Press the SETUP button (fewer than three seconds) to enter Local mode. The SETUP
LED and output LED 1 illuminate. Power is applied to the devices connected to
output 1.
2. Press the SETUP button again to turn off output 1 and turn on output 2.
3. Press the SETUP button again to test each of the remaining outputs.
4. After testing the last output, press the SETUP button again to turn on all outputs.
5. Press the SETUP button once more to turn off all outputs and LEDs and exit Local
mode.
NOTE: Before the bypass jumpers are removed, the control system that provides
functionality to the system should be properly connected and programmed.
6. Remove the bypass jumpers on the black and red sections of the terminal block. The
jumpers on the white sections of the terminal block must remain installed. Refer to the
gures that follow for reference.
Remove the Line Jumper after Testing.
This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
Crestron Electronics, Inc. Installation Guide - DOC. 6032C
15 Volvo Drive Rockleigh, NJ 07647 (2002099)
Tel: 888.CRESTRON 08.15
Fax: 201.767.7576 Specications subject to
www.crestron.com change without notice.
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference in which case the user will be harmful
required to correct the interference at his own expense.
Industry Canada (IC) Compliance Statement
CAN ICES-3(A)/NMB-3(A)
The product warranty can be found at www.crestron.com/warranty.
The specic patents that cover Crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specic information, please visit
www.crestron.com/opensource.
Crestron, the Crestron logo, and Crestron Toolbox are either trademarks or registered trademarks of
Crestron Electronics, Inc. in the United States and/or other countries. UL and the UL logo are either
trademarks or registered trademarks of Underwriters Laboratories, Inc. in the United States and/or
other countries. Other trademarks, registered trademarks, and trade names may be used in this
document to refer to either the entities claiming the marks and names or their products. Crestron
disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for
errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.

Produkt Specifikationer

Mærke: Crestron
Kategori: Ikke kategoriseret
Model: CLX-1FAN4

Har du brug for hjælp?

Hvis du har brug for hjælp til Crestron CLX-1FAN4 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Crestron Manualer

Crestron

Crestron CLC-FANDELVEX-W Manual

13 August 2025
Crestron

Crestron CLX-1DIMU4-HP Manual

13 August 2025
Crestron

Crestron CAEN-5X2-MLO-120/2P Manual

13 August 2025
Crestron

Crestron FT2A-CBLR-GR-4K-MDP-HD Manual

13 August 2025
Crestron

Crestron DM-TX-4KZ-100-C-1G-B-T Manual

13 August 2025
Crestron

Crestron FT2-1400-ELEC-PTL-AL Manual

13 August 2025
Crestron

Crestron CLX-2DIMU8-277 Manual

13 August 2025
Crestron

Crestron FT2A-CBLR-1T-VGA Manual

13 August 2025
Crestron

Crestron FT2A-CBLR-1T-4K-DP Manual

13 August 2025
Crestron

Crestron DM-CONN-ULTRA-RECP-XA-20 Manual

13 August 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Rowenta

Rowenta For Elite Style8 Ceramic CF3012 Manual

13 August 2025
Rowenta

Rowenta Allegro ES0600 Manual

13 August 2025
Cougar

Cougar Bunker Manual

13 August 2025
Elvid

Elvid MIVIDCON-3GS-HD Manual

13 August 2025
Nutrichef

Nutrichef PKWTR30 Manual

13 August 2025
Grundig

Grundig GT78923W Manual

13 August 2025
Fiamma

Fiamma Rail Premium XL Manual

13 August 2025
Rowenta

Rowenta Studio Dry Respectissim CV5351 Manual

13 August 2025
Mars Gaming

Mars Gaming MC-3TLITE Manual

13 August 2025
Beverage-Air

Beverage-Air PH2-1BHG-PT Manual

13 August 2025
