Surface Mount Media Presentation Speakers
quickstart guide
FS6-B/W
www.crestron.com
888.273.7876 201.767.3400
Specifications subject to change
without notice.
FS6-B/W
Crestron® FS6 speakers are designed to achieve exceptional sonic performance and wide coverage for a typical
classroom or presentation space. The speakers and mounting brackets are available in black (FS6-B) or white
(FS6-W), but are identical in all other respects.
QUICKSTART DOC. 6972C (2027428) 04.12
1
The following table provides corrective action for possible trouble situations.
If further assistance is required, please contact a Crestron customer service
representative.
Further Inquiries
If you cannot locate specific information or have questions after reviewing
this guide, please take advantage of Crestron's award winning customer
service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876].
For assistance in your region, please refer to the Crestron Web site
(www.crestron.com/offices) for a listing of Crestron worldwide offices.
You can also log onto the online help section of the Crestron Web site
(www.crestron.com/onlinehelp) to ask questions about Crestron products.
First-time users must establish a user account to fully benefit from all
available features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities
of the FS6, additional information may be made available as manual updates.
These updates are solely electronic and serve as intermediary supplements prior
to the release of a complete technical documentation revision.
Check the Crestron Web site periodically for manual update availability and its
relevance. Updates are identified as an “Addendum” in the Download column.
TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION
No sound or
intermittent
sound from
speakers.
Cable connection error. Verify cable connections
between amplifier and
speakers.
Amplifier not receiving
input signal or amplifier
malfunction.
Verify amplifer is functioning
correctly, that it is receiving
an input signal and that
correct input source is
selected.
Faulty device in system. Verify all devices in system
are functioning properly.
Constant noise
such as buzz,
hum or hiss from
speakers. System grounding fault. Verify system grounding.
Poor low
frequency
output.
Incorrect polarity
connection at speaker.
Verify speaker connection
polarity (i.e. + on speaker to +
on amplifier).
2Problem Solving
Troubleshooting
1Installation
The FS6 can be mounted on a surface, such as a wall or mounted in a bookcase or under a shelf.
Mounting on a desk top or bookshelf
1. For quick installation on a desk top or bookshelf, simply place on a desk, shelf or other flat surface as desired.
2. Route the speaker wire to the speakers.
3. Strip the ends of the wire approximately 5/8 inch (15 mm) and twist the bared strands.
4. Insert the wire into the speaker terminals, observing the correct polarity ( wire to terminal and wire to terminal).+ + - -
Mounting on a wall, ceiling or other flat surface
1. If mounting to drywall, use a stud locator to find the studs in the wall.
2. Mark the location of the mounting bracket’s two mounting holes on ➀
the stud line and drill pilot holes.
3. Place the mounting bracket against the wall, aligning the screw ➀
holes with the pilot holes in the wall and secure it with two screws
(not included).

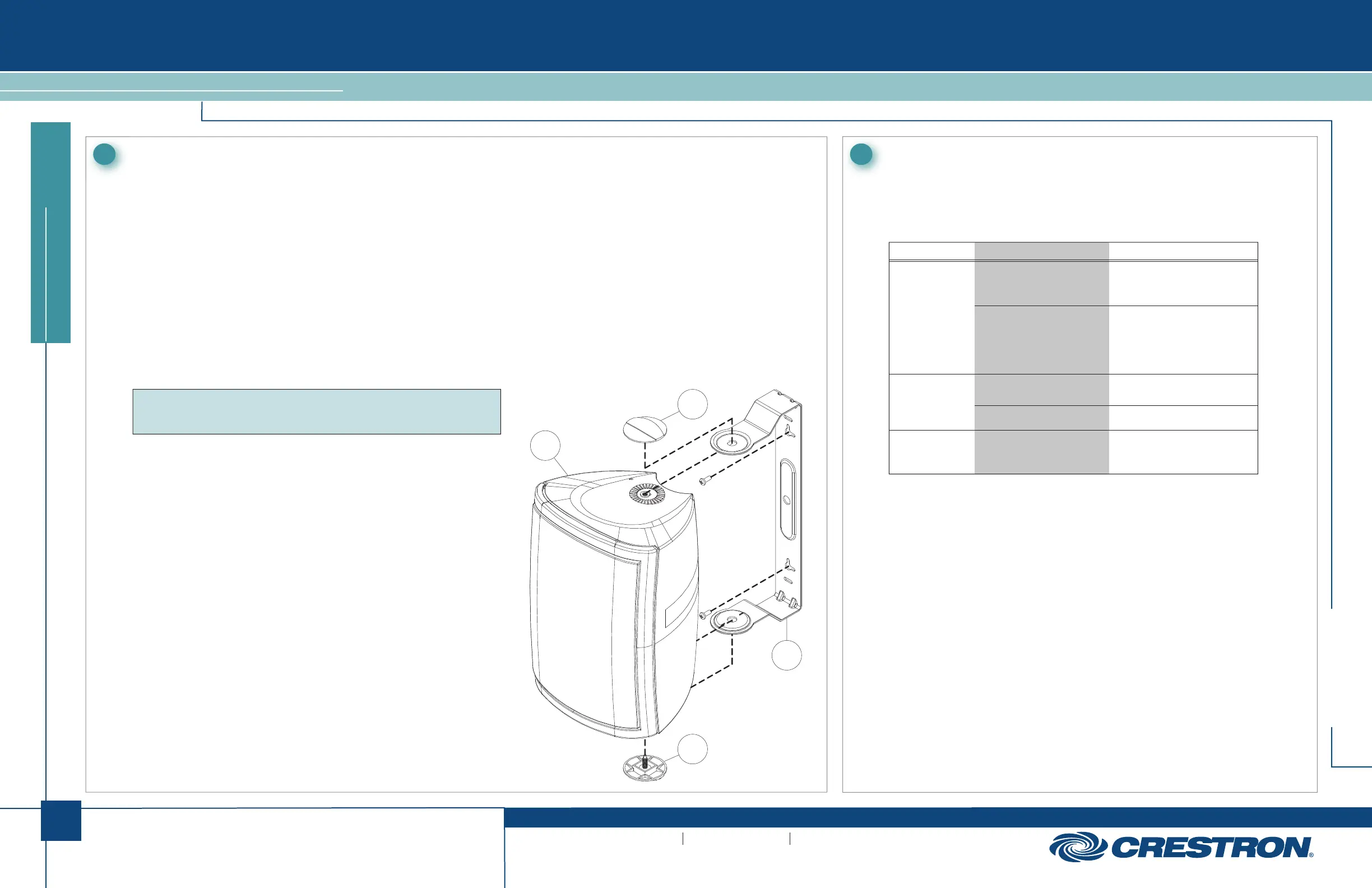

4. If they are attached to the speakers, remove the circular end caps ➁
from the top and bottom of the speakers ➂ by rotating them
counter-clockwise.
5. Gently slide the speaker into the mounting bracket and secure ➂ ➀
it by replacing the circular end caps through the mounting bracket ➁
and into the top and bottom of the speaker, rotating them clockwise until
fully seated.
6. Route the speaker wire to the speakers.
7. Strip the ends of the wire approximately 5/8 inch (15 mm) and twist the
bared strands.
8. Insert the wire into the speaker terminals, observing the correct polarity
(+ + - - wire to terminal and wire to terminal).
NOTE: Before starting installation, ensure the wall and wall material is
capable of supporting the combined weight of the speakers and the wall
mount assemblies.
2
2
1
3
Surface Mount Media Presentation Speakers
quickstart guide
FS6-B/W
www.crestron.com
888.273.7876 201.767.3400
Specifications subject to change
without notice.
FS6-B/W
3 Specifications
QUICKSTART DOC. 6972C (2027428) 04.12
2
12 . 57 in
( 320 mm )
8 . 24 in
( 209 mm )
9 . 45 in
( 241 mm )
SPECIFICATION DETAILS
Drivers
Woofer
Tweeter
6.5 inch (165 mm) long throw with
dual tuned bass reflex ports
1 inch (25 mm) wide dispersion soft
dome
5 - 120 Watts Recommended Amplifier Power
Frequency Response 56 Hz to 20 kHz (-10 dB)
80 Watts maximumPower Handling
8 Ohms nominalImpedance
Environmental
Temperature
Humidity
41º to 104º F (5º to 40º C)
10 to 90% RH (non-condensing)
Indoor use only
Enclosure
Cabinet
Mounting
Color
Contoured high impact plastic with
metal grill
Adjustable surface mount “C” bracket
included
Available in white or black
FS6 Specifications
Dimensions
Height
Width
Depth
12.57 in (320 mm)
8.24 in (209 mm)
9.45 in (241 mm)
5.8 lbs (2.7 kg)
6.8 lbs (3.0 kg) with mounting bracket
Weight
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and/or other countries. Other trademarks and trade names
may be used in this document to refer to either the entities claiming the marks and names or their
products. Crestron disclaims proprietary interest in the marks and names of others.
©2012 Crestron Electronics, Inc.
