FT2A-CBLR-GR Series
Gravity Cable Retractors for FT2 Series
crestron.com
|
800.237.2041
>Convenient and cost-effective connectivity for FT2 Series FlipTop
™
cable management systems
>Precision gravity-assisted track and pulley retraction mechanism
>Cable retracts gracefully by simply lifting it vertically above the table
>Highly flexible, low friction flat cable construction
>Robust soft-feel sculpted connectors for easy handling
>Durable construction for years of reliable use
>Backlit international symbol icon identifies the connector type
[1]
>Active 4K models support 4K60 4:4:4 digital AV signals
>Support for HDR and HDCP 2.2
>4K models available for HDMI
®
and DisplayPort™ devices
>Additional 4K models available to convert from DisplayPort to
HDMI, Mini DisplayPort to DisplayPort, Mini DisplayPort to HDMI,
and USB-C
®
to HDMI
>Passive models available for VGA, stereo audio, LAN, and USB 2.0
>Requires two module spaces at either end of a FlipTop module row
>Optional mid-row installation using additional brackets
>Retractor housing snaps onto the FlipTop chassis and extends
vertically beneath the table
>Requires 28-7/16 inch (722 mm) vertical clearance below the
table top surface
>Provides a 4 foot (1.2 meter) long tail below the table
Crestron
®
Gravity Cable Retractors ( ) offer a refined FT2A-CBLR-GR Series
cable management solution for use with Crestron FT2 Series FlipTop cable
management systems. Each cable pulls out smoothly to any length up to
34 inches (86 cm) and stays out as long as it remains laying on the table-
top. Simply lifting the cable vertically above the FlipTop assembly allows
the cable to retract gently back into the FlipTop. Gravity cable retractors
use a precision gravity-assisted track and pulley mechanism housed in a
vertical enclosure beneath the table.
Each Gravity Cable Retractor is composed of a retractor enclosure and
pass-through module. The enclosure attaches to the FlipTop chassis
beneath the table, while the module installs in the top of the FlipTop.
A 4 foot long cable tail is provided below the table for connection to a
DM
®
transmitter or similar interface device. The pull-out end of the cable
passes up through the module so that the connector nests neatly in place
and pulls out easily for use. Each module is labeled with an international
symbol icon indicating the connection type, which is backlit when installed
in an “Electrical” FT2 FlipTop. When installed in a “Mechanical” FlipTop,
the symbol icon remains legible but is not backlit.
The pass-through module occupies two module spaces within the FlipTop.
The retractor enclosure slides onto the side of the FlipTop chassis beneath
the table and locks into place with a snap. Retractors normally install at the
left and right ends of a module row, but can also be installed in the middle
of a row by adding an mid-row adapter bracket FT2A-CBLR-BRKT series
(one per row, each sold separately). Installation requires 28-7/16 inches
(722 mm) minimum vertical clearance below the top surface of the table.
End-mounted retractors require 2-3/8 inches (60 mm) horizontal clearance
to either side of the chassis, while mid-row retractors require 2-3/4 inches
(70 mm) horizontal clearance to the front or rear of the chassis.
Several models of gravity cable retractors are offered. The following “4K”
models feature a minimum TMDS bandwidth of 18 Gbps to support ultra
high-definition digital video signals up to 4K60 4:4:4. Active circuitry is
employed for optimal performance.
• HDMI
®
to HDMI – Model FT2A-CBLR-GR-4K-HD provides a retractable
High-Speed HDMI
®
cable with a male HDMI Type A connector at
both ends.
• DisplayPort
™
to DisplayPort – Model FT2A-CBLR-GR-4K-DP provides
a retractable DisplayPort cable with a male DisplayPort connector at
both ends.
• Model FT2A-CBLR-GR-4K-DP-HD provides a DisplayPort to HDMI –
retractable cable with a male DisplayPort connector at the source end
above the table and a male HDMI Type A connector at the sink end
below the table; converts DisplayPort to HDMI to allow connection of a
DisplayPort source to an HDMI input.
• Mini DisplayPort to DisplayPort – Model FT2A-CBLR-GR-4K-MDP-DP
provides a retractable cable with a male Mini DisplayPort connector at
the source end above the table and a regular-sized male DisplayPort
connector at the sink end below the table; converts Mini DisplayPort to
standard DisplayPort to allow connection of a Mini DisplayPort source to
a DisplayPort input.
• Model FT2A-CBLR-GR-4K-MDP-HD Mini DisplayPort to HDMI –
provides a retractable cable with a male Mini DisplayPort connector at
the source end above the table and a male HDMI Type A connector at
the sink end below the table; converts Mini DisplayPort to HDMI to allow
connection of a Mini DisplayPort source to an HDMI input.
• USB-C
®
to HDMI – Model FT2A-CBLR-GR-4K-USBC-HD provides a
retractable cable with a male USB Type-C
®
connector at the source
end above the table and a male HDMI Type A connector at the sink end
below the table; converts USB-C to HDMI to allow connection of a
USB-C source to an HDMI input.

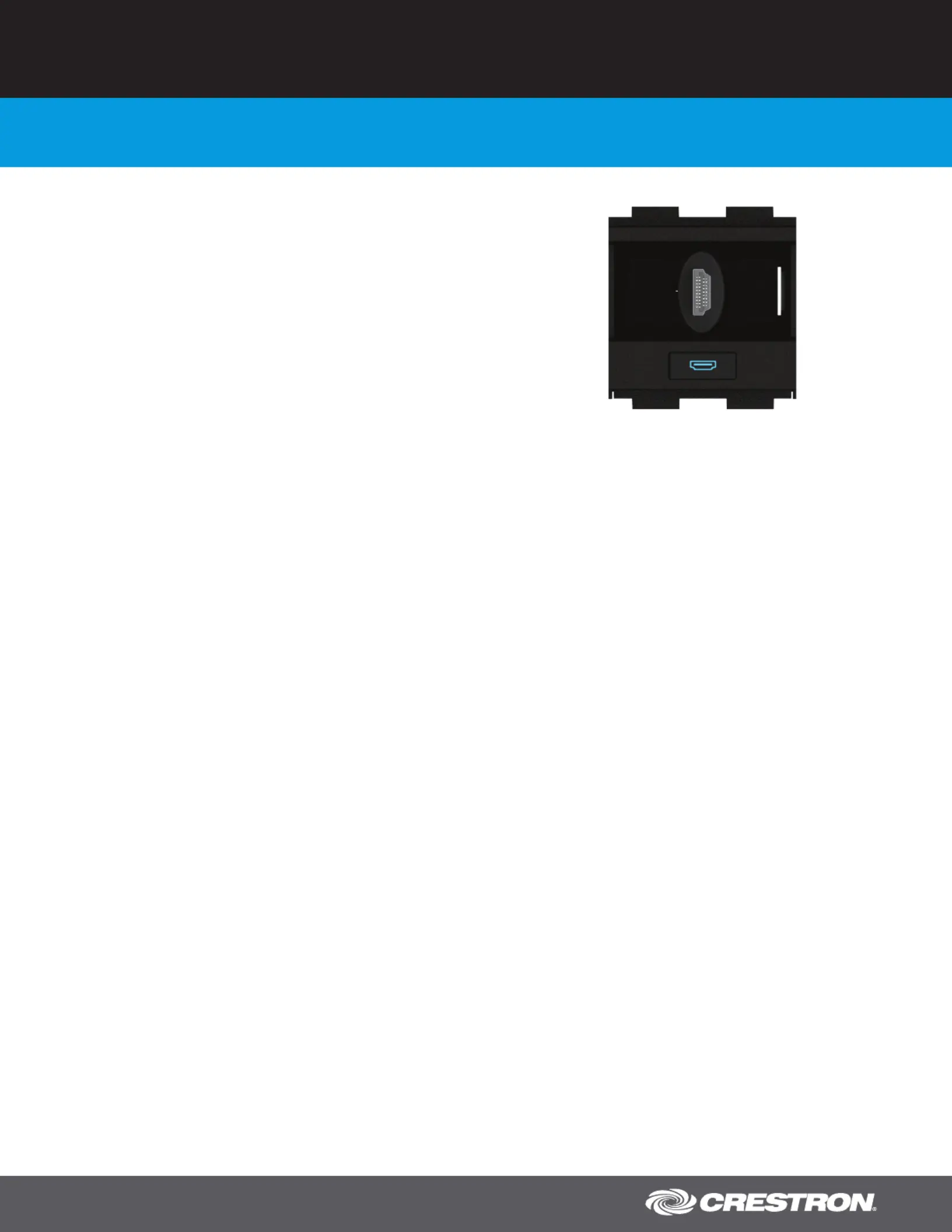

Model FT2A-CBLR-GR-4K-HD shown
(module portion)
