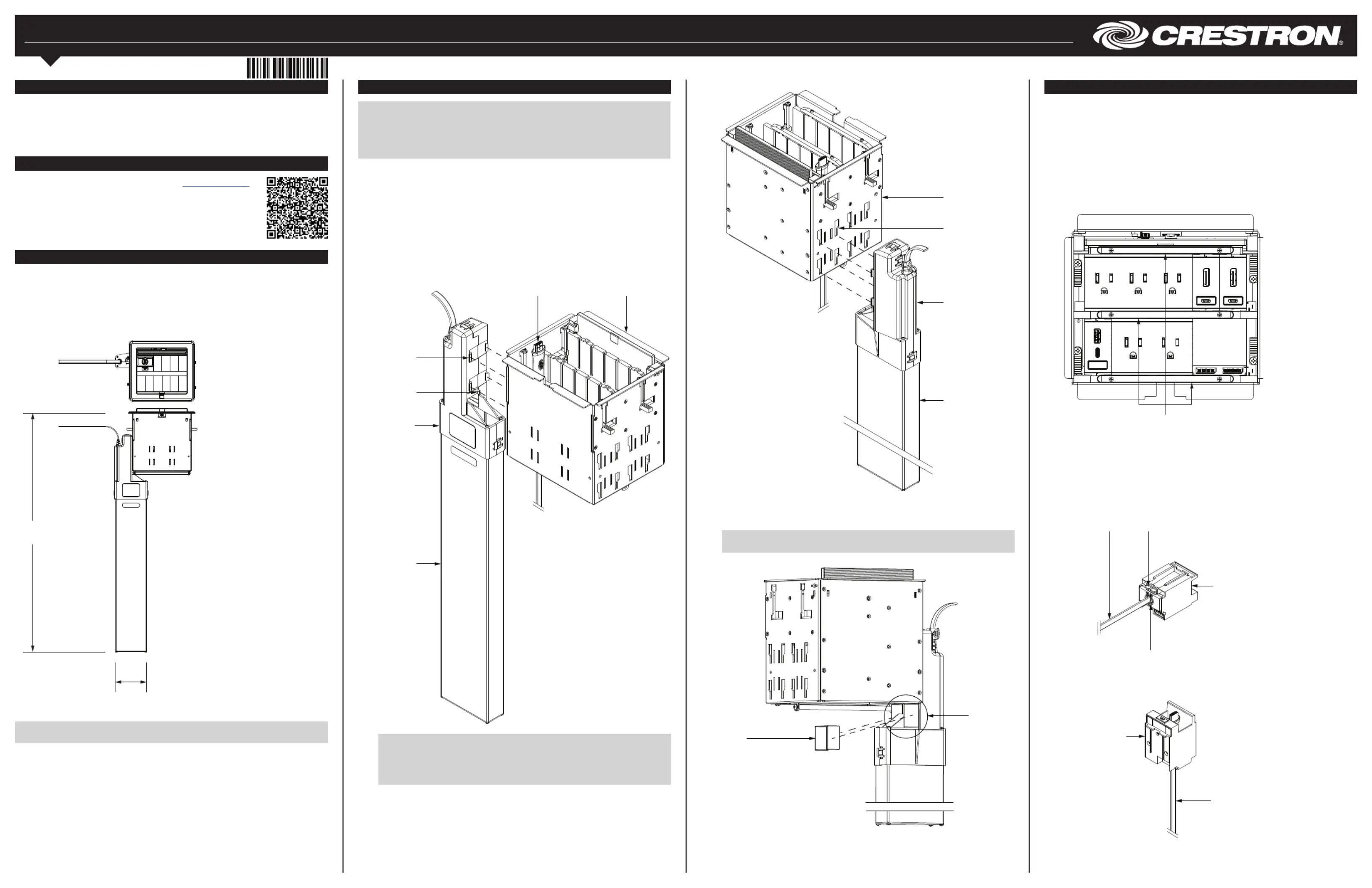

FT2A-CBLR-GR Series
Gravity Cable Retractors for FT2 Series
Installation Guide
Each FT2A-CBLR-GR module is 1.97 x 1.97" (50 x 50 mm) and requires two consecutive
empty module spaces in the FT2 FlipTop assembly.
NOTE: The LED icon does not light if the FT2A-CBLR-GR module is installed in an
FT2-MECH series FlipTop.
Retractor Installation
NOTE: Observe the following points before installing the FT2A-CBLR-GR retractor:
and can mount only to the sides of the FT2 FlipTop assembly.
• FT2A-CBLR-GR retractors extend from the FT2 FlipTop assembly 21.58" (548 mm )
vertically and 2.13" (54 mm) horizontally underneath the table.
Use the following procedure to install the FT2A-CBLR-GR retractor into an FT2 FlipTop
assembly. Complete this procedure prior to installing the FT2A-CBLR-GR module.
1. Underneath the table, pull the cable connector out of the retractor and tuck it
underneath the FT2 FlipTop assembly.
2. Align the four keyed tabs on the retractor neck with the four keyed slots on the FT2
FlipTop assembly. Then, push the retractor up and into the slots so that the keyed
tabs engage the wide end of the slots.
3. Slide the retractor downward until the keyed tabs are secured inside the narrow
end of the slots.
Installing the FT2A-CBLR-GR Retractor into the FT2 FlipTop Assembly (Front View)
Module Installation
Use the following procedure to install the FT2A-CBLR-GR module into an FT2 FlipTop
assembly. If the FT2A-CBLR-GR module is being installed as part of a new FT2 FlipTop
installation, skip ahead to step 3.
1. Remove the magnetic bezel from the FT2 FlipTop assembly by grasping the inside
of the bezel and by rmly pulling it up and away from the assembly until the
magnetic hold is broken.
2. Unscrew and remove the two locking bars on either side of the module row needed
for installation. For example, if installing the FT2-CBLR-GR module in the bottom
row of an FT2-700-MECH or FT2-700-ELEC FlipTop, remove the middle and
bottom locking bars.
Removing the Locking Bars
Keyed
tabs (4)
Locking
tab
Retractor
(extrusion)
Cable connector
(tuck under
assembly)
FT2 FlipTop assembly
NOTE: Once the FT2A-CBLR-GR retractor is secured into the FT2 FlipTop
assembly, a locking tab prevents the retractor from being easily removed. To
remove the retractor after it has been installed, press on the locking tab while
pulling the retractor up and out of the slots in the assembly. Refer to the
illustration above for the position of the locking tab on the retractor neck.
Installing the FT2A-CBLR-GR Retractor into the FT2 FlipTop Assembly (Rear View)
FT2 FlipTop
assembly
Keyed
slots (4)
Locking bars (3)
3. Push down on the two door removal tabs on the bottom of the FT2A-CBLR-GR
module to open the module door.
4. Route the cable connector through the bottom of the module, and then thread the
cable sideways through the slot in the module door so that the connector exits the
inside of the door.
5. Snap the door back into place against the module until is secured.
Installing the Cable into the FT2A-CBLR-GR Module (Bottom View)
Cable
(from retractor)
Insert cable
through slot in
module door
FT2A-CBLR-GR
module
(bottom view)
Door removal
tab (2)
Retractor
(extrusion)
Retractor
(neck)
Retractor
(neck)
Description
The Crestron
®
FT2A-CBLR-GR series provides an assortment of gravity-retractable
cables for use with the FT2-ELEC and FT2-MECH series of FlipTop™ devices. The
included cable retracts into its retractor enclosure only when the cable is held vertically
over its module and released, regardless of how much of the cable has been pulled out
from the retractor. The cable does not retract if it is positioned horizontally on the table.
Overview
Each product in the FT2A-CBLR-GR series provides one retractor that contains an
8' (2.44 m) preinstalled cable and one module that enables the cable connector to be
accessed from the FT2 FlipTop assembly. The retractor is composed of two parts (a
plastic neck and a metal extrusion), and it attaches to the side of the assembly
underneath the table. FT2A-CBLR-GR modules also feature a backlit LED icon that lights
when the module is connected to the power bus in an FT2-ELEC series FlipTop. Refer to
the following illustration for product dimensions.
Additional Resources
Visit the product page on the Crestron website ( ) www.crestron.com
for additional information and the latest rmware updates. Use a QR
reader application on your mobile device to scan the QR image.
3.71 in
(94 mm)
28.38 in
(721 mm)
FT2A-CBLR-GR
module
(top view)
Installing the Cable into the FT2A-CBLR-GR Module (Top View)
Cable
(from retractor)
4. Slide the included metal clip onto the retractor neck as shown in the following
illustration. The clip ts securely between the retractor neck and the bottom side of
the FT2 FlipTop assembly once installed.
NOTE: Pull the cable back and away from the retractor so that the clip slides
onto the retractor neck without becoming impeded by the cable.
Installing the Metal Clip onto the Retractor Neck
Metal
clip
Metal clip
in installed
position
8. Once all modules and plates are installed and level with their surroundings, place
the removed locking bars back into position so that the screws on either side
engage the screw holes in the FT2 FlipTop assembly. Then, hand tighten the two
screws attached to the sides of each bar until the bars are secured to the
assembly.
CAUTION: To avoid stripping the screws on the locking bars, hand tighten the
screws using a manual screwdriver only.
9. Hold the magnetic bezel over the FT2 FlipTop assembly so that the lid retraction
button on the bezel is aligned with the front of the assembly. Then, lower the bezel
onto the assembly so that the lowered retractable lid ts inside the rear opening in
the bezel and the magnets snap into place against the assembly. Refer to the
illustration below.

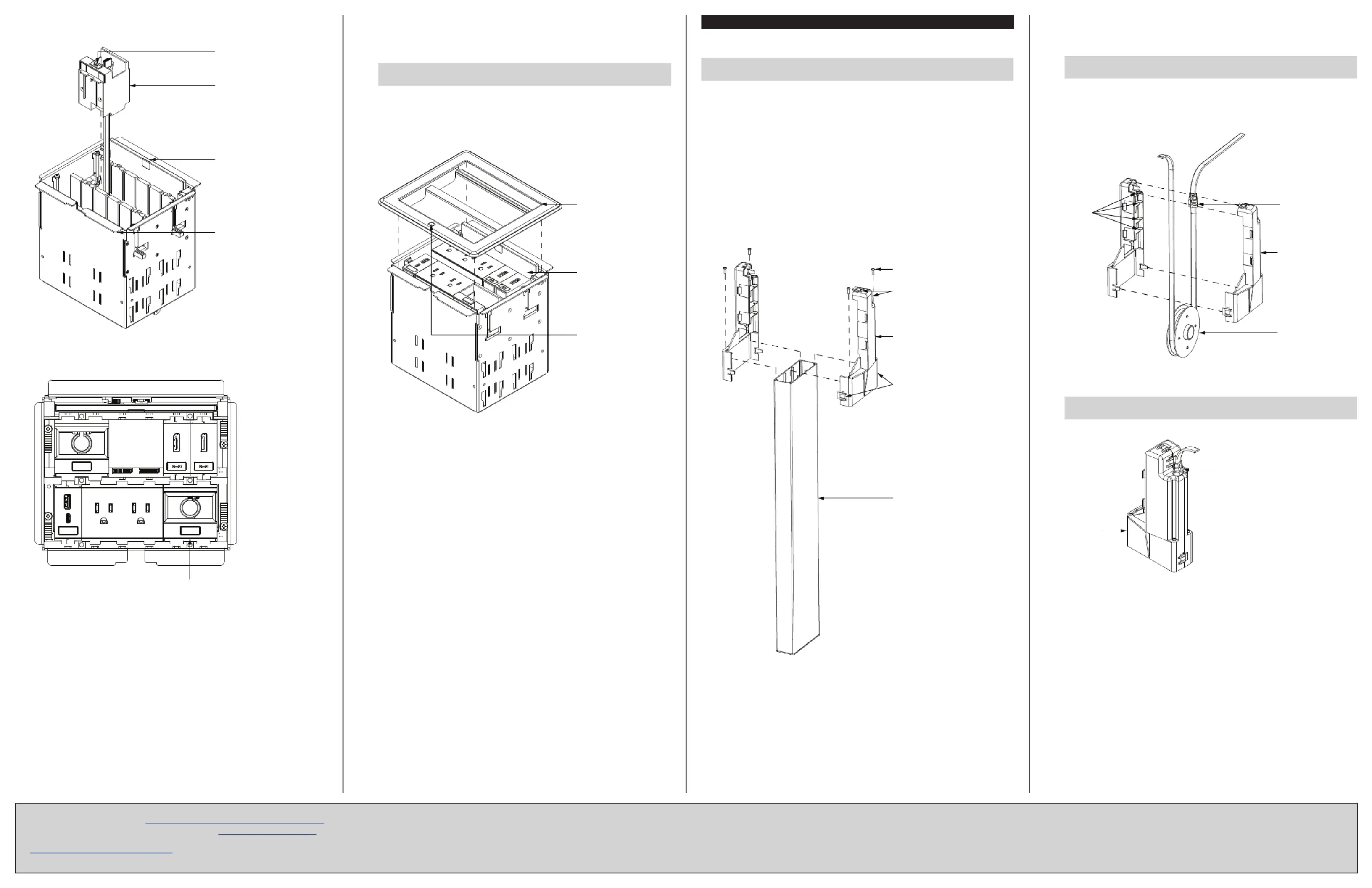

Attaching the Bezel to the FT2 FlipTop Assembly
6. Orient the module so that the module’s LED icon is facing toward the front of the
FT2 FlipTop assembly as shown in the following illustration.
Positioning the FT2A-CBLR-GR Module in the FT2 FlipTop Assembly
FT2A-CBLR-GR
module (front view)
Retractable lid
(located in rear
of assembly)
FT2 FlipTop
assembly (front)
FT2A-CBLR-GR
module
7. Push the top of the module down into the appropriate module spaces in the FT2
FlipTop assembly so that the module slides into place. Use the guide ribs on the
front and rear of each module to help position the module in the assembly.
Installing the FT2A-CBLR-GR Module into the FT2 FlipTop Assembly (Overhead View)
Retractable lid
ts inside this
opening in bezel
Retractable lid
Lid retraction
button
Screws (4)
Retractor
neck
halves (2)
Retractor
extrusion
Top tabs (2)
Side tabs (2)
6. Detach the cable from the guides in the retractor neck, and then pull both ends of
the cable upward to lift the pulley up and out of the retractor extrusion.
following step 8.
NOTE: Ensure that there are no twists in the cable after it is wrapped around the
pulley. The cable does not retract properly if the cable is twisted.
8. Insert the cable into one half of the retractor neck using the cable guides inside of
the retractor neck. The bottom ring in the cable’s strain relief attaches to the top
cable guide in the neck. Then, attach the two halves of the retractor neck so that
the four tabs on the one half snap into their respective slots on the other half.
Connecting the Cable and Pulley to the Retractor Neck
Retractor neck
halves (2)
Cable strain relief
(bottom ring)
Cable
guides
Pulley
Retractor
neck
Cable strain
relief
9. Lower the pulley into the retractor extrusion until the retractor neck rests on top of
the extrusion. Then, secure the neck to the extrusion by hand tightening the four
screws removed in step 4.
CAUTION: To avoid stripping the retractor neck screws, hand tighten the
screws using a manual screwdriver only.
Reattaching the Retractor Neck Assembly
LED icon
Cable Replacement
If the cable that ships with the FT2A-CBLR-GR product needs to be replaced, use the
following procedure to install a new cable into the FT2A-CBLR-GR retractor.
NOTE: Only Crestron FT2A-CBL-PT series cables may be installed into an
FT2A-CBLR-GR retractor.
1. Remove the bezel and locking bars from the FT2 FlipTop assembly. Refer to steps
1–2 in “Module Installation” for more information.
2. Pull the FT2A-CBLR-GR module out of the FT2 FlipTop assembly. Then, push
down on the two door removal tabs on the bottom of the FT2A-CBLR-GR module
to open the module door, and thread the cable sideways through the slot in the
module door to detach the cable from the module.
3. Underneath the table, pull the metal clip off of the retractor neck, and then press
the locking tab on the retractor neck while pulling the retractor up and out of the
slots. For the locking tab location, refer to the illustration following step 3 in
“Retractor Installation.”
4. Unscrew and remove the four screws that secure the retractor neck to top of the
retractor extrusion. Refer to the image below step 5 for screw locations.
5. Press the two tabs on the sides of the retractor neck to loosen the two halves.
Then, press the two tabs on top of the retractor neck, and pull the two halves apart
gently to remove them from the retractor extrusion.
Removing the Retractor Neck from the Retractor Extrusion
The product warranty can be found at www.crestron.com/legal/sales-terms-conditions-warranties
The specic patents that cover Crestron products are listed at .www.crestron.com/legal/patents
Certain Crestron products contain open source software. For specic information, please visit
www.crestron.com/legal/open-source-software.
Crestron Electronics, Inc. Installation Guide - DOC. 8221C
15 Volvo Drive, Rockleigh, NJ 07647 (2049458)
Tel: 888.CRESTRON 04.18
Fax: 201.767.7576 Specications subject to
www.crestron.com change without notice.
Crestron, the Crestron logo, and FlipTop are either trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and/or other countries. Other trademarks, registered trademarks,
and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Crestron disclaims any proprietary interest in the marksand names of others.
Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2018 Crestron Electronics, Inc.
