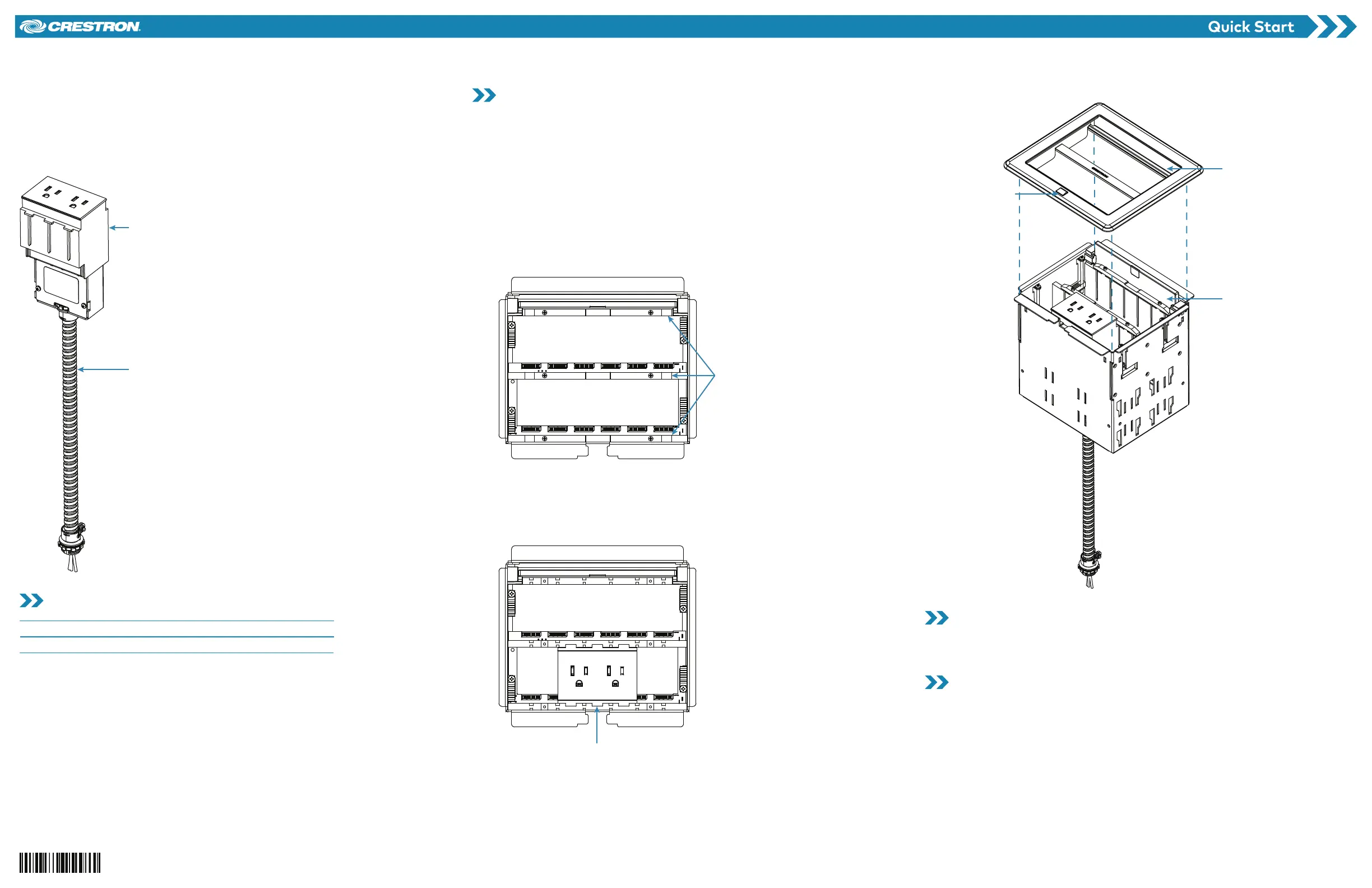

Suitable for use in the US and other countries, the Crestron® FT2A‑PWR‑US‑2‑BX provides two
NEMA Type 5 AC power outlets for installation in Crestron FT2 FlipTop™ cable management
assemblies.
The fixed 6 ft (1.83 m) BX pigtail connects the FT2A‑PWR‑US‑2‑BX to an electrical box. The
FT2A‑PWR‑US‑2‑BX is rated for 10 A (total) at 125 V, 50/60 Hz.
NOTE: Only a qualified electrician should connect the module to the available electrical supply.
FT2A-PWR-US-2-BX
Power outlet module
BX pigtail
6 ft (1.83 m)
Check the Box
Item Qty
FT2A‑PWR‑US‑2‑BX 1
Install the Module
Install the power module into the FT2 FlipTop assembly. If the bezel and locking bars have not
been installed on the FT2 FlipTop assembly, skip to step 5.
NOTE: The FT2A‑PWR‑US‑2‑BX uses three module slots. For ease of installation, install power
outlet modules before installing any other module.
To install the power outlet module:
1. Tap the lid retraction button to retract the one‑touch lid, which disappears into the FT2
FlipTop assembly. If the assembly has two lids, retract both.
2. Remove and retain the magnetic bezel from the FT2 FlipTop assembly by grasping the
inside of the bezel and firmly pulling it up and away from the assembly until the magnetic
hold is broken.
3. Use a manual torque screwdriver to unscrew, remove and retain the two locking bars on
either side of the module row where the module is to be installed.
Remove Two Locking Bars
Locking bars (3)
4. Lift and remove the modules to be replaced.
5. Insert the new module’s BX pigtail cable through the empty module slots.
6. Orient the module as shown in the following illustration and slide it down into the
appropriate module slots. Use the guide ribs on the front and rear of the module to help
position it in the assembly.
Position the Module
FT2A-PWR-US-2-BX
7. Confirm that all modules are level with their surroundings and place the locking bars
(removed in step 3) into position so that the screws on either side engage the screw holes
in the assembly.
8. Use a manual torque screwdriver set to its lowest possible setting to tighten the locking
bar screws until the lock bars are secured to the FT2 FlipTop assembly.
9. Place the bezel (removed in step 2) onto the FT2 FlipTop assembly so that the retractable
lid fits inside the bezel opening. The bezel is held in place by magnets.
Attach the Bezel
The retractable
lid fits inside
this opening in
the bezel.
Retractable lid
Lid retraction button
Wire the Module
Wire the FT2A‑PWR‑US‑2‑BX pigtail cable in accordance with appropriate electrical codes and
regulations.
Operate the Module
To operate the power outlet module:
1. Tap the lid retraction button to retract the one‑touch lid, which disappears into the FT2
FlipTop assembly.
2. Connect the device needing power to one of the available outlets on the module.
3. Confirm that the power indicator on the device shows that the device is receiving power.
FT2A-PWR-US-2-BX
AC Power Outlet Module for FT2 Series
