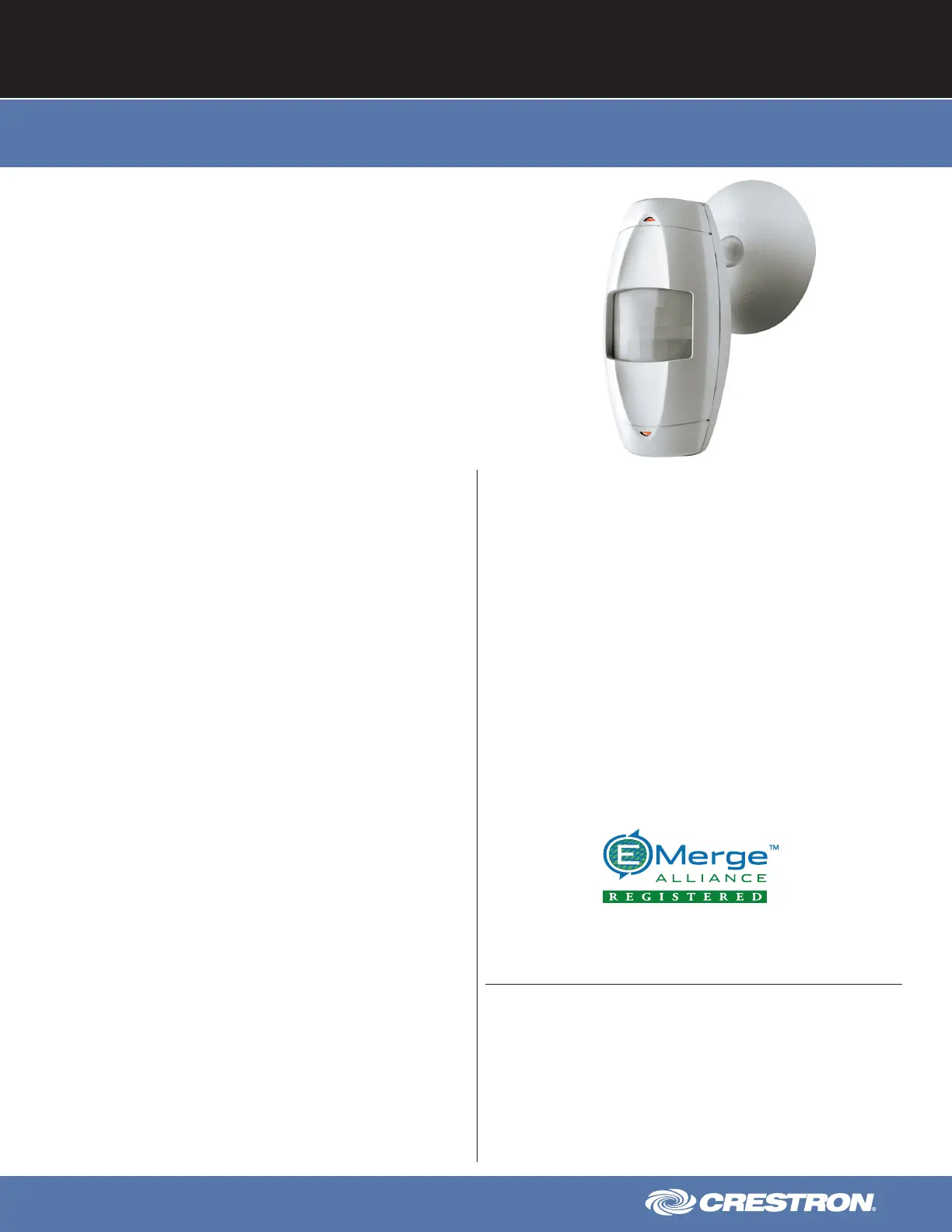

GLS-OIR-W-2500
Passive Infrared Wall Mount Occupancy Sensor, 2500 Sq. Ft.
crestron.com | 800.237.2041
>Wall or ceiling mount occupancy sensor
>Passive infrared motion detection
>Versatile twist-and-lock mounting bracket
>Swivel adjustment 80° vertical x 60° horizontal
>110 degree, 2500 square feet coverage
>Accurate and reliable sensing
>Microprocessor-controlled self-adapting operation
>Fully-digital circuitry for low cost and high reliability
>Built-in ambient light recognition
>Control system interface via Cresnet[2] or Versiport I/O input
>EMerge Alliance® Compatible
Crestron Green Light® sensors deliver a powerful and cost-effective
solution for reducing energy costs and enhancing the functionality of
lighting and environmental systems. The GLS-OIR-W-2500 is a wall or
ceiling mount occupancy sensor designed for large areas up to 2500
square feet to detect when the room is occupied. Advanced self-adaptive,
passive infrared motion sensing affords excellent reliability for control of
lighting, climate control and other devices in the room.
Passive Infrared Occupancy Sensing
Passive infrared technology achieves dependable motion detection with
superior immunity to false triggering from air currents, inanimate objects,
or movement in an adjacent corridor. Sensitivity is adjustable for optimum
performance.
Self-Adaptive Adjustment
Under the control of its internal microprocessor, the GLS-OIR-W-2500
continually analyzes occupancy behavior and environmental conditions
in the room, adjusting itself for optimal functionality so lights turn on and
stay on while the room is occupied, and remain off when no one is present.
Sensor sensitivity and delayed-off time adjustments are optimized
automatically based on day-to-day use of the room to prevent false-on and
off conditions. A walk-thru mode provides specialized behavior in
instances of brief occupancy, turning lights off quickly when a person
enters and exits the room within a period of 2.5 minutes.
Ambient Light Recognition
A built-in photocell is included for detection of natural daylight in the room.
When enabled, the photocell can override the occupancy sensor if the
ambient light level is above a set threshold, preventing lights from turning
on when there is sufficient daylight in the room.
Versatile Installation
The GLS-OIR-W-2500 is ideally designed to afford versatile positioning
in any room with low-hanging ceiling fixtures or other obstructions. The
twist-and-lock bracket facilitates fast and simple mounting to a drywall
or drop-tile surface, or to a standard 4-inch octagon box. Its simple 3-wire
interface allows for direct connection to a Crestron control system via a
single Versiport I/O input port, with 24 Volt power taken from the Cresnet
control bus[1].
Cresnet® Option
Cresnet provides a simpler solution for configuring and wiring sensors
as part of any complete Crestron system. Cresnet is the communications
backbone for Crestron lighting dimmers, keypads, touchpanels, shade
controllers, thermostats, and many other devices. This flexible 4-wire bus
provides data communications and 24 Volts DC power for all of the devices
on the Cresnet network. Using the optional Sensor Integration GLS-SIM
Module, the GLS-OIR-W-2500 becomes a full-featured Cresnet device,
streamlining the total lighting system. Additional features enable quick and
easy setup for use with a Crestron IPAC or iLux® system.
Emerge Alliance Registered
This device is EMerge Alliance® registered and designed to work within
a 24VDC room-level power distribution system. The EMerge Alliance is a
non-for-profit open industry association leading the rapid adoption of safe
DC power distribution in commercial buildings through the development of
Emerge Alliance standards[3]. Crestron is a proud member and supporter
of the Alliance. For more information about Crestron Solutions for EMerge
Alliance Applications visit: www.crestron.com/emerge.
SPECIFICATIONS
Sensing
Sensor Technology: Passive Infrared
Auto-Adjustment: Microprocessor-based self-adaptive
Ambient Light Recognition: Built-in photocell for ambient light override
Coverage Area: 2500 sq. ft.
Horizontal Coverage Pattern: 110 degrees
Major Motion Area: 68 x 50 feet
Minor Motion Area: 32 x 32 feet
GLS-OIR-W-2500 Passive Infrared Wall Mount Occupancy Sensor, 2500 Sq. Ft.
crestron.com | 800.237.2041
Memory
Built-in non-volatile memory retains all settings in case of power loss
LED Indicators
IR: (1) Red LED, indicates infrared motion
Controls (Behind Cover)
Infrared Range: (1) Red adjustment knob;
Adjusts sensitivity of infrared motion sensor;
Adjustment Range: 0% to 100% (75% factory default)
Delayed-Off Time: (1) Black adjustment knob;
Adjusts delayed-off time duration;
Adjustment Range: 30 seconds to 30 minutes (10 minutes factory default,
6 seconds in test mode)
Ambient Light Threshold: (1) Blue adjustment knob;
Adjusts threshold for ambient light override;
Adjustment Range: 100 to 3000 Lux (3000 Lux factory default)
DIP Switch A: (1) 4-position DIP switch
1: (not used);
2: (not used);
3: Disables auto-adapting;
4. Disables walk-thru mode
DIP Switch B: (1) 4-position DIP switch
1: Forces control signal output high (room lights on);
2: Forces control signal output low (room lights off);
3: Enters or exits Test Mode (toggle “on” then “off”);
4: Disables both LED indicators
Connections
Power: (1) Red 6” flying lead, 24 AWG;
+24 Volt DC power input
Common: (1) Black 6” flying lead, 24 AWG;
Power and control signal common
Occupancy: (1) Blue 6” flying lead, 24 AWG;
Occupancy sensor control signal output;
Provides 24 Volts DC high logic signal when occupancy is detected;
Short circuit protected;
Connects to a GLS-SIM Integration Module[2], or to a Versiport I/O Input
control port on any Crestron control system
Occupancy w/Photocell: (1) Gray 6” flying lead, 24 AWG;
Occupancy sensor control signal output with ambient light override;
Provides 24 Volts DC high logic signal when occupancy is detected and
ambient light is below set threshold;
Short circuit protected;
Used instead of the blue “Occupancy” connection when ambient light
override is desired
Environmental
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 0% to 95% RH (non-condensing)
Power Requirements
Current Consumption: 20 mA @ 24 Volts DC
Cresnet Power Usage: 1 Watt
[1]
Housing
Construction: High-impact injection-molded plastic, white
Mounting: Surface wall or ceiling mount directly to drywall or drop-tile, 4”
octagon box (1.5” minimum depth), or round fixture box (Wiremold
® V5738
or equivalent); twist-and-lock mounting bracket included
Dimensions
Without mounting bracket
Height: 5.50 in (13.97 cm)
Width: 2.75 in (6.99 cm)
Depth: 1.65 in (4.20 cm)
With mounting bracket
Height: 6.43 in (16.34 cm)
Width: 4.23 in (10.75 cm)
Depth: 4.67 in (11.87 cm)
Weight
6.0 oz(171 g)
Standards & Certifications
CUL/US Listed 9034, ANCE Compliant, NOM 057, California Title 24 Code
Compliant, ASHRAE Standard 90.1 Compliant, FCC Compliant
MODELS & ACCESSORIES
Available Models
GLS-OIR-W-2500: Crestron Green Light® Passive Infrared Wall Mount
Occupancy Sensor, 2500 Sq. Ft.
Notes:
1. Power may be taken from Crestnet bus regardless of interface method.
2. Cresnet communication requires GLS-SIM Sensor Integration Module (sold separately).
3. Information regarding the EMerge Alliance can be found at www.emergealliance.org
This product may be purchased from an authorized Crestron dealer. To find a dealer, please
contact the Crestron sales representative for your area. A list of sales representatives is available
online at www.crestron.com/salesreps or by calling 800-237-2041.
Specifications subject to change without notice. Crestron is not responsible for errors in
typography or photography.
Crestron, the Crestron logo, Crestron Green Light, Cresnet and iLux are trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States, other countries or both. EMerge
Alliance is a trademark or registered trademark of the EMerge Alliance in the United States, other
countries or both. Other trademarks and trade names may be used in this document to refer to
either the entities claiming the marks and names or their products. Crestron disclaims proprietary
interest in the marks and names of others. ©2012 Crestron Electronics, Inc.
