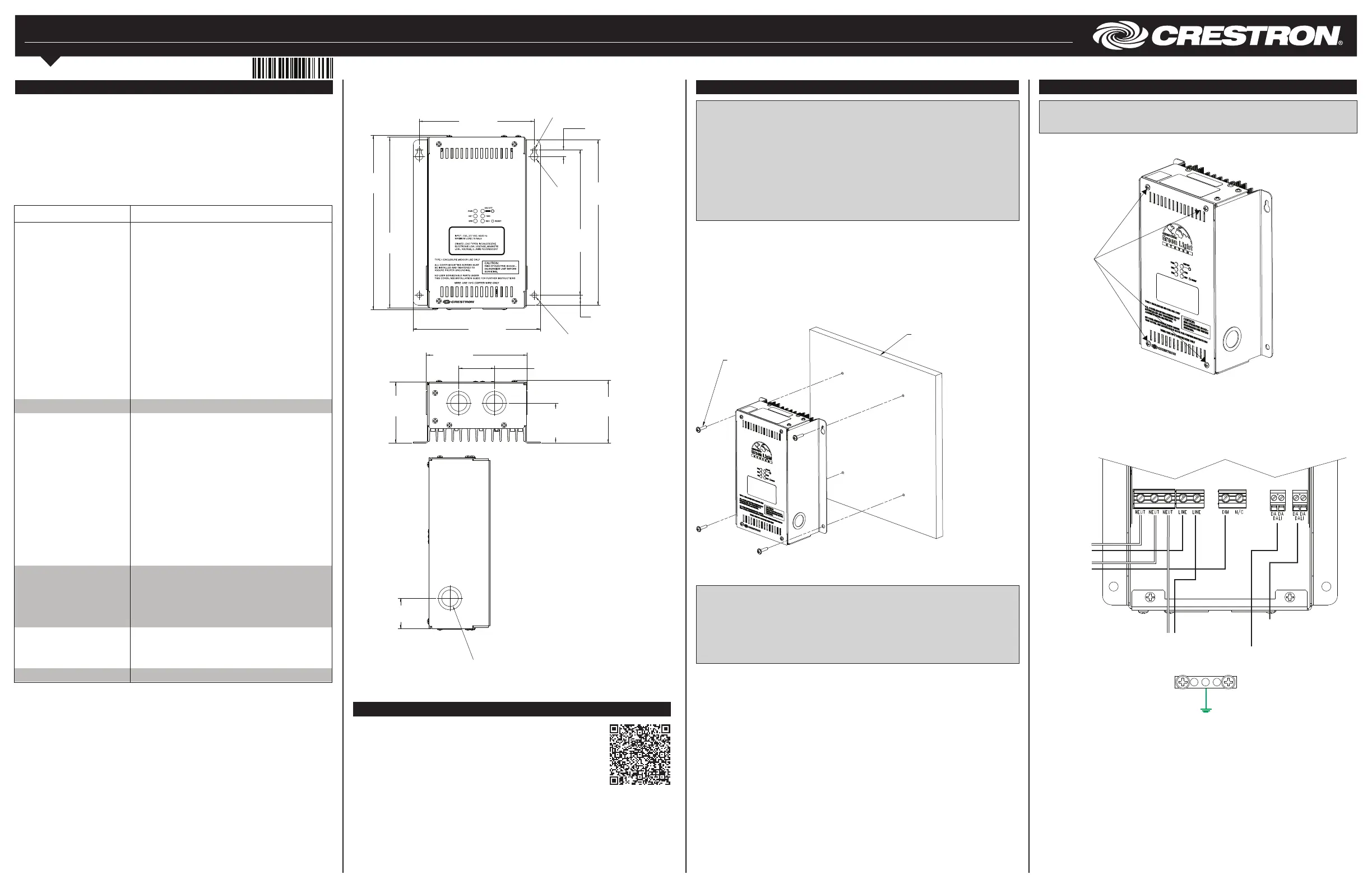

GL-EXP-DIM-DALI/GL-EXP-DIMU-DALI/GL-EXP-DIMFDB-DALI/GL-EXP-DIMFLV-DALI/GL-EXP-SW-DALI
Crestron Green Light
®
Expansion Module, DALI
®
Installation & Operation Guide
Description
The GL-EXP-DIM-DALI, GL-EXP-DIMU-DALI, GL-EXP-DIMFDB-DALI,
GL-EXP-DIMFLV-DALI, and GL-EXP-SW-DALI are independent Crestron Green Light
®
expansion modules that are controlled by DALI
®
and provide one channel of control for a
variety of lighting loads. A single module supports 120 volt or 277 volt loads up to 16
amps.
The Crestron
®
GL-EXP-DIM-DALI, GL-EXP-DIMU-DALI, GL-EXP-DIMFDB-DALI,
GL-EXP-DIMFLV-DALI, and GL-EXP-SW-DALI share common features and functions and
will be referred to as “GL-EXP-*-DALI” except where noted.
The specications for the GL-EXP-*-DALI are listed below.
Specications
Additional Resources
Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest rmware updates.
5 13/16 in
(147 mm)
5/16 in
(9 mm)
8 5/16 in
(211 mm)
7 5/16 in
(186 mm)
8 5/8 in
(219 mm)
8 3/4 in
(223 mm)
1/2 in
(13 mm)
6 3/8 in
(163 mm)
5 1/16 in
(129 mm)
3 13/16 in
(81 mm)
2 in
(52 mm)
Typ
1 13/16 in
(46 mm)
3 1/16 in
(78 mm)
(2x) Ø3/16 in
(5 mm)
(2x)
Ø3/18 in
(10 mm)
(2x) Ø1/4 in
(7 mm)
(1 1/2 in
(39 mm)
Double Ring Knockout for 1/2 in and 3/4 in
conduit Ø.875 and Ø1.125 in after knockout
removal (typ).
GL-EXP-DIMU-DALI
2. Wire the device as shown below. An additional LINE, NEUT, and GND connection is
supplied for power to pass through. Keep the following in mind while wiring:
• Wires should be 10 to 24 AWG.
• Wires should be stripped to 5/16 in (8 mm).
• Tighten the terminal screws to 4.5 in-lbs (0.5 Nm).
Wire the GL-EXP-DIM-DALI
Wiring Diagrams
WARNING: RISK OF SERIOUS PERSONAL INJURY. Turn off power at the circuit
breaker(s) prior to installation. Installing with power on can result in serious personal
injury and damage to the device.
1. Use a #2 Phillips screwdriver to remove the cover screws and remove the cover.
Remove Cover Screws
Installation
WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker(s) or
fuse and test that power is off before wiring!
NOTES: Observe the following points:
• This product must be installed and used in accordance with the appropriate electrical
codes and regulations.
• This product must be installed by a licensed electrician.
• Use 75°C copper wire or better.
NOTE: Before using the GL-EXP-*-DALI, ensure the device is using the latest rmware.
Check for the latest rmware for the GL-EXP-*-DALI at www.crestron.com/rmware.
Firmware is loaded onto the device using Crestron Toolbox™.
Preparing and Connecting DALI and 0-10V Ports
Strip the ends of the wires approximately 7/16 in (11 mm). Use care to avoid nicking the
conductors. Tighten the connector to 5 in-lb (0.5 to 0.6 N-m). The wire gauge should be 14
to 26 AWG.
Installation
The GL-EXP-*-DALI is mounted to any vertical surface using four screws. The screws must
be appropriate for the mounting surface.
Installing the GL-EXP-*-DALI Module
NOTE: To prevent potential heat damage to the drywall, do not mount the
GL-EXP-*-DALI directly onto drywall. Mount the GL-EXP-*-DALI to a piece of plywood
that is at least 1/2 in (13 mm), and then mount the GL-EXP-*-DALI and plywood to the
drywall.
NOTE: To ensure proper ventilation, the device must be installed vertically on a vertical
surface. Install the device with 6 in (153 mm) of clearance from the top and bottom of the
device.
Mounting Surface
#8 Mounting
Screws Qty. 4
(Not Supplied)
Cover
Screws
The dimensions for the GL-EXP-*-DALI are shown in the following illustrations.
GL-EXP-*-DALI Dimensions
SPECIFICATION DETAILS
Load Ratings
Channels 1
Load Rating 16 A
Dimmed Load Types
GL-EXP-DIM-DALI:
Incandescent, magnetic low-voltage, 2-wire
dimmable uorescent
GL-EXP-DIMU-DALI:
Incandescent, electronic low-voltage, magnetic low-
voltage, 2-wire uorescent
GL-EXP-DIMFDB-DALI:
3-wire uorescent
GL-EXP-DIMFLV-DALI:
0-10 V fluorescent, 0-10 V LED
Switched Load Types
GL-EXP-SW-DALI:
Incandescent, magnetic low-voltage, electronic low-
voltage, HID, uorescent ballast
Input Voltage 100 to 277 Vac, 50/60 Hz
Indicators
PWR
Green LED indicates line power is applied to the LINE
terminal.
ON/OFF Red LED indicates power is applied to the load.
NET Yellow LED indicates network communication.
ERR Red LED blinks to indicate an error condition. Refer to
“Error States” for additional information.
FWD
(GL-EXP-DIMU-DALI
Only)
Red LED shows that the unit is operating in forward-
phase mode.
REV
(GL-EXP-DIMU-DALI
Only)
Red LED shows that the unit is operating in reverse-
phase mode.
Controls
ON/OFF Pushbutton toggles power to the load. Press and hold
the pushbutton to dim the load up and down
(dimming models only).
RESET Pushbutton initiates hardware reset.
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Weight 3.4 lb (1.6 kg)
Pass Through to
Additional
Module
From Circuit
Breaker
To Dimmed
Load
From DALI
Network
To Additional
DALI Modules

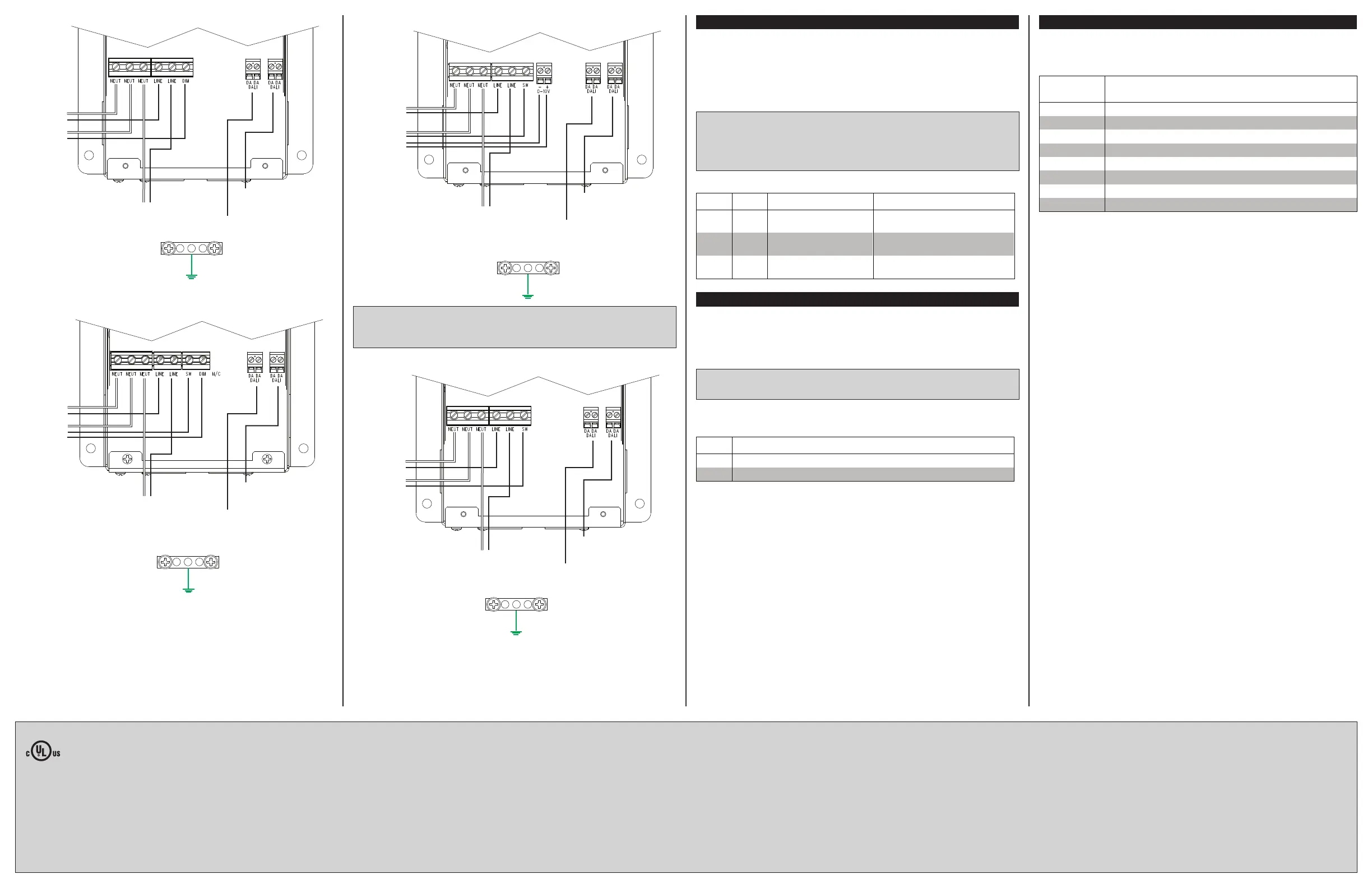

Wire the GL-EXP-DIMU-DALI
Wire the GL-EXP-DIMFLV-DALI
Wire the GL-EXP-SW-DALI
Wire the GL-EXP-DIMFDB-DALI
Dimming Mode
(GL-EXP-DIMU-DALI Only)
The GL-EXP-DIMU-DALI is capable of automatically detecting the attached load type and
setting itself for Forward Phase (leading edge) or Reverse Phase (trailing edge) dimming
mode accordingly. In addition, the unit can be forced to perform forward or reverse phase
dimming by overriding the automatic detection.
Disabling the Autodetect mode should not be necessary and is not recommended unless
suggested by a Crestron technical support representative.
WARNING: RISK OF SERIOUS PERSONAL INJURY. Turn off power at the circuit
breaker(s) prior to changing any switch settings. Changing settings with the power on can
result in serious personal injury and damage to the device.
WARNING: Incorrectly setting these switches to force the wrong mode can cause
damage to the dimmer and lighting xture.
The dimming mode can be changed by adjusting the SW3 and SW4 DIP switches as
detailed below.
Zero-Cross Mode
(GL-EXP-DIM-DALI, GL-EXP-DIMU-DALI, and GL-EXP-DIMFDB-DALI Only)
The GL-EXP-DIM-DALI, GL-EXP-DIMU-DALI, and GL-EXP-DIMFDB-DALI ship with SW1 set
to OFF. The devices should generally be left in this state. To deal with certain unusual line
conditions, Crestron Technical Support may recommend setting this switch to ON for
Filtered Zero-Cross mode.
WARNING: RISK OF SERIOUS PERSONAL INJURY. Turn off power at the circuit
breaker(s) prior to changing any switch settings. Changing settings with the power on can
result in serious personal injury and damage to the device.
The zero-cross mode is set using the SW1 DIP switch. Refer to the following table when
setting the zero-cross detection mode.
Switch Settings for the SW1 DIP Switch
SW1 DESCRIPTION
Off Simple zero-cross mode.
On Filtered zero-cross mode.
Error States
The ERR LED blinks a specic pattern to indicate an error. The blink patterns are
described in the table below as, for example, 1-1 or 2-1. A 1-2 blink pattern means that
the LED blinks one time, pauses for one second, blinks two times, pauses for ve
seconds, and then repeats until the error is corrected.
LED BLINK
PATTERN
ERROR STATE
1-1 The slave processor is in bootloader.
1-2 The slave processor is unresponsive.
1-3 The slave processor rmware update failed.
2-1 There is an over current error.
2-2 A FET is shorted.
2-3 An over temperature error exists.
2-4 An over-voltage error exists.
3-1 A zero-cross sync error exists.
This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Crestron Electronics, Inc. Installation & Operation Guide - DOC. 7584A
15 Volvo Drive Rockleigh, NJ 07647 (2043188)
Tel: 888.CRESTRON 06.15
Fax: 201.767.7576 Specications subject to
www.crestron.com change without notice.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Industry Canada (IC) Compliance Statement
CAN ICES-3(A)/NMB-3(A)
The product warranty can be found at www.crestron.com/warranty.
The specic patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, Crestron Green Light, and Crestron Toolbox are either trademarks or
registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. DALI
is either a trademark or registered trademark of ZVEI - Zentralverband Elektrotechnik- und
Elektronikindustrie in the United States and/or other countries. UL and the UL logo are either
trademarks or registered trademarks of Underwriters Laboratories, Inc. in the United States and/or
other countries. Other trademarks, registered trademarks, and trade names may be used in this
document to refer to either the entities claiming the marks and names or their products. Crestron
disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for
errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.
Pass Through to
Additional
Module
From Circuit
Breaker
To Dimmed
Load
From DALI
Network
To Additional
DALI Modules
Pass Through to
Additional
Module
From Circuit
Breaker
To Dimmed
Load
From DALI
Network
To Additional
DALI Modules
Pass Through to
Additional
Module
From Circuit
Breaker
To Dimmed
Load
From DALI
Network
To Additional
DALI Modules
Pass Through to
Additional
Module
From Circuit
Breaker
To Switched
Load
From DALI
Network
To Additional
DALI Modules
3. Replace the cover and cover screws.
4. Apply power to the module. The power indicator LED lights indicating that power is
supplied to the module.
NOTE: When wiring the GL-EXP-DIMFLV-DALI, the 0-10V control wires from the + and –
terminals can be wired as Class 1 or Class 2. The unit ships with a barrier to the right of
the 0-10V terminal block for Class 1 wiring. If using Class 2 wiring, move this barrier to the
left of the 0-10V terminal block.
SW3 SW4 DIMMING MODE LOAD TYPES
Off Off Autodetect (Default,
recommended)
All
On Off Forward Phase Magnetic low voltage, NCC, 2-wire
dimmable uorescent
Off On Reverse Phase Incandescent, Electronic Low
Voltage

Produkt Specifikationer

Mærke: Crestron
Kategori: Ikke kategoriseret
Model: Green Light GL-EXP-DIMU-DALI

Har du brug for hjælp?

Hvis du har brug for hjælp til Crestron Green Light GL-EXP-DIMU-DALI stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Crestron Manualer

Crestron

Crestron FT2A-PWR-EU-1-BASIC Manual

10 September 2025
Crestron

Crestron FT2A-PWR-UN-1-BASIC Manual

9 September 2025
Crestron

Crestron FT2A-PWR-US-3 Manual

9 September 2025
Crestron

Crestron FT2A-PWR-SW-1-BASIC Manual

9 September 2025
Crestron

Crestron FT2A-PWR-US-1-BASIC Manual

9 September 2025
Crestron

Crestron Green Light GL-EXP-DIMU-DALI Manual

9 September 2025
Crestron

Crestron FT2A-UTK-SHELF Manual

9 September 2025
Crestron

Crestron FT2A-PWR-US-2-BX Manual

9 September 2025
Crestron

Crestron FT2A-UTK-CLOAK Manual

9 September 2025
Crestron

Crestron FT2A-PWR-IT-2 Manual

9 September 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

LG

LG SA-G5SN55 Manual

10 September 2025
MSI

MSI Vigor GK50 Elite TKL Manual

10 September 2025
HP

HP Elite SFF 600 G9 Manual

10 September 2025
JobSite

JobSite V-12/AW Manual

10 September 2025
Camille Bauer

Camille Bauer KINAX 3W2 Manual

10 September 2025
Grunkel

Grunkel LIGHT FRYER Manual

10 September 2025
GEEKOM

GEEKOM MiniAir 12 Manual

10 September 2025
Qoltec

Qoltec 50685 Manual

10 September 2025
Samsung

Samsung MIM-E02DN Manual

10 September 2025
GW Instek

GW Instek GPE-1205 Manual

10 September 2025
