DO GUIDE

HR-310/HR-310-I

Handheld Remote

DO Acquire the Remote

The remote must be acquired by an inNET EX

® wireless gateway or by a control system with a

built-in inNET EX gateway before it may be used with a Crestron control system. Supported devices

with inNET EX gateways include the CEN-GWEXER, CEN-RFGW-EX, DIN-AP3MEX, and MC3.

Use the procedures below to join or leave an inNET EX network and to verify communications

between the device and the control system.

NOTE: If the remote is acquired to an MC3, RF operation on channels 25 and 26 is not supported.

Join the inNET EX Network

1. Press the ACQUIRE button on the inNET EX gateway to enter Acquire mode, or enter

Acquire mode from Crestron Toolbox™ software. For more information, refer to the

CEN-GWEXER Installation Guide (Doc. 7723), the CEN-RFGW-EX DO Guide (Doc. 7745),

the DIN-AP3MEX Installation Guide (Doc. 7492), or the MC3 DO Guide (Doc. 7774) at

www.crestron.com/manuals.

NOTE: In an environment where there are multiple gateways installed, place only one

gateway in Acquire mode at a time.

2. Press the (Home) button on the remote three times, and then press and hold

the button (press, press, press, press + hold) until the green LED on the navigation pad

of the remote ashes once. This process may take up to ten seconds to complete.

3. Release the button to start the acquire process. The green LED ashes slowly to show

that the remote is actively scanning the inNET EX network.

4. Conrm the status of the acquire process:

• If the remote is acquired by the inNET EX network, the green LED stops ashing and

turns on for several seconds.

• If the remote is not acquired by the inNET EX network, the red LED on the navigation

pad ashes rapidly for several seconds. Press the button to cancel the acquire

process. Ensure the gateway is in Acquire mode and that the remote is in range before

attempting the acquire process again.

5. After the acquire process is complete, remove the gateway from Acquire mode as

described by its documentation.

Leave the inNET EX Network

To leave the inNET EX network, perform the acquire process as described in “DO Acquire the

Remote” while the remote is not within range of a gateway in acquire mode. Once the remote is

removed from the network, the red LED on the navigation pad ashes rapidly for several seconds.

Verify the Communication Status

To check the communication status of the remote, press the button three times, and then press

and hold the button (press, press, press, press + hold) for up to two seconds. The navigation pad

LEDs ash to indicate the communication status as described in the table on the following page.

DO Customize the Hard Buttons

The Crestron® HR-310 and HR-310-I ship with a default set of nine congurable hard buttons

installed. Custom-engraved buttons may be created and ordered using Crestron Engraver software

to replace the default button set. A custom-engraved frame that secures the custom button set to the

remote is also included with each engraving order. For more information, refer to the HR-310-BTN

Installation Guide (Doc. 8224) at www.crestron.com/manuals.

NOTE: The HR-310 and HR-310-I are functionally similar. For simplicity within this guide, the term

“remote” is used except where noted.

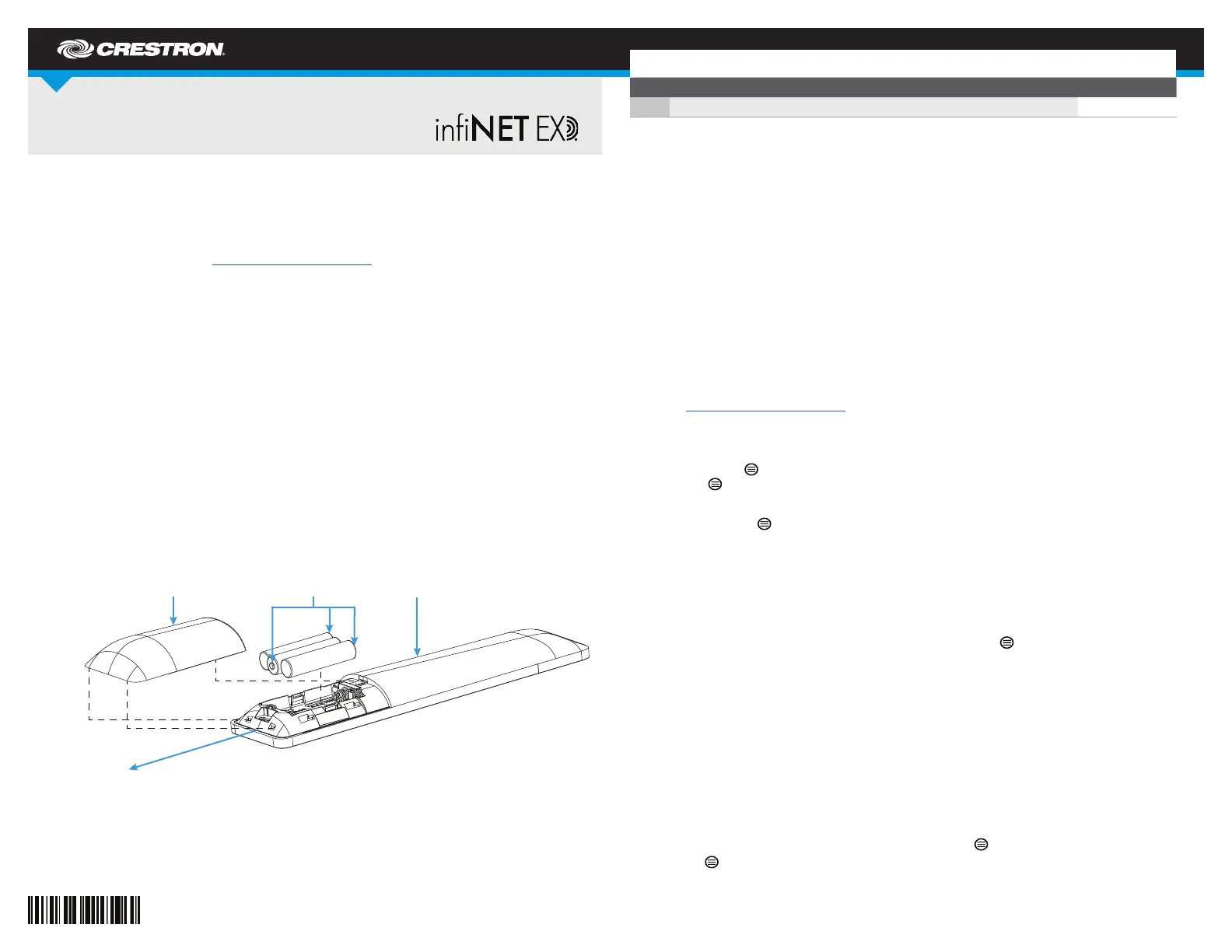

DO Install the Batteries

The remote ships with three AAA alkaline batteries that must be installed prior to operation. To install

the batteries:

1. Locate the battery cover on the rear of the remote.

2. Push gently on the battery cover while sliding it down and away from the remote until the

tabs connecting the cover to the remote disengage.

3. Install the three included AAA batteries as shown in the illustration following step 5.

Observe the correct polarity when inserting the batteries into the compartment.

4. Reattach the battery cover by aligning the tabs on the top and bottom of the cover with

their respective slots on the bottom of the remote.

5. Slide the cover gently upward until the tabs snap into place.

The remote features intelligent keypad backlighting, which illuminates button text only when the

remote detects that the room is dark. In a brightly lit room where the remote is sufciently illuminated,

the keypad backlight (aside from the color indicators) remains off to conserve the batteries.

DO Check the Box

QTY PRODUCT PART NUM.

1 Batteries, AAA Alkaline, x3 2022558

Battery cover

AAA batteries (3):

positive (+) terminals

HR-310/HR-310-I

(rear view)

Slide battery cover down

and away from remote

DO GUIDE DOC. 8228H (2049525) 06/01/20

Specicat ions subject t o change without not ice.

DO Set the Device RFID

Use the following procedure to set the RFID (radio-frequency identication) of the remote. The remote

RFID is set to “01” by default.

1. Remove and reinstall one of the three AAA batteries in the remote without connecting a

USB cable to the remote. Refer to “DO Install the Batteries” on the previous page.

NOTE: Do not press any buttons while performing this step. Hold the remote while

performing this step to ensure that no buttons are pressed accidently.

2. Press and hold the center button on the navigation pad for ve seconds. The LEDs on the

navigation pad light in a circular pattern to indicate that the remote is in ID Settings mode.

NOTE: Do not press any other buttons prior to pressing and holding the center button.

3. Enter a two-character device RFID within ten seconds of entering ID Settings mode:

• Enter 0–9 by pressing the corresponding button on the number pad.

• Enter A–F by pressing the corresponding button on the custom-engraved button pad

at the top of the remote. Refer to the illustration below.

4. Conrm the status of the RFID process:

• If the RFID process is successful, the green LED ashes three times.

• If the RFID process is unsuccessful, the red LED ashes three times. Remove and

reinstall one of the three AAA batteries, and then repeat steps 2 and 3.

The minimum required rmware version for setting the device RFID from the remote is 1.001.0003.

For remotes with older rmware installed, set the device RFID via the InNetEx Diagnostic Tool or the

Text Console tool in Crestron Toolbox:

• To set the device RFID through the InNetEx Diagnostic Tool in Crestron Toolbox, refer to

the “How to Set the HR-310 Remote ID” video at https://vimeo.com/album/4939476.

• To set the device RFID through the Text Console tool in Crestron Toolbox, remove the

battery cover to locate the micro USB port, and then connect the remote to the computer

using a micro USB to USB A cable (not included). Open the Text Console tool in Crestron

Toolbox, and then issue the MNETID [xx] command, where xx is the desired RFID.

NOTE: Firmware updates may be performed only by connecting the remote to Crestron Toolbox via

USB. Remove the battery cover on the rear of the remote to locate the micro USB port, and then

connect the remote to the computer using a micro USB to USB A cable.

DO Learn More

Visit the website for additional information and the latest rmware

updates. Instructional videos showing various installation

procedures can also be viewed. Use a QR reader application

on your mobile device to scan the QR images. The instructional

videos can also be accessed by visiting

https://vimeo.com/album/4939476.

Crestron Electronics

15 Volvo Drive, Rockleigh, NJ 07647

888.CRESTRON | www.crestron.com

As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the

user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B)

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body

Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause

undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit

accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
