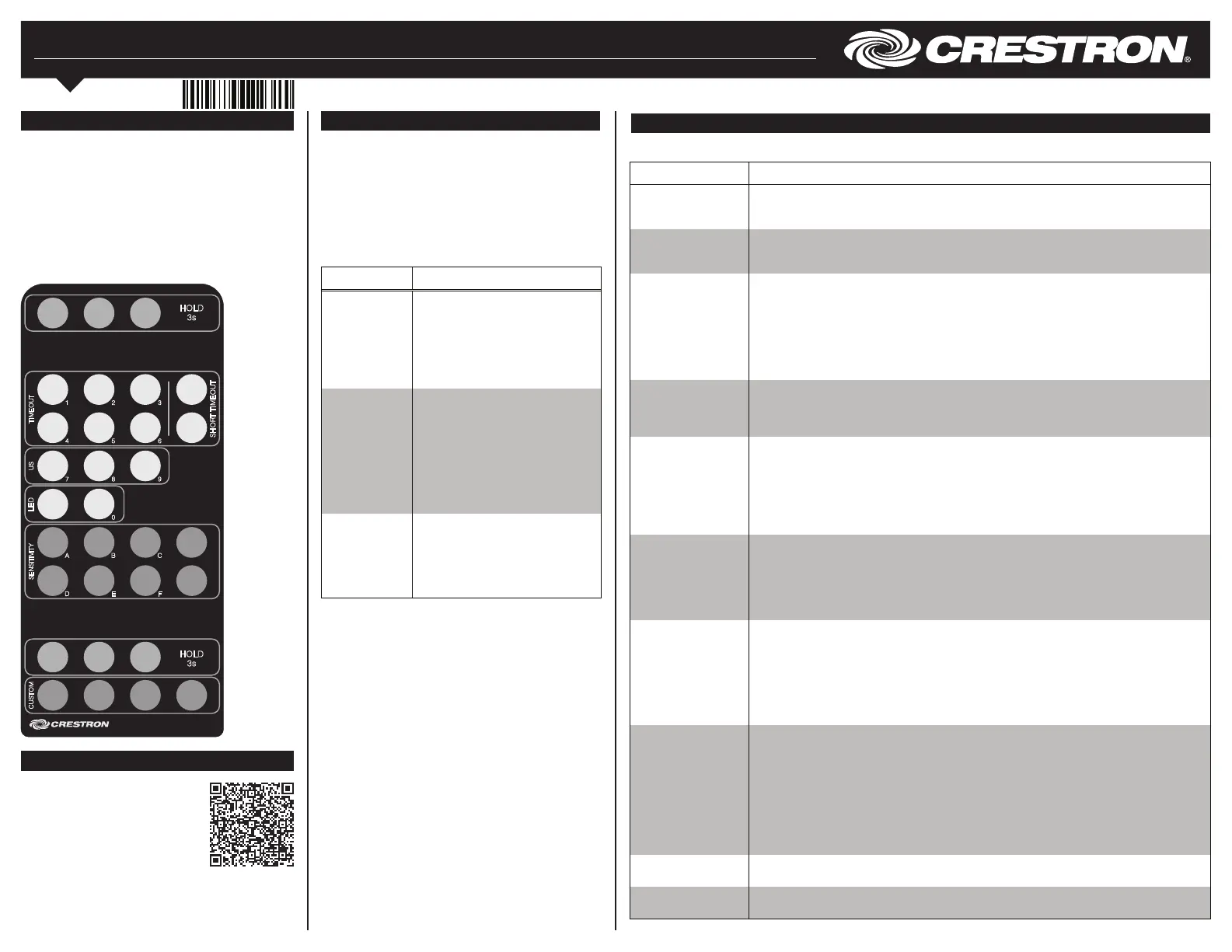

GLS-REMOTE-ODT/OIR

IR Remote for GLS Occupancy Sensors

Operations Guide

Description

The Crestron® GLS-REMOTE-ODT/OIR is a compact IR

wireless remote designed specically for setting up and

commissioning a GLS-ODT-C-CN, GLS-ODT-C-NS,

GLS-OIR-C-CN, or GLS-OIR-C-NS. The

GLS-REMOTE-ODT/OIR provides buttons for

programming and setting up the sensor without the

need for a laptop computer or ladder. The

GLS-REMOTE-ODT/OIR operates on two AAA batteries

(included).

GLS-REMOTE-ODT/OIR Physical View

2. Congure the Sensor

After entering OCC Setup mode or VAC mode, the sensor can be congured.Setup

Additional Resources

Visit the product page on the

Crestron website

(www.crestron.com) for additional

information and the latest rmware

updates.

GLS-REMOTE-ODT/OIR

OCC

SETUP

VAC

SETUP

EXIT

SETUP

30s 2m 5m

10m 15m 30m

DISABLE

ENABLE

OFF

LOW

MED

HIGH

PIR

OFF

PIR

LOW

PIR

MED

PIR

HIGH

ONLY

A+B

1234

RESET

FORCE

VAC

SET

1. Enter a Setup Mode

During operation of the remote, the sensor will emit one

short beep for a successful entry and one short beep

followed by long beep for an unsuccessful entry. The

sensor will emit two short beeps when a setup mode is

exited.

To enter a setup mode, press and hold the OCC SETUP

or VAC SETUP button for 3 seconds. To exit either setup

mode press the button. ,EXIT SETUP

Setup Mode Table

COMMAND DESCRIPTION

OCC SETUP OCC Setup mode allows the user

to configure the sensitivity of the

sensor when it is in an occupied

state.

Press and hold for 3 seconds to

place the sensor into OCC Setup

mode.

VAC SETUP VAC Setup mode allows the user to

configure the sensitivity of the

sensor when it is in a vacant state.

Press and hold for 3 seconds to

place the sensor into VAC Setup

mode.

While in VAC Setup mode, the

sensor beeps to indicate that

motion is detected.

EXIT SETUP Press to exit the active setup mode

and return the sensor to normal

operation.

The sensor exits the active setup

mode if no buttons are pressed on

the remote for 5 minutes.

COMMAND DESCRIPTION

TIMEOUT

(30s, 2m, 5m, 10m,

15m, 30m)

SHORT TIMEOUT

(ENABLE / DISABLE)

(A+B, A ONLY,

B ONLY)

These buttons set the time that the sensor must not see any motion before going to the

vacant state. Timeout settings may be applied in OCC Setup or VAC Setup modes.

These buttons enable or disable Short Timeout mode. Short Timeout mode limits the

timeout to 60 seconds for the rst 90 seconds of occupancy after which the normal timeout

applies. Short timeout settings may be applied in OCC Setup or VAC Setup modes.

Th enable or disable some or all of the ultrasonic (US) sensors. The A and B ese buttons

sensor banks are labeled under the cover of the sensor. If the sensor is not accessible, the

A sensor bank is on the same side as the red LED and the B sensor bank is on the same

side as the green LED. US settings may be applied in OCC Setup or VAC Setup modes.

•A+B enables both banks of the ultrasonic sensors.

•A ONLY enables bank A and disables bank B.

•B ONLY enables bank B and disables bank A.

LED

(ENABLE, DISABLE)

SENSITIVITY

(PIR HIGH,

PIR MED, PIR LOW /

PIR OFF)

SENSITIVITY

(US HIGH, US MED,

US LOW, US OFF)

SET ID

Press these buttons to enable or disable the LEDs during normal operation. The green LED

is for US detection and the red LED is for PIR detection. The LEDs are always enabled

during a setup mode. LED settings may be applied while in OCC Setup or VAC Setup

mode.

When in OCC Setup mode, these buttons set the sensitivity of the passive infrared (PIR)

sensor while the room is occupied. When in VAC Setup mode, the set the sensitivity of y

the PIR sensor while the room is vacant. Settings for PIR LOW, PIR MED, or PIR HIGH

indicate the sensitivity to motion. PIR OFF disables the PIR sensor regardless of which

state the sensor is in.

Refer to the “Detection Range” section in the sensor’s installation guide at

www.crestron.com/manuals for more information on sensitivity.

When in OCC Setup mode, th the sensitivity of the US sensor while the ese buttons set

room is occupied. When in VAC Setup mode, th the sensitivity of the US sensor while ey set

the room is vacant. Settings for US LOW, US MED, or US HIGH indicate sensitivity to

motion. US OFF disables the ultrasonic sensors regardless of the sensor state.

Refer to the “Detection Range” section in the sensor’s installation guide for more

information on sensitivity.

This button sets or changes the Net ID of the sensor.

1. Press and hold the button for 3 seconds. The sensor emits 3 short beeps SET ID

to indicate that it is ready for Net ID entry.

2. Enter the Net ID of the sensor using the numeric keypad on the remote. The

sensor emits 1 short beep for each number entry.

3. Press to conrm the entry. The sensor emits one long beep to indicateSET ID

successful Net ID entry and three short beeps to indicate failed entry.

RESET Hold this button for 3 seconds to reset the sensor back to its factory default settings. The

Net ID is not changed during device reset. The factory settings are listed below:

•Remote Timeout: 0 minutes

•Local Timeout: 5 minutes

•Short Timeout: Disabled

•US: A+B enabled

•LED: Enabled

•Sensitivity: PIR medium and US medium

FORCE VAC Hold this button for 3 seconds to force the sensor to enter the vacant state. The sensor

ignores triggers for 5 seconds and then reverts to normal operation.

CUSTOM

(1, 2, 3, 4)

These buttons are reserved for future custom programming.

As of the date of manufacture, the GLS-REMOTE-ODT/OIR

has been tested and found to comply with specifications for

CE marking.

Federal Communications Commission (FCC) Compliance

Statement

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Changes or modications not expressly approved

by the manufacturer responsible for compliance could void

the user’s authority to operate the equipment.

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

Tel: 888.CRESTRON

Fax: 201.767.7576

www.crestron.com

Operations Guide DOC.

7541C

(2036947)

05.15

Specications subject to

change without notice.

NOTE: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the

interference at his own expense.

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B)

The product warranty can be found at

www.crestron.com/warranty.

The specic patents that cover Crestron products are listed at

patents.crestron.com.

Crestron, the Crestron logo are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States

and/or other countries. Other trademarks, registered trademarks,

and trade names may be used in this document to refer to either

the entities claiming the marks and names or their products.

Crestron disclaims any proprietary interest in the marks and names

of others. Crestron is not responsible for errors in typography or

photography.

This document was written by the Technical Publications

department at Crestron.
