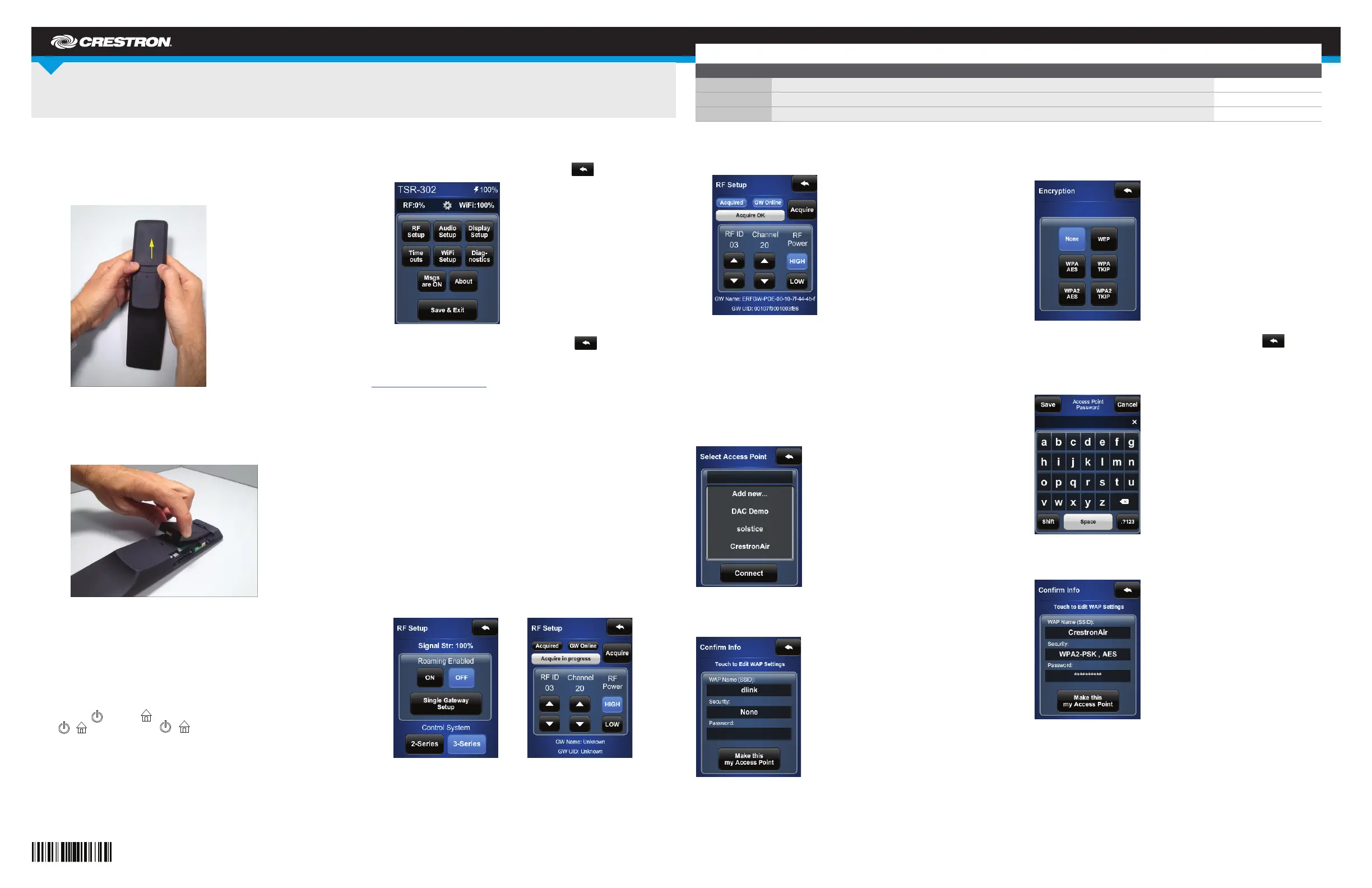

DO GUIDE

TSR-302

Handheld Touch Screen Remote

DO Install the Battery

To install the TSR-302-BTP, perform the following procedure:

1. Remove the battery compartment cover on the rear of the TSR-302

by using two thumbs and gently pressing in the direction of the arrow

shown.

2. Place the touch screen remote, with the screen side down, on a clean,

soft surface.

3. Place the TSR-302-BTP in the battery compartment, oriented as

shown.

4. Reattach the battery compartment cover by pressing down lightly on

the locking tab while sliding the cover into place.

DO Congure the Device

The main setup screen is the starting point for conguring the Crestron

TSR-302. If no project is loaded, tap the screen to access the main setup

screen. If a project is running, the main setup screen can be accessed by

pressing (Power), (Home), MENU, and GUIDE in sequence twice

( , , MENU, GUIDE, , , MENU, GUIDE) within a 5-second

period.

The main setup screen can also be accessed via Crestron Toolbox™

software.

1. Establish communication with the TSR-302.

2. Right-click on the device and select Functions > Setup Mode.

3. Select Enter Setup Mode to display the main setup screen.

NOTE: Select Exit Setup Mode to exit the setup screens.

NOTE: From any of the setup screens, tap to go back to the

previous screen.

For details on conguring the TSR-302, refer to Doc. 7663 at

www.crestron.com/manuals.

DO Set Up Basic Wireless

Before a TSR-302 can be used with a Crestron control system, it must rst

be acquired by a Crestron Extended Range (ER) Wireless Gateway (sold

separately).

To acquire a TSR-302, perform the following procedure:

1. Use a stylus or other thin-tipped object to press ACQUIRE on the

gateway to enter Acquire mode. The accompanying LED illuminates,

indicating the unit is ready to link with the touch screen. (The gateway

can also be put into Acquire mode via Crestron Toolbox.)

2. From the main setup screen on the TSR-302, tap RF Setup to display

the RF Setup screen. At the bottom of the RF Setup screen, select

2-Series or 3-Series, depending on whether a 2-Series or 3-Series

control system is being used. Then place the TSR-302 in Acquire

mode by tapping Acquire on the RF Setup screen. The screen

displays an “Acquire in progress” message, and the TSR-302 is

automatically acquired by the gateway within 2 minutes.

3. When the process is complete, the screen displays an “Acquire OK”

message. Press ACQUIRE on the gateway to exit Acquire mode. The

LED turns off.

For information on wireless setup with roaming, refer to “Gateway Roaming

Setup” in Doc. 7663.

DO Set Up Wi-Fi

To set up a Wi-Fi

connection, on the main setup screen tap WiFi Setup,

and then tap Add Access Point to display the Select Access Point

screen.

If the desired wireless access point is already on the list, tap Connect.

Otherwise, perform the following procedure to add a new access point:

1. Tap Add New to display the Conrm Info screen.

2. Tap the WAP Name (SSID) eld to open an on-screen keyboard,

which can be used to enter the name.

3. Tap the Security eld to display the Encryption screen.

4. Select the appropriate type of encryption, and then tap to return

to the Conrm Info screen.

5. Tap the Password eld to open an on-screen keyboard, which can be

used to enter the password.

6. Tap Save to save the password and return to the Conrm Info

screen.

DO Check the Box

QUANTITY PRODUCT COLOR PART NUMBER

1 Battery Pack, Rechargeable, TSR-302-BTP 2039523

1 Dock, Table, TSR-302-DS 4520465

1 Power Pack, 19 Vdc, 0.9 A, 100-240 Vac 2045868

DO GUIDE

DOC. 7661C (2040912) 02.16

Specications subject to change without notice.

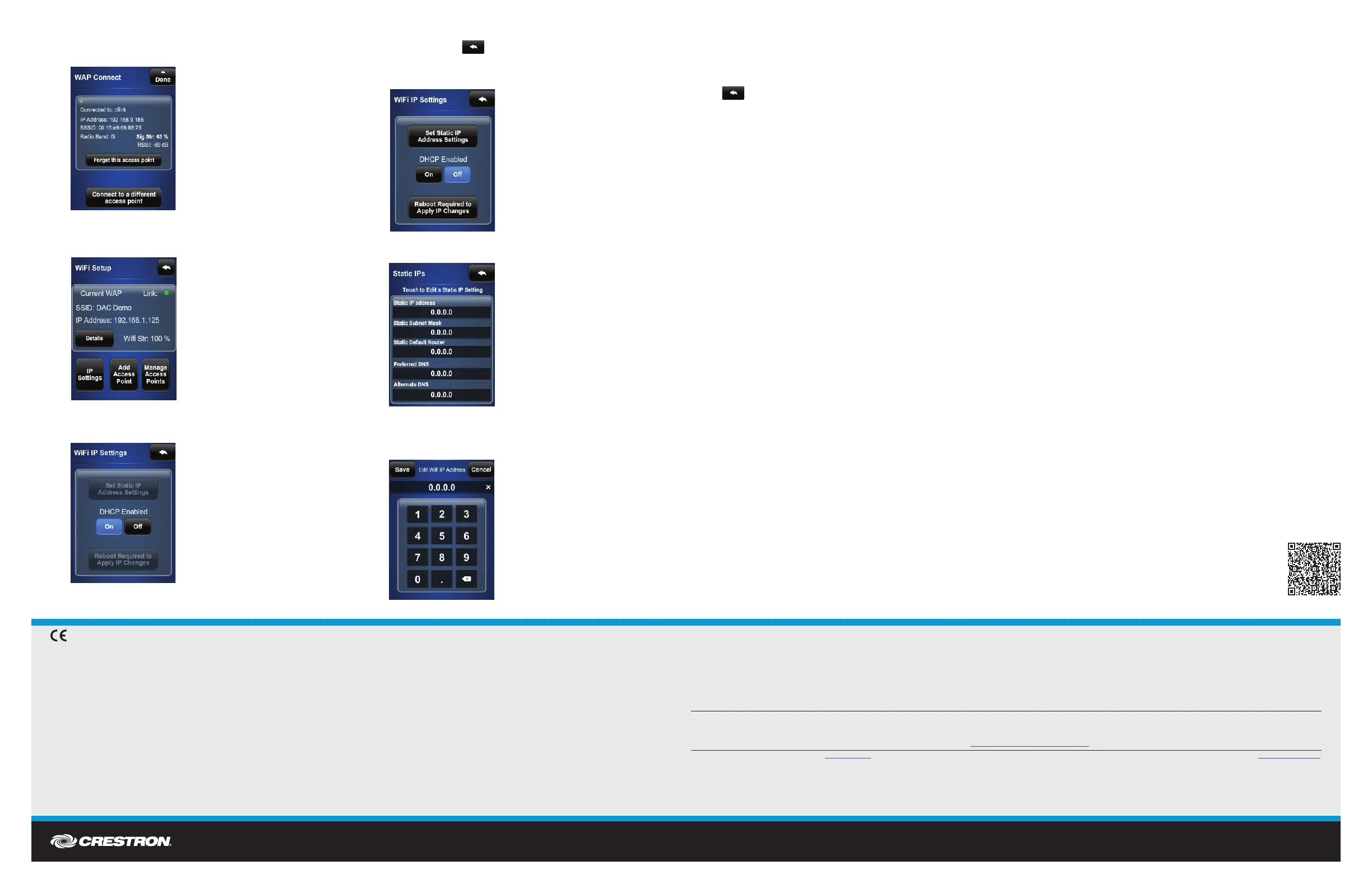

7. Tap Make this my Access Point to conrm the entries and display

the WAP Connect screen.

8. Tap Done to accept the connection to the wireless access point and

to display the WiFi Setup screen.

9. Tap IP Settings to display the WiFi IP Settings screen.

10. To use DHCP, tap repeatedly to return to the main setup screen.

11. To enter static IP settings, tap Off under DHCP Enabled. The

TSR-302 ships with DHCP enabled by default.

12. Tap Set Static IP Address Settings to display the Static IPs screen.

13. Tap the Static IP address eld to open an on-screen, numeric

keypad.

14. Enter the address and tap Save to return to the Static IPs screen.

15. Tap each of the rest of the elds in turn and enter its address, and then

tap Save.

16. Tap to return to the WiFi IP Settings screen.

17. Tap Reboot Required to Apply IP Changes.

As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Industry Canada (IC) Compliance Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept

any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential

radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Industrie Canada (IC) Déclaration de conformité

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas

produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie

Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée

équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.

To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 centimeters from all persona and must not be colocated in conjunction with any other antenna or transmitter. For operation within the 5.15-5.25 GHz band, it is restricted to

indoor use.

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited non-exclusive, non-transferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs,

and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement.

The specic patents that cover Crestron products are listed at patents.crestron.com. The product warranty can be found at www.crestron.com/warranty.

Crestron, the Crestron logo, 3-Series, Crestron Toolbox, and inNET EX are either trademarks or registered trademarks of Crestron Electronics, Inc., in the United States and/or other countries. Wi-Fi, WPA and WPA2 are either trademarks or registered trademarks of Wi-Fi Alliance in the United

States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not

responsible for errors in typography or photography.
