The Crestron® Ultimate subwoofer ULTIMATE ICS8-AW-W-T-EACH
made by Origin Acoustics delivers the pinnacle of performance for
demanding residential installations. The ULTIMATE ICS8-AW-W-T-
EACH is an in-ceiling subwoofer designed to produce deep, gratifying
bass in any room.
In the
In the
In the
In the In the Box
Box
Box
BoxBox
1 ULTIMATE ICS8-AW-W-T-EACH
 
Additional Items
Additional Items
Additional Items
Additional ItemsAdditional Items
1 Bayonet Ring
1 Cutout Template
1 Grille
Installation
Installation
Installation
Installation Installation
Prepare the
Prepare the
Prepare the
Prepare the Prepare the Mounting
Mounting
Mounting
Mounting Mounting Hole
Hole
Hole
HoleHole
Before finalizing the speaker location, check to make sure there are no
fixtures, pipes, air ducts, joists, or other possible obstructions. If
applicable, use a good quality stud finder to locate joists.
To identify obstructions, do the following:

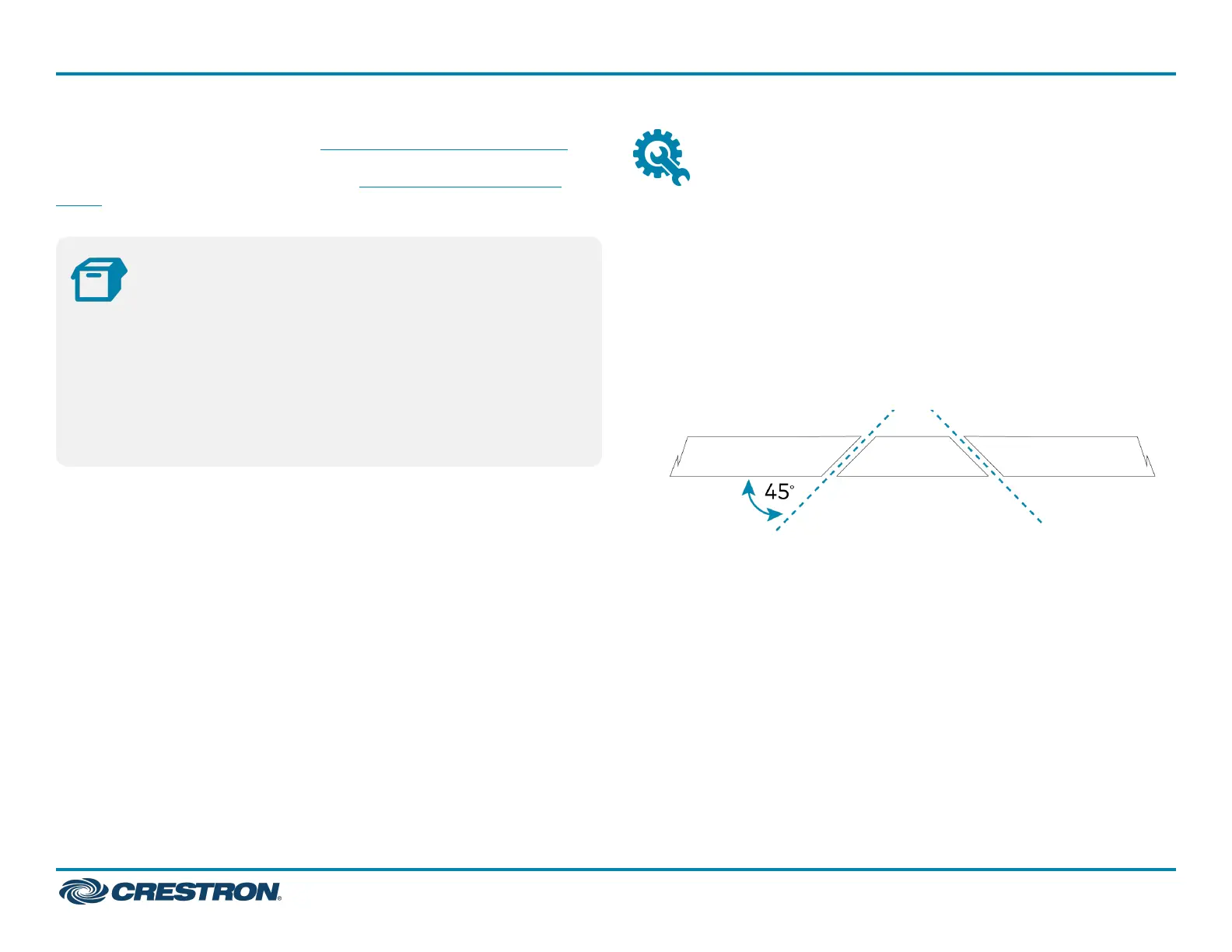

Use a drywall saw to cut a small hole at a 45° angle. An angle cut lsimplifies repair since the removed piece can be reinserted to help
plug the hole.
Use a piece of stiff wire, bent into an L shape, with one end long lenough to explore an area equal to the size of the speaker. Insert the
wire into the hole, make sure it rotates freely in a complete circle and
that there is sufficient depth.
If there are no obstructions, use the supplied template to trace an
outline of the mounting hole on the ceiling. Cut the final mounting hole
at a 90° angle to the ceiling.
ULTIMATE
ULTIMATE
ULTIMATE
ULTIMATEULTIMATE ICS8-AW-W-T-EACH
ICS8-AW-W-T-EACH
ICS8-AW-W-T-EACH
ICS8-AW-W-T-EACHICS8-AW-W-T-EACH QuickStart
Ultimate
Ultimate
Ultimate
UltimateUltimate In-Ceiling
In-Ceiling
In-Ceiling
In-CeilingIn-Ceiling 8
8
8
88 in.
in.
in.
in.in. Subwoofer,
Subwoofer,
Subwoofer,
Subwoofer,Subwoofer, All
All
All
AllAll Weather,
Weather,
Weather,
Weather,Weather, White
White
White
WhiteWhite Textured,
Textured,
Textured,
Textured,Textured, Single
Single
Single
SingleSingle
1
1
1
11
Paint the
Paint the
Paint the
Paint the Paint the Speaker Grille
Speaker Grille
Speaker Grille
Speaker GrilleSpeaker Grille
Painting the speaker grille should be done prior to mounting.
1. Carefully remove the thin cloth on the underside of the grille, and set
it aside for reinstallation.
2. Lightly spray paint the front of the grille from a distance. Be careful
not to plug any of the holes.
3. Once the paint is dry, put the cloth back on the underside of the grille.
Install the
Install the
Install the
Install the Install the Bayonet Ring
Bayonet Ring
Bayonet Ring
Bayonet RingBayonet Ring
The bayonet ring features a metal lock to ensure the correct installation
of the loudspeaker. Out of the box, the lock will be in its closed position.
1. Open the lock tab to its unlocked position to remove the speaker
from the ring.
2. Push the metal release tabs on the inside of the rails and pull the clips
to the top of the rails.
NOTE:
NOTE:
NOTE:
NOTE:NOTE: Out of the box, the clips are positioned at top of rails.
3. Insert the bayonet ring into the hole in the ceiling by gently bending
the rails inward.
NOTES:
NOTES:
NOTES:
NOTES:NOTES:
Ensure the bayonet ring rails are properly bent and inserted into lthe ceiling hole to avoid damaging the bayonet ring rails.
The length of the bayonet ring rails can be adjusted by breaking lthem off to match the depth of the mounting hole. Ensure the
clips are tightened before you do so.
4. Reach inside the bayonet ring and pull the clips down so that the
bayonet ring is firmly in place, but not too tight. If the bayonet ring
needs to be removed, reach inside and push the release tabs to reset
the clips and the bayonet ring can now be taken out.
2
2
2
22
ULTIMATE
ULTIMATE
ULTIMATE
ULTIMATEULTIMATE ICS8-AW-W-T-EACH
ICS8-AW-W-T-EACH
ICS8-AW-W-T-EACH
ICS8-AW-W-T-EACHICS8-AW-W-T-EACH QuickStart
Ultimate
Ultimate
Ultimate
UltimateUltimate In-Ceiling
In-Ceiling
In-Ceiling
In-CeilingIn-Ceiling 8
8
8
88 in.
in.
in.
in.in. Subwoofer,
Subwoofer,
Subwoofer,
Subwoofer,Subwoofer, All
All
All
AllAll Weather,
Weather,
Weather,
Weather,Weather, White
White
White
WhiteWhite Textured,
Textured,
Textured,
Textured,Textured, Single
Single
Single
SingleSingle
