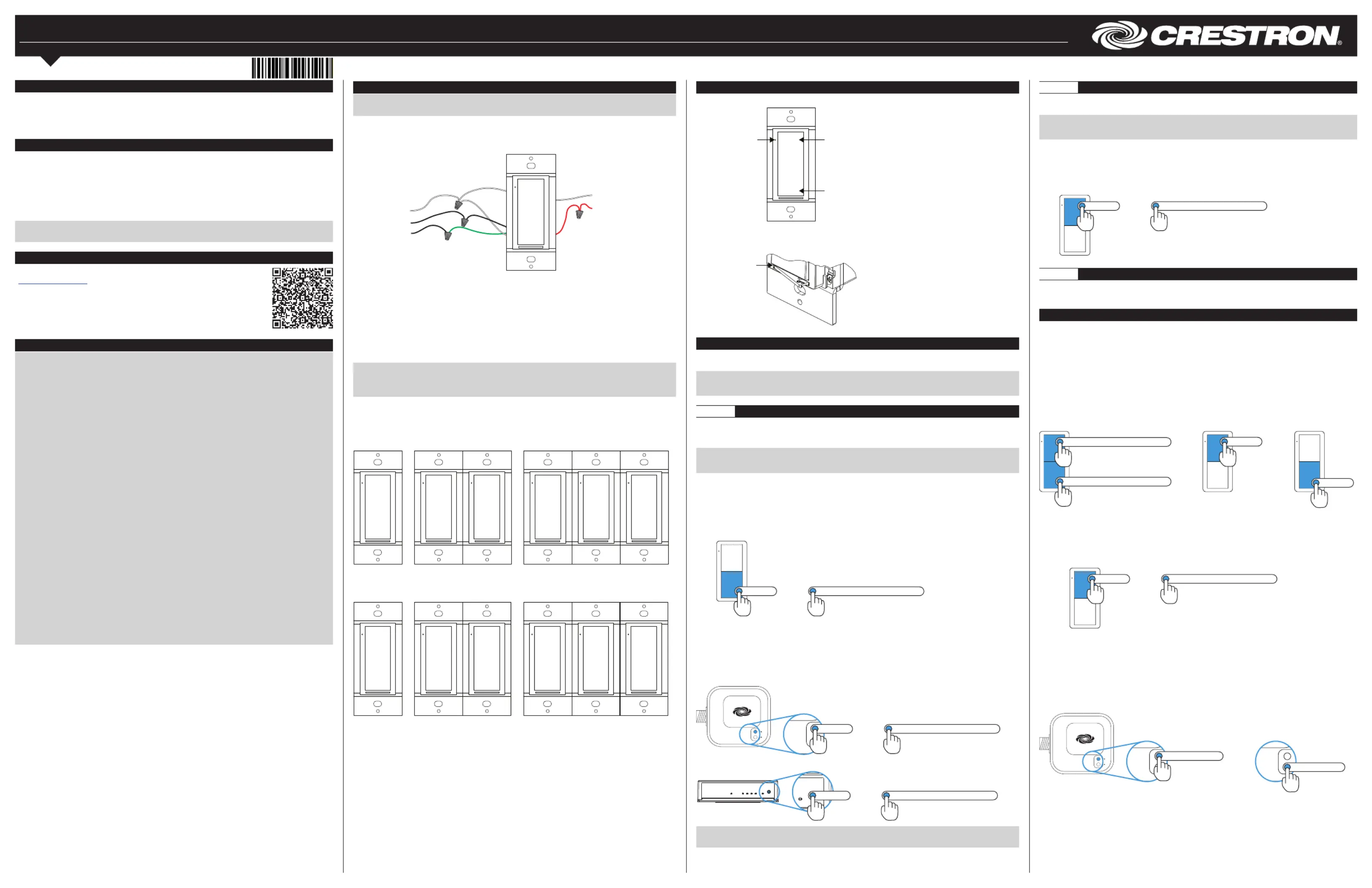

ZUMMESH-DIM

Zūm™ In-Wall Dimmer

Installation Guide

Description

The Crestron® Zūm wall-box dimmer (ZUMMESH-DIM) provides control of dimmable

magnetic low-voltage halogen or LED, incandescent, and tungsten-halogen loads.

It features a single rocker switch to enable simple on/off switching and dimming

adjustment, with the ability to save one preset.

Zūm Overview

A Zūm space consists of one space, such as a board room or conference room, that

is equipped with Zūm mesh devices. The Zūm mesh devices (i.e., dimmers, switches,

keypads, and sensors) in the space provide control and communicate directly with

each other without the need for a centralized gateway or processor.

If expanded functionality of the Zūm space is desired, a ZUMMESH-NETBRIDGE (not

included) can be added which provides centralized control and monitoring from a

Crestron control system (not included).

NOTE: The ZUMMESH-NETBRIDGE requires a compatible J-box device (not

included) to provide power.

Additional Resources

Visit the product page on the Crestron website

(www.crestron.com) for additional information and the latest

firmware updates. Use a QR reader application on your mobile

device to scan the QR image.

Important Notes

WARNING: To avoid fire, shock, or death, turn off the power at the circuit breaker

or fuse and test that the power is off before wiring!

NOTE: Observe the following points.

• Neutral: The ZUMMESH-DIM requires a neutral connection to operate.

• Codes: Install in accordance with all local and national electrical codes.

• Installation: A qualified electrician should install this product.

• Wiring: Use copper wire only. For supply connections, use wire rated for at

least 75 °C.

• Temperature: For use where temperatures are between 32° to 104 °F

(0° to 40 °C).

• Electrical Boxes: Devices mount in standard electrical boxes. For easy

installation, Crestron recommends using 3-1/2 in (89 mm) deep electrical

boxes. Several devices can be installed in one electrical box (multigang). For

a smooth appearance, one-piece multigang faceplates (not supplied) can be

installed.

• Switches: Mechanical 3- or 4-way switches do not work with the

ZUMMESH-DIM.

• Spacing: If mounting one device above another, leave at least 4-1/2 in

(115 mm) vertical space between them.

• Low-voltage Applications: Operation of a low-voltage circuit with all lamps

inoperative or removed may result in current flow in excess of normal levels.

For protection against transformer overheating and premature transformer

failure, Crestron recommends the following:

> Do not operate low-voltage circuits without operative lamps in place.

> Replace burned-out lamps as quickly as possible.

> Use transformers that incorporate thermal protection to prevent

transformer failure due to overcurrent.

Installation

WARNING: Turn off the power at the circuit breaker. Installing with power on can

result in serious personal injury and damage to the device.

To install the ZUMMESH-DIM, do the following.

1. Turn the power off at the circuit breaker.

2. Wire the device as shown in the following diagram.

Neutral (white)

Hot (black)

Ground

(bare or green)

120-277 VAC power

from breaker

Neutral (white)

Load

Dimmed output (red)

3. Push all power wires back into the electrical box and fasten the device to the

electrical box with the provided screws.

4. Attach the faceplate (not included).

5. Restore the power at the circuit breaker.

Multigang Installations

In multigang installations, several devices are grouped horizontally in one electrical

box. For a smooth appearance, a one-piece multigang faceplate (not included) can be

installed.

NOTE: When installing into a multigang box, do not fully tighten devices to the box

until the faceplate has been aligned.

NOTE: Devices will not mount within a 2-gang mud ring. Use a standard 2-gang box.

The load capacity for each device in the electrical box must be derated. Refer to the

following diagrams for derating information. The VA ratings are for input power to the

transformer. If the input power requirement of the transformer is unknown, use the

bulb’s wattage rating to determine proper rating.

Derating Information for ZUMMESH-DIM at 120 V

500 W

@ 120 V

340 W

@ 120 V

340 W

@ 120 V

340 W

@ 120 V

260 W

@ 120 V

340 W

@ 120 V

Derating Information for ZUMMESH-DIM at 277 V

1,200 W

@ 277 V

800 W

@ 277 V

800 W

@ 277 V

800 W

@ 277 V

600 W

@ 277 V

800 W

@ 277 V

Operation

The ZUMMESH-DIM functions as described below.

Press to turn the

load on. Press and

hold to raise the

light level.

Press to turn the

load off. Press and

hold to lower the

light level.

The LED

indicates that

the load is on.

Press the side

of the air-gap

switch to

open the

air-gap.

How to Set Up a Zūm Space and Add Zūm Devices

Once all devices are physically installed in a board room or conference space, a new

Zūm space can be created and devices added.

NOTE: Only set up one Zūm space at a time.

NOTE: For simplified setup of a Zūm space, use the Zūm app on a mobile device.

Step 1 Create a New Zūm Space

Creating a Zūm space defines the area where the devices are located, such as a board

room or conference room. A Zūm space is created with a keypad, dimmer or switch, a

J-box device, or an AV Bridge.

NOTE: Creating a Zūm space can only be performed by one device in the space.

NOTE: A Zūm space cannot be created from a battery-powered keypad.

To create a new Zūm space using a keypad, dimmer, or switch:

1. Press the bottom button 5 times.

2. Press and hold the button until the LED on the device lights (about 10 seconds).

After approximately 3 seconds, the device LED begins slowly flashing. This

indicates that the Zūm space is now created and in Joining mode, allowing you to

add devices.

Press and hold until LED lights

Press 5x

then

To create a new Zūm space using a J-box device or an AV Bridge:

1. button 5 times.Press the Setup

2. Press and hold the button until the LED on the device lights (about Setup

10 seconds). After approximately 3 seconds, the device LED begins slowly flashing.

This indicates that the Zūm space is now created and in Joining mode, allowing

you to add devices.

TEST

SETUP

TEST

SETUP

Press and hold until LED lights

Press 5x

then

PWR

ERR

NET

SET UP

SETUP

Press and hold until LED lights

Press 5x

then

NOTE: The device that is used to create the Zūm space is automatically added to

the space and does not need to be added in Step 2.

Step 2 Add the ZUMMESH-DIM to the Zūm Space

After a new Zūm space is created, add the ZUMMESH-DIM while the space is in

Joining mode.

NOTE: A Zūm mesh device can belong to only one space.

NOTE: Joining mode ends automatically after 4 minutes.

To add the ZUMMESH-DIM:

1. Press the top button 3 times.

2. Press and hold the button until the LED on the ZUMMESH-DIM lights (up to

10 seconds). The LED on the ZUMMESH-DIM will start to flash slowly to indicate

that it has joined the space.

Press and hold until LED lights

Press 3x

then

Step 3 Complete Zūm Space Setup

To finish creating a Zūm space, press any button on a device that is part of the Zūm

space to exit Joining mode.

Add the ZUMMESH-DIM to an Existing Zūm Space

Add the ZUMMESH-DIM to an existing Zūm space by placing the Zūm space in Joining

mode.

Add the ZUMMESH-DIM using a keypad, dimmer, or switch:

1. Enter Joining mode.

a. Press and hold both the top and bottom buttons until the LED lights (about

5 seconds).

b. Press the top button once.

c. Press the bottom button once. The LEDs on all devices in the space (except

battery powered devices) flash slowly to indicate that the devices are part of

the space and that the space is in Joining mode.

Press and hold until LED lights

then then

Press 1x

2. Add the ZUMMESH-DIM.

a. Press the top button 3 times.

b. Press and hold the button until the LED on the ZUMMESH-DIM lights (up to

10 seconds). The LED on the ZUMMESH-DIM will start to flash slowly to

indicate that it has joined the space.

Press and hold until LED lights

Press 3x

then

3. Press any button on a device that is part of the Zūm space to exit Joining mode.

Add the ZUMMESH-DIM using a J-box device:

1. Enter Joining mode.

a. button 2 times.Press the SETUP

b. Press the TEST button once. The LEDs on all devices in the space (except

battery powered devices) flash slowly to indicate that the devices are part of

the space and that the space is in Joining mode.

TEST

SETUP

TEST

SETUP

TEST

SETUP

Press SETUP 2x

Press TEST 1x

then

2. Add the ZUMMESH-DIM.

a. Press the top button 3 times.

b. Press and hold the button until the LED on the ZUMMESH-DIM lights (up to

10 seconds). The LED on the ZUMMESH-DIM will start to flash slowly to

indicate that it has joined the space.

Press and hold until LED lights

Press 3x

then

3. Press any button on a device that is part of the Zūm space to exit Joining mode.

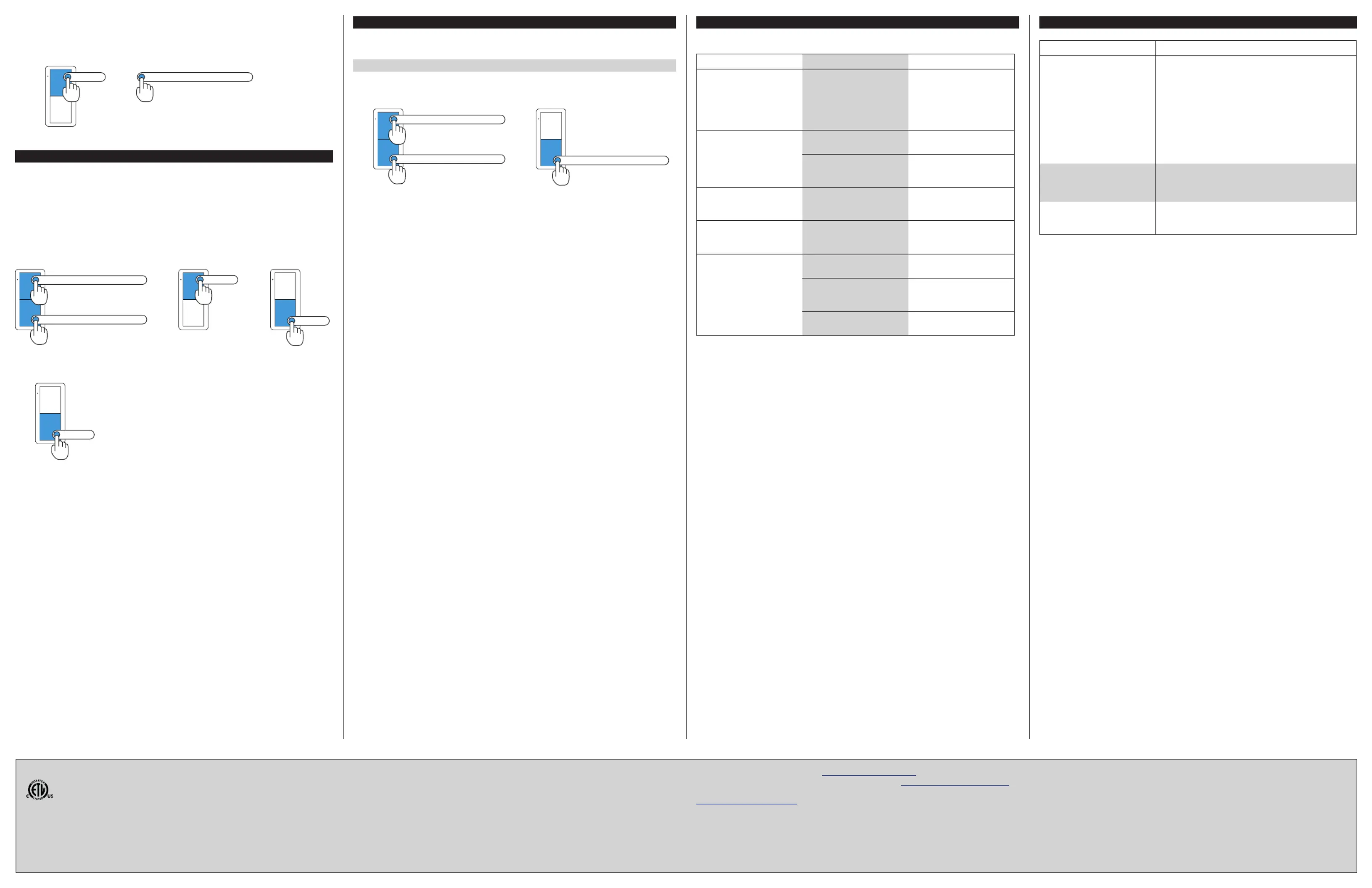

Customize Local Scenes

When pressed, the top button on the ZUMMESH-DIM recalls Scene 1 (90% load level).

The light levels for the scene can be adjusted to match the needs in the space.

To customize Scene 1:

1. Enter Scene Setting mode.

a. Press and hold both the top and bottom buttons of the dimmer until the LED

lights (about 5 seconds).

b. Press the top button two times.

c. Press the bottom button once. The LED on the dimmer flashes its LED two

times every two seconds. Load controllers that are bound to the keypad flash

their LED rapidly.

Press and hold until LED lights

then then

Press 2x

Press 1x

2. Adjust the lights in the room by pressing and holding the top button to raise the

light level or the bottom button to lower the level.

3. Press the bottom button on the keypad 3 times to exit Scene Setting mode.

Press 3x

Factory Reset

Perform a factory reset when the device is removed from the network or to remove

the configuration settings. The device must also be factory reset if the device is being

moved to a different system.

NOTE: New-in-box devices do not need to be factory reset before joining a system.

To factory reset the ZUMMESH-DIM:

1. Press and hold the top and bottom buttons until the LED lights (about 5 seconds).

2. Press and hold the bottom button until the LED lights (about 10 seconds).

Press and hold until LED lights

then

Troubleshooting

The following provides corrective actions for possible trouble situations. If further

assistance is required, please contact a Crestron customer service representative.

TROUBLE POSSIBLE CAUSE(S) ACTION

When lowering the light

level, the lower button

must be held for more

than a few seconds

before the light begins

to dim.

The load has significant

dead travel.

Adjust the Max level using

the Crestron Zūm app.

The light flickers when

dimmed to a low level.

The load is being dimmed

below its Min level.

Adjust the Min level using

the Crestron Zūm app.

The load is not compatible

with conventional

forward-phase dimming.

For electronic loads,

consider using the

ZUMMESH-DELV.

The light glows even when

the dimmer is off.

There is a small amount

of leakage current

through the dimmer.

For electronic loads,

consider using the

ZUMMESH-DELV.

The light does not turn

on even though the green

LED on the dimmer is on.

There is a short or open

circuit on the output of

the dimmer.

Verify the load wiring.

The dimmer does not

function.

The air-gap switch is

open.

Verify that the air-gap

switch is fully closed.

There is no dedicated

neutral on the circuit.

Ensure that the dimmer

is wired with a dedicated

neutral.

There is no power on the

circuit.

Check the breaker.

Specifications

The specifications for the dimmer are listed below.

SPECIFICATION DETAILS

Load Control

Dimmable Load Types

Line/Load Voltage

Minimum Load

Load Rating

Incandescent, tungsten-halogen, magnetic

low-voltage (MLV transformer for halogen or LED)

120-277 VAC, 50/60 Hz,

dedicated neutral wire required

25 W

500 W maximum @ 120 VAC;

1200 W maximum @ 277 VAC;

Refer to the “Multigang Installation” section for

derating information

Environmental

Temperature

Humidity

32° to 104 °F (0° to 40 °C)

10% to 90% RH (noncondensing)

Enclosure 1-gang mountable in a 3-1/2 in (89 mm) deep

electrical box;

Requires decorator-style faceplate (not included)

This product conforms to UL® STD 1472; certified to CSA STD C22.2 No. 184.1 tested by Intertek.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference

to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at his own

expense.

Industry Canada (IC) Compliance Statement

CAN ICES-3(A)/NMB-3(A)

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, please visit

www.crestron.com/opensource.

Crestron, the Crestron logo, and Zūm are either trademarks or registered trademarks of

Crestron Electronics, Inc. in the United States and/or other countries. UL and the UL logo are

either trademarks or registered trademarks of Underwriters Laboratories, Inc. in the United

States and/or other countries. Other trademarks, registered trademarks, and trade names

may be used in this document to refer to either the entities claiming the marks and names or

their products. Crestron disclaims any proprietary interest in the marks and names of others.

Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Crestron Electronics, Inc. Installation Guide - DOC. 8201B

15 Volvo Drive, Rockleigh, NJ 07647 (2048928)

Tel: 888.CRESTRON 04.18

Fax: 201.767.7576 Specications subject to

www.crestron.com change without notice.

Produkt Specifikationer

Mærke:	Crestron
Kategori:	Ikke kategoriseret
Model:	ZUMMESH-DIM-W-S
Type:	Lysdæmper
Vekselstrømsindgangsspænding:	120 - 277 V
Bredde:	44 mm
Dybde:	46 mm
Højde:	105 mm
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Driftstemperatur (T-T):	0 - 40 °C
RF-transmissionsfrekvens:	2400 MHz
