Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322
1 of 4
- Retains factory features in select Chrysler, Dodge and Jeep vehicles while funconing with an aermarket radio.
- Retains Steering Wheel Controls via built-in, pre-programmed interface.
- Supports amplied and non-amplied systems.
- Provides reverse trigger for rear view camera.
- Double DIN Dash Kit included.

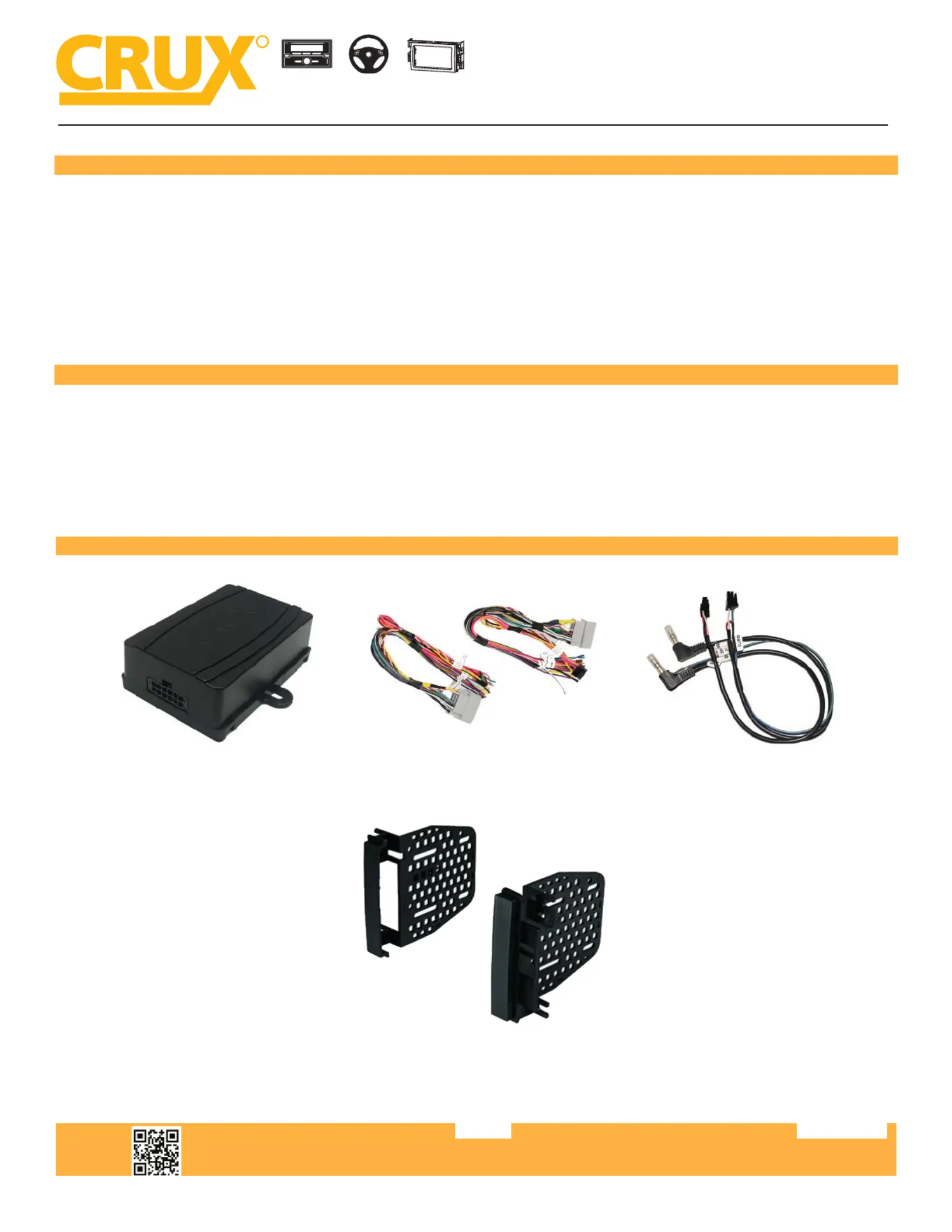

PARTS INCLUDED:
SWRCR-59 Module SWRCR-59 Harness SWC Cables
KCH-02 Double DIN Double DIN Dash Kit
DKCR-59K
Radio Replacement with Steering Wheel Retention
and Double DIN Dash Kit for CHRYSLER, DODGE & JEEP Vehicles
RADIO REPLACEMENT
SWC RETENTION
+ +
R
INTERFACING SOLUTIONS
NOTES:
1. The Front and Rear fading are NON-Adjustable on amplied systems.
2. Also supports radio replacement in vehicles with 4.3” and 8.4” color screens.
3. Does NOT retain Uconnect.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322
2 of 4

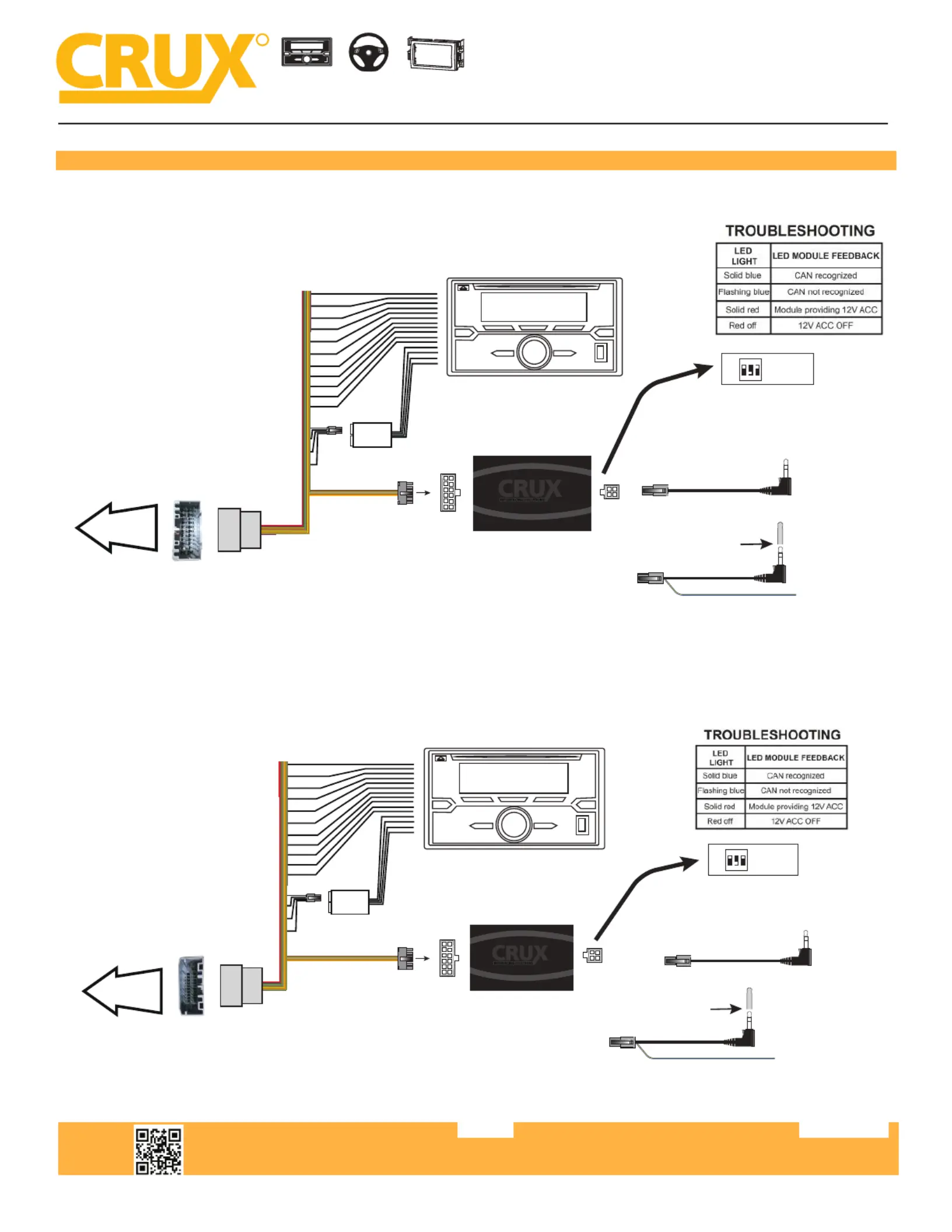

INSTALLATION DIAGRAM:
DKCR-59K
Radio Replacement with Steering Wheel Retention
and Double DIN Dash Kit for CHRYSLER, DODGE & JEEP Vehicles
RADIO REPLACEMENT
SWC RETENTION
+ +
R
INTERFACING SOLUTIONS
TO FACTORY
HARNESS
12-Pin Black
Connector
First Generation Harness
*Does not supply Reverse Trigger on Manual Transmissions. Reverse trigger wire from the
aftermarket radio and/or camera power must be connected to factory reverse light wire instead.
1 2 3
ON
4-Pin
Connector
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
AFTERMARKET
RADIO
VSS (Vehicle Speed Sense) Pink
Illumina�on (+) Orange
Power Antenna/Amp Turn on Blue/ White
Reverse Trigger* Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
AMPLIFIED
NON AMPLIFIED
See page 2 for
speaker wire
connections
Audio
Filter
To aftermarket
radio SWC wire
or 3.5mm port
The DKCR-59K includes 2 harnesses, for older and newer model vehicles. See installaon diagrams below for each
harness.
1st Generaon Harness
2nd Generaon Harness
The DKCR-59K second Generaon harness works on newer models with amplied or non amplied systems. Plug
in the 4-pin Molex connector to the inline lter connector corresponding to the system in the vehicle.
AFTERMARKET
RADIO
TO FACTORY
HARNESS
12-Pin Black
Connector
Second Generation Harness
*Does not supply Reverse Trigger on Manual Transmissions. Reverse trigger wire from the
aftermarket radio and/or camera power must be connected to factory reverse light wire instead.
4-Pin
Connector
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
1 2 3
ON
VSS (Vehicle Speed Sense) Pink
Illumina�on (+) Orange
Power Antenna/Amp Trun on Blue/ White
Reverse Trigger* Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
AMPLIFIED
NON AMPLIFIED
See below for
speaker wire
connections
Audio
Filter
