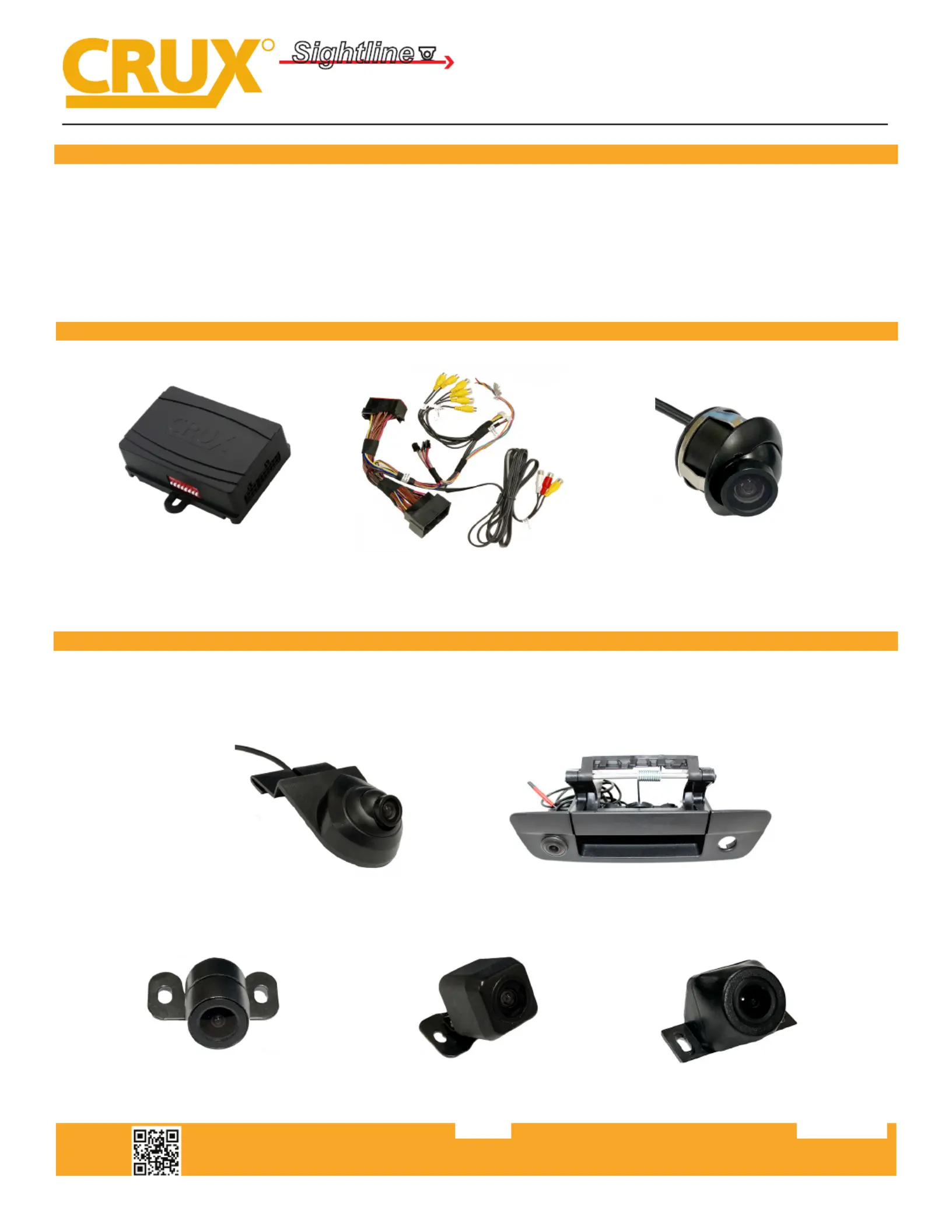

- Adds a reverse camera input, plus 5 video inputs and an addional audio/video input.

- Uses the steering wheel control buons to toggle between the sources.

- Turn signals automacally trigger the corresponding side camera.

- Turn signal camera trigger can be turned on or o by using the BACK buon on the radio.

- Includes 2 adjustable angle cameras for the side mirrors.

PRODUCT FEATURES:

PARTS INCLUDED:

RFM-RAM1 Module RFM-RAM1 Harness CUB-15 Adjustable Angle Side Camera

(2 pieces)

OPTIONAL ADD-ON CAMERAS:

Oponal add on cameras are available to complete the mul-view capability of the RFM-RAM1. Cameras available

and include:sold separately

CDR-31C Cargo Camera CDR-02 Tailgate Handle Camera

CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera

RFM-RAM1

Multi View Integration Interface with A/V Input &

Side Cameras for RAM Trucks with Uconnect 8.4” Systems

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.091019

2 of 6

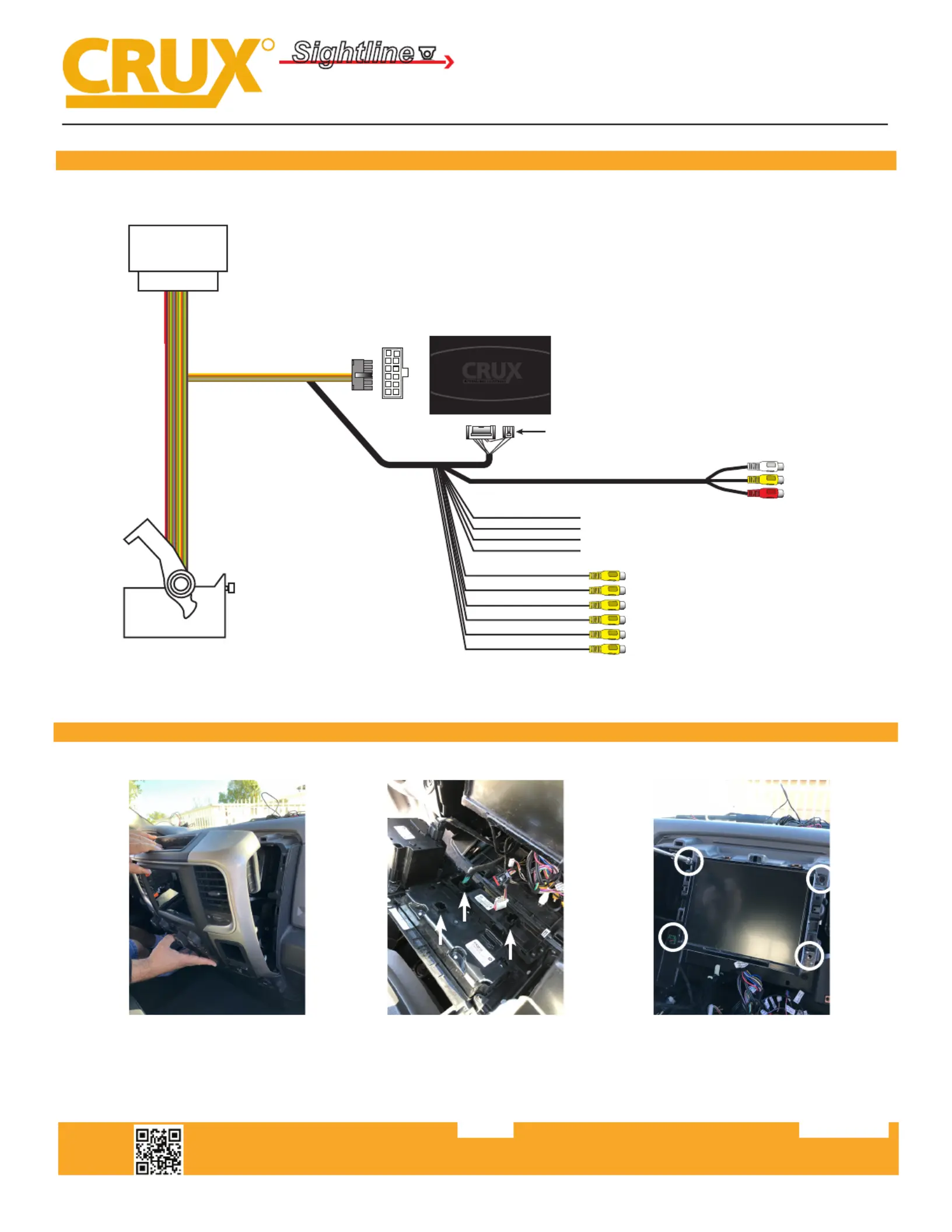

INSTALLATION DIAGRAM:

RFM-RAM1

Multi View Integration Interface with A/V Input &

Side Cameras for RAM Trucks with Uconnect 8.4” Systems

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Front Camera Input

Right Camera Input

Left Camera Input

Cargo Camera Input

Aftermarket Backup Camera Input

Trailer Camera Input

Audio/Video

Input

Front and Rear Camera Power Output 12V (purple/white)

Left and Right Camera Power Output 12V (green/white)

Cargo and Trailer Camera Power Output 12V (orange/white)

Video AUX Power Output 12V (red/white)

To Vehicle Harness

To Radio

Connect this 6-pin plug if OEM

backup camera is being used

INSTALLATION INSTRUCTIONS:

1. Carefully remove the radio trim

bezel by pulling outward.

2. Unplug the connectors behind the

radio trim bezel.

3. Remove the factory screen by

removing the 4 screws on the corners.
