RVCCH-75E
Rear View Integration Interface
for CHRYSLER & DODGE Vehicles with 8.4” Screen
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
1 of 4
• Acvates Uconnect Touchscreen Radio for enabling Video features
• Aermarket Rear-view Camera included
• Automacally switches to Rear-view when car is in Reverse mode
• Forced reverse camera view feature
• VIM funcon
• Plug & Play Installaon
PRODUCT FEATURES:
PARTS INCLUDED:
RVCCH-75E Module RVCCH-75E Harness

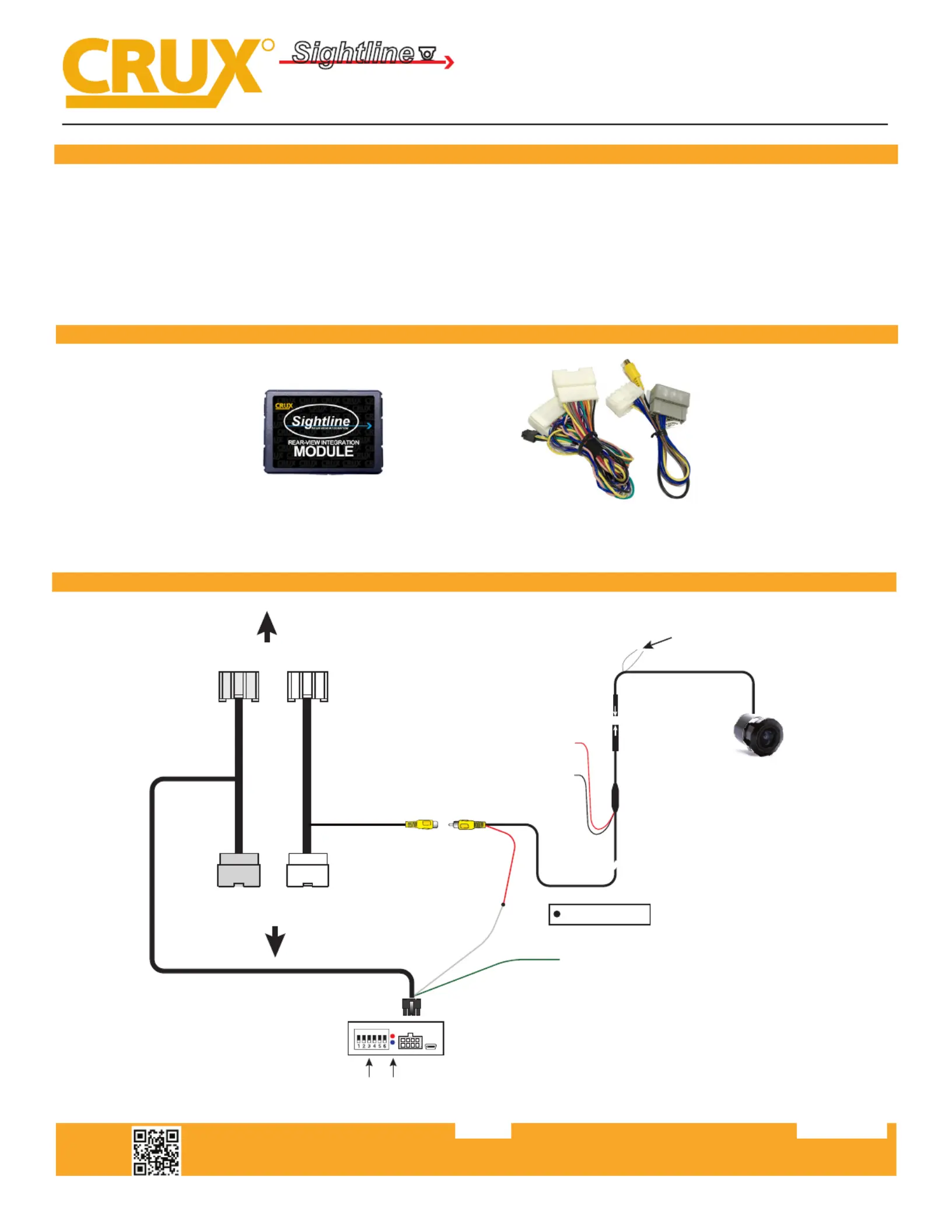

INSTALLATION DIAGRAM:
WHITE Wire
Parking Guideline
DP
ON
DIP
SWITCH
LED*
*LED RED = Power ON Status
LED BLUE = Data Bus ON Status
Regulator
20 Ft. Coax Cable
8-Pin Molex
Represents Solder Joint
TO RADIO
WHITE
22-PIN
(MALE)
GRAY
22-PIN
(MALE)
WHITE
22-PIN
(FEMALE)
GRAY
22-PIN
(FEMALE)
TO FACTORY
HARNESS
GREEN WIRE
ACTIVATE VIDEO BYPASS
WHITE Wire*
(Camera Power Output
+12V 250mA)
RED Wire
Tape O
(Not Used)
CUB-01 Camera
Included
*White wire does not supply Reverse Trigger on Manual Transmissions.
Camera power must be connected to factory reverse light wire instead.
To Source Ground
(ground wire)
(not chassis ground)
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020520
2 of 4
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
INSTALLATION INSTRUCTIONS:
INSTALLING THE BULLET CAMERA AND CABLE
The kit includes a universal bullet camera that can be mounted in dierent ways. On way is to mount it on the
third brake light. Please see page 3 for installaon instrucons. Once the camera has been installed, route the
camera cable towards the radio.
INSTALLING THE RVCCH-75E MODULE
Remove the radio to gain access to the connectors. Unplug the factory WHITE and GRAY connectors and plug
them into the WHITE and GRAY connectors of the RVCCH-75E T-harness. Mate the YELLOW male and female
video RCAs of the RVCCH-75E T-harness and the camera cable. Use the thin RED wire on the camera cable to
power the camera. Connect the thin RED wire to the WHITE wire on the RVCCH-75E harness. The RED wire near
the camera is not used and needs to be insulated with tape. Connect the BLACK ground wire near the camera to
chassis ground. See diagram on page 1. Test the system for funconality before reinstalling the radio.
FORCED VIEW OF REVERSE CAMERA
The RVCCH-75E has a feature that allows the user to view the reverse camera while driving.
To acvate this feature, set DIP#4 to ON. Press and hold the middle buon on the le side
SWC behind the steering wheel for 2-3 seconds. Press it again to deacvate this feature.
The camera is defaulted to power o aer 10 seconds.
DIP SWITCH FUNCTIONS:
DIP 1 = Video in Moon Acvaon ON / OFF
DIP 2 = Rear View Camera ON / OFF
DIP 3 = Not Used
DIP 4 = Forced RVC ON / OFF
DIP 5 = Camera/ParkAssist Coding (see page 5)
DIP 6 = Varies - Defaulted to both OFF*
RVCCH-75E
Rear View Integration Interface
for CHRYSLER & DODGE Vehicles with 8.4” Screen
*DIP 5 & 6
If the radio is having turn-on issues, please try the following:
Aempt 1: Set 5 & 6 to ON
Aempt 2: Set 5 to ON and 6 to OFF
Aempt 3: Set 5 to OFF and 6 to ON
1 2 3 4 5 6
ON
