All electrical components must be

installed by a licensed electrician

in accordance with the National

Electric Code and the appropriate

local electrical codes.

WARNING: This product can expose you to Lead,

which is known to the State of California to cause cancer

and/or birth defects or reproductive harm. For more

information go to www.P65Warnings.ca.gov

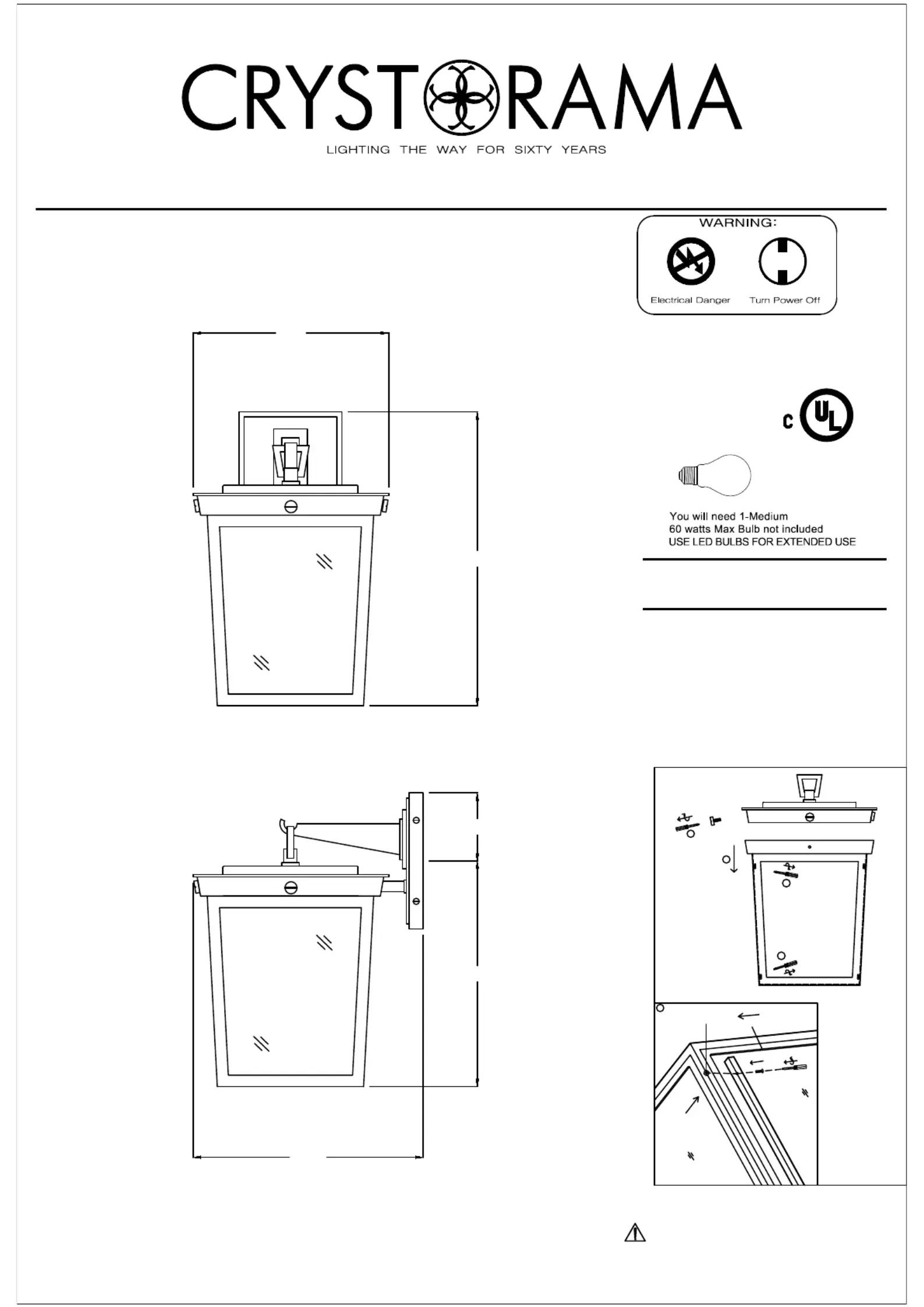

ASSEMBLY INSTRUCTION

MODEL #BEL-A8062-GE

9.5″

3.3″

11″

How to Install

1.Attach the xture to the outlet box.

2.Install the bulb onto the socket.

Sketch Map

11.2″

14.3″

Front view

Side view

Glass

Screw

Nut

Glass

L-shaped

metal strap

How to change glass

1.Take the bottom cage down by removing

the screws on the top of it.

2.Remove the L-shaped metal strap by

unscrewing the screws.

4.Put the new glass panel on and secure it

with the L-shaped metal strap and screws.

3.If necessary, smooth out the silicone glue along

the glass channel, prior to placing in the new

glass panel.

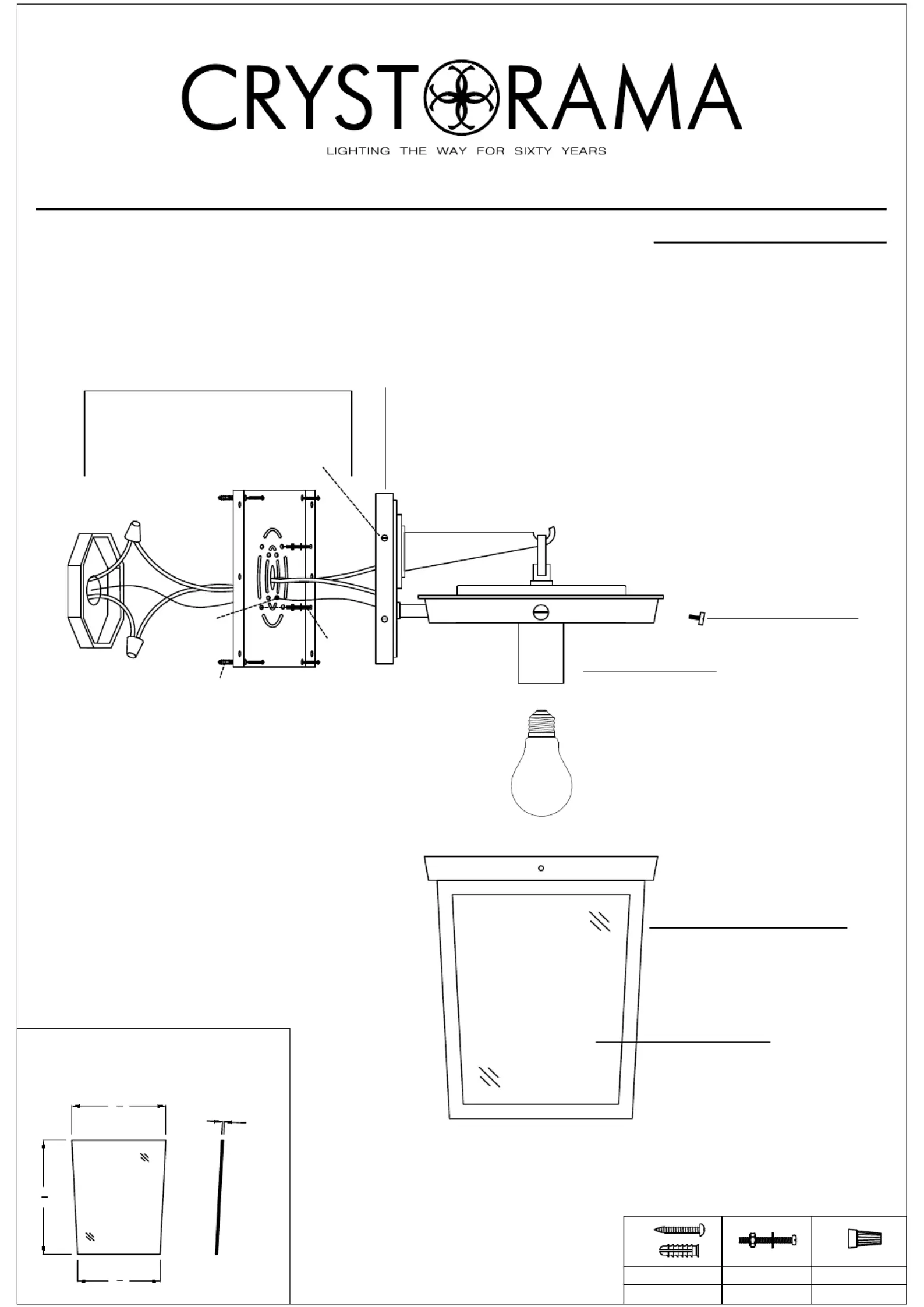

PART NUMBER

Part Number

Part Numbers

MODEL #BEL-A8062-GE

B.(1)Backplate;5″x6.6″x0.8″h;

XMO8061GEBKP6.6IN

C.(3)Cap nut

D.(1)Socket

E.(1)Glass frame; XMO8062GEGLAFRAME

2″

4″

8″

F-Size F

F.(4)Glass;XMO8062GLA8.9IN

Green Ground

Screw

Anchor Screw

Mounting

Screw

Outlet box

screw

Wire Nut

A.Mounting Hardware

(3)Wire Nut

(1)Mounting Plate

(4)Anchor Screw

(2)Mounting Screw

(1)Green GroundScrew

(4)Outlet box screw

x4 x2 x3

Anchor Screw Mounting Screw Wire Nut

1.Put the mounting plate over the outlet box and mark the 4 points on the

wall surface at the center of 4 holes on the mounting plate.

2.Drill 4 holes at the marked points and insert the wall anchors.

3.Place the mounting plate over the outlet box and secure it with outlet

screws.Insert the wall anchor screws inside the wall anchors and tighten it.

For installation of mounting plate:
