ASSEMBLY INSTRUCTION MODEL #605-GA
You will need 4 -Candelabra Base Bulb
40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
A. 50 Sets.
(3)20mm + (3)16mm + (4)12mm
+ (3)(30-12)mm + (4)8mm
Light Cluster
Bottom Stem

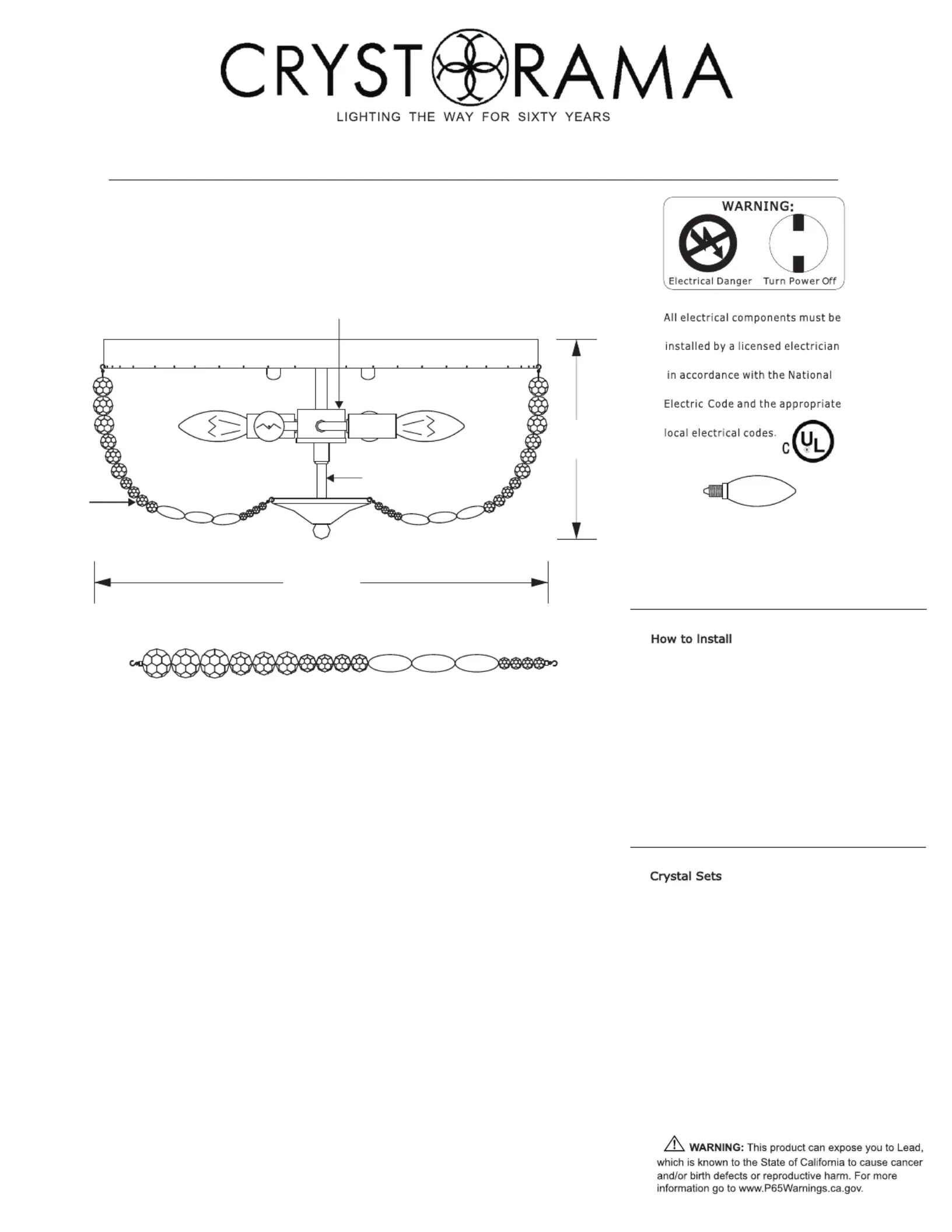

1.Do a complete inventory of all parts
and components before you start
installation.
2.Attach the Bottom Stem onto the
Light Cluster.
3.Raise the Light Cluster onto the
Mounting Plate, and secure it with
the Ball Nuts.
4.Dress the fixture with beads “A” as
illustrated.
Outlet box
A
B
C
D
E
F
G
H
I
JK
L
M
P
R
S
N
O
Q

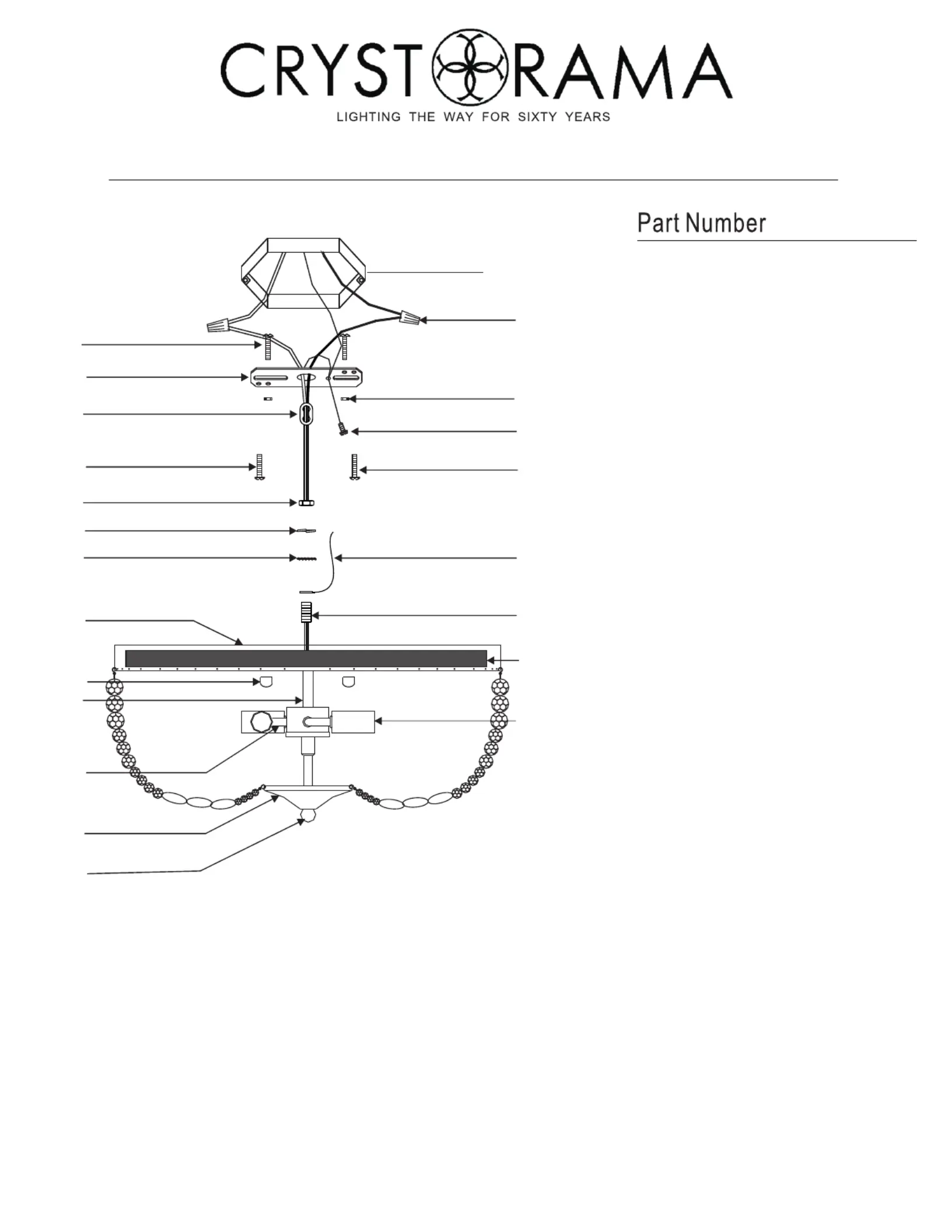

MODEL #605-GAPART NUMBER
G
T
A. (2) - Wire Connector
B. (2) - Screw
C. (1) - Mounting Plate
D. (2) - Hex Nut1
E. (1) - Cord Grip
F. (1) - Ground Screw
G. (2) - Outlet Box Screws
H. (1) - Hex Nut2
I. (1) - Spring Washer
J. (1) - Lock Washer
K. (1) - Ground Wire
L. (1) - Threaded Pipe
M. (1) - Canopy(18"x1")
N. (1) - Insulation Pad
O. (2) - Ball Nut #XRE600GABALLNUT
P. (1) - Top Stem
Q. (4) - Socket Sleeve
R. (4) - Arms
S. (1) - Metal Cap #XRE605GACAP
T. (1) - Finial #XRE600GABOTFIN
