Side 1/2

LIGHTING THE WAY FOR SIXTY YEARS

ASSEMBLY INSTRUCTION MODEL #VSS-7002-LG_CEILING

All electrical components must be installed

by a licensed electrician in accordance

with the National Electric Code and the

appropriate local electrical codes.

You will need 1 Med.Bulb–

40 Watts Recommended 60 Watts Max

USE LED BULBS FOR EXTENDED USE

This fixture is Damp rated.

How to Install

For ceiling mount:

1. Remove the screw collar loop from the canopy.

Attach the spacer rod onto canopy using the hexnut.

2. Remove the fixture loop from the frame.

3. Thread the canopy onto the top of frame.

4. Install the mounting plate using the two outlet box

screws.

5. Raise the frame up to the ceiling and do the wire

connections. Secure the canopy with screws.

6. Install the bulb onto the socket and slide the glass

over the light cluster and let the spoke hold the

glass using the cap nuts.Do not over tighten it to

prevent the glass from breaking.

For ceiling mount

For hanging

For hanging:

1. Install the mounting plate onto the outlet box

using two outlet box screws.

2. Decide the preferred hanging height and choose

the correct length of chain needed.

3. Raise the frame up to the ceiling and do the wire

connection. Secure with canopy with screws.

4. Install the bulb onto the socket and slide the glass

over the light cluster and let the spoke hold the

glass using the cap nuts

. Do not over tighten it to

prevent the glass from breaking.

WARNING: This product can expose you to Lead,

which is known to the State of California to cause cancer

and/or birth defects or reproductive harm. For more

information go to www.P65Warnings.ca.gov

Electrical Danger

Turn Power off

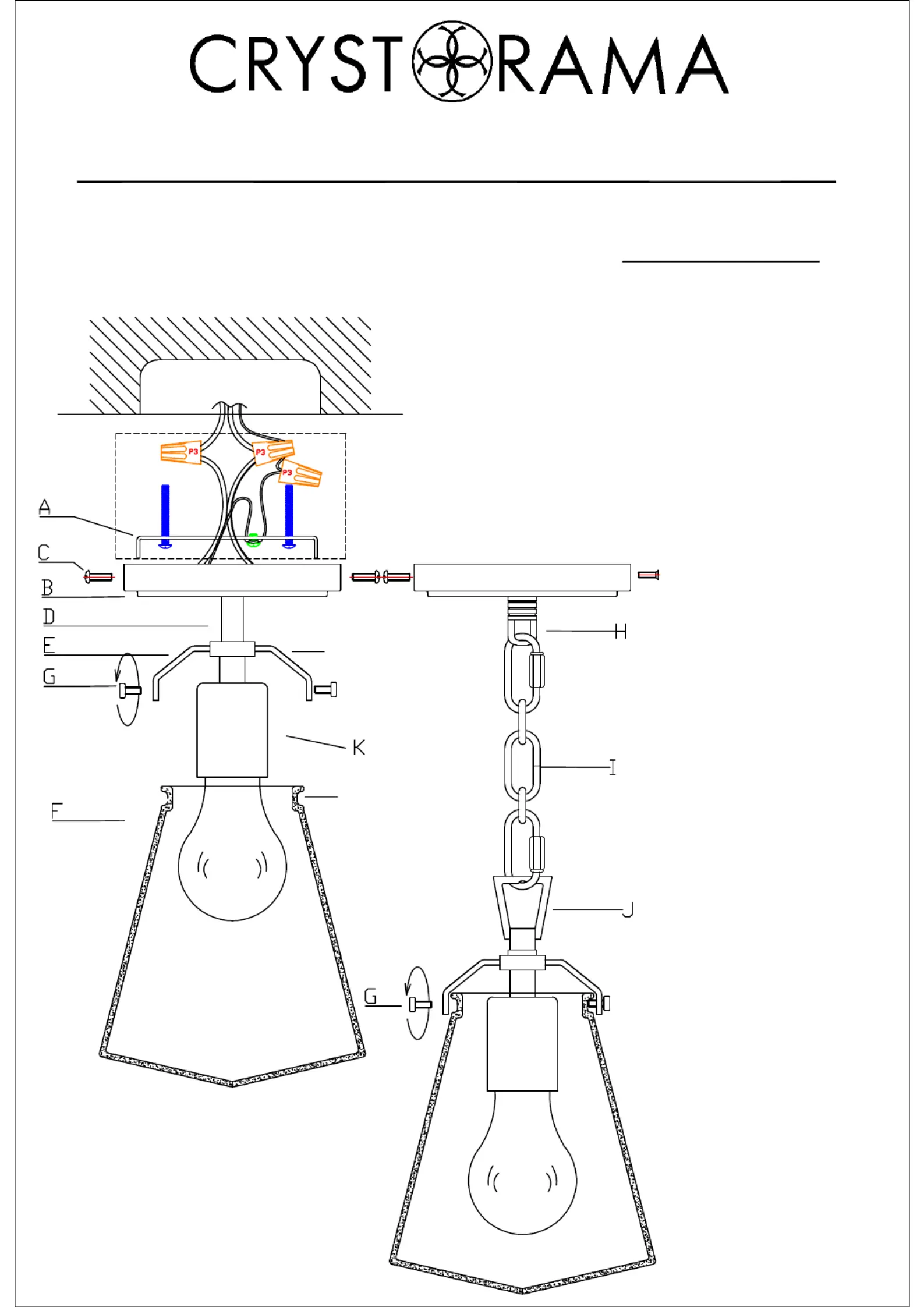

Part Number

Part Numbers

A. (1)-Mounting hardware

B. (1)-Canopy

（

XAR7002LGCAN4.75IN

）

C. (2)-Screws

D. (1)-Spacer rod

E. (1)-Frame

F. (1)-Clear Glass shade Ø5.75"*H6.5"

（

XAR7001GLA5.75IN

）

G. (4)-Cap nut

H. (1)-Screw collar loop

I. (1)-Chain T4MM*L47"

（

XAR7002LGCHA4MM

）

J. (1)-Fixture loop

K. (1)-Light cluster

LIGHTING THE WAY FOR SIXTY YEARS

ASSEMBLY INSTRUCTION MODEL #VSS-7002-LG_CEILING

Groove

Spoke
