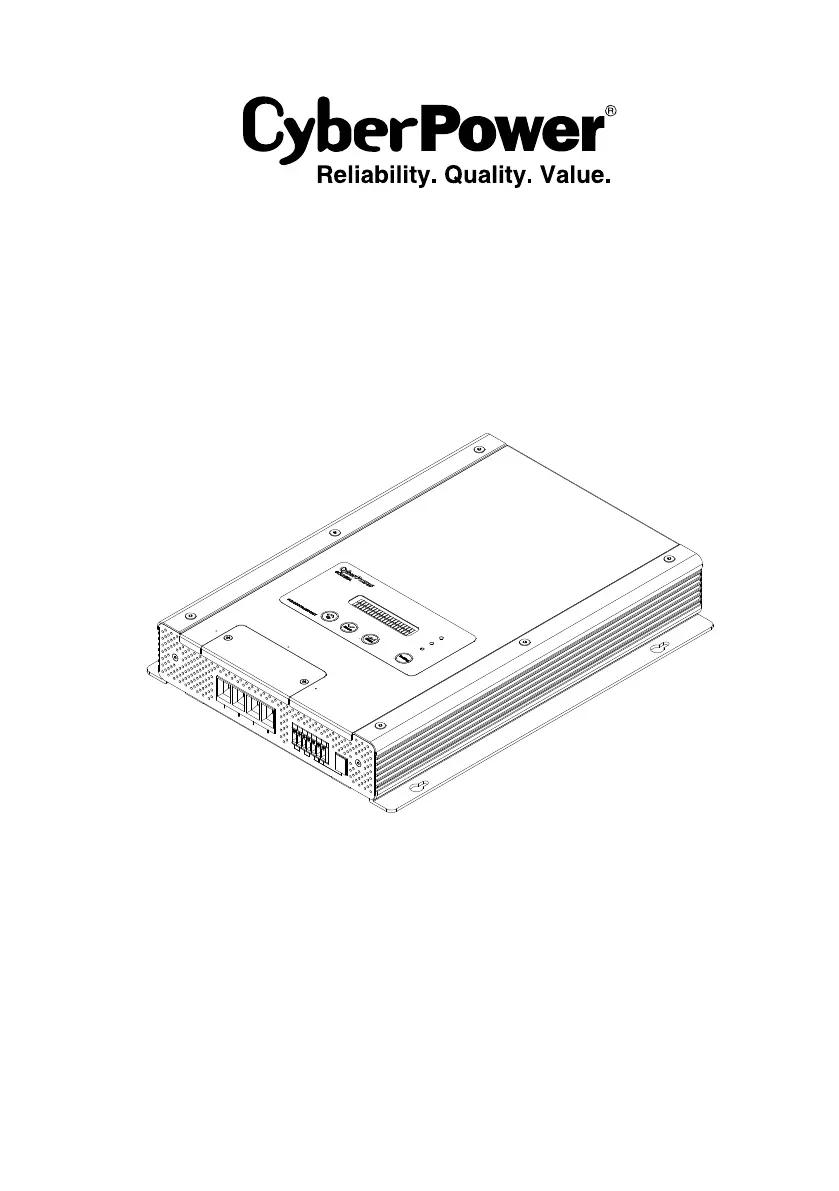

Side 1/32

User`s Manual

Installation and Programming

MPPT Solar Charger Series

Maximum Power Point Tracking Technology

Connection the solar array

or battery with reverse

polarity will permanently

damage the Charger.

RESERVED

BVS BTSPV+PV-BAT-BAT+

TABLE OF CONTENTS

1. Important Safety information ........................................................2

2. Introduction ................................................................................................3

2.1 Overview .....................................................................................................3

2.2 Maximum Power Point Tracking Technology .......................................5

2.3 Four-Stage Battery Charging Capability ...............................................5

2.4 Setting the Charging Point ......................................................................6

3. Installation ...................................................................................................7

3.1 PV Array Requirements ............................................................................7

3.2 Battery Voltage Sensor .............................................................................8

3.3 Battery Temperature Sensor ...................................................................8

3.4 Load Control Function and Wiring .........................................................8

3.5 Mounting Location ....................................................................................10

3.6 Grounding and Ground Fault Interruption ...........................................11

3.7 Wiring ..........................................................................................................11

4. Operation ......................................................................................................13

4.1 Power On ....................................................................................................13

4.2 Interface ......................................................................................................13

4.3 Initialization ................................................................................................13

4.4 General Operating .....................................................................................17

4.5 Protections .................................................................................................20

4.6 Inspection and Maintenance ...................................................................20

5. Troubleshooting ......................................................................................21

6. Specications ...........................................................................................22

7. Warranty ........................................................................................................23

8. Appendix .......................................................................................................24

Wire Size and Length ..................................................................................24

Error Codes Indication ................................................................................25

Abbreviated ..................................................................................................26

Initialization Setting ..............................................................................26

Load Control Setting ............................................................................27
