System Requirements

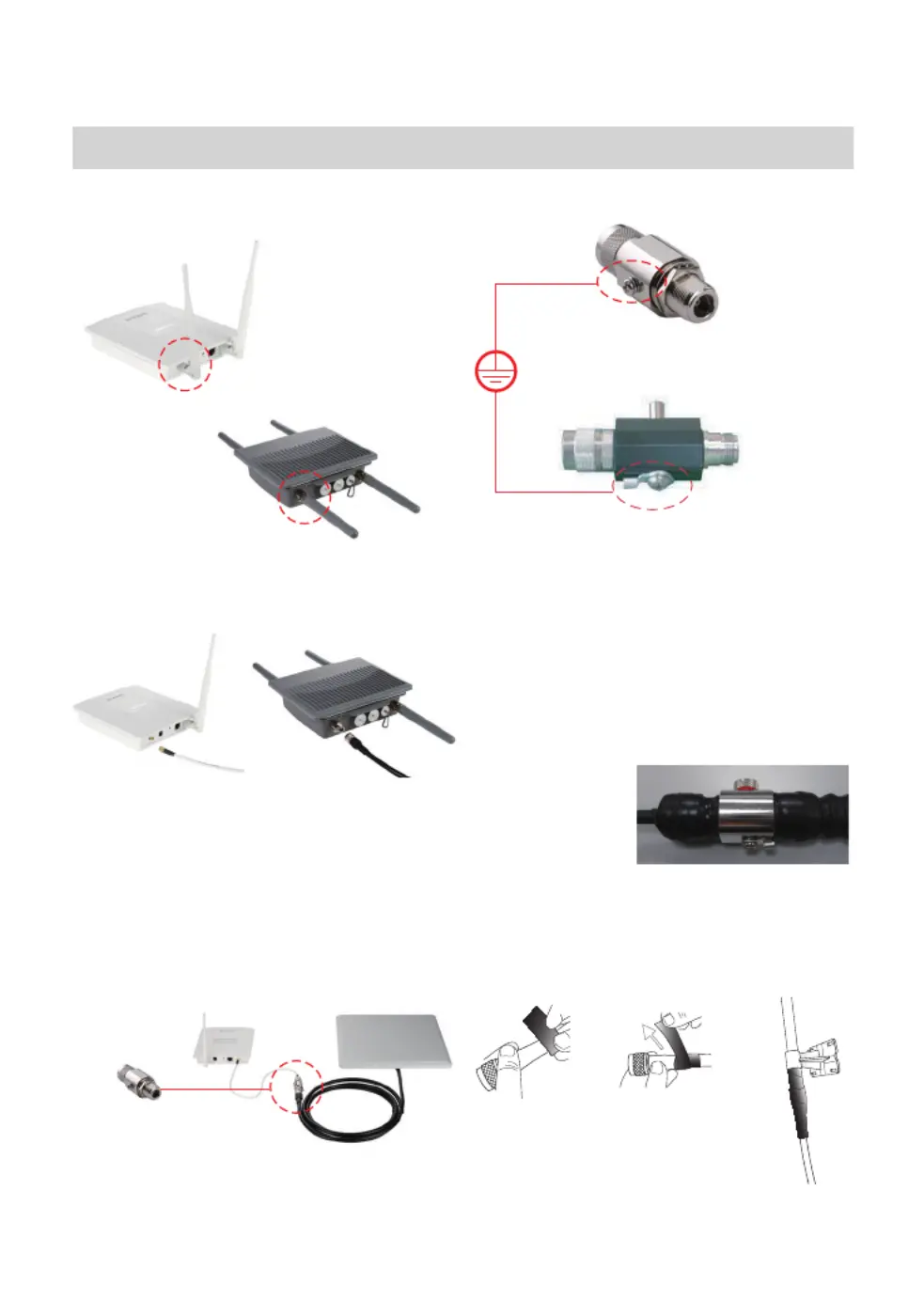

Install the surge protection adapter. (For exten-

sion use, you can install with optional ANT24-

CB03N, ANT24-CB06N, or ANT24-CB09N low

loss cables per needs.)

Step 1

Step 2

Step 3 (If needed)

This extension cable from outdoor antenna packaging is for

indoor AP use only.

If you would like to connect your outdoor antenna to outdoor AP,

please use another type of extension cable like ANT70-CB1RN

or ANT70-CB1N required to be attached to outdoor AP.

Remove the default antenna from your device.

Step 4

When install the surge protection adapter

to cables, please wrap the connectors by

enclosed water-proof tape tightly.

Connect the extension cable

/antenna

onto the external connector on device.

The surge protection adaptor from outdoor antenna

packaging is for the connection to the lighting protection

system (grounding) of buildings. All devices are protected

by the grounding to avoid the lighting strikes. It protects

your precise WLAN equipment from high voltage surges

caused by discharge and transients from the antenna.

D-Link Antenna-kit Installation Guide

INSTALLATION

ANT24-0700 Install GuideSystem Requirements

)

Ground

D-Link Antenna-kit Installation Guide

INSTALLATION

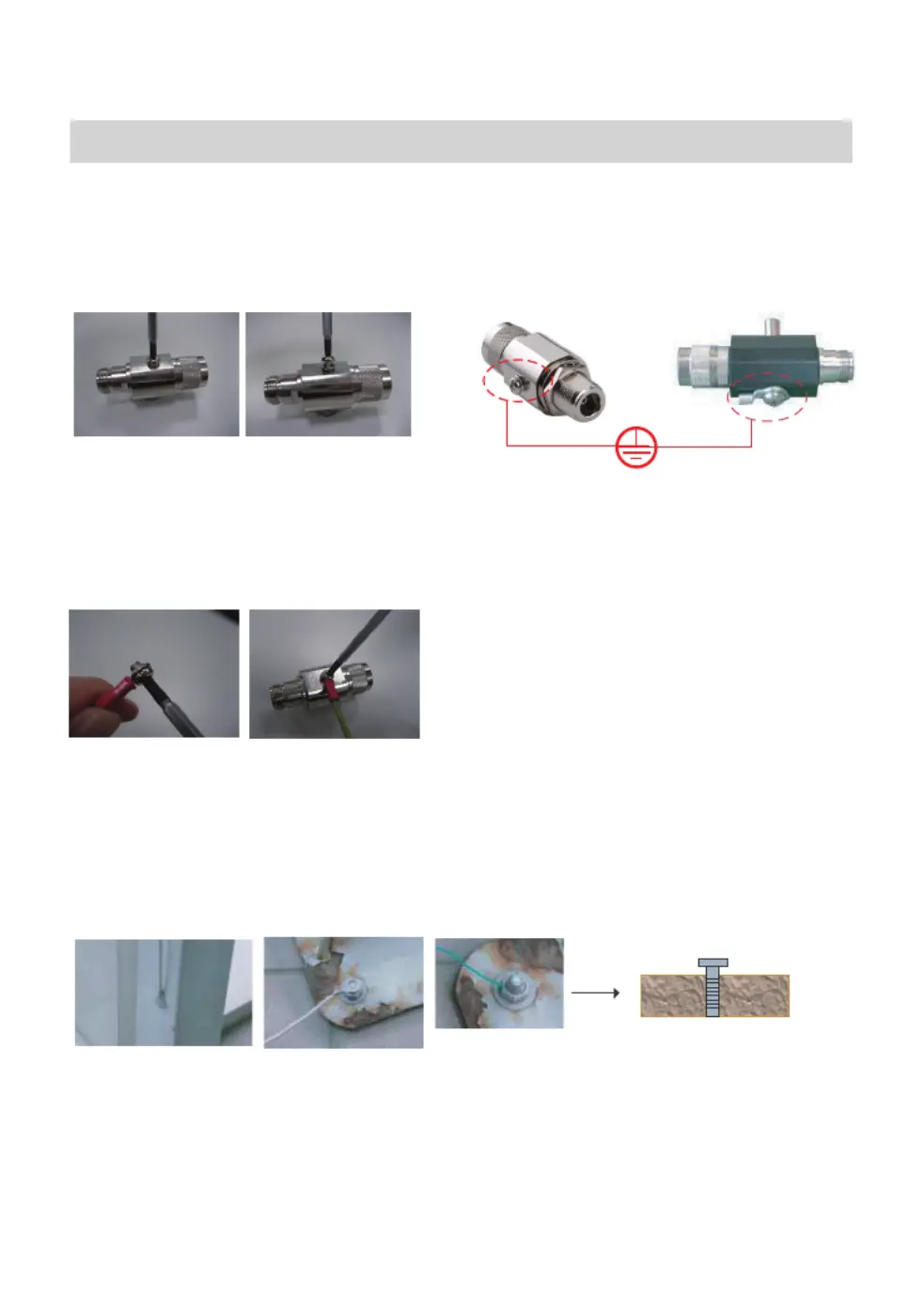

D-Link Surge Protection Adapter Installation guide For Outdoor Antenna-kit

Step1

Loosen the screw from the surge protection adapter.

Step2

Get a normal conductive copper wire whose 2 sides are stripped long enough in order to be

conducted and lead the high voltage surges into ground.

Put one side of copper wire to attach the screw set and screw the pieces back to adapter and

tighten it.

Step3

Find a conductive material near the antenna and connect another side of copper wire onto the

positions. There are 2 options as follows:

1) Use a long screw to stick into the ground tightly and attach the wire on it.

2) Fix or solder the wire onto a metallic material or a pillar under metallic construction such as

wall in buildings, railings or other conductors set up on the ground.

Remark:

1) As to the grounding screw you use, we suggest the longer size which can be

inserted to the ground deeply for better performance.

2) Please use the copper wire whose diameter is 2mm at least. Because

thicker wire can sustain higher voltage.

Ver. 4.00

DFWWANT00C0040
