Introduction

A redundant power supply provides a low-cost, simple

solution to the equally simple yet vexing problem of internal

power supply failure, which can result in the shutdown of a

single switching device or an entire network.

With a redundant power supply connected, an integrated

detection circuit continuously monitors the switch’s internal

power supply. In the event of a power interruption, the

redundant power supply is immediately triggered so that the

switch and connected devices can continue providing

service.

This results in a more reliable network infrastructure and

protects the network from a single failure of a network

device power supply.

Description

The DPS-200, DPS-300, DPS-500, DPS-500DC, DPS-600

and DPS-700 are redundant power supply units designed to

conform to the wattage requirements of the switches being

supported. DPS-200 operates at 60 watts; DPS-300

operates at 90 watts, DPS-500/500DC at 140 watts, DPS-

600 at 500watts, and the DPS-700 at 589 watts.

The DPS-200, DPS-300, DPS-500, DPS-500DC, and DPS-

600 can connect to the master switch using a 14-pin DC

power cable. Similarly, the DPS-700 uses a 22-pin DC

power cable. A standard, three-pronged AC power cable

connects the redundant power supply to the main power

source.

Single RPS (DPS-200/DPS-300

/DPS-500/DPS-500DC)

Single RPS (DPS-

600/700)

14-pin DC power cable

22-pin DC power cable

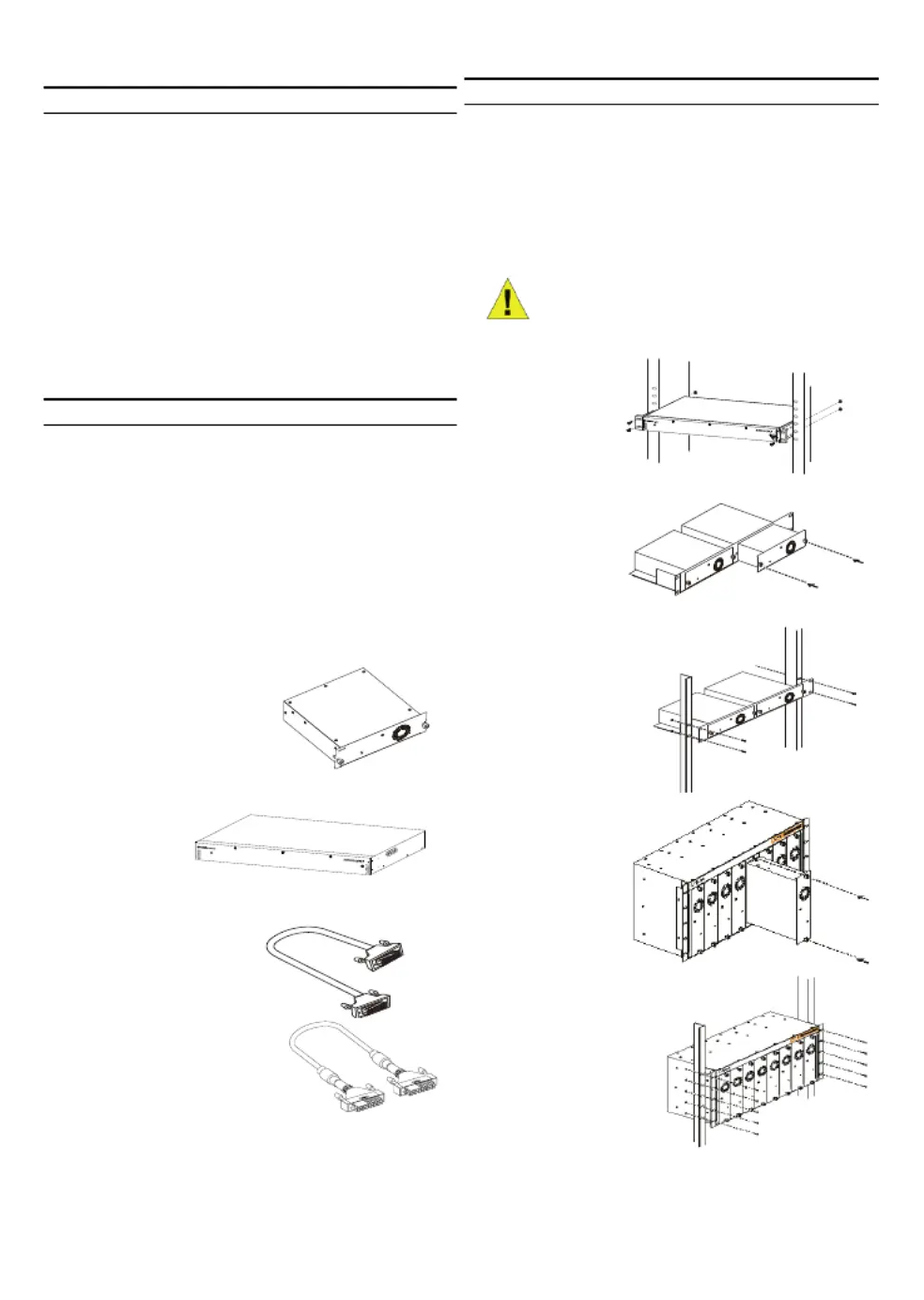

Installation of the RPS

The single RPS DPS-200, 300, 500, and 500DC can be

installed to the standard rack via the RPS rack DPS-800

and DPS-900. DPS-900 is a standard-size rack mount (5U

in height) designed to hold up to 8 redundant power

supplies. The DPS-800 is also a standard-size rack mount

(1.25U in height) designed to hold up to 2 redundant power

supplies. Installed RPS units can be DPS-200s, DPS-300s,

DPS-500s, DPS-500DCs, or a combination of the above.

NOTE: The DPS-500DC can only be

inserted into a DPS-800

Installing a DPS-

600/700 in a standard

electronics rack

Inserting a single

RPS into a DPS-800

RPS rack

Installing a DPS-800 in a

standard electronics rack

Inserting a single

RPS into a DPS-900

RPS rack

Installing a DPS-900 in a

standard electronics

rack

Produkt Specifikationer

Mærke:	D-Link
Kategori:	Ikke kategoriseret
Model:	DPS-500A
Vekselstrømsindgangsspænding:	90 - 264 V
Vekselstrømsindgangsfrekvens:	47 - 63 Hz
Bredde:	172 mm
Dybde:	257 mm
Højde:	43 mm
Vægt:	1510 g
Produktfarve:	Sort
Produkttype:	Strømforsyning
Pakkevægt:	2800 g
Pakkedybde:	436 mm
Pakkebredde:	246 mm
Pakkehøjde:	109 mm
Opbevaringstemperatur (T-T):	-45 - 85 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 95 %
Driftstemperatur (T-T):	0 - 50 °C
Pallens bruttobredde:	1100 mm
Pallens bruttolængde:	1200 mm
Harmoniseret systemkode (HS):	85177900
Forsendelseskassens bruttovægt (indvendig):	12000 g
Produkter pr. forsendelseskasse (indvendig):	4 stk
Forsendelseskasses kassens bredde (indvendig):	457 mm
Forsendelseskassens længde (indvendig):	467 mm
Forsendelseskassens højde (indvendig):	284 mm
Gennemsnitstid mellem fejl (MTBF):	400000 t
Forsendelsesemballage nettovægt:	11000 g
Total effekt:	140 W
Palle bruttovægt (luft):	211000 g
Antal papkasser pr. palle (luft):	16 stk
Antal pr. palle (luft):	64 stk
Pallehøjde (luft):	1271 mm
Palle bruttovægt (hav):	306500 g
Antal papkasser pr. palle (hav):	24 stk
Antal pr. palle (hav):	96 stk
Pallehøjde (hav):	1839 mm
