Quick Installation Guide for

Redundant Power Supply

DPS-200A, 500A and 500DC

Getting Started Guide

Erste Schritte

Guide de démarrage

Guida introduttiva

Guía de introducción

Краткое руководство пользователя

快速安裝指南

ENGLISH

About This Guide

The D-Link DPS-200A, 500A, and 500DC

are redundant power supplies designed to be

mounted into a standard rack and provide an

affordable solution to provide a constant power

source. This guide gives step-by-step instructions

for setting up the DPS-200A, 500A, and 500DC

with a switch that supports power over a 14-pin

DC power cable. Please note that the model you

have purchased may appear slightly different

from those shown in the illustrations.

For more detailed information about your switch,

its components, making network connections,

and technical specications, please refer to the

User’s Guide included with your switch.

Introduction

A redundant power supply provides a low-cost,

simple solution to the equally simple yet vexing

problem of internal power supply failure, which

can result in the shutdown of a single switching

device or an entire network.

With a redundant power supply connected, an

integrated detection circuit continuously monitors

the switch’s internal power supply. In the event

of a power interruption, the redundant power

supply is immediately triggered so that the switch

and connected devices can continue providing

service.

This results in a more reliable network

infrastructure and protects the network from a

single failure of a network device power supply.

Description

The DPS-200A, DPS-500A and DPS-500DC

are redundant power supply units designed

to conform to the wattage requirements of the

switches being supported.

The DPS-200A, DPS-500A and DPS-500DC

can connect to the master switch using a 14-pin

DC power cable. A standard, three-pronged

AC power cable connects the redundant power

supply to the main power source.

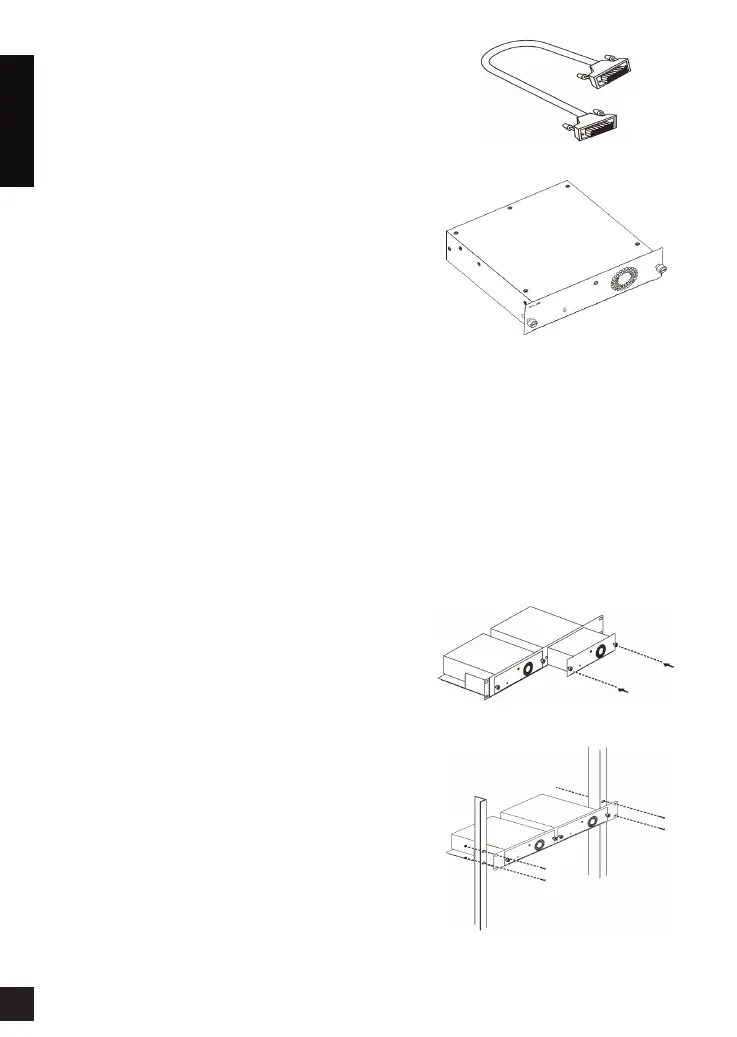

14-pin DC power cable

Single RPS (DPS-200A /DPS-500A/DPS-

500DC)

Rack Installation

The single RPS DPS-200A, 500A, and 500DC

can be installed to the standard rack via the RPS

rack DPS-800. The DPS-800 is a standard-size

rack mount (1.25U in height) designed to hold

up to 2 redundant power supplies. Installed RPS

units can be DPS-200As, DPS-500As, DPS-

500DCs, or a combination of the above.

Inserting a single RPS into a DPS-800 RPS rack

Installing a DPS-800 in a standard electronics

rack

Produkt Specifikationer

Mærke:	D-Link
Kategori:	Ikke kategoriseret
Model:	DPS-200A
Vekselstrømsindgangsspænding:	90 - 264 V
Vekselstrømsindgangsfrekvens:	47 - 63 Hz
Bredde:	172 mm
Dybde:	257 mm
Højde:	43 mm
Vægt:	1510 g
Produktfarve:	Sort
Produkttype:	Strømforsyning
Pakkevægt:	2800 g
Pakkedybde:	436 mm
Pakkebredde:	246 mm
Pakkehøjde:	109 mm
Opbevaringstemperatur (T-T):	-45 - 85 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 95 %
Driftstemperatur (T-T):	0 - 50 °C
Pallens bruttobredde:	1100 mm
Pallens bruttolængde:	1200 mm
LED-indikatorer:	Status
Forsendelseskassens bruttovægt (indvendig):	12000 g
Produkter pr. forsendelseskasse (indvendig):	4 stk
Kapabilitet:	DGS-3120-24TC\nDGS-3120-24SC\nDGS-3100-24TG\nDGS-3100-24\nDGS-3200-24\nDES-3528\nDES-3552
Forsendelseskasses kassens bredde (indvendig):	457 mm
Forsendelseskassens længde (indvendig):	467 mm
Forsendelseskassens højde (indvendig):	284 mm
Gennemsnitstid mellem fejl (MTBF):	400000 t
Forsendelsesemballage nettovægt:	11000 g
Total effekt:	60 W
Strømbeskyttelsesfunktioner:	Overstrøm
Palle bruttovægt (luft):	210500 g
Antal papkasser pr. palle (luft):	16 stk
Antal pr. palle (luft):	64 stk
Pallehøjde (luft):	1271 mm
Palle bruttovægt (hav):	306500 g
Antal papkasser pr. palle (hav):	24 stk
Antal pr. palle (hav):	96 stk
Pallehøjde (hav):	1839 mm
