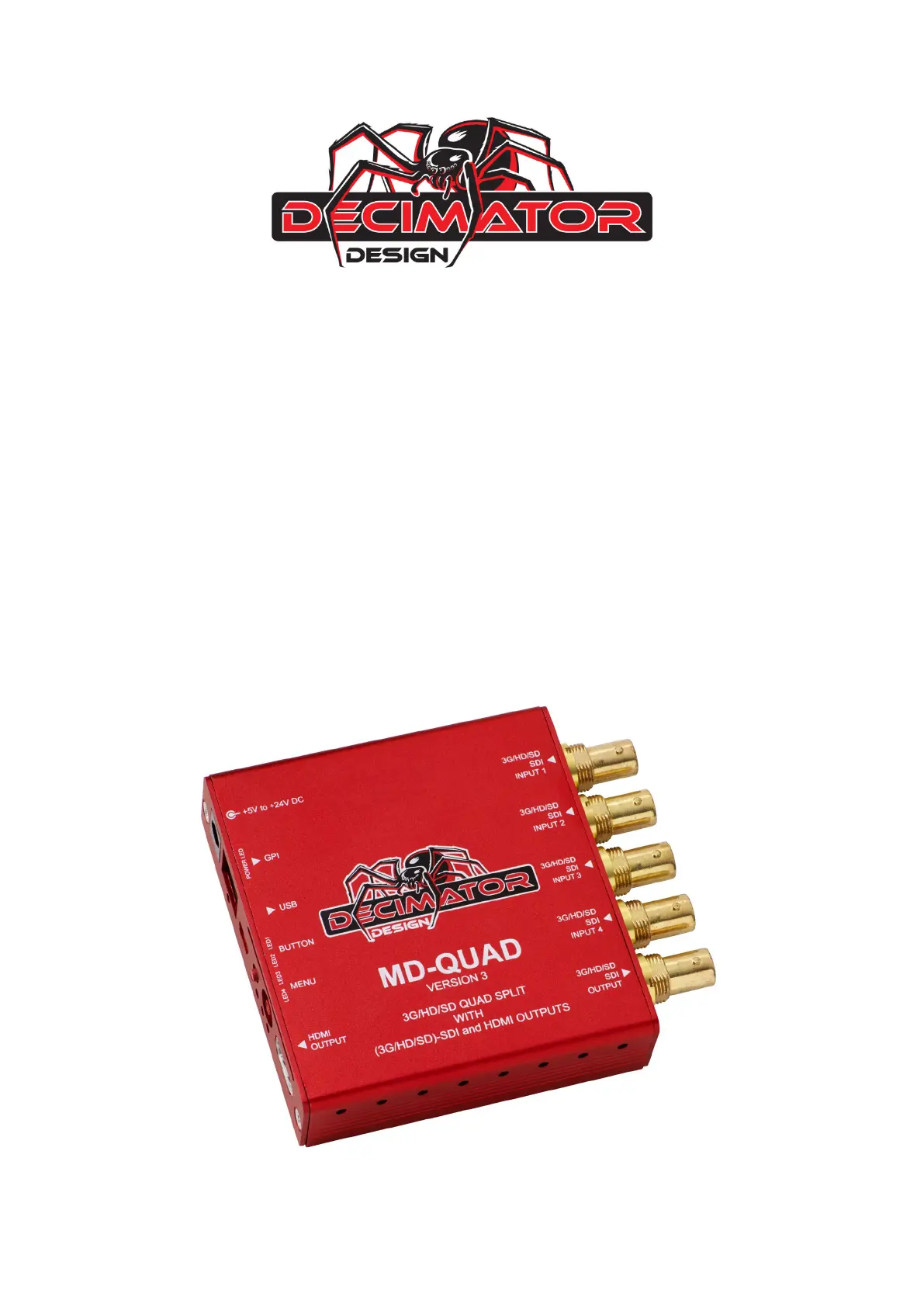

MD-QUAD
VERSION 3
1 to 4 Channel (3G/HD/SD)-SDI
Multi-Viewer / Quad-Split
with SDI and HDMI outputs
Operating Manual for Firmware Version 2.0
MD-QUAD Hardware Manual for Firmware Version 2.0
Copyright © 2014 Decimator Design Pty Ltd, Sydney, Australia
E&OE
1
MD-QUAD 3
FIRMWARE VERSION 2.0 SETTINGS
Please note: MD-QUAD 3 hardware has serial numbers starting with MQC.
The latest USB Control Software and Specifications for this product can be downloaded at:
www.decimator.com
Use the rotary to select the menu and press the button to toggle the setting.
When the settings are changed the Power LED will change to Red and change back to Green when they are
saved.
Defaults are highlighted.
For all Menu Subsets when Rotary = 0. Input Status (Button is disabled)
LED Status
LED
Description
Off
Green
Red
Orange
1
Input 1 Format Detect
None
SD
HD
3G
2
Input 2 Format Detect
None
SD
HD
3G
3
Input 3 Format Detect
None
SD
HD
3G
4
Input 4 Format Detect
None
SD
HD
3G
For all Menu Subsets when Rotary = 1. Menu Subset
LED 1
LED 2
LED 3
LED 4
Menu Subset
Off
Off
Off
Off
0
Off
Off
Off
Green
1
Menu Subset = 0 / Rotary = 2. HDMI Output Type
LED 1
LED 2
LED 3
LED 4
Output
Off
Off
Off
Off
DVI RGB 4:4:4, No audio is passed
Off
Off
Off
Green
HDMI RGB 4:4:4, 2 Audio channels passed
Off
Off
Green
Off
HDMI YCbCr 4:4:4, 2 Audio channels passed
Off
Off
Green
Green
HDMI YCbCr 4:2:2, 2 Audio channels passed
Off
Green
Off
Off
HDMI RGB 4:4:4, 8 Audio channels passed
Off
Green
Off
Green
HDMI YCbCr 4:4:4, 8 Audio channels passed
Off
Green
Green
Off
HDMI YCbCr 4:2:2, 8 Audio channels passed
Menu Subset = 0 / Rotary = 3. Output Select
LED 1
LED 2
LED 3
LED 4
Output
Green
Green
Green
Green
Multi-View
Green
Off
Off
Off
Video Source 1
Off
Green
Off
Off
Video Source 2
Off
Off
Green
Off
Video Source 3
Off
Off
Off
Green
Video Source 4
