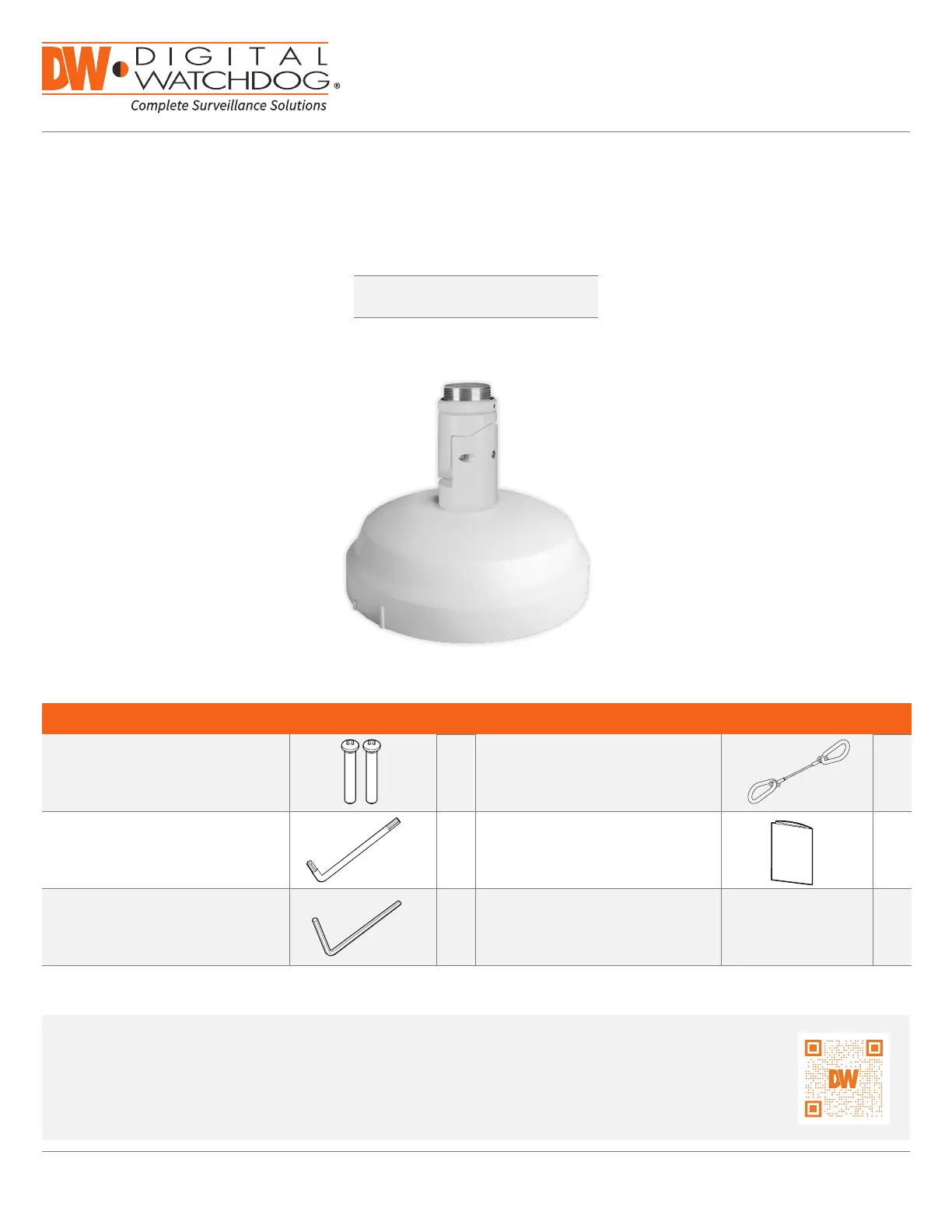

DWC-PV20ADPW

Tilting adapter for multi-sensor camera with vari-focal lens modules and

DWC-PZPARAM

Quick Start Guide

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday

digital-watchdog.com

NOTE: Download all your support materials and tools in one place.

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in the search bar. Results ‘Search by Product’

for applicable part numbers will populate automatically based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

WHAT’S IN THE BOX

Tilt Mounting Screws 2 Safety Wire 1

Star Wrench 1 1Quick Setup Guide

Hexagonal Wrench 1

Connect the

mounting

accessory’s base

into the tilting

adapter, and secure

using the screws

on the side of the

adapter. Use the

hexagonal wrench to secure the screws in place.

Ax the safety wire at the bottom of the mounting bracket’s

base. Connect the other side of the safety wire to the base of

the camera.

Pass the wires through the rest of the accessory and make all

necessary connections in the camera.

To mount the camera to the mounting accessory, remove the

dome from the camera base using the wrench included with

the camera.

NOTE: Do not touch the lenses when handling the camera

modules.

Secure the camera to the mounting bracket using the

included screws. Align the indented lines on the side of the

camera with the lines on the mounting bracket as seen in

the image below. Rotate the camera clockwise to lock it into

position.

UNLOCK LOCK

Adjust the camera modules’ position and angle and complete

the installation by placing the dome cover on the camera.

Secure the dome cover to the camera base using the screws

included with the camera. See the camera’s QSG for more

information.

1 Before the installation, disassemble the tilting adapter by unscrewing the screw in the center of the female side and separating

the male and female parts and the O-ring in the center.

2 Connect the male part of the tilting adapter to the parapet mount bracket by rotating it clockwise until tightly secured. Secure

the connection by tightening the pipe nut using the hexagonal wrench included with the adapter.

Pass wires through the parapet mount, the male part of the tilting adapter, the O-ring in the center of the tilting adapter and

the female part of the tilting adapter.

Adjust the tilt angle from the three available options. Lock the bracket into the

desired angle using the star T-20 wrench included with the tilting adapter.

Quick Start Guide

Rev: 09/21

Speciﬁcations and pricing are subject to change without notice.

INSTALLATION

015

Tilting adapter

screws

Camera base

Camera dome cover

Mount base

Female part

Pipe nut

Mounting bracket neck

Male part
