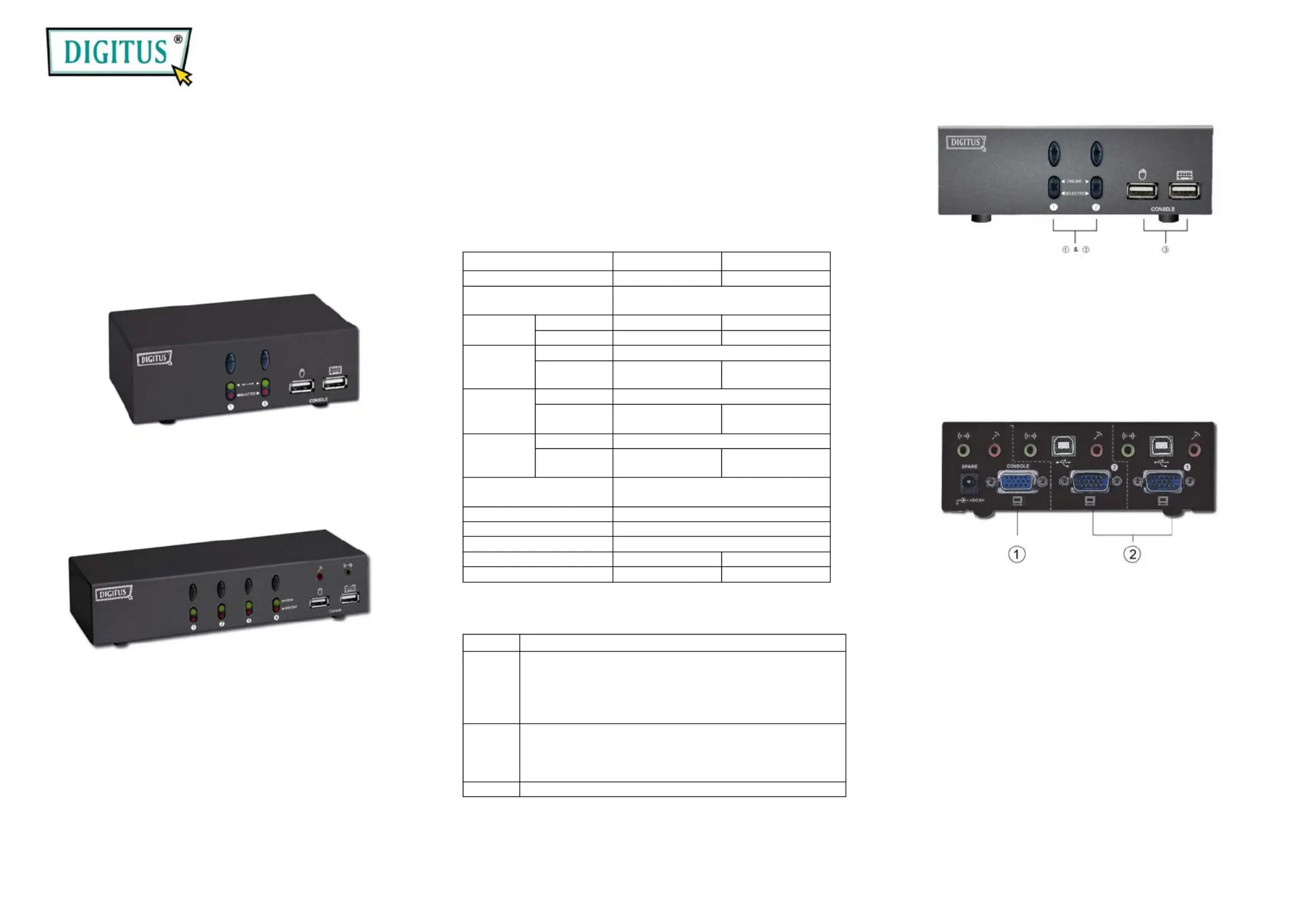

Side 1/2

USB-KVM

SWITCH

DC-11403

DC-12402

USER MANUAL REV. 1-0

Package Contents –

 DIGITUS DC-11403 or DC-12402 KVM Switch

 1 User Manual

Please contact your vendor if anything is missed.

Features

 Controls PCs with one USB keyboard, USB mouse and monitor

respectively

 Supports USB 1.1 specification

 Supports speaker & microphone

 Supports Windows, Linux and Macintosh

 Superior video quality - Up to 1920 x 1440 pixel, DDC, DDC2,

DDC2B, DDC2AB, 200MHz

 3 ways for PC selection -- Push-button switch or hot key or

mouse clicking

 Easy to install--No software required



Hot Pluggable

Specifications

Function DC-11403 DC-12402

PC Connectors 2 4

Port Selection

Push-button Switch / Hot Key

/ Mouse Clicking

LEDs

On Line 2 4

Selected 2 4

Connector

-Keyboard,

Mouse

Console Port 2x USB A-Type

CPU Port 2x USB B-Type 4x USB B-Type

Connector

-Monitor

Console Port 1x HD-15 Female (Std. VGA/SVGA)

CPU Port

2x HD-15 Male

(Std. VGA/SVGA)

4x HD-15 Male

(Std. VGA/SVGA)

Connector

-Audio,Mic.

(Jack)

Console Port 1 x Audio, Microphone

CPU Port 2 x Audio, Mic. 4 x Audio, Mic.

VGA Resolution

Max. 1920x1440 pixel, DDC, DDC2,

DDC2B, DDC2AB, 200MHz

Power Adapter DC 9V 300mA (Min.) spare

Scan Interval 5 sec ~ 30 sec

Housing Metal

Weight 460 g 650 g

Dimensions (LxWxH) 128x75x45 mm 200x75X45 mm

Hardware Requirements

Required specifications

Console

One high resolution VGA, SVGA or Multisync monitor

One USB mouse

One USB keyboard

One pair of speakers.

One microphone.

One VGA, SVGA or Multisync card

One USB port

One audio jack port.

One microphone port.

Cable Assmann AK 8210x and AK 8230x or similar

-1-

Appearance

Front View

1. Push-button Switches (Manual type)

2. Port LEDs

3. Console Keyboard and Mouse Connectors

Rear View

1. Console Monitor, Speaker and Microphone

Connectors

2. CPU Port Connectors

Installation

Before the installation, make sure the peripherals of all

PCs are grounded properly and turned off.

1. Connect the monitor, keyboard and mouse with the

Console Port Connectors.

2. Use the recommended extension cables to connect

the PCs with the CPU Ports of KVM Switch.

3. Turn on the PCs.

-2-
