Side 1/3

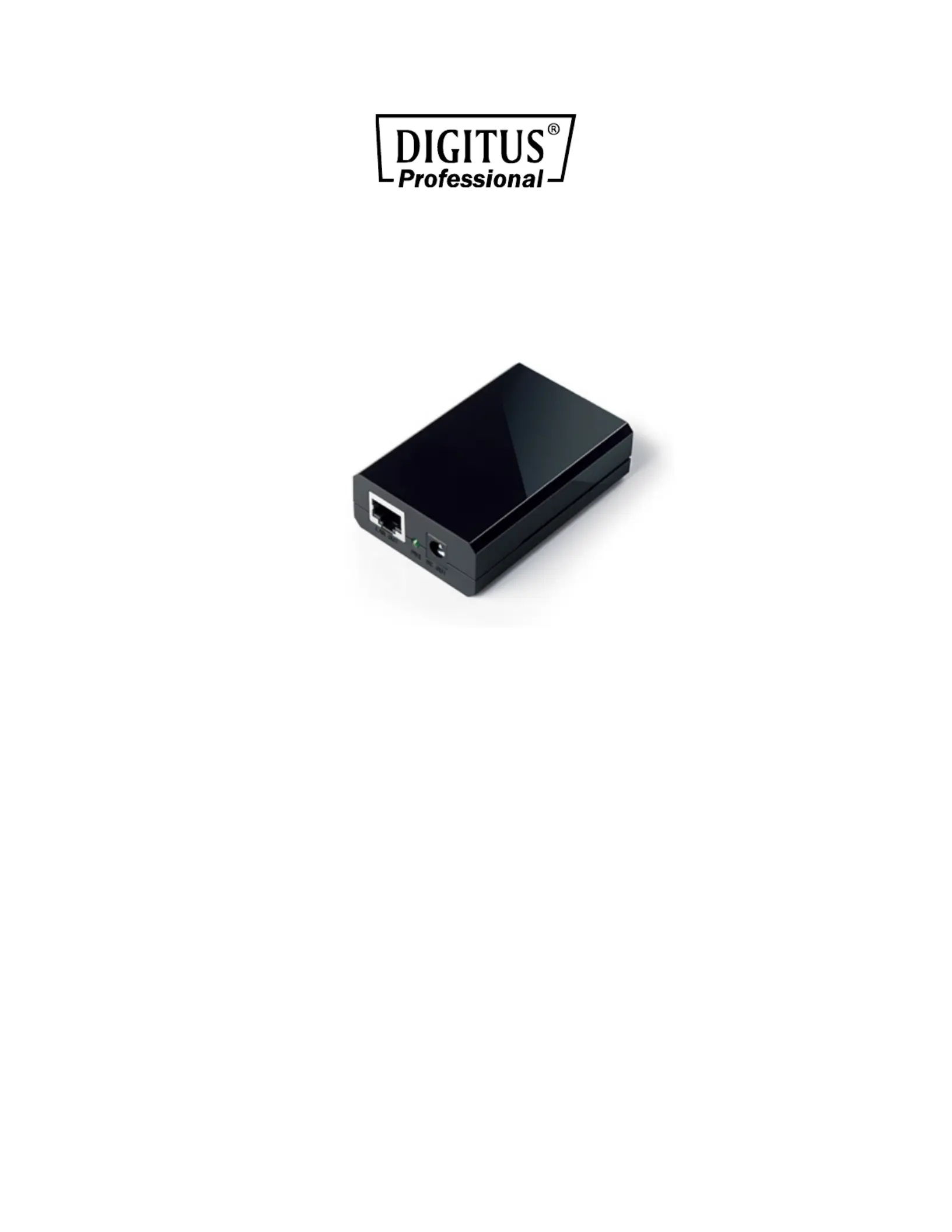

Gigabit PoE af Splitter,

10/100/1000 Mbps, 12W

Manual DN-95204

Features

 Ethernet Speed:10/100/1000Mbps Gigabit Half/Full Duplex

 PoE Standard: IEEE802.3af

 Input: Power + Data In (RJ45)

 Output: Data Out (RJ45), DC Out

 Plug-and-Play Installation - No configuration necessary

 Selectable output voltages: 5V/2A, 9V/1A, 12V/1A

 Splits the 48VDC power over RJ45 Ethernet cable into different DC output

 Status LED on the device (PoE ready/PoE in-use)

 Circuit isolation protection

 Maximum power output up to 12W

 Support wide input voltage range 34VDC to 57VDC

 Thermal cut off

 Operating Temperature: 0 to 40℃

 Dimensions (L x W x H): 80 x 55 x 23 mm

 Weight: 80g

 Color: Black

Description

The DIGITUS PoE Splitter provide data and power via a single Ethernet Cable to

devices, which are not supporting Power over Ethernet. Just connect the input of the

Splitter to a PoE Switch or a PoE Injector and the output side to a non-PoE network

device such as an access point, IP Phone or a Camera to provide Power and Data. The

Extender is self-powered by PoE, so there is no additional power supply needed. The

output voltage can be regulated via a dip switch to 5V, 9V or 12V. So this Splitter

expand your network where you wish to place network device where are no power

outlets available.

Specifications

Item Description

Ports 1 10/100/1000M RJ45 PoE Port (DATA + POWER IN)

1 10/100/1000M RJ45 LAN Port (Only DATA)

1 DC Jack (DC OUT)

Network Media 10Mbps: Cat 3,4,5 Unshielded Cable

100Mbps: Cat 5,5E Unshielded Cable

1000Mbps: Cat 5E, 6 Unshielded Cable

Pass Through Data Rates 10/100/1000 Mbps

Power Output Adjustable 5VDC/2A, or 9VDC/1A or 12VDC/1A

Input Power Requirements DC Input Voltage: 36 to 57 Vac

Indicators PoE ready / in-use

Connectors Shielded RJ-45, EIA 568A and 568B

Dimensions 80x54x24mm

Environmental Conditions Operating Ambient Temperature: 0 to 40℃

Operating Humidity:

Maximum 90%, Non-condensing

Storage Temperature: -20 to 70℃

Storage Humidity:

Maximum 95%, Non-condensing

Regulatory Compliance IEEE 802.3af (PoE)

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

RoHS Compliant, CE, FCC

Electromagnetic FCC Part15, Class B
