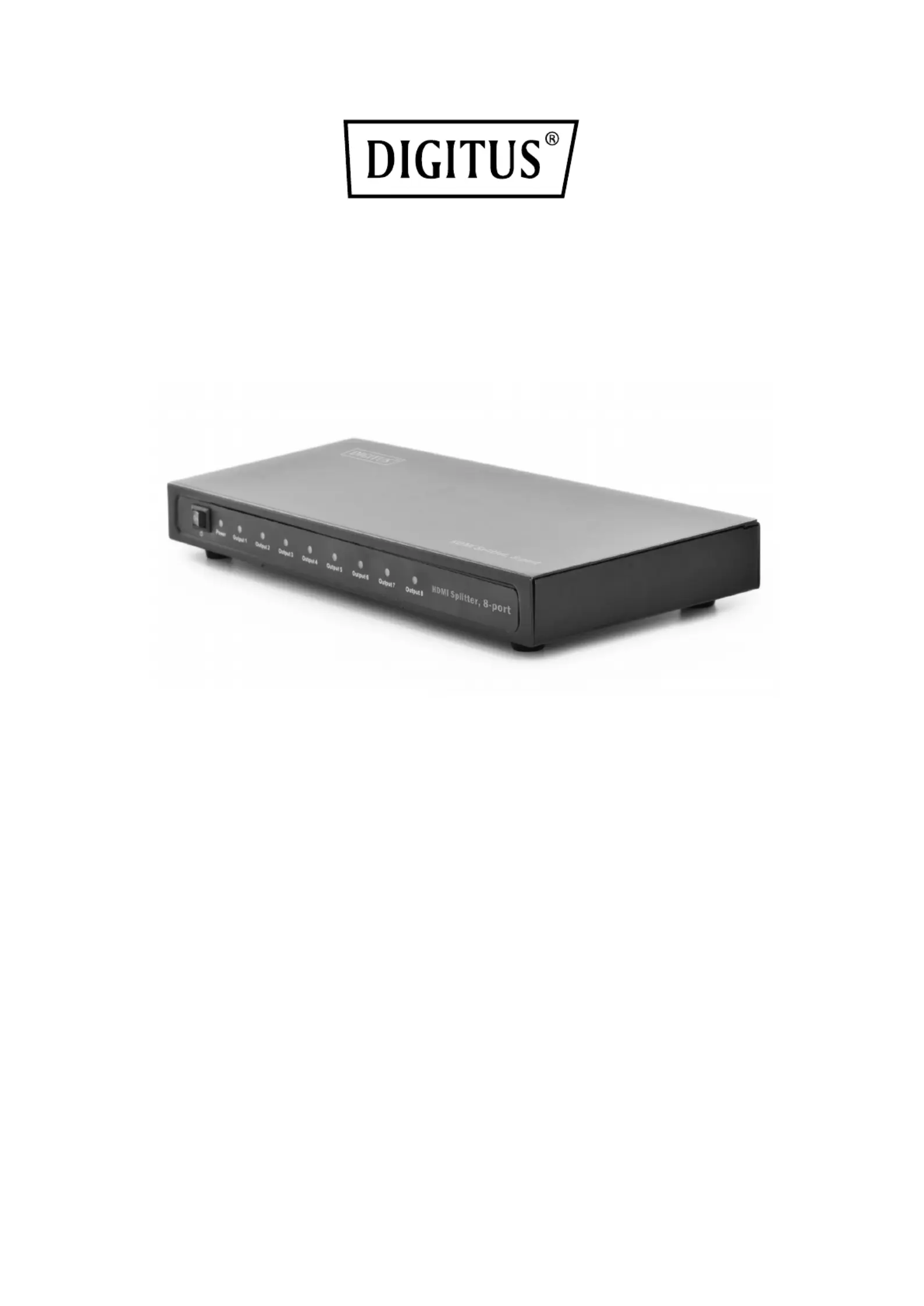

HDMI Splitter, 8- port

M anual

DS- 43302 Rev. 2

1.0 Introduction

This splitter is beautiful in appearance. It distributes the input of the HDMI signal into

eight identical outputs simultaneously. It supports HDCP and complied HDMI 1.3b.

Its video bandwidth can be up to 2.25Gpbs/ 225MHz.

This HDMI Splitter offers solutions for HDTV retail and show site, HDTV, STB,

DVD and Projector factory, noise, space and security concerns, data center control,

information distribution, conference room presentation, school and corporate

training environments

2.0 Features

 Cascaded: Large distribution achieved by cascading the HDMI Amplifier Splitter

 Support highest video resolution 1080p

 High performance up to 2.25Gbps

 Support uncompressed audio such as LPCM

 Support compressed audio such as DTS Digital, Dolby Digital

(including DTS-HD and Dolby True HD)

 Support 3D

3.0 Specifications

Signal Input

HDMI Signal

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p- p(TTL)

Maximum single link range

1920x 1080, 1080p

HDCP Support

1.2

DTV/ HDTV

480i/ 576i/ 480p/ 720p/ 1080i/ 1080p 576p/

HDMI compliance

HDMI 1.3b

Video Amplifier Bandwidth

2.25Gbps/ 225MHz

Vertical Frequency Range

50/ 60Hz

Interlaced Resolutions(50& 60Hz)

480i, 1080i 576i,

Progressive Resolutions(50& 60Hz)

480p, 720p, 1080p 576p,

Operating Temperature

0 ℃to 70℃

Storage Humidity

5% to 90% RH (no condensation)

Power Supply

DC 5V 2A

Power consumption (MAX)

Note: Specification subject to change without notice. is

Produkt Specifikationer

Mærke:	Digitus
Kategori:	Splitter
Model:	DS-43302
Vægt:	730 g
Pakkevægt:	1110 g
Pakkedybde:	240 mm
Pakkebredde:	295 mm
Understøttede videotilstande:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
3D:	Ja
HDCP:	Ja
Maksimal opløsning:	1920 x 1200 pixel
Dimensioner (BxDxH):	258 x 27 x 111 mm
DC-in-stik:	Ja
LED-indikatorer:	Ja
Full HD:	Ja
Harmoniseret systemkode (HS):	85176990
Oprindelsesland:	Kina
Stik 1:	HDMI
Videoudgang:	8x HDMI
Kode i den britiske toldtarif:	85437090
Pakkevolumen:	3894 cm³
Video porttype:	HDMI
Antal videoporte:	8
Båndbredde:	225 MHz
Dolby-teknologier:	DTS-HD, Dolby Digital, Dolby TrueHD
