Side 1/4

INSTALLATION

RCI 9321 / 9323

EASY READ-PROX READER WITH CONTROLLER

www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.comIS9321/23

PCN2210

R10-22GR

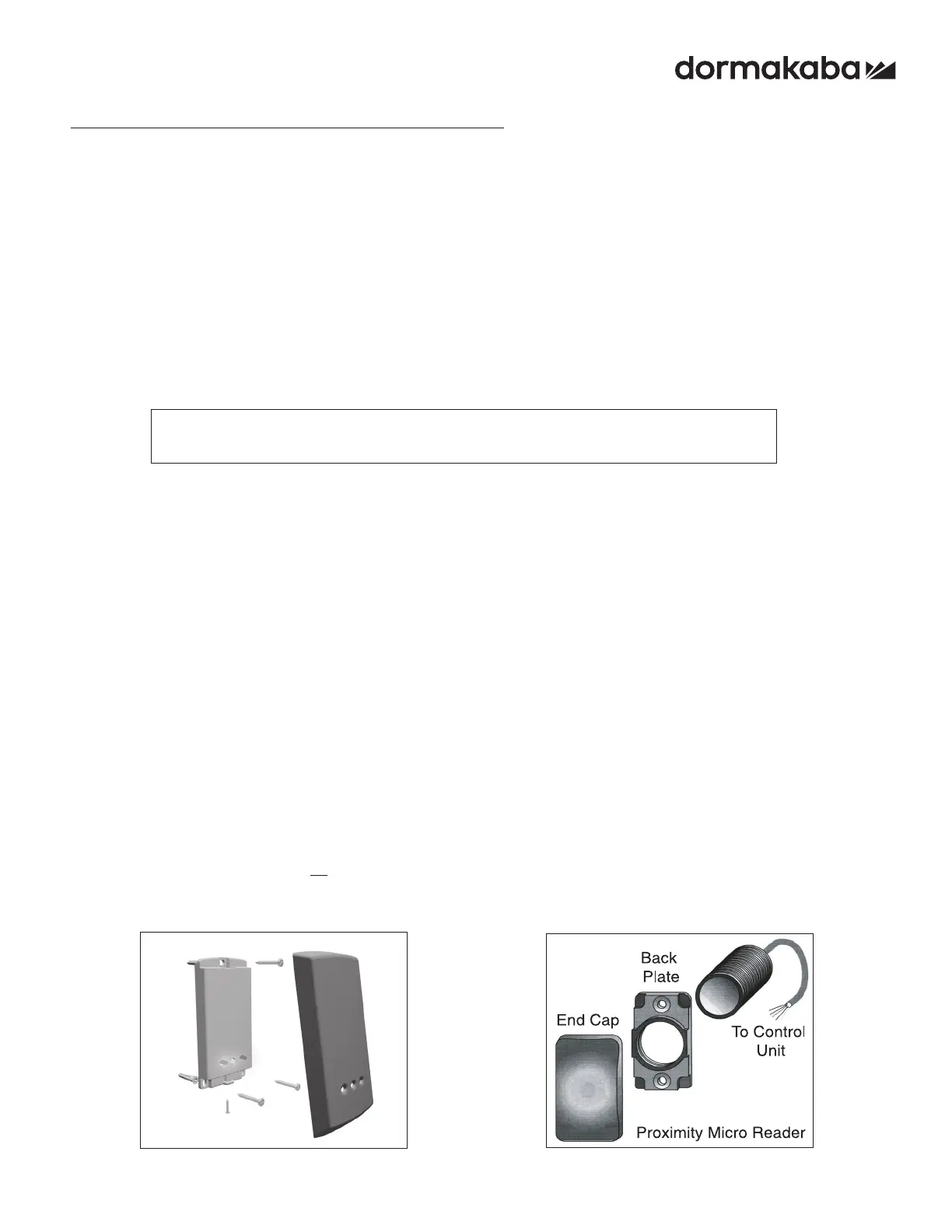

Fig. 1 Fig. 2

Where to install proximity readers

Low to high traffic doors

Interior or exterior doors

Narrow door frames

Inside walls

Architecturally sensitive installations

A black cover is provided with the proximity reader.

A gray Slimline cover is available as 9320/21CAPG.

A white Micro cover is available as 9322/23CAPW.

Where NOT to install proximity readers

Behind metal – RF will not penetrate

On a ferrous metal surface – diminishes read range

Near TVs or monitors – RF will interfere with reader

Note: READER IS WEATHER RESISTANT. , as Do not apply sealant or gaskets to the back of the reader

this may cause condensation build up and adversely affect reader operation.

RCI 9321 Slimline Reader

1. Select appropriate space on wall for reader installation. Ensure

that there are no hidden electrical hazards prior to drilling.

2. Drill hole for reader wiring to pass through.

3. Remove changeable cover from reader if necessary. Cover is

removed by prying off from the bottom of cover only.

4. Pass the readers 8 wires through hole.

5. Hold reader against wall with LED’s at bottom, mark position of

three mounting holes.

6. Drill the three mounting holes as appropriate for the type of

fasteners being used.

7. Install / level the reader and secure with three mounting screws.

8. Install removable cover by engaging top tab and pivoting cover

down over reader. Cover should snap in place when installed

properly.

9. Cover is secured with single screw (provided) on lower edge of

cover. notImportant: Cover screw must be longer than 1/4” or

internal damage will result, voiding warranty.

RCI 9323 Micro Reader

1. Select appropriate space on wall for reader installation. Ensure

that there are no hidden electrical hazards prior to drilling.

2. Holding reader back plate against wall, mark position for two

screw holes and center hole for reader.

3. Drill center hole 13/16” (7/8” max) in diameter. If wall is not

hollow, ensure depth of the hole is at least 2-3/4” deep to

prevent damaging reader/wiring.

4. Drill two smaller mounting holes as appropriate for type of

fastener being used.

5. If necessary, drill hole through wall for wiring to pass through.

6. Screw back plate onto reader until flush with front of reader.

7. Pass reader wires through hole and out other side as

appropriate.

8. Insert reader into hole being careful not to damage wiring.

Secure back plate with two screws provided.

9. Snap the appropriate colored cap over the back plate by

engaging one side and press the other side until it snaps

securely in place.

Mounting Instructions

www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com

Electrical Installation Instructions

1. The reader comes with 16 feet of non-shielded cable. The type of cable used to extend the distance will affect the maximum

distance the reader can be extended.

Switch 2 control board to reader – Maximum cable run = 300 feet (100 m)

2. The micro Reader will be sent out with a RJ45 connector on it. This can be cut off and the cable stripped back ready for wiring.

3. Mount Switch 2 control board into power supply cabinet with stand-offs supplied.

4. Connect reader to control board as shown in Fig. 5. If additional reader is required for in/out operation, wire the reader in

parallel.

5. Reader operates on 12VDC only. Connect reader to power transformer and electric lock as shown in Fig. 6 or Fig. 7.

Note: Unit requires a filtered and regulated power source for proper operation. See our line of power supplies and transformers for

options to use.

Fig. 3 Fig. 4

Micro Reader surface mounted onto wall using back plate.

The plastic end cap is placed over the exposed end of the reader.

Micro Reader surface mounted onto a hollow wall using the back

plate. The plastic end cap is placed over the base plate.

Fig. 5

Proximity Micro Reader Wiring Diagram

Proximity Slimline Reader Wiring Diagram

Note: All installations must conform to local fire, National Building, and Life Safety Codes.
