Constructed of fully formed and welded aluminum, bronze, or steel, the

Crane 2000 Series Revolving Door’s enclosure and canopy are by far the

best in the industry. The 2000’s door wings are equally well built—

fabricated from aluminum, bolted together with heavy-duty fasteners,

then clad with stainless steel or bronze for a sleek appearance. The

façade attachments are fully customizable. Available in a variety of sizes,

finishes, and canopy designs, the 2000 Series revolving door is a robust,

reliable entrance that catches the eye.

Standard 2000-A features include an advanced microprocessor control;

a safety sensor system that monitors the door and its occupants;

heavy-duty bookfold mechanism finished to match the door; and a

smooth-surface canopy without pie wedges or visible supports.

2000-A Series

Automatic Revolving Door

The 2000-A Series features the torque-

driven Crane Modular Drive System.

The reliable advanced microprocessor

control monitors the door and

occupants to ensure safe operation.

• The Crane 2000 Series door is a cut

above the already high standards set

by the Crane 1000 Series door.

• The highly customizable 2000 Series

beats other manufacturer’s products

in construction quality and design

options.

• Every revolving door is designed,

engineered, and fabricated by union

craftsmen in our Chicago factory.

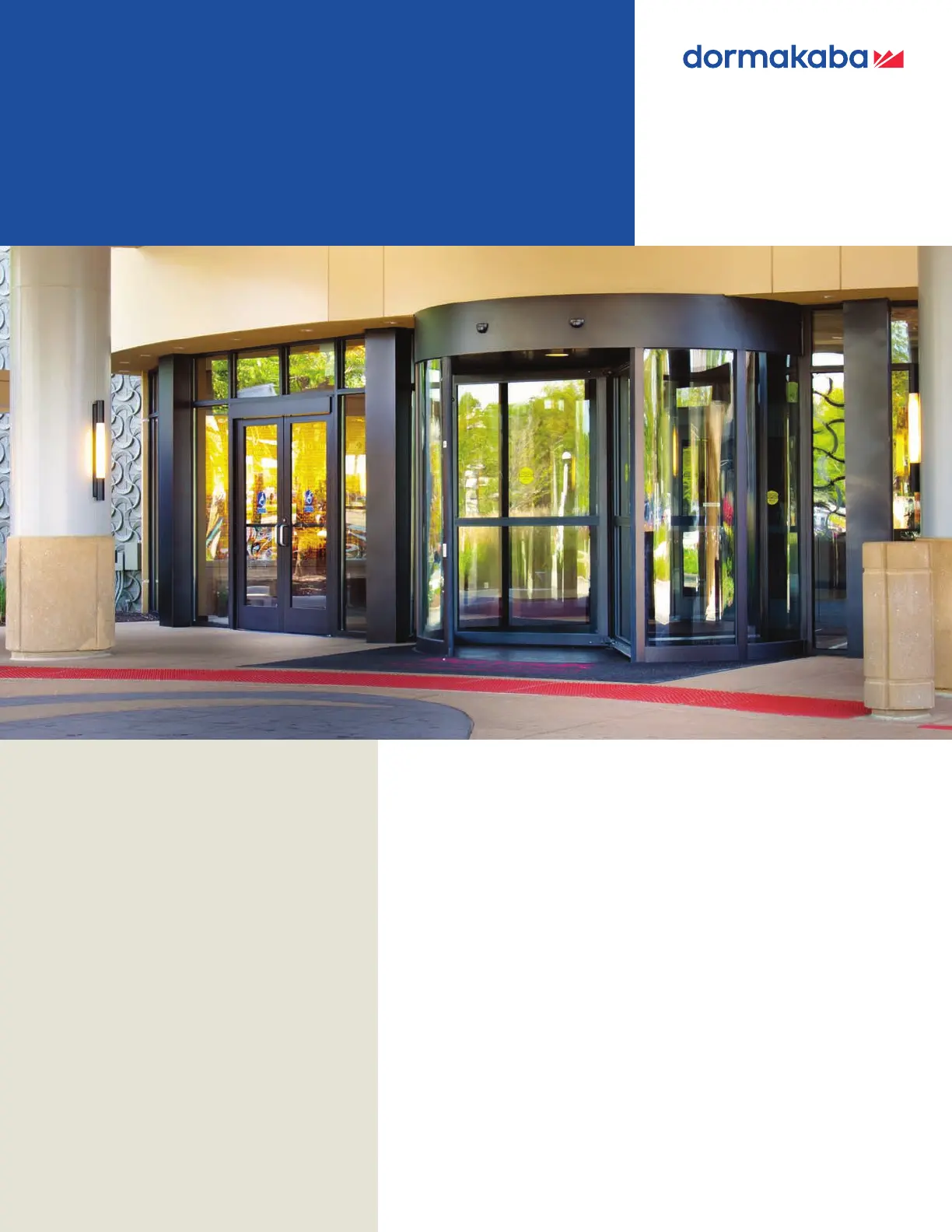

Crane AL2000-A (Complete Entrance)

Marriott - Chicago O‘Hare, Chicago, IL

Architect: Houston/Tyner

2000 Series

Crane Revolving Doors

Crafted Construction

The Crane 2000 Series enclosure and canopy

are fully formed and welded from rolled bronze

or steel, or from true .125 thick aluminum

extrusions and sheet material. After fabrication,

all exposed surfaces are mechanically finished

to eliminate marks caused by rolling and

forming. The anodized, painted, or cladded

finish is then applied; standard colors, as well

as most exotics and metallics are available.

Strongest Door Wing in the Industry

The door wings are made from heavy-duty

aluminum extrusions, carefully cut, fitted, and

tightly bolted together. DORMA’s meticulous

fabrication process makes these door wings

the strongest in the industry.

Automatic Drive System

The 2000-A Series door features the Crane

Modular Drive System, which includes a

reliable advanced micro processor control and

is torque driven for safety. The advanced

control utilizes two redundant obstruction

systems to ensure the ultimate in pedestrian

safety.

Bookfold Mechanism

The heavy-duty Crane bookfold mechanism is

constructed from a high grade chilled bronze

casting. This heavy-duty hardware complies

with all state and federal requirements for

providing emergency egress. The pressure

required to engage the bookfold mechanism is

adjustable to meet local elements such as

stack conditions, negative pressure, and wind

conditions.

Energy Savings

Installing a 2000-A Series revolving door

provides the most sustainable entrance

possible. It allows continuous traffic flow while

creating a barrier to prevent air infiltration.

This barrier separates inside and outside

environments, while enhancing the comfort

of everyone inside and ensuring the owner’s

return on investment.

2000-A Series Options

The 2000-A Series door can be specified to

meet any design. Standard options include

standard diameter sizes, different canopies,

wing configurations, finishes, and building

attachments. Additional options include:

• Welded Floor Grilles — Floor grilles can be

integrated into the revolving door design

to ensure a working system and proper

aesthetics. Fabricated from concentrically

rolled bars of stainless steel, the grilles are

curved to the radius of the revolving door,

which allows the door to spin properly and

minimizes damage to the bottom door

sweep. The heavy-duty floor grilles are

welded and formed from 304 or 316 solid

stainless steel, 1/4“ × 1“ solid bars polished to

a #4 satin finish. The recessed grille pan is

welded from 12 gauge stainless steel and can

have a drainage fitting added. The tolerances

for the grilles aligning concentrically are to a

1/64“ variance.

• Custom Push Bars — Available upon request.

• Ceiling Lights — Crane offers three lighting

options:

- 8" Circline style with fluorescent bulb

- 8" Circline style with LED light

- LED spotlights

Safety is Paramount

All Crane 2000-A Series revolving doors exceed

the ANSI 156.27 standard for automatic

revolving doors. The drive and safety sensor

system continuously monitors the door and its

occupants. Standard safety features include:

• Enclosure wall safety bumper (2 per door)

• Heel guards (1 per wing)

• Wing sensors (1 per wing)

• Breakout detection

• Torque-limited drive system

• Handicap door speed

reduction switches (2)

• Emergency stop button (1)

• Activation

• Force detection

Service and Maintenance

Servicing and maintaining your 2000-A Series

door is vital to ensuring your entrance is fully

functional and secure at all times. dormakaba

offers a variety of service plans to meet your

needs. To find out more, visit:

go.dormakaba.com/ServiceAMER

1 2

Crane

Bookfold

Mechanism

DORMA USA, Inc.

Dorma Drive,

Drawer AC

Reamstown, PA 17567

844-SPECNOW

(844-773-2669)

www.dormakaba.com

NOTE

web site for information

about other Crane

products.
