Every building is a story and the entrance sets the scene. By selecting a

Crane 3000 Series revolving door, the scene is limited only by

imagination and vision. Any building can benefit from the value of a

revolving door; some buildings deserve the stylized choice of the

industry’s signature product, a Crane 3000. Whether the design

includes the old-world elegance of mahogany or a sleek and

contemporary steel finish, or anywhere in between, the 3000 offers

premium construction and unrivaled custom design. The Crane 3000

Series is the only fully formed and welded revolving door in the market

with a 5-year standard warranty.

Standard 3000-M features include the industry’s most reliable manual

speed control; a heavy-duty bookfold mechanism; a smooth-surface

canopy without pie wedges or visible supports; and a rubber and felt

weather sweep that provides a superior air seal.

3000-M Series

Manual Revolving Door

Crane 3000 Series revolving doors

combine premium construction with

unmatched custom design.

• Every Crane 3000 Series revolving door

is a work of art—each unit as unique as

the building it is a part of.

• Virtually every component of the

door—push bars, canopies, glass panels,

and more—can be customized to

complement the building’s exterior and

interior design.

• Every revolving door is designed,

engineered, and fabricated by union

craftsmen in our Chicago factory.

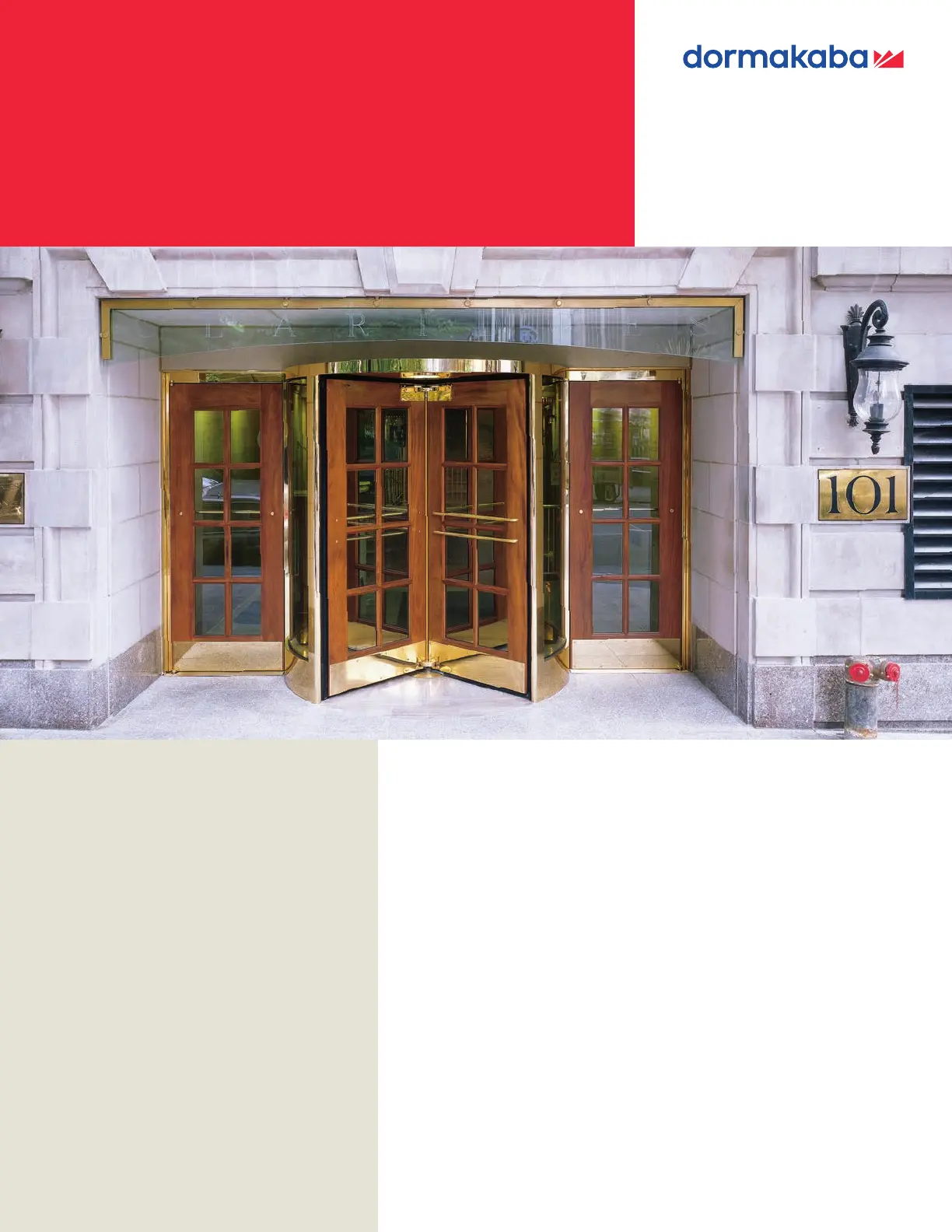

Crane WD3000-M

Claridge‘s Luxury Apartments

New York City, New York

3000 Series

Crane Revolving Doors

Crafted Construction

Crane 3000 Series revolving doors are cut,

formed, and precisely welded from heavy USS

16 gauge stainless steel or 14 B&S gauge bronze

sheet and compatible bar stock to create the

sturdiest structural elements possible. The

exterior surface metal is fully welded to the

interior reinforcing substructure. The four door

wing corners and the interior enclosur post-to-

base connections are all welded. Canopy fascia

are visually seamless and attached to the

ceiling soffit with concealed welds. All exposed

surfaces are ground and polished to eliminate

blemishes from rolling, forming, and welding.

The Only Tailor Made Door Wing on the Market

Fully customizable 3000 Series door wings can

be fabricated from wood (e.g. mahogany or

oak), welded stainless steel or bronze, or some

other custom material. dormakaba's meticu-

lous fabrication process makes Crane door

wings the strongest in the industry.

Speed Control

All Crane manual revolving doors use the same

100:1 gear ratio manual speed control. The

Crane manual speed control is a steel cast,

precision machined, sealed unit mounted in the

canopy. The centrifugal force brake slowly

engages as the door reaches the maximum

allowable RPM set by code. The brake shoes

can be easily adjusted or replaced. Crane's

proven speed control design allows us to

provide the industry's best 10 Year Warranty,

another dormakaba first.

Bookfold

Mechanism

The heavy-duty Crane bookfold mechanism is

constructed from a high grade chilled bronze

casting. This heavy-duty hardware complies

with all state and federal requirements for

providing emergency egress. The pressure

required to engage the bookfold mechanism is

adjustable to meet local elements such as

stack conditions, negative pressure, and wind

conditions.

Air Infiltration

Crane revolving doors provide the most

sustainable entrance possible, allowing

continuous traffic flow while at the same time

creating a barrier to prevent air infiltration. All

our revolving doors are furnished with Crane

factory-made door seals, which are essential

for the barrier blocking inside from outside

environments. The resulting air infiltration

block enhances comfort for everyone inside

and ensures the owner's return on investment.

Crane doors are tested to meet the ASTM

E283 standard, as well as to the even more

stringent ASTM E783. ASTM E283 defines air

infiltration requirments in a lab setting, which

does not replicate real world conditions. So

dormakaba takes the extra step of testing

Crane doors to ASTM E783, which requires

testing in an actual building.

Available Options

• S1 Security Access Control — Features for all

manual Crane doors. See the 3000-S Series

Security Revolving Door brochure for details.

• Welded Floor Grilles—Floor grilles can be

integrated into the revolving door design

to ensure a working system and proper

aesthetics. Fabricated from concentrically

rolled bars of stainless steel, the grilles are

curved to the radius of the revolving door,

which allows the door to spin properly and

minimizes damage to the bottom door

sweep. The heavy-duty floor grilles are

welded and formed from 304 or 316 solid

stainless steel, 1/4" × 1" solid bars polished to

a #4 satin finish. The recessed grille pan is

welded from 12 gauge stainless steel and can

have a drainage fitting added. Tolerances for

the grilles aligning concentrically are to a

1/64" variance. NOTE: Floor grilles are not

included in air infiltration testing.

Self-Positioning Closer "Return to Quarter-

Point"

An add-on feature that automatically resets

the revolving door to its home (X) position

after every use and provides an optimal

weather seal while the door is idle. The Self-

Positioning Closer requires a minimum 6-1/2"

canopy, uses 110VAC, and does not require any

additional safety sensors. This feature is

compliant with ANSI 156.27. The closer works in

conjunction with the Manual Speed Control

and spins the door in a counter-clockwise

direction. The Self-Positioning Closer functions

independently from the Manual Speed Control,

assuring the revolving door's safe and compli-

ant operation at all times even if the closer is

turned off or removed.

1 2

Crane

Bookfold

Mechanism

DORMA USA, Inc.

Dorma Drive,

Drawer AC

Reamstown, PA 17567

844-SPECNOW

(844-773-2669)

www.dormakaba.com

Servicing and maintaining

your 3000-M Series door

is vital to ensuring your

entrance is fully

functional and secure at

all times. dormakaba

offers a variety of service

plans to meet your needs.

To find out more, visit:

Customizable

Options

Push bars

Ceiling lights

Finishes

Dimensions and sizes

Canopy

Glass

NOTE

web site for information

about other Crane

products.

go.dormakaba.com/ServiceAMER

11.16 EO
